MT-8

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

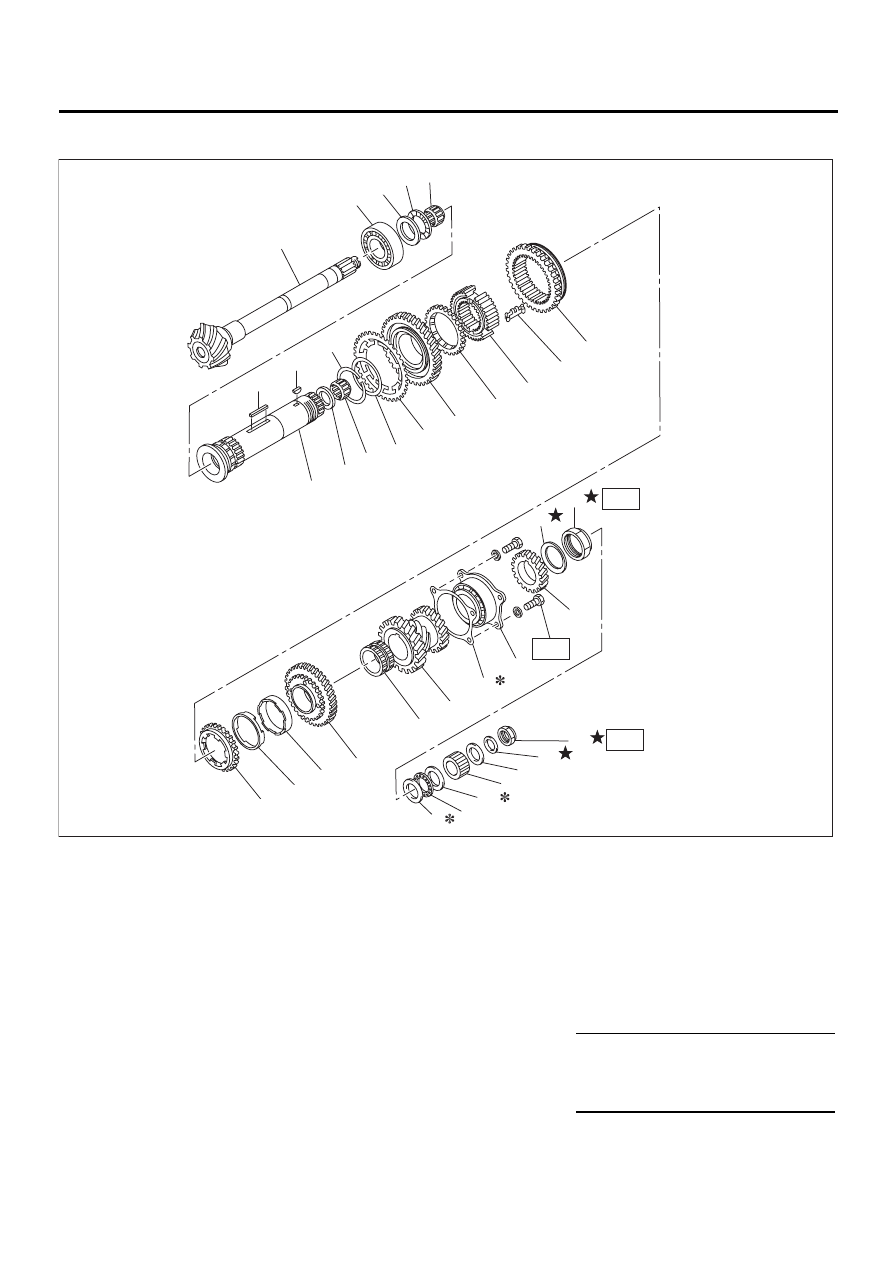

2. DRIVE PINION ASSEMBLY

(1) Drive pinion shaft

(14) 1st driven gear

(28) Lock washer

(2) Roller bearing

(15) Baulk ring

(29) Lock nut

(3) Washer

(16) 1st-2nd synchronizer hub

(30) Washer

(4) Thrust bearing

(17) Insert key

(31) Thrust bearing

(5) Needle bearing

(18) Reverse driven gear

(32) Differential bevel gear sleeve

(6) Driven shaft

(19) Outer baulk ring

(33) Washer

(7) Key

(20) Synchro cone

(34) Lock washer

(8) Woodruff key

(21) Inner baulk ring

(35) Lock nut

(9) Drive pinion collar

(22) 2nd driven gear

(10) Needle bearing

(23) 2nd driven gear bush

Tightening torque: N·m (kgf-m, ft-lb)

(11) Snap ring (Outer)

(24) 3rd-4th driven gear

T1: 30 (3.1, 22.4)

(12) Washer

(25) Driven pinion shim

T2: 120 (12.2, 88.2)

(13) Sub gear (Except for Europe and

Australia models)

(26) Roller bearing

T3: 260 (26.5, 191.7)

(27) 5th driven gear

MT-00351

( 1 )

( 2 )

( 3 )

( 4 ) ( 5 )

( 6 )

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(20)

(21)

(22)

(23)

(24)

(25)

(30)

(31)

(32)

(33)

(34)

(35)

(26)

(27)

(28)

(29)

( 7 )

( 8 )

( 9 )

(10)

(11)

(19)

(30)

T1

T2

T3

MT-9

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

MEMO:

MT-10

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

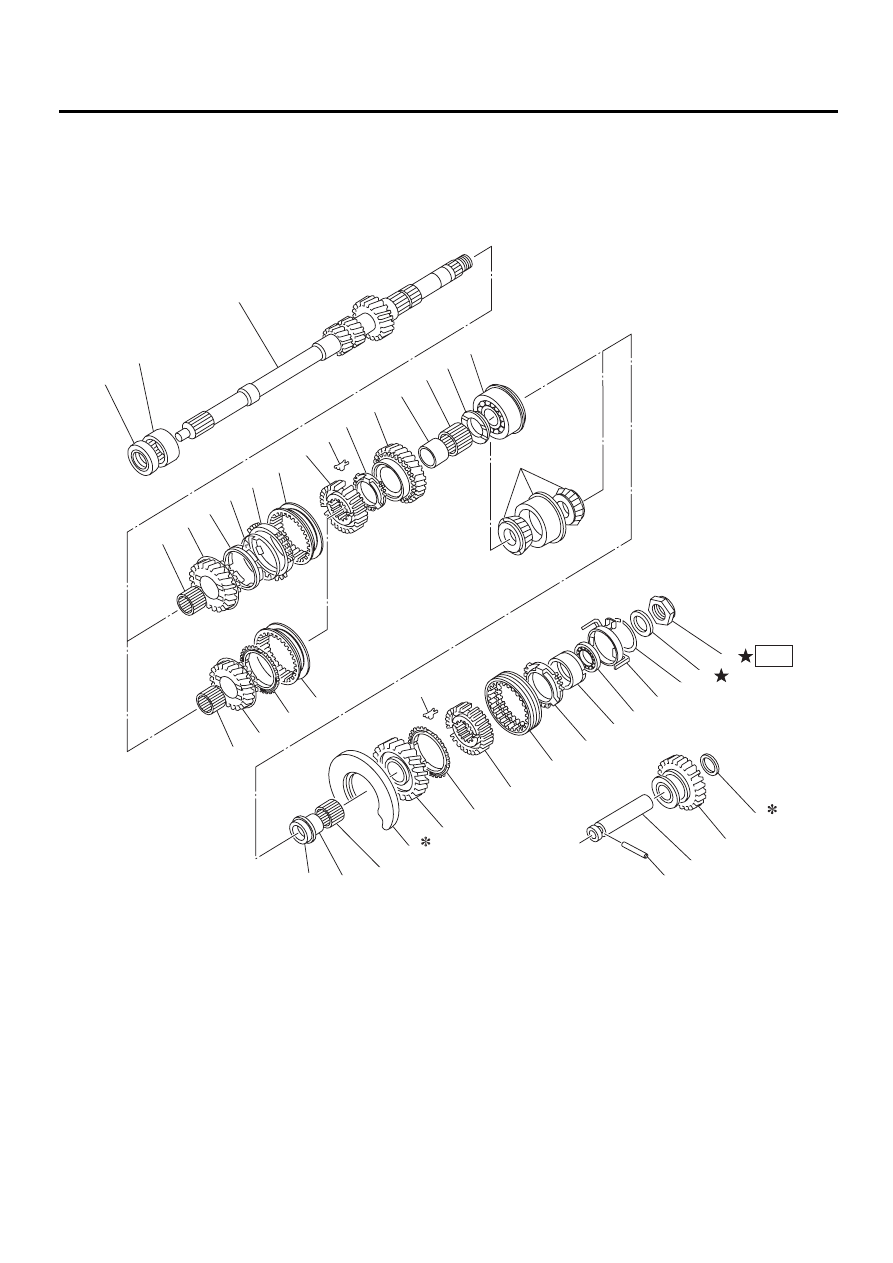

3. MAIN SHAFT ASSEMBLY (SINGLE-RANGE)

T

MT-00380

( 1 )

( 2 )

( 3 )

( 4 )

( 4 )

( 9 )

( 5 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(19)

(18)

(21)

(22)

(23)

(24)

(25)

(27)

(26)

(28)

(29)

(30)

(31)

(32)

(33)

(34)

(35)

(37)

(36)

(38)

(39)

(20)

MT-11

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

(1) Oil seal

(14) 4th needle bearing race

(30) Rev synchro cone

(2) Needle bearing

(15) Needle bearing

(31) Ball bearing

(3) Transmission main shaft

(16) 4th gear thrust washer

(32) Synchro cone stopper

(4) Needle bearing

(17) Ball bearing (Non-TURBO)

(33) Snap ring

(5) 3rd drive gear

(18) Taper roller bearing (TURBO)

(34) Lock washer

(6) Inner baulk ring (Except 2.0 L

SOHC)

(19) Baulk ring (2.0 L SOHC)

(35) Lock nut

(20) 5th gear thrust washer

(36) Reverse idler gear shaft

(7) 3rd synchro cone (Except 2.0 L

SOHC)

(21) 5th needle bearing race

(37) Straight pin

(22) Needle bearing

(38) Reverse idler gear

(8) Outer baulk ring (Except 2.0 L

SOHC)

(23) Main shaft rear plate

(39) Washer

(24) 5th drive gear

(9) 3rd-4th coupling sleeve

(25) 5th baulk ring

Tightening torque: N·m (kgf-m, ft-lb)

(10) 3rd-4th synchronizer hub

(26) 5th-Rev shifting insert key

T: 118 (12.0, 86.8)

(11) 3rd-4th shifting insert key

(27) 5th-Rev synchronizer hub

(12) 4th baulk ring

(28) 5th-Rev coupling sleeve

(13) 4th drive gear

(29) Rev baulk ring
