Subaru Legacy III (2000-2003 year). Manual - part 609

MT-4

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

6. MAIN SHAFT

Snap ring (Outer-25) to synchronizer hub clear-
ance

0.060 — 0.100 mm (0.0024 — 0.0039 in)

7. REVERSE IDLER GEAR

Adjustment of reverse idler gear position
Reverse idler gear to transmission case (LH) wall
clearance

6.0 — 7.5 mm (0.236 — 0.295 in)

After installing a suitable reverse shifter lever, ad-
just reverse idler gear to transmission case wall
clearance to within 0 to 0.5 mm (0 to 0.020 in) using
washers.

8. SHIFTER FORK AND ROD

Select suitable shifter forks so that both coupling
sleeve and reverse driven gear are positioned in
the center of their synchromesh mechanisms.
Rod end clearance

A: 1st-2nd — 3rd-4th

0.4 — 1.4 mm (0.016 — 0.055 in)

B: 3rd-4th — 5th

0.5 — 1.3 mm (0.020 — 0.051 in)

9. TRANSFER CASE

Neutral position adjustment

Reverse check plate adjustment

Snap ring (Outer-25)

Part No.

Thickness

mm (in)

Part No.

Thickness

mm (in)

805025051

2.42 (0.0953)

805025055

2.62 (0.1031)

805025052

2.47 (0.0972)

805025056

2.67 (0.1051)

805025053

2.52 (0.0992)

805025057

2.72 (0.1071)

805025054

2.57 (0.1012)

805025058

2.37 (0.0933)

Reverse shifter lever

Part No.

Mark

Remarks

32820AA070

Further from case wall

32820AA080

Standard

32820AA090

Closer to the case wall

Washer (20.5

Part No.

Thickness

mm (in)

Part No.

Thickness

mm (in)

803020151

0.4 (0.016)

803020154

1.9 (0.075)

803020152

1.1 (0.043)

803020155

2.3 (0.091)

803020153

1.5 (0.059)

—

1st-2nd shifter fork

Part No.

Mark

Remarks

32804AA060

Approach to 1st gear
by 0.2 mm (0.008 in)

32804AA070

No mark

Standard

32804AA080

Approach to 2nd gear
by 0.2 mm (0.008 in)

3rd-4th shifter fork

Part No.

Mark

Remarks

32810AA061

Approach to 4th gear by 0.2 mm
(0.008 in)

32810AA071

No mark Standard

32810AA101

Approach to 3rd gear by 0.2 mm
(0.008 in)

5th shifter fork (Non-TURBO model)

Part No.

Mark

Remarks

32812AA201

Approach to 5th gear by 0.2 mm
(0.008 in)

32812AA211

No mark Standard

32812AA221

Become distant from 5th gear by
0.2 mm (0.008 in)

5th shifter fork (TURBO model)

Part No.

Mark

Remarks

32812AA231

Approach to 5th gear by 0.2 mm
(0.008 in)

32812AA241

No mark Standard

32812AA251

Become distant from 5th gear by
0.2 mm (0.008 in)

Adjustment shim

Part No.

Thickness mm (in)

32190AA000

0.15 (0.0059)

32190AA010 0.30

(0.0118)

Reverse accent shaft

Part No.

Mark

Remarks

32188AA090

Neutral position is closer to 1st.

32188AA100

Standard

32188AA110

Neutral position is closer to
reverse gear.

Reverse check plate

Part No.

Mark

Angle

Remarks

32189AA000

Arm stops closer to 5th
gear.

32189AA010

Arm stops closer to 5th
gear.

33189AA020

Arm stops in the center.

32189AA030

Arm stops closer to
reverse gear.

32189AA040

Arm stops closer to
reverse gear.

MT-5

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

10.EXTENSION ASSEMBLY

Thrust washer (50

t) to taper roller bearing

table outer race side clearance

0.2 — 0.3 mm T (0.0008 — 0.012 in T)

NOTE:
Clearance should be within the specified value.

Thrust washer to center differential side clearance

0.15 — 0.35 mm (0.0059 — 0.0138 in)

11.FRONT DIFFERENTIAL

Bevel gear to pinion backlash

0.13 — 0.18 mm (0.0051 — 0.0071 in)

Pinion shaft to axle drive shaft clearance

0 — 0.2 mm (0 — 0.008 in)

12.TRANSFER DRIVE GEAR

Snap ring (Outer-30) to ball bearing clearance

0.01 — 0.15 mm (0.004 — 0.0050 in)

Thrust washer (50

Part No.

Thickness mm (in)

803050060

0.50 (0.0197)

803050061

0.55 (0.0217)

803050062

0.60 (0.0236)

803050063

0.65 (0.0256)

803050064

0.70 (0.0276)

803050065

0.75 (0.0295)

803050066

0.80 (0.0315)

803050067

0.85 (0.0335)

803050068

0.90 (0.0354)

803050069

0.95 (0.0374)

803050070

1.00 (0.0394)

803050071

1.05 (0.0413)

803050072

1.10 (0.0433)

803050073

1.15 (0.0453)

803050074

1.20 (0.0472)

803050075

1.25 (0.0492)

803050076

1.30 (0.0512)

803050077

1.35 (0.0531)

803050078

1.40 (0.0551)

803050079

1.45 (0.0571)

Thrust washer

Part No.

Thickness mm (in)

803036050

0.9 (0.035)

803036054

1.0 (0.039)

803036051

1.1 (0.043)

803036055

1.2 (0.047)

803036052

1.3 (0.051)

803036056

1.4 (0.055)

803036053

1.5 (0.059)

803036057

1.6 (0.063)

803036058

1.7 (0.067)

Washer (38.1

Part No.

Thickness

mm (in)

Part No.

Thickness

mm (in)

803038021

0.925 —

0.950 (0.0364

— 0.0374)

803038023

1.025 —

1.050 (0.0404

— 0.0413)

803038022

0.975 —

1.000 (0.0384

— 0.0394)

—

Snap ring (Outer-28)

Part No.

Thickness

mm (in)

Part No.

Thickness

mm (in)

805028011

1.05 (0.0413)

805028012

1.20 (0.0472)

Snap ring (Outer-30)

Part No.

Thickness

mm (in)

805030041

1.53 (0.0602)

805030042

1.65 (0.0650)

805030043

1.77 (0.0697)

MT-6

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

B: COMPONENT

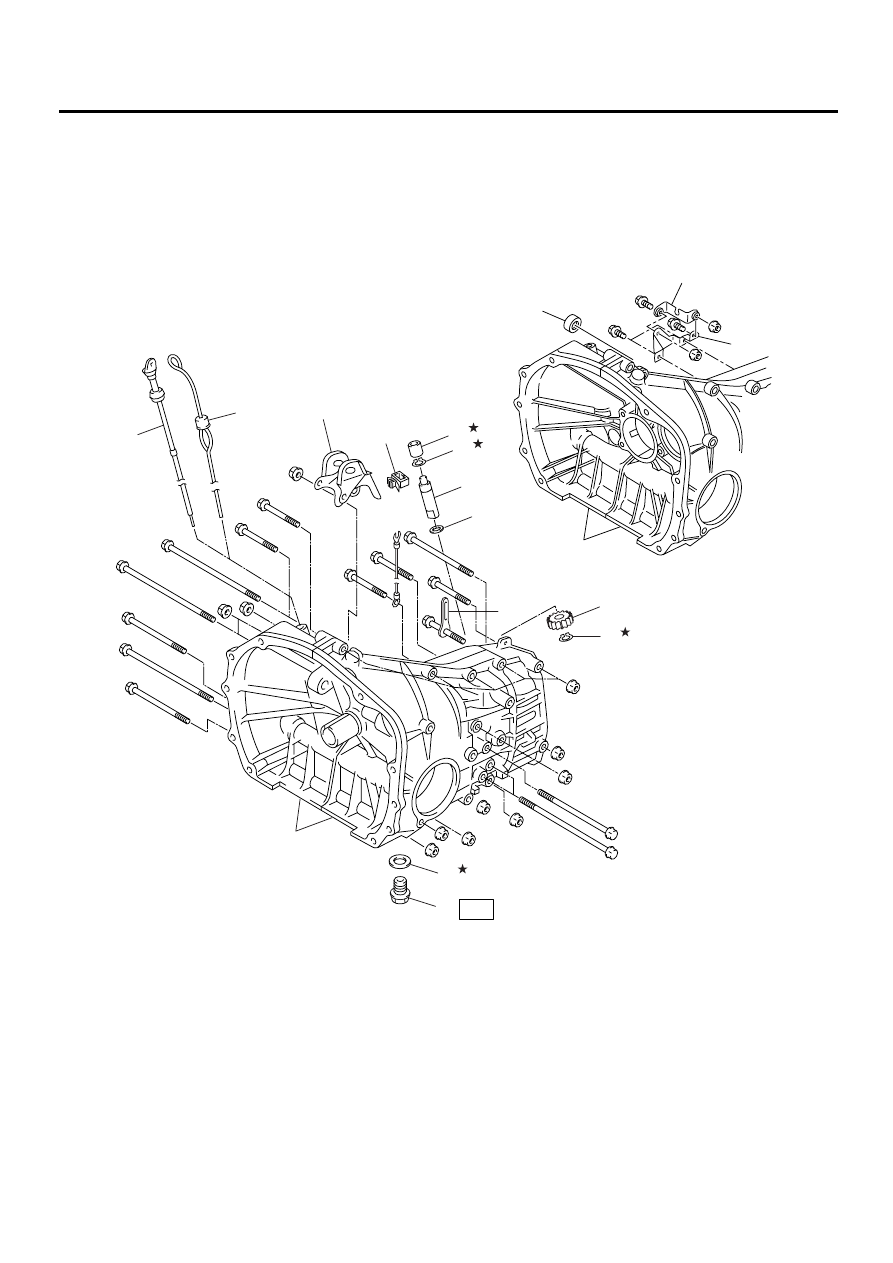

1. TRANSMISSION CASE

MT-00002

(3)

(1)

(2)

(4)

(5)

(12)

(10)

(11)

(18)

(13)

(9)

(8)

(7)

(6)

(16)

(14)

(15)

(17)

MT-7

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

• Transmission case tightening torque

(1) Transmission case ASSY

(11) Pitching stopper bracket

(17) High-low cable bracket B (Dual-

range)

(2) Gasket

(12) Clip (Dual-range)

(3) Drain plug

(13) Oil level gauge (Non-TURBO

model)

(18) Oil level gauge (TURBO model)

(4) Snap ring (Outer)

(5) Speedometer driven gear

(14) Oil seal (Dual-range)

Tightening torque: N·m (kgf-m, ft-lb)

(6) Washer

(15) Transmission case ASSY (Dual-

range)

T: 44 (4.5, 32.5)

(7) Speedometer shaft

(8) Snap ring (Outer)

(16) High-low cable bracket A (Dual-

range)

(9) Oil seal

(10) Clamp

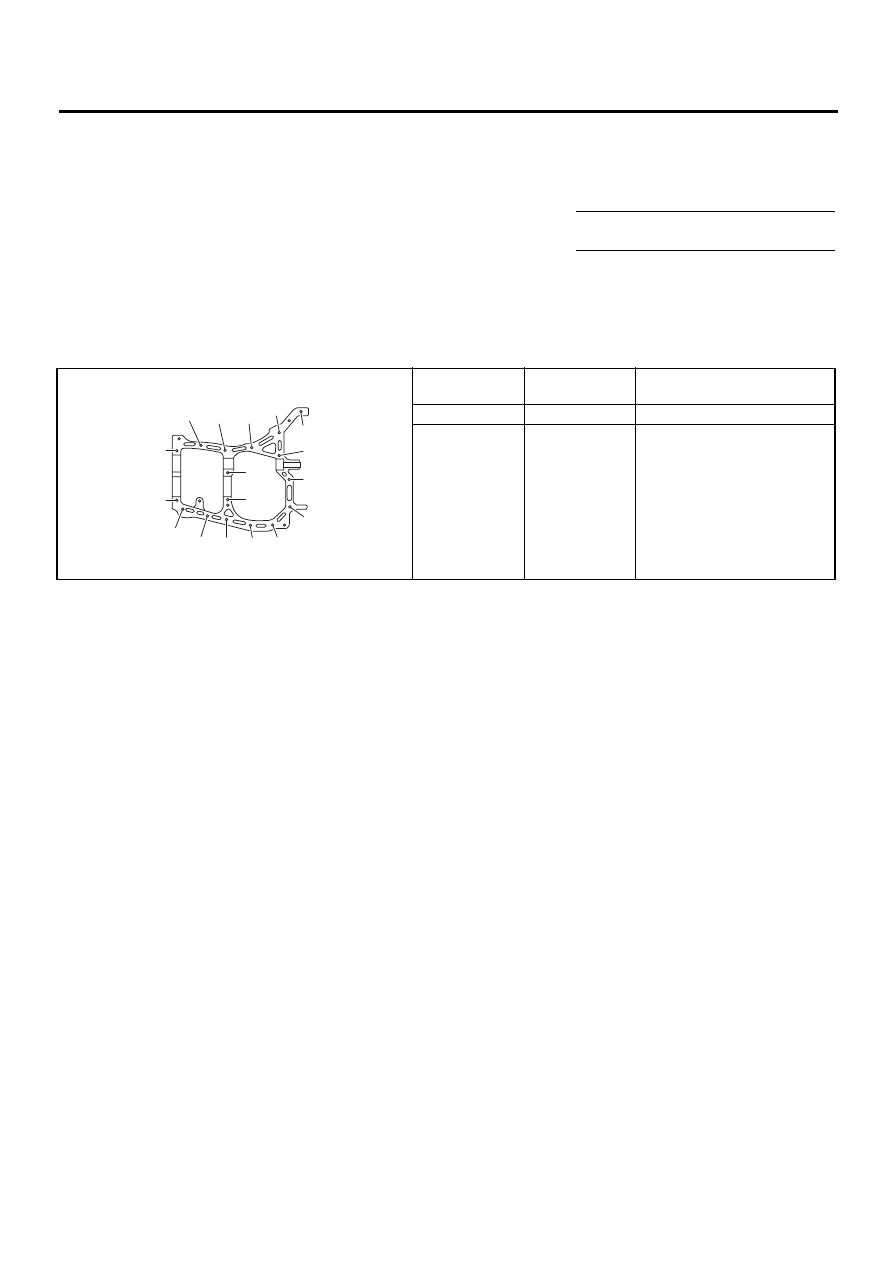

Bolt No.

Bolt size

Tightening torque: N·m (kgf-m,

ft-lb)

<5> to <15>

8 mm

25 (2.5, 18.1)

<1> to <4>

<16>, <17>

10 mm

39 (4.0, 28.9)

MT-00003

( 9 ) ( 5 ) ( 7 )

(16)

(17)

( 3 )

( 4 )

(11)

( 1 )

( 2 )

( 6 ) ( 8 )

(10)

(12)

(14)

(13)

(15)
