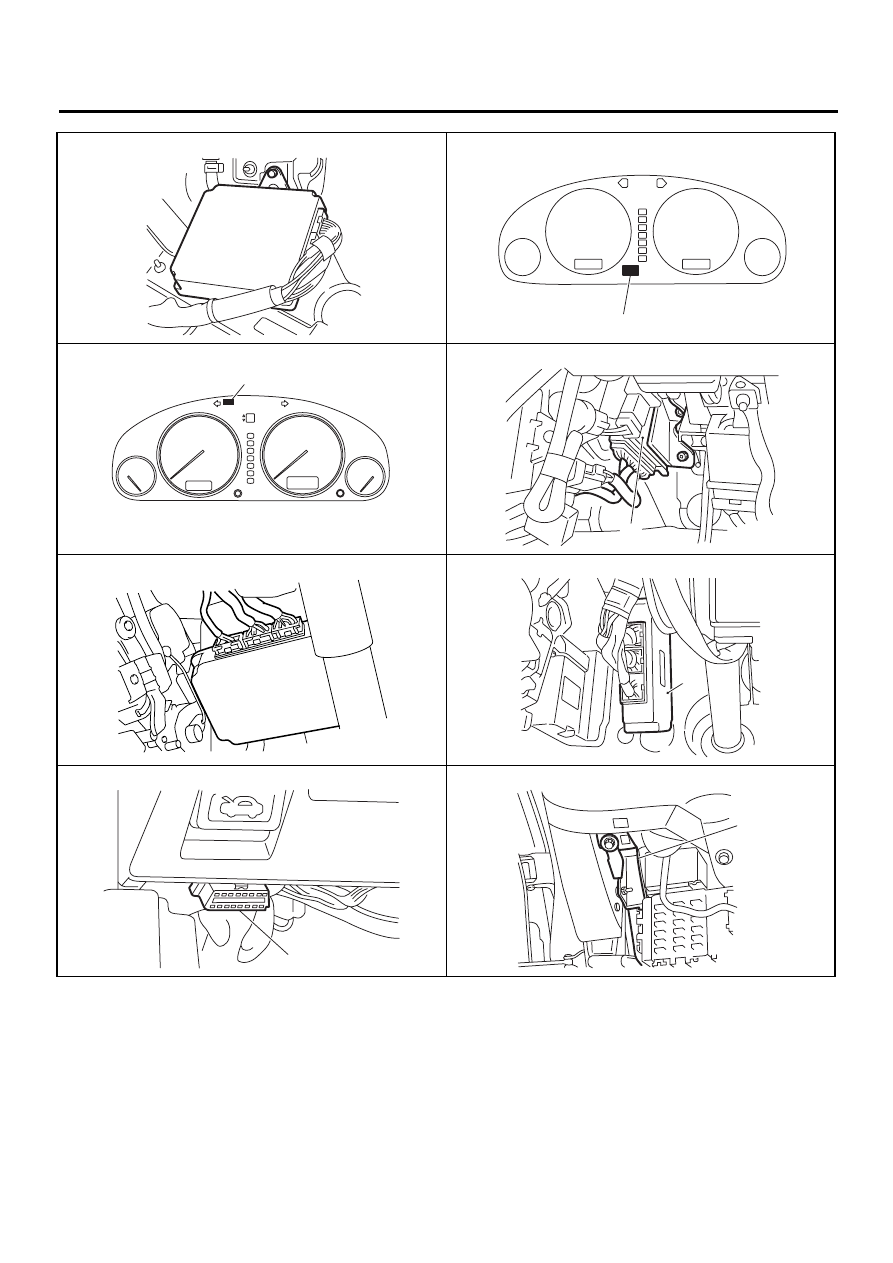

AT-10

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

AT-00323

( 1 )

AT-00764

( 2 )

AT-00765

( 3 )

AT-00766

( 4 )

AT-00767

( 5 )

AT-00768

( 6 )

AT-00769

( 7 )

AT-00770

( 8 )

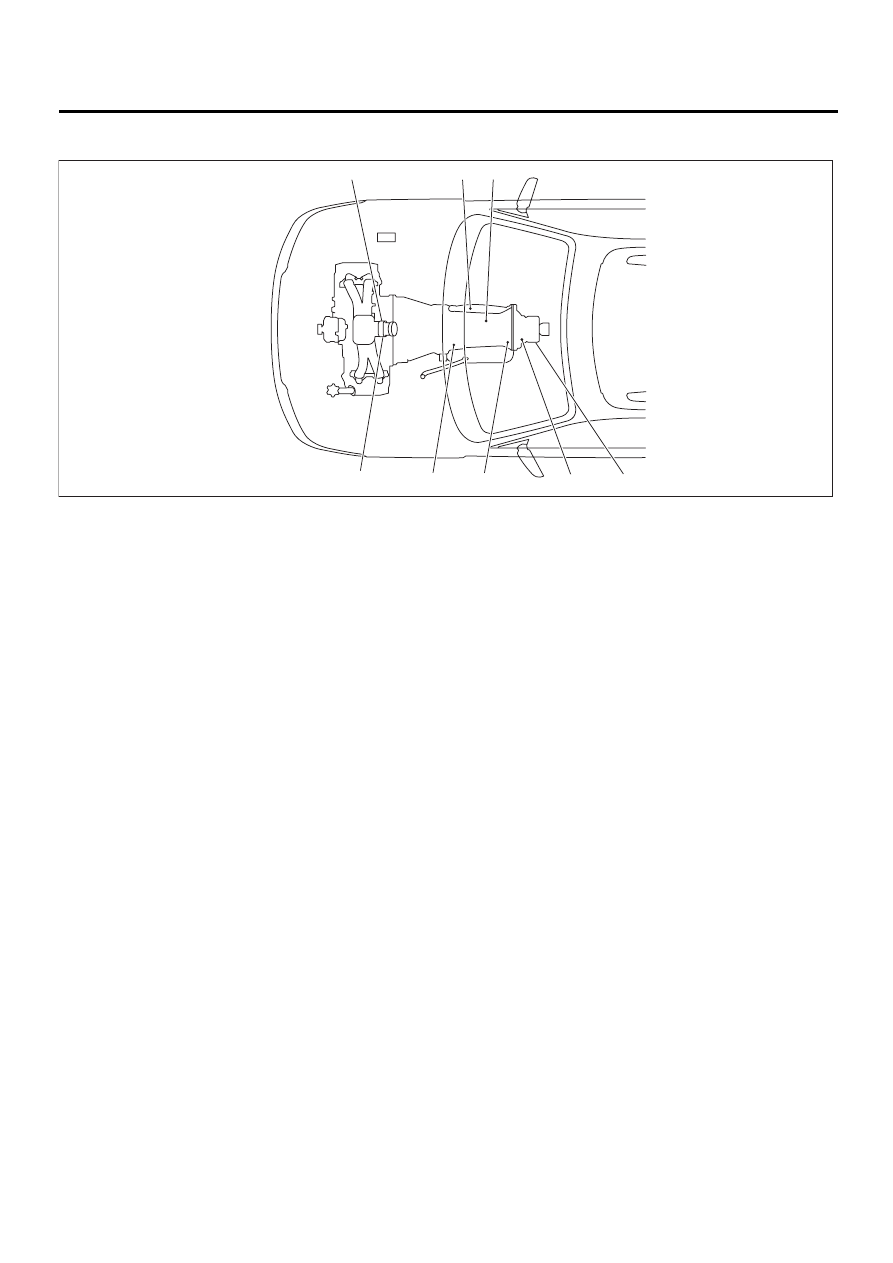

AT-11

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

2. SENSOR

(1) Throttle position sensor

(Except 3.0 L model)

(4) Inhibitor switch

(7) Torque converter turbine speed

signal

(5) Rear vehicle speed sensor (with-

out VDC system or SPORT shift)

(2) Throttle sensor (3.0 L model)

(8) ATF temperature sensor

(3) Front vehicle speed sensor

(6) Rear vehicle speed sensor (with

SPORT shift)

AT-00771

( 1 )

( 2 )

( 4 )

( 6 )

( 5 )

( 7 )

( 8 )

( 3 )

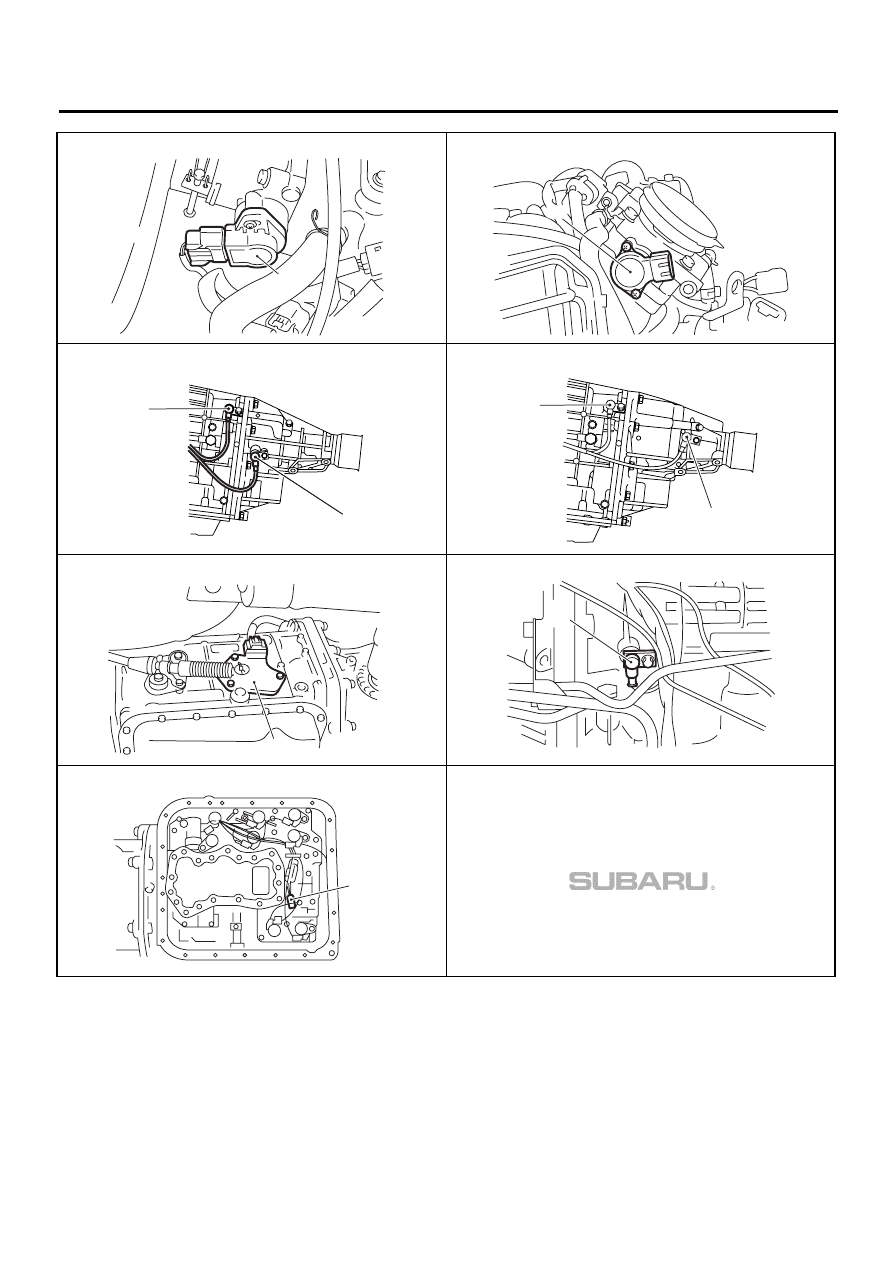

AT-12

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

AT-00631

( 1 )

AT-00635

( 2 )

AT-00632

( 3 )

( 5 )

AT-00636

( 3 )

( 6 )

AT-00633

( 4 )

AT-00637

( 7 )

AT-00634

( 8 )

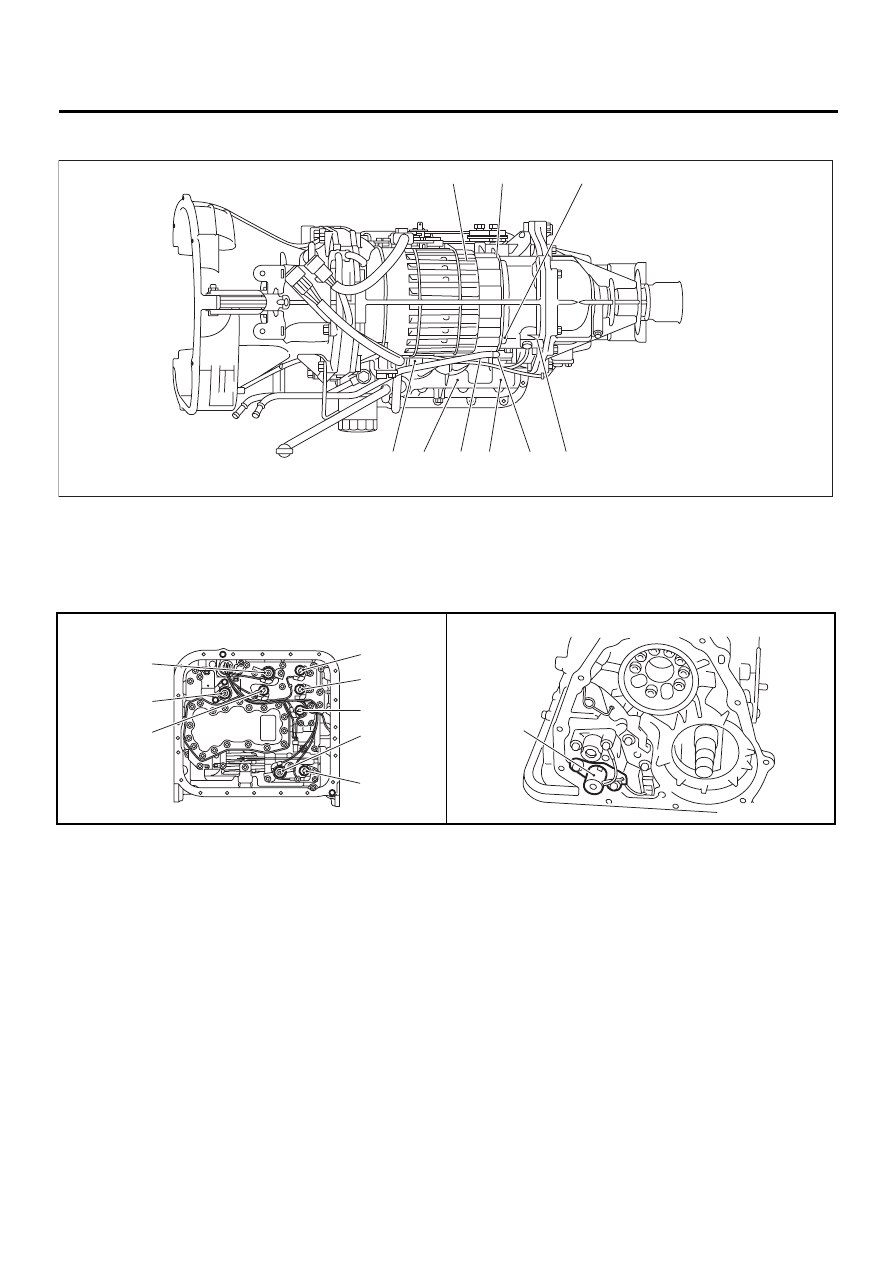

AT-13

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

3. SOLENOID

(1) Solenoid 1

(4) Low clutch timing solenoid

(7) 2-4 brake timing solenoid

(2) Solenoid 2

(5) Lock-up duty solenoid

(8) Transfer duty solenoid

(3) Line pressure duty solenoid

(6) 2-4 brake duty solenoid

(9) Sport shift solenoid (with SPORT

shift)

AT-00639

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 8 )

( 6 )

( 7 )

( 9 )

AT-00912

( 4 )

( 5 )

( 3 )

( 1 )

( 6 )

( 7 )

( 9 )

( 2 )

AT-00335

( 8 )
