Subaru Legacy III (2000-2003 year). Manual - part 568





AT-6

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

GENERAL DESCRIPTION

3. General Description

A: CAUTION

• Supplemental Restraint System “Airbag”
Airbag system wiring harness is routed near the
transmission control module (TCM).

CAUTION:
• All airbag system wiring harness and con-
nectors are colored yellow. Do not use electri-
cal test equipment on these circuit.
• Be careful not to damage airbag system wir-
ing harness when performing diagnostics and
servicing the TCM.
• Measurement
When measuring voltage and resistance of the
ECM, TCM or each sensor, use a tapered pin with
a diameter of less than 0.64 mm (0.025 in) in order
to avoid poor contact. Do not insert the pin more
than 0.65 mm (0.0256 in).

B: INSPECTION

1. BATTERY

Measure battery voltage and specific gravity of
electrolyte.

Standard voltage: 12 V or more

Specific gravity: Above 1.260

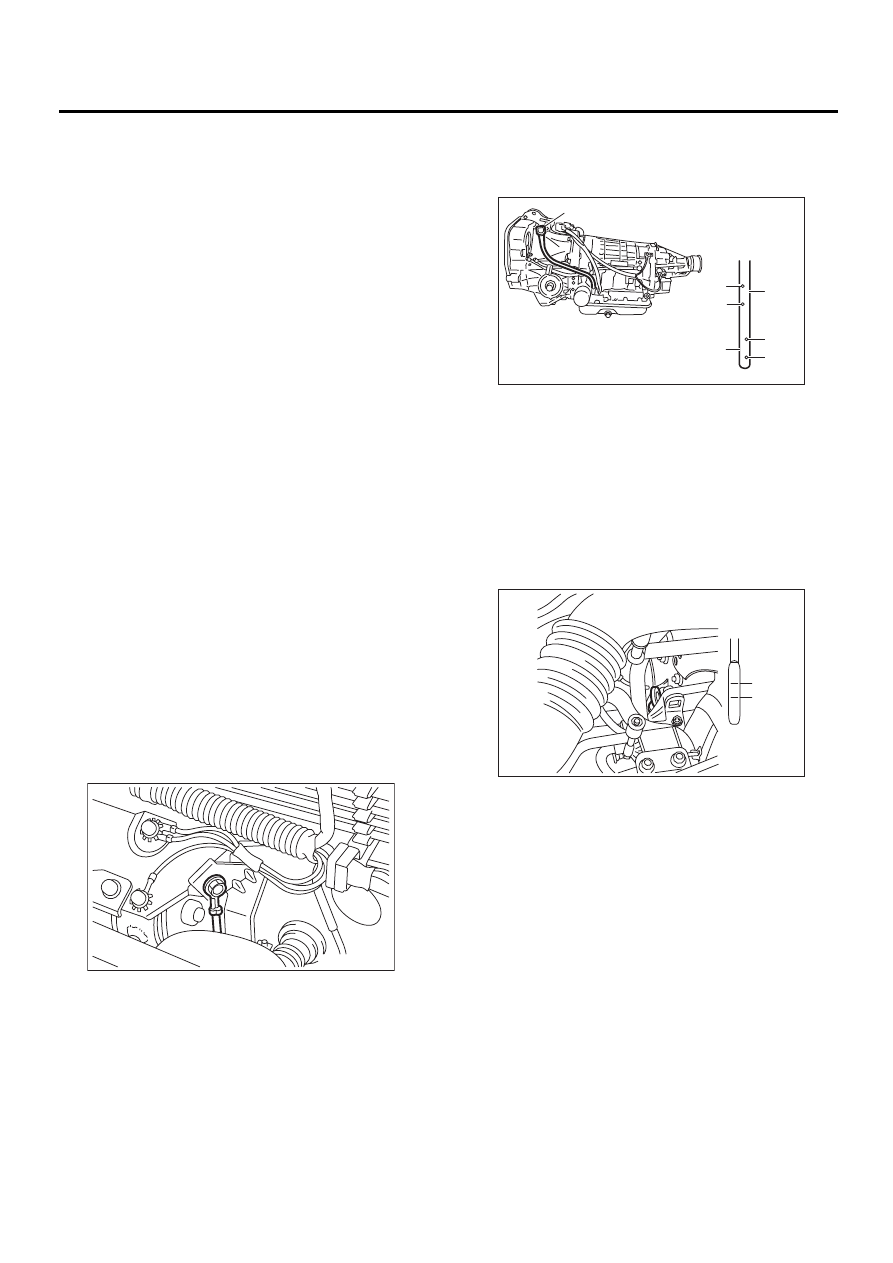

2. TRANSMISSION GROUND

Make sure that the ground terminal bolt is tightened
securely.
• Chassis side

Tightening torque:

13 N·m (1.3 kgf-m, 9.4 ft-lb)

3. ATF LEVEL

Make sure that ATF level is in the specification.
<Ref. to AT-30, Automatic Transmission Fluid.>

4. FRONT DIFFERENTIAL OIL LEVEL

Make sure that front differential oil level is in the
specification.

AT-00621

(A) Level gauge

(B) Inspection position at ”HOT”

(C) Upper level

(D) Lower level

(E) Inspection position at ”COLD”

(A) Upper level

(B) Lower level

PI-00105

COLD

LF

HOT

LF

( A )

( C )

( D )

( C )

( D )

( E )

( B )

AT-00317

LF

( B )

( A )

AT-7

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

GENERAL DESCRIPTION

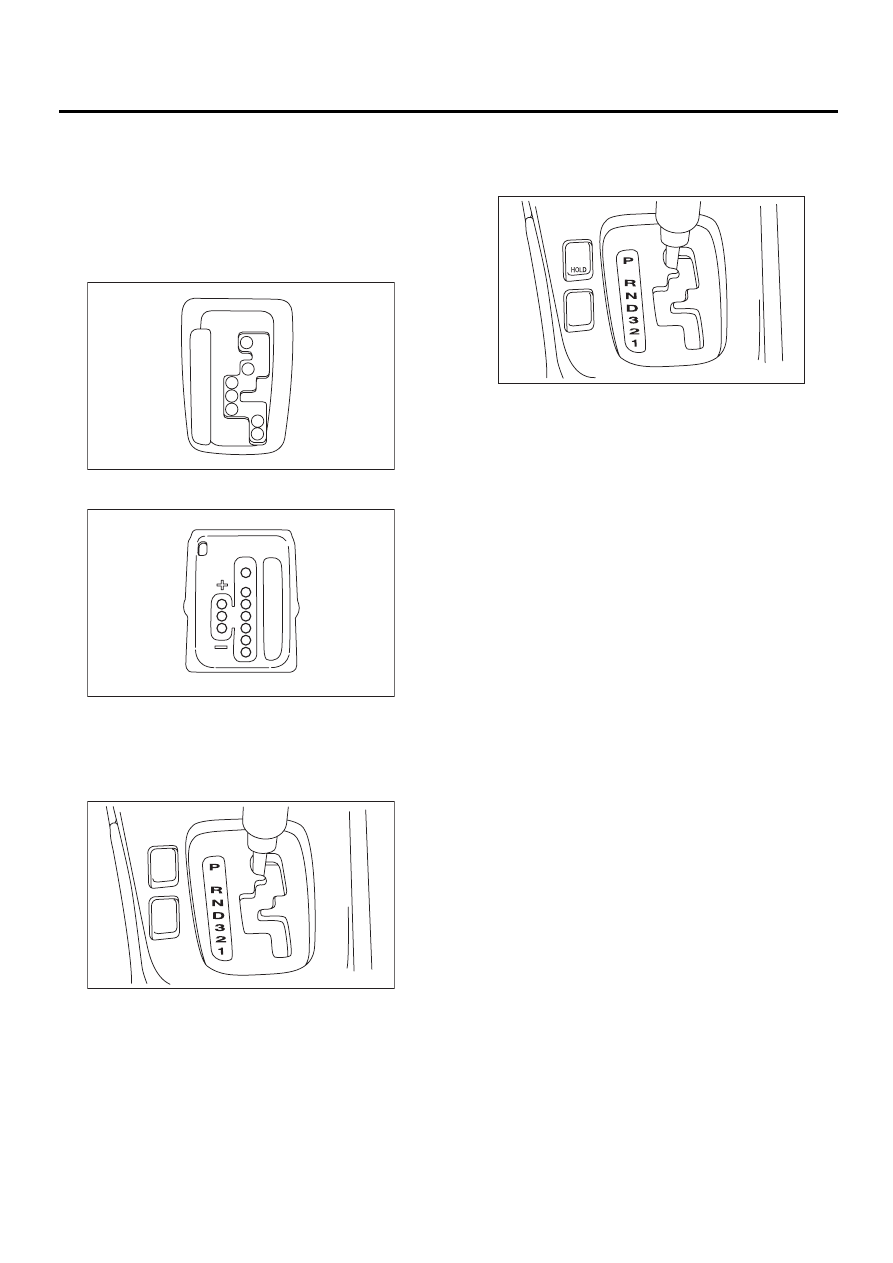

5. OPERATION OF SHIFT SELECT LEVER

Make sure there is no abnormal noise, dragging or
contact pattern in each select lever range.

WARNING:
Stop the engine while checking operation of se-
lect lever.

• Without SPORT shift

• With SPORT shift

6. POWER SWITCH

Make sure that POWER indicator light in combina-
tion meter comes ON, when turning power switch
to ON.

7. HOLD SWITCH

Make sure that HOLD indicator light in combination
meter comes ON, when turning hold switch to ON.

AT-00413

P

R

N
D
3
2
1

AT-00761

 1

 2

 P

 R

 N

 D
 3

AT-00793

P

OWE

R

AT-00794

AT-8

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

GENERAL DESCRIPTION

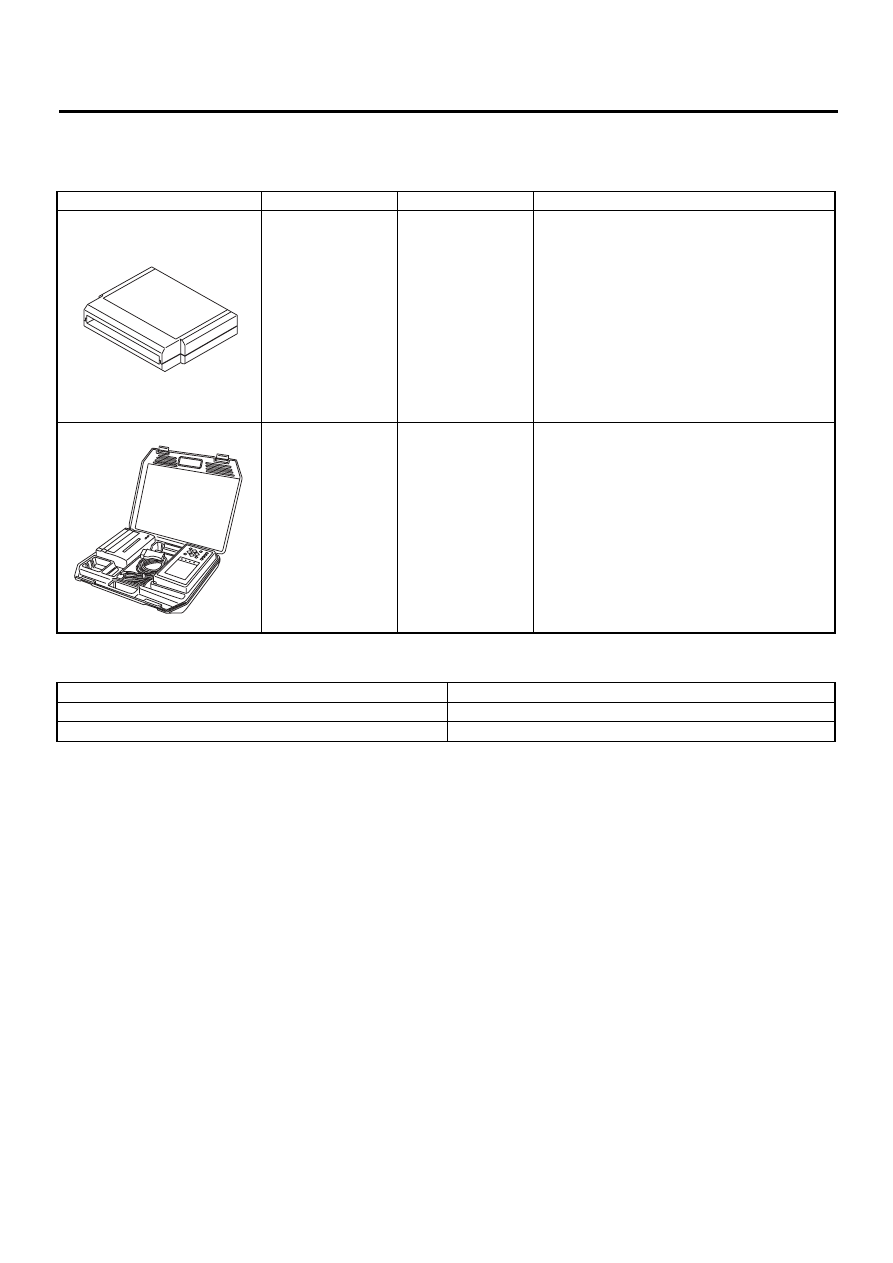

C: PREPARATION TOOL

1. SPECIAL TOOLS

2. GENERAL PURPOSE TOOLS

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

24082AA210

(Newly adopted tool)

CARTRIDGE

Troubleshooting for electrical systems.

22771AA030

SELECT MONITOR
KIT

Troubleshooting for electrical systems.
• English:
22771AA030 (Without printer)
• German:
22771AA070 (Without printer)
• French:
22771AA080 (Without printer)
• Spanish:
22771AA090 (Without printer)

TOOL NAME

REMARKS

Circuit Tester

Used for measuring resistance, voltage and ampere.

Oscilloscope

Used for measuring sensor.

ST24082AA210

ST22771AA030

AT-9

AUTOMATIC TRANSMISSION (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

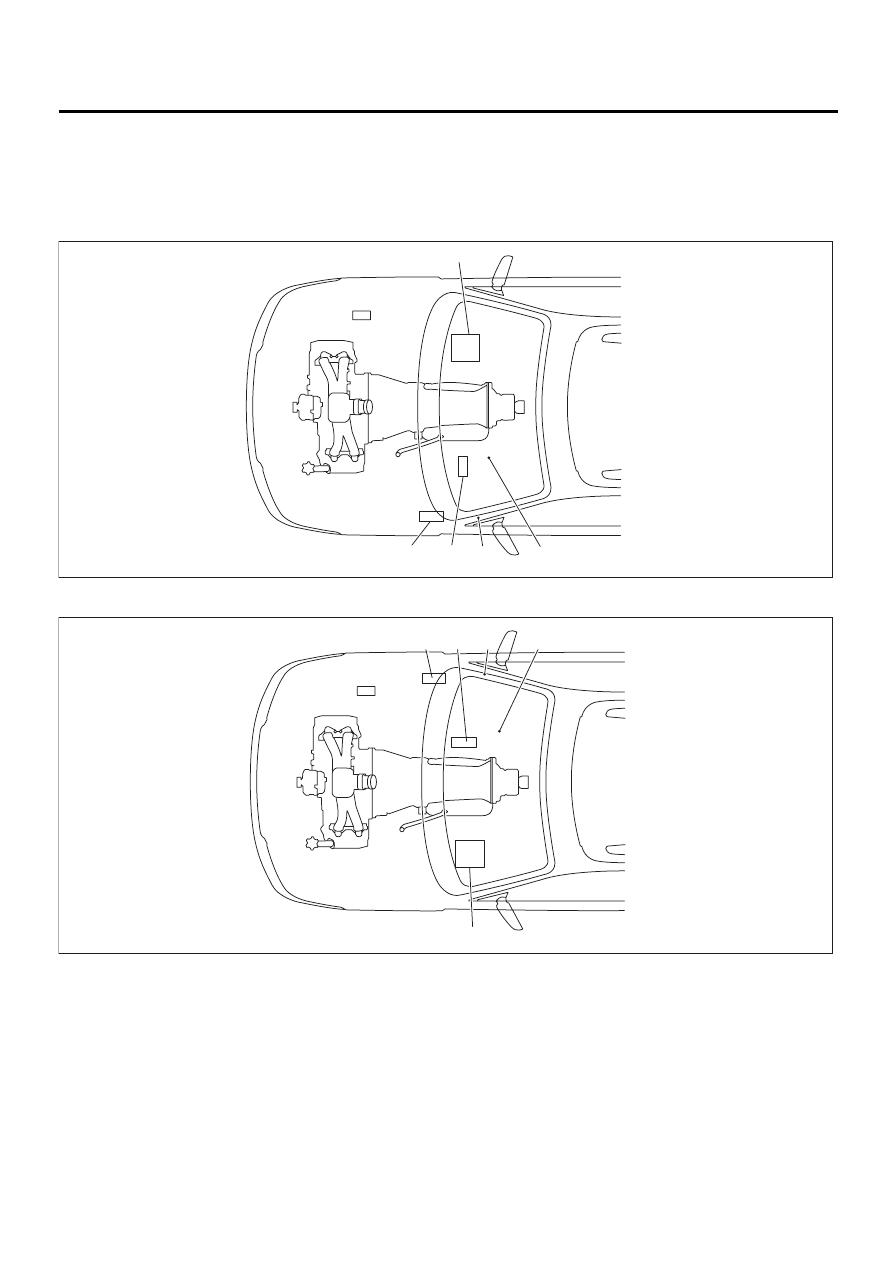

4. Electrical Components Location

A: LOCATION

1. CONTROL MODULE

LHD MODEL

RHD MODEL

( 1 )

( 2 )
( 3 )

( 7 )

( 8 )

( 4 )

AT-00762

AT-00763

( 1 )

( 3 )

( 2 )

( 6 )

( 5 )

( 7 )

( 8 )

(1) Engine control module (ECM)

(4) Transmission control module

(TCM)

(7) Data link connector

(2) POWER indicator light (AT diag-

nostic indicator light)
(Except 3.0 L and TURBO model)

(8) Vehicle dynamic control module

(With VDC system)

(5) Transmission control module

(TCM) (except Europe model)

(3) Power indicator light (AT diagnos-

tic indicator light) (3.0 L and
TURBO model)

(6) Transmission control module

(TCM) (Europe model)
