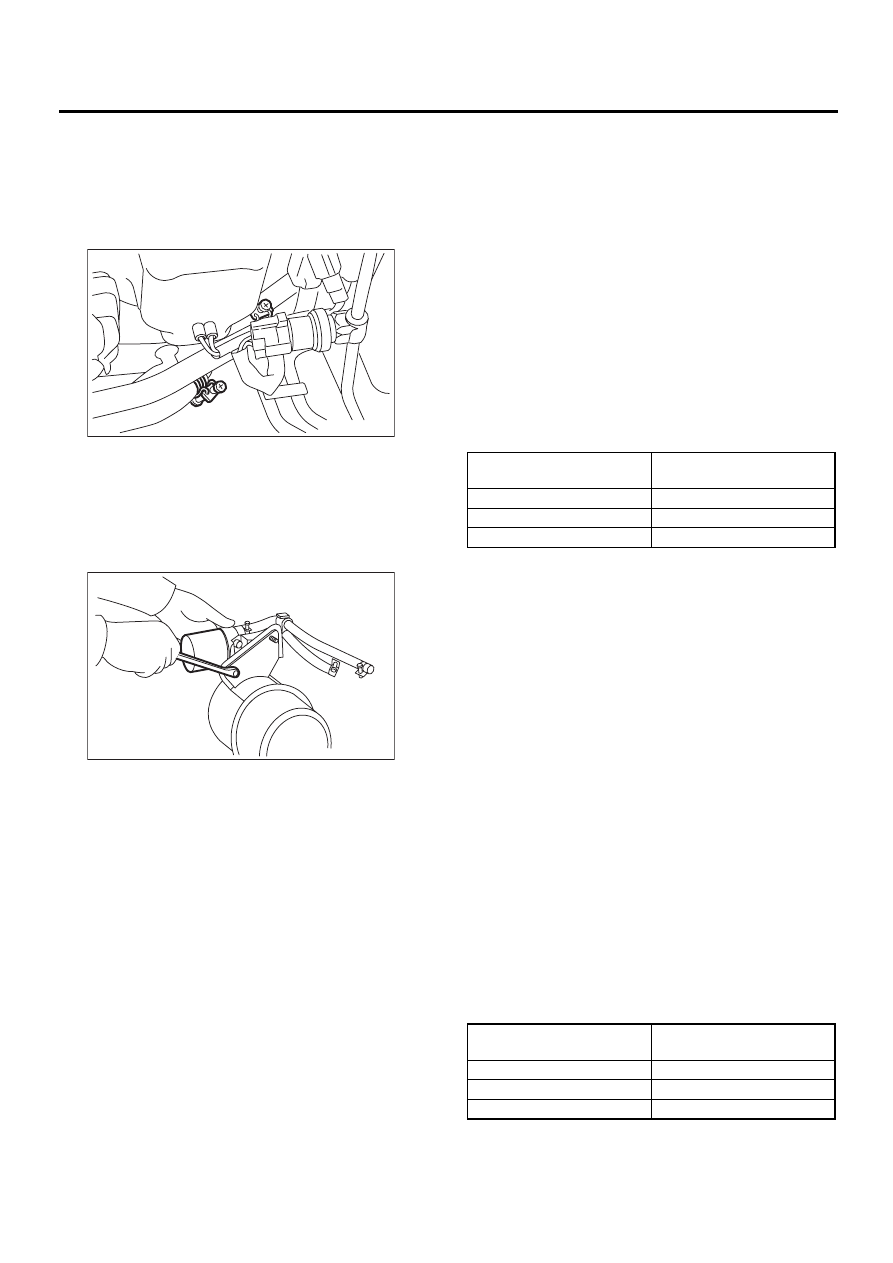

AT-74
AUTOMATIC TRANSMISSION
ATF FILTER
4) Release clamp of IN, OUT of oil filter hose, and
remove hose from pipe.
NOTE:
• Plug the pipe.
• Put a mark etc., to distinguish IN, OUT on pipe
and hose.
5) Lift vehicle and remove front left mud guard.
<Ref. to EI-22, REMOVAL, Mud Guard.>
6) Remove the surge tank.
<Ref. to IN(H4DOSTC)-22, REMOVAL, Surge
Tank.>
7) Remove oil filter assembly.
8) Secure oil filter assembly on a vise, etc and re-
move oil filter using Special Service Tool.
ST
498545400
OIL FILTER WRENCH
B: INSTALLATION
1. EXCEPT 3.0 L MODEL
1) Get new ATF filter and apply a thin coat of ATF
to the oil seal.
2) Install ATF filter. Turn it by hand, being careful
not to damage oil seal.
3) Using ST, tighten ATF filter.
Calculate ATF filter torque specifications using the
following formula.
T2 = L2/(L1 + L2)
×
T1
T1: 14 N·m (1.4 kgf-m, 10.1 ft-lb)
[Required torque setting]
T2: Tightening torque
L1: ST length 0.078 m (3.07 in)
L2: Torque wrench length
Example:
NOTE:
Align ST with torque wrench while tightening ATF
filter.
ST
498545400
OIL FILTER WRENCH
4) Add ATF.
5) Inspect level of ATF. <Ref. to AT-30, Automatic
Transmission Fluid.>
2. 3.0 L MODEL
• ATF Filter
1) Get new ATF filter and apply a thin coat of ATF
to the oil seal.
2) Install AT oil filter. Turn it by hand, being careful
not to damage oil seal.
3) Using ST, tighten AT oil filter.
Calculate AT filter torque specifications using the
following formula.
T2 = L2/(L1 + L2)
×
T1
T1: 14 N·m (1.4 kgf-m, 10.1 ft-lb)
[Required torque setting]
T2: Tightening torque
L1: ST length 0.078 m (3.07 in)
L2: Torque wrench length
Example:
AT-00701
AT-00907
Torque wrench length
mm (in)
Tightening torque
N·m (kgf-m, ft-lb)
100 (3.94)
7.7 (0.79, 5.7)
150 (5.91)
9.0 (0.92, 6.7)
200 (7.87)
10 (1.0, 7.2)
Torque wrench length
mm (in)
Tightening torque
N·m (kgf-m, ft-lb)
100 (3.94)
7.7 (0.79, 5.7)
150 (5.91)
9.0 (0.92, 6.7)
200 (7.87)
10 (1.0, 7.2)
