AT-66

AUTOMATIC TRANSMISSION

CONTROL VALVE BODY

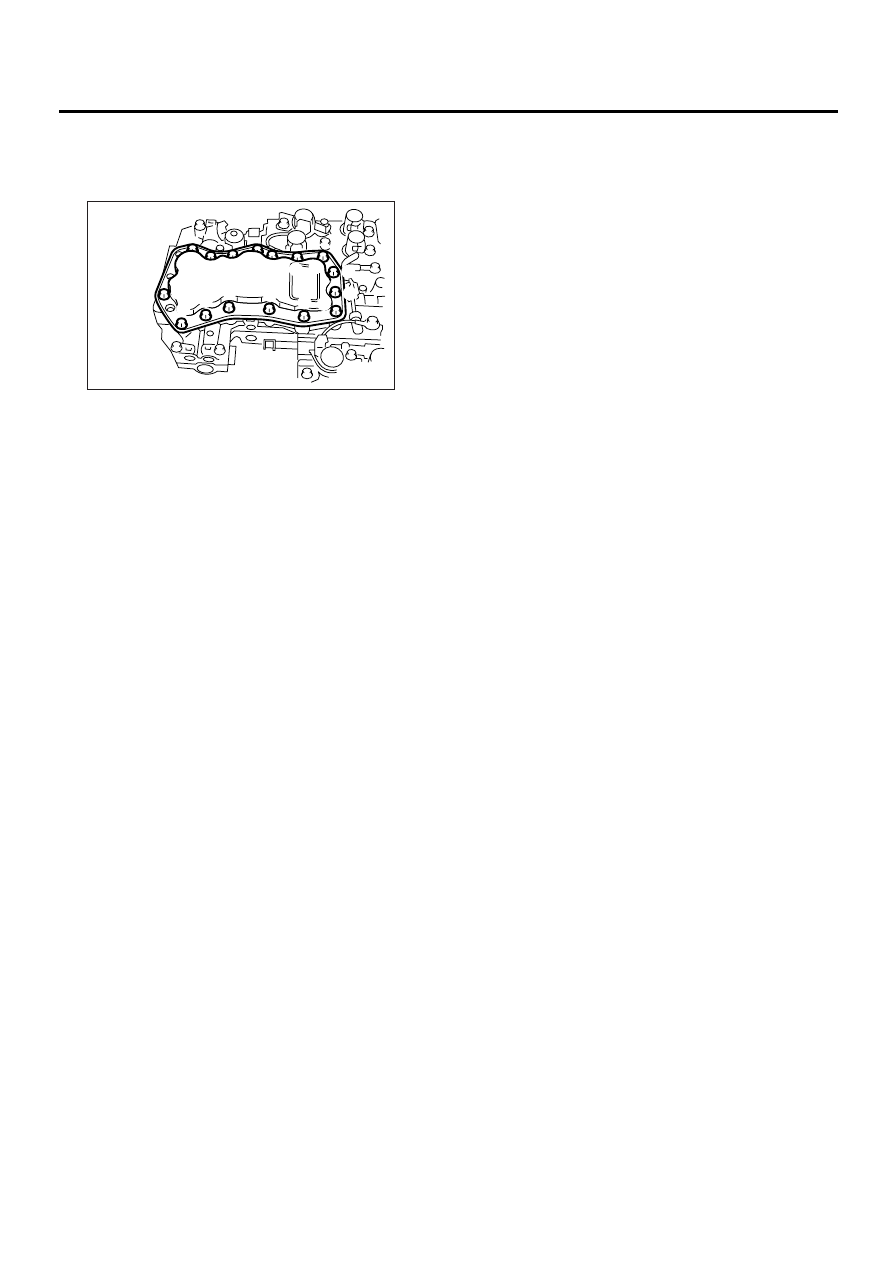

13) Install oil strainer to lower valve body.

Tightening torque:

8 N·m (0.8 kgf-m, 5.8 ft-lb)

E: INSPECTION

Make sure that each component is free of harmful
gouges, cuts, or dust.

Bolt length mm (in)

(A) 12 (0.47)

(B) 62 (2.44)

(C) 81 (3.19)

AT-00065

A

A

B

A

A

A

C

A

C

C

A

B

A

C

C

C

AT-67

AUTOMATIC TRANSMISSION

SHIFT SOLENOIDS, DUTY SOLENOIDS AND ATF TEMPERATURE SENSOR

17.Shift Solenoids, Duty Sole-

noids and ATF Temperature
Sensor

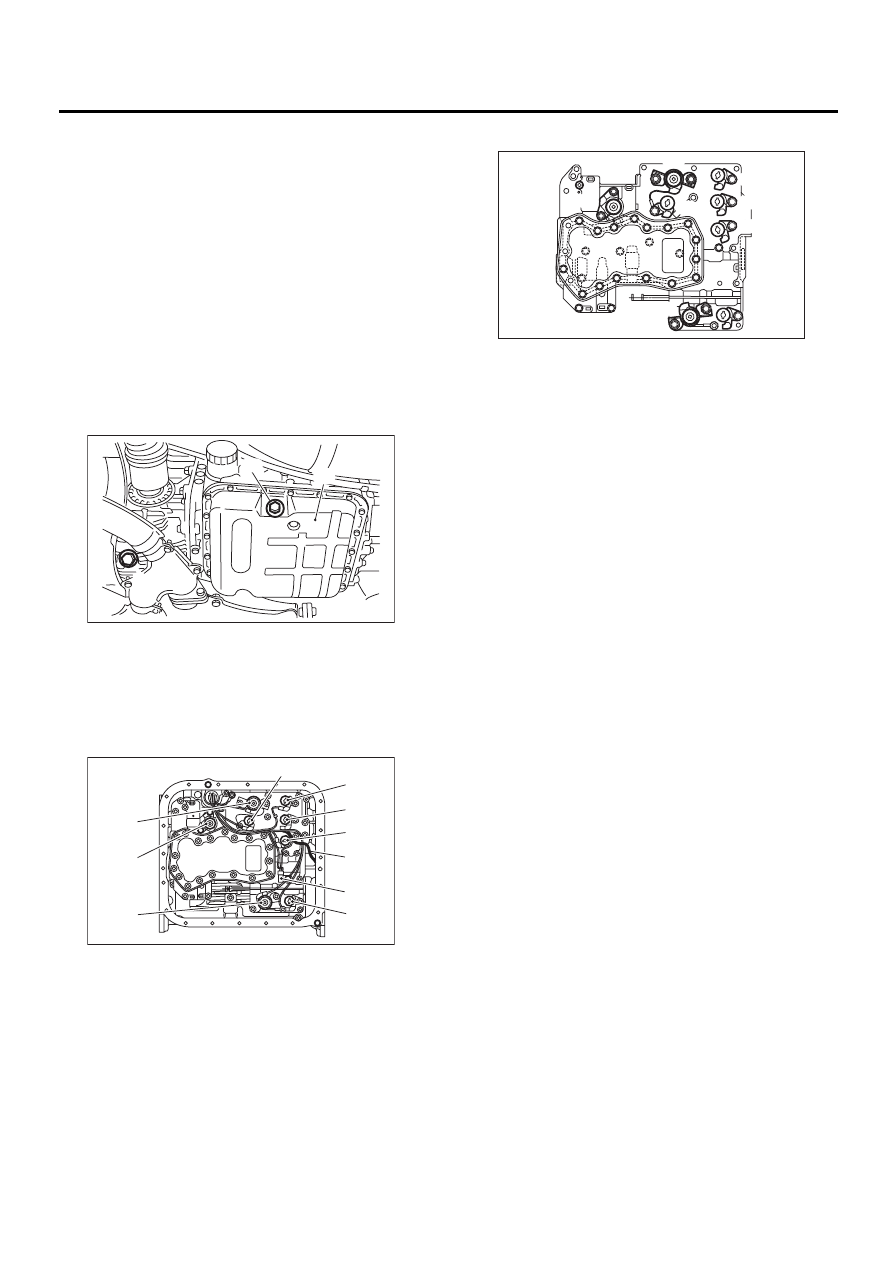

A: REMOVAL

1. SHIFT SOLENOIDS AND DUTY SOLE-
NOIDS

1) Lift-up the vehicle.
2) Clean the transmission exterior.
3) Replace the gasket with a new one, and tighten
the drain plug.
4) Drain the ATF completely.

Tightening torque:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

5) Remove the oil pan.
6) Disconnect the solenoid and duty solenoid con-
nectors.

7) Remove the solenoids and duty solenoids.

2. ATF TEMPERATURE SENSOR

For removal of ATF temperature sensor, refer to
"Front Vehicle Speed Sensor." <Ref. to AT-54, RE-
MOVAL, Front Vehicle Speed Sensor.>

(A) Oil pan

(B) Drain plug

(A) Lock-up duty solenoid (Blue)

(B) Low clutch timing solenoid (Gray)

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) Sport shift solenoid (Beige) (if equipped)

AT-00080

( A )

( B )

AT-00902

( A )

( B )

( C )

( D )

( E )

( F )

( H )

( G )

( J )

( I )

(A) Lock-up duty solenoid (Blue)

(B) Low clutch timing solenoid (Gray)

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) Sport shift solenoid (Beige) (if equipped)

AT-00903

( A )

( B )

( C )

( D )

( E )

( F )

( G )

( H )

AT-68

AUTOMATIC TRANSMISSION

SHIFT SOLENOIDS, DUTY SOLENOIDS AND ATF TEMPERATURE SENSOR

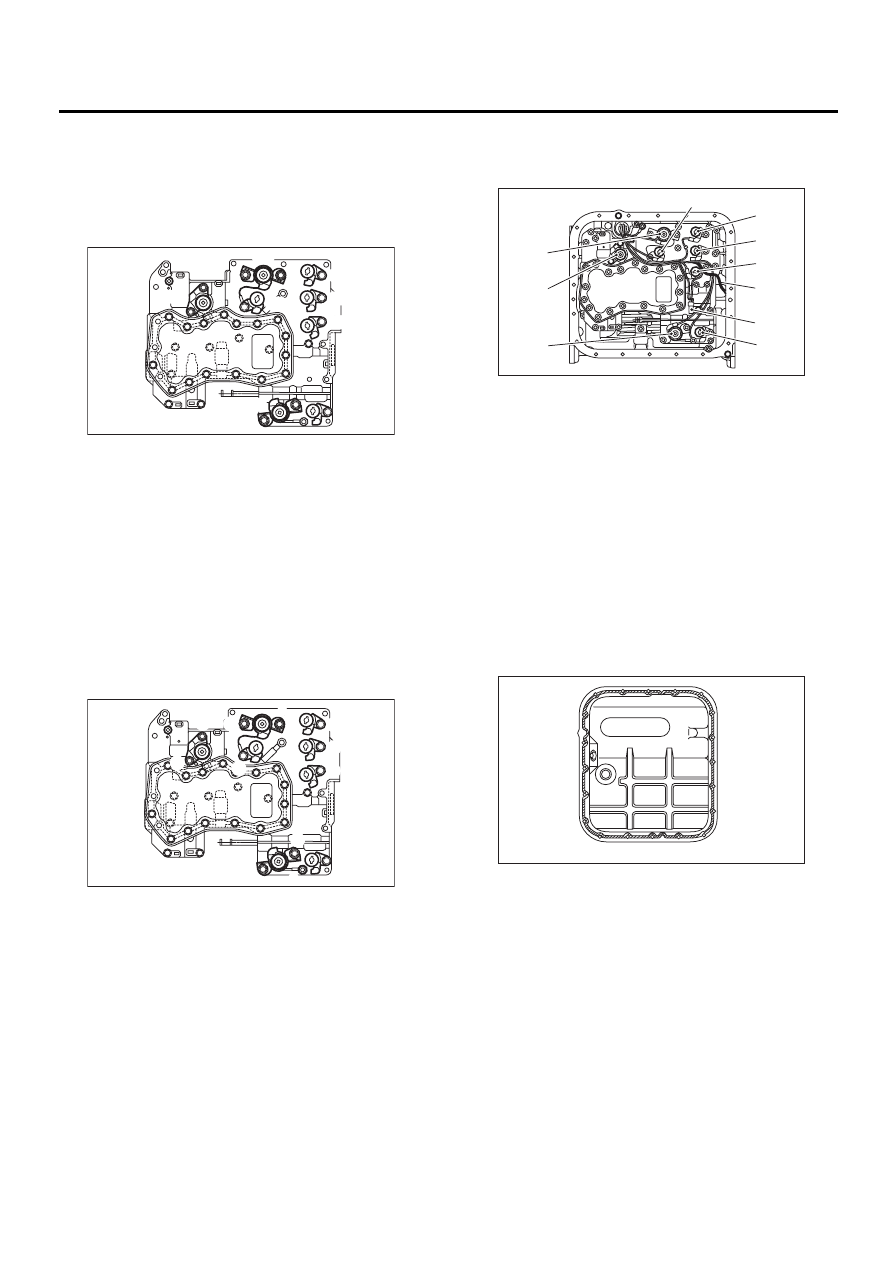

B: INSTALLATION

1. SHIFT SOLENOIDS AND DUTY SOLE-
NOIDS

1) Insert solenoid and duty solenoid to specified
position.

2) Tighten the bolts and nuts.

Tightening torque:

8 N·m (0.8 kgf-m, 5.8 ft-lb)

3) Connect the harness connectors.
Connect the connectors of same color, and secure
the connectors to valve body using clips.

4) Apply proper amount of liquid gasket to the en-
tire oil pan mating surface.

Fluid packing:

THREE BOND 1217B (Part No.
K0877YA020)

(A) Lock-up duty solenoid (Blue)

(B) Low clutch timing solenoid (Gray)

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) SPORT shift solenoid (Beige) (if equipped)

Bolt length mm (in)

(A) 12 (0.47)

(B) 40 (1.57)

(C) 45 (1.77)

(D) 62 (2.44)

(E) 73 (2.87)

AT-00903

( A )

( B )

( C )

( D )

( E )

( F )

( G )

( H )

AT-00905

A

B

C

B

C

D

D

D

D

E

E

E

(A) Lock-up duty solenoid (Blue)

(B) Low clutch timing solenoid (Gray)

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) SPORT shift solenoid (Beige) (if equipped)

AT-00902

( A )

( B )

( C )

( D )

( E )

( F )

( H )

( G )

( J )

( I )

AT-00051

AT-69

AUTOMATIC TRANSMISSION

SHIFT SOLENOIDS, DUTY SOLENOIDS AND ATF TEMPERATURE SENSOR

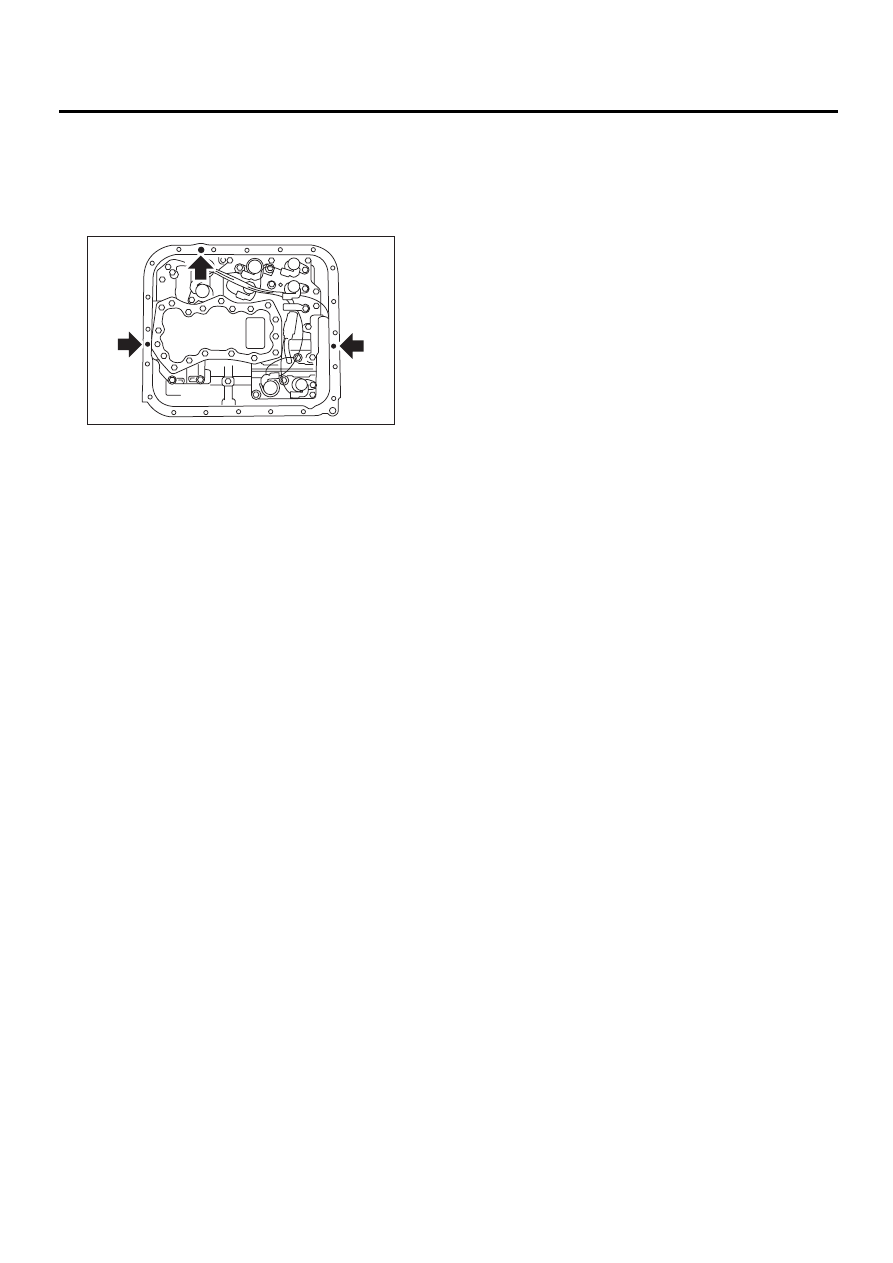

5) Apply liquid gasket fully to three holes other than
screw holes on transmission case.

Fluid packing:

THREE BOND 1217B (Part No.
K0877YA020)

6) Install the oil pan.

Tightening torque:

5 N·m (0.5 kgf-m, 3.6 ft-lb)

7) Fill ATF up to the middle of the “COLD” side on
level gauge by using the gauge hole. <Ref. to AT-
30, Automatic Transmission Fluid.>
8) Check the ATF level. <Ref. to AT-30, Automatic
Transmission Fluid.>

2. ATF TEMPERATURE SENSOR

For installation of ATF temperature sensor, refer to
"Front Vehicle Speed Sensor." <Ref. to AT-56, IN-
STALLATION, Front Vehicle Speed Sensor.>
