AT-58

AUTOMATIC TRANSMISSION

REAR VEHICLE SPEED SENSOR

14.Rear Vehicle Speed Sensor

A: REMOVAL

When removing the rear vehicle speed sensor, re-
fer to “Front Vehicle Speed Sensor.” <Ref. to AT-
54, REMOVAL, Front Vehicle Speed Sensor.>

B: INSTALLATION

When installing the rear vehicle speed sensor, refer
to  “Front Vehicle Speed Sensor.” <Ref. to AT-56,
INSTALLATION, Front Vehicle Speed Sensor.>

AT-59

AUTOMATIC TRANSMISSION

TORQUE CONVERTER TURBINE SPEED SENSOR

15.Torque Converter Turbine

Speed Sensor

A: REMOVAL

When removing the torque converter turbine speed
sensor, refer to “Front Vehicle Speed Sensor.”
<Ref. to AT-54, REMOVAL, Front Vehicle Speed
Sensor.>

B: INSTALLATION

When installing the torque converter turbine speed
sensor, refer to “Front Vehicle Speed Sensor.”
<Ref. to AT-56, INSTALLATION, Front Vehicle
Speed Sensor.>

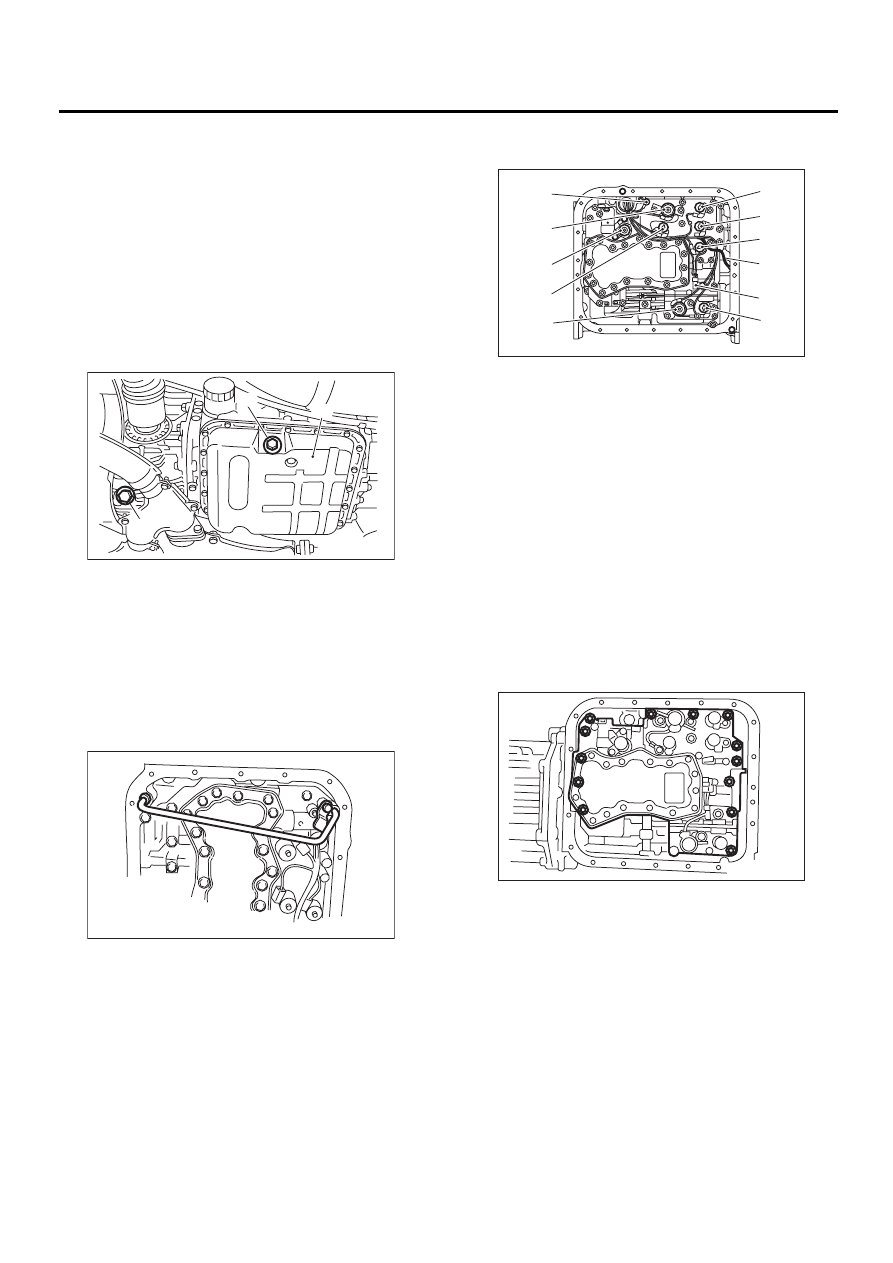

AT-60

AUTOMATIC TRANSMISSION

CONTROL VALVE BODY

16.Control Valve Body

A: REMOVAL

1) Lift-up the vehicle.
2) Clean the transmission exterior.
3) Drain the ATF completely.

NOTE:
• Tighten the ATF drain plug after draining the
ATF.
• Replace the gasket with a new one.

Tightening torque:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

4) Remove the oil pan.
5) Remove and clean the magnet.
6) Remove the old gasket on the oil pan and trans-
mission case completely.
7) Remove the pipe. (TURBO model)

8) Disconnect each solenoid connector and re-
move ATF temperature sensor from control valve.

9) Remove the control valve.

NOTE:
When removing the control valve body, be careful
not to interfere with transfer duty solenoid wiring.

(A) Oil pan

(B) Drain plug

(C) Differential oil drain plug

AT-00016

( A )

( B )

( C )

AT-00801

(A) Lock-up duty solenoid (Blue)

(B) Transmission ground

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) ATF temperature sensor

(I) Transfer duty solenoid (Brown)

(J) Low clutch timing solenoid (Gray)

(K) Sport shift solenoid (Beige) (if equipped)

AT-00695

( A )

( B )

( C )

( D )

( E )

( F )

( H )

( J )

( G )

( K )

( I )

AT-00054

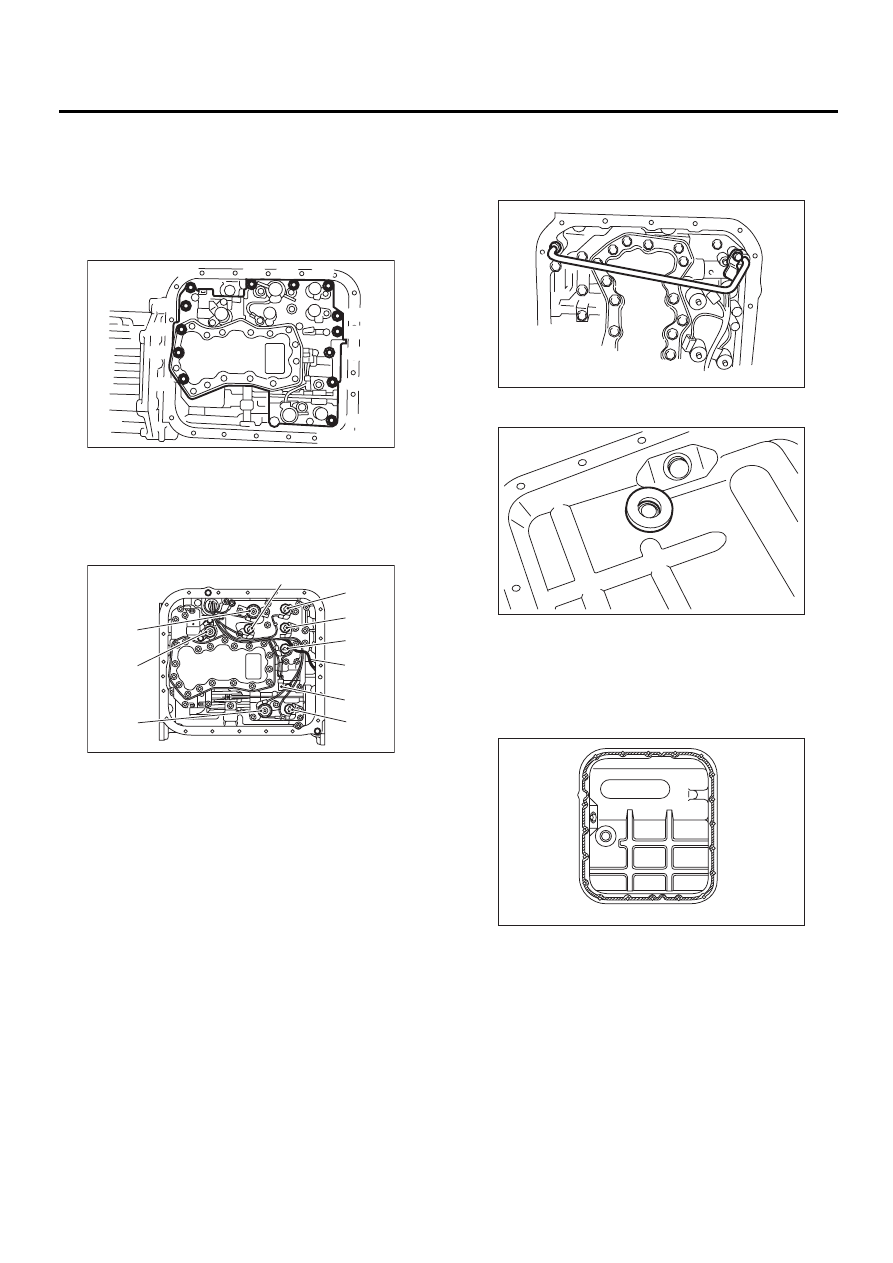

AT-61

AUTOMATIC TRANSMISSION

CONTROL VALVE BODY

B: INSTALLATION

1) Set the range select lever in “N” range.
2) Install the control valve, ATF temperature sensor
and ground connectors.

Tightening torque:

8 N·m (0.8 kgf-m, 5.8 ft-lb)

3) Connect all connectors.

4) Install the pipe. (TURBO model)

Tightening torque:

8 N·m (0.8 kgf-m, 5.8 ft-lb)

5) Attach the magnet at specified position.

6) Apply proper amount of liquid gasket to the en-
tire oil pan mating surface.

Liquid gasket:

THREE BOND 1217B (Part No.
K0877YA020)

Bolt length mm (in)

(A) 30 (1.18)

(B) 55 (2.17)

(A) Lock-up duty solenoid (Blue)

(B) Low clutch timing solenoid (Gray)

(C) Line pressure duty solenoid (Red)

(D) Shift solenoid 2 (Yellow)

(E) Shift solenoid 1 (Green)

(F) 2-4 brake timing solenoid (Black)

(G) 2-4 brake duty solenoid (Red)

(H) ATF temperature sensor

(I) Transfer duty solenoid (Brown)

(J) Sport shift solenoid (Beige) (if equipped)

AT-00062

( A )

( A )

( A )

( A )

( A )

( A )

( A )

( A )

( B )

( B )

( B )

( B )

( B )

AT-00902

( A )

( B )

( C )

( D )

( E )

( F )

( H )

( G )

( J )

( I )

AT-00801

AT-00057

AT-00051
