AT-22

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

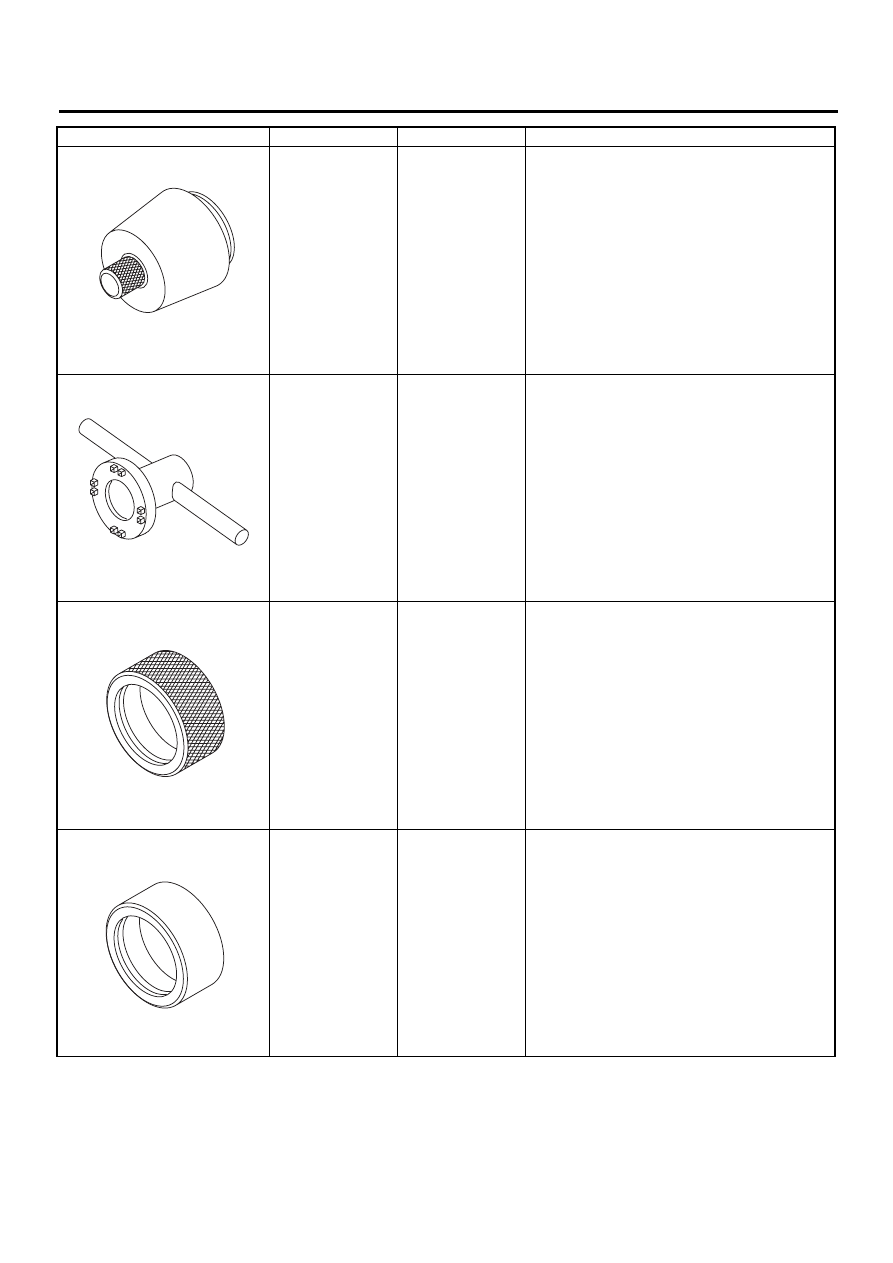

499257300

SNAP RING
OUTER GUIDE

• Used for installing transfer outer snap ring.
• Used with INSTALLER (499247400).

499787000

WRENCH ASSY

Used for removing and installing differential side
retainer.

398437700

DRIFT

Used for installing converter case oil seal.

398487700

INSTALLER

Used for installing taper roller bearing of front dif-
ferential.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499257300

ST-499787000

 ST-398437700

 ST-398487700

AT-23

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

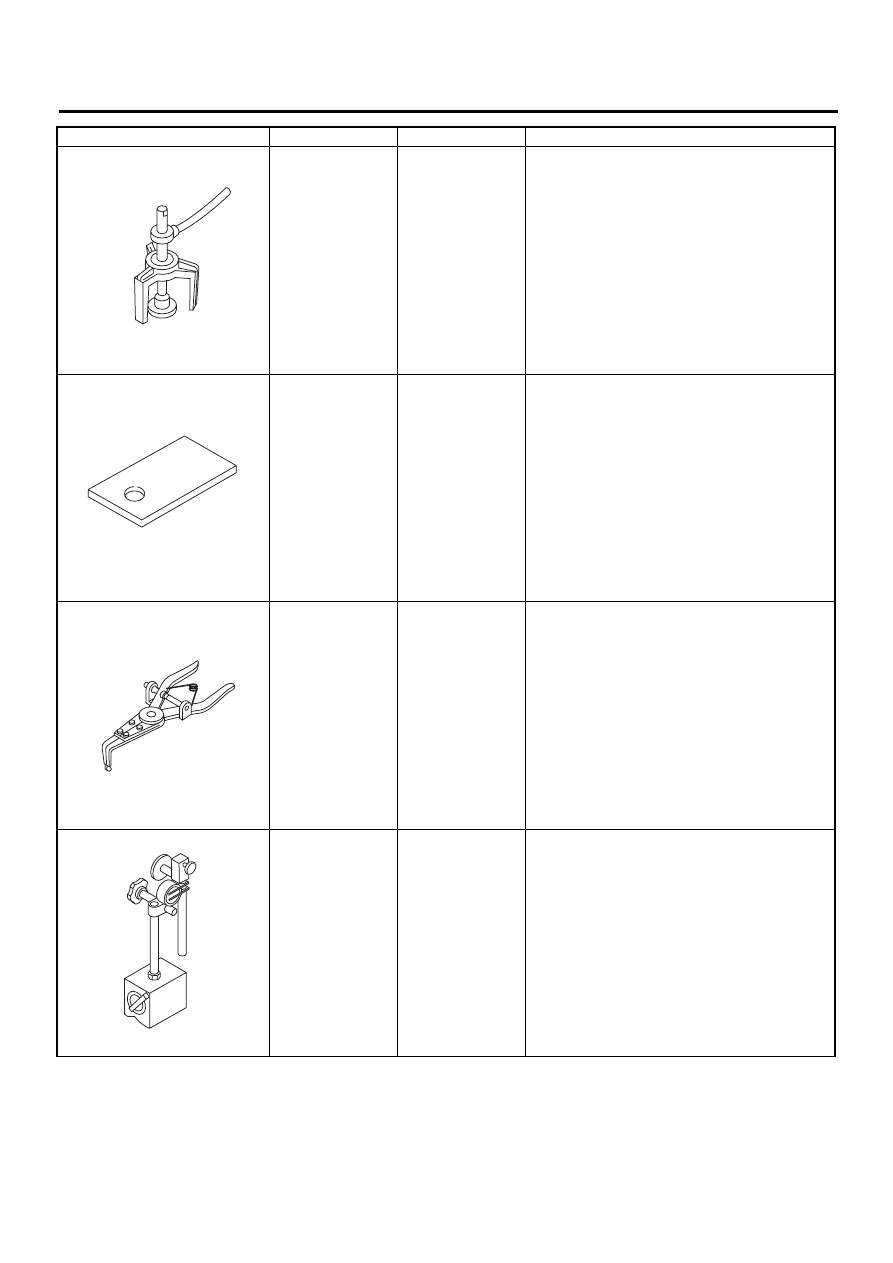

398673600

COMPRESSOR

Used for removing and installing clutch spring.

498255400

PLATE

Used for measuring backlash of hypoid gear.

399893600

PLIERS

Used for removing and installing clutch spring.

498247001

MAGNET BASE

• Used for measuring gear backlash.
• Used with DIAL GAUGE (498247100).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398673600

ST-498255400

ST-399893600

ST-498247001

AT-24

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

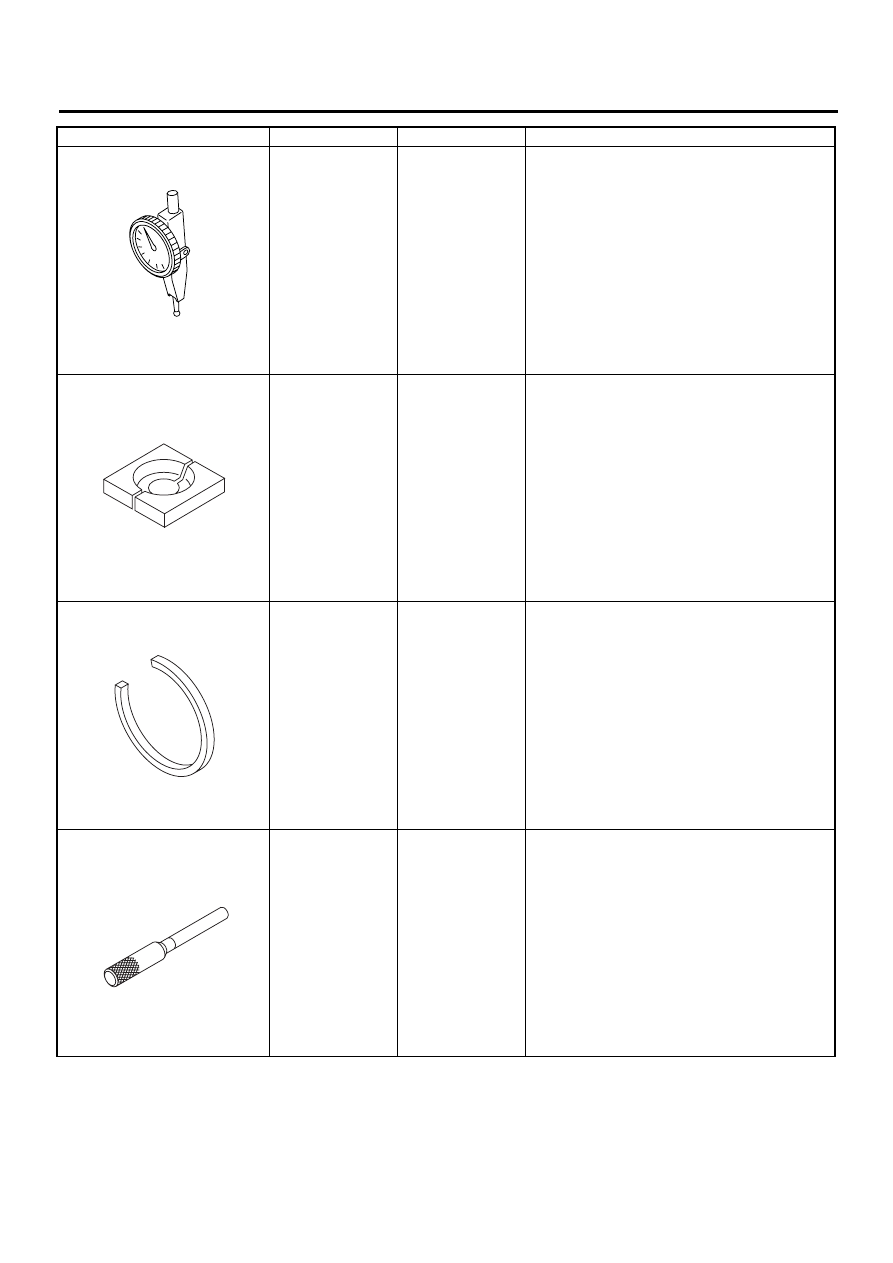

498247100

DIAL GAUGE

• Used for measuring gear backlash.
• Used with MAGNET BASE (498247001).

498517000

REPLACER

Used for removing front roller bearing.

398623600

SEAT

Used for removing spring of transfer clutch piston.

499267300

STOPPER PIN

Used for installing inhibitor switch.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498247100

ST-498517000

ST-398623600

ST-499267300

AT-25

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

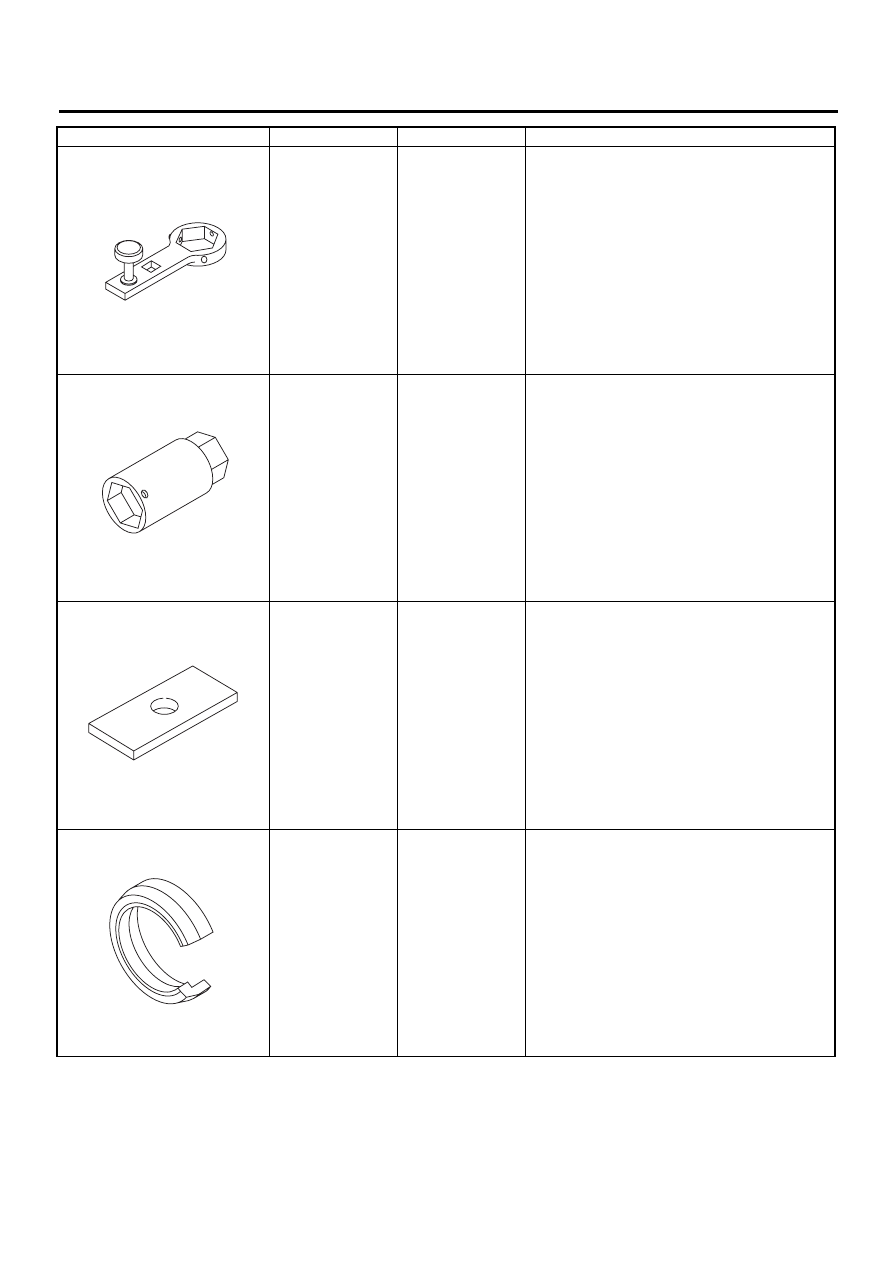

499787700

WRENCH

Used for removing and installing drive pinion lock
nut.

499787500

ADAPTER

Used for removing and installing drive pinion lock
nut.

398643600

GAUGE

Used for measuring total end play, extension end
play and drive pinion height.

498627100

SEAT

Used for holding low clutch piston retainer spring
when installing snap ring.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499787700

ST-499787500

ST-398643600

ST-498627100
