AT-14

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

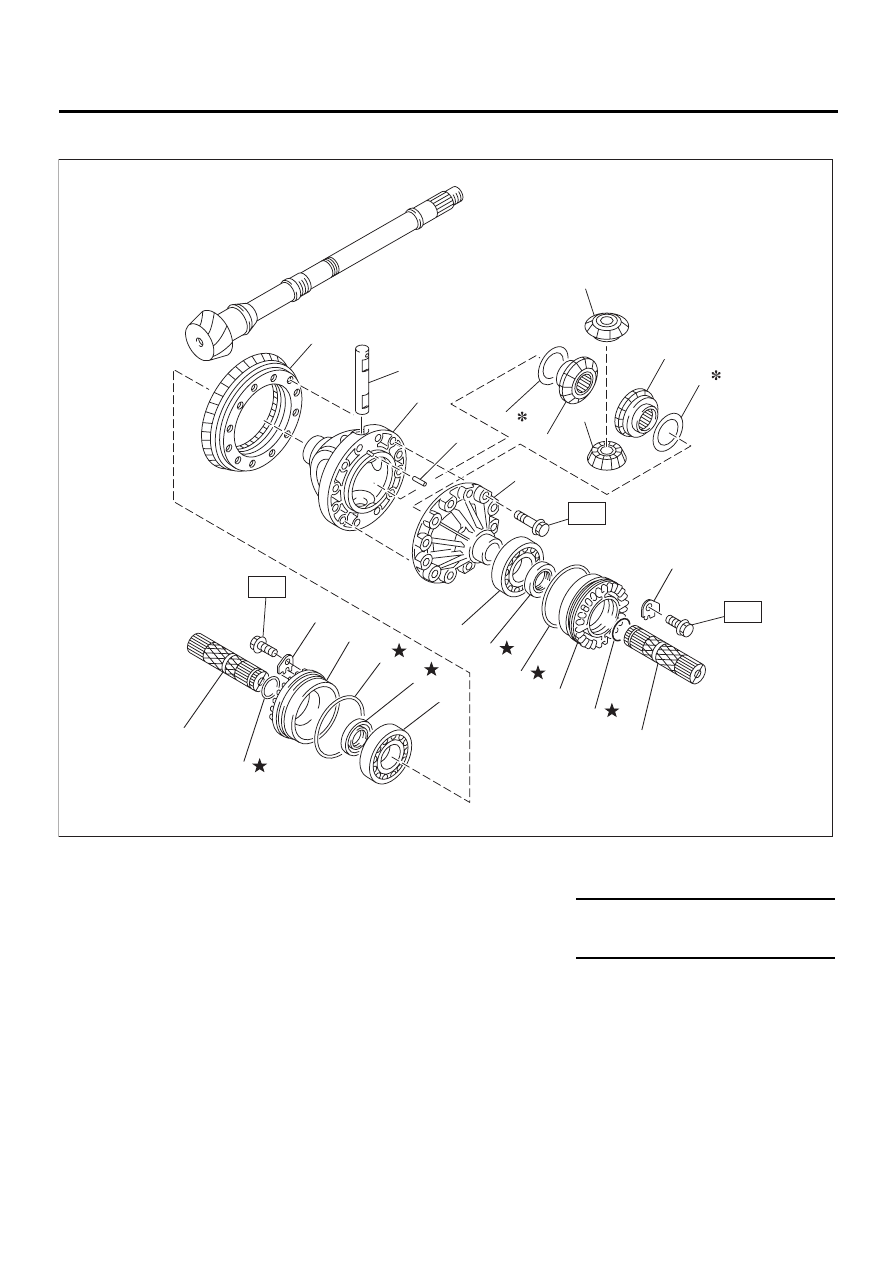

10.DIFFERENTIAL GEAR

AT-00672

( 9 )

( 9 )

( 8 )

( 8 )

( 7 )

( 7 )

( 6 )

( 6 )

( 5 )

( 4 )

( 3 )

( 2 )

( 1 )

(14)

(15)

(13)

(15)

(14)

(13)

(12)

(12)

(11)

(11)

(10)

(10)

T1

T2

T1

(1) Crown gear

(8) O-ring

(15) Differential bevel gear

(2) Pinion shaft

(9) Differential side retainer

(3) Differential case (RH)

(10) Circlip

Tightening torque: N·m (kgf-m, ft-lb)

(4) Straight pin

(11) Lock plate

T1: 25 (2.5, 18.1)

(5) Differential case (LH)

(12) Axle shaft

T2: 62 (6.3, 45.6)

(6) Taper roller bearing

(13) Washer

(7) Oil seal

(14) Differential bevel pinion

AT-15

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

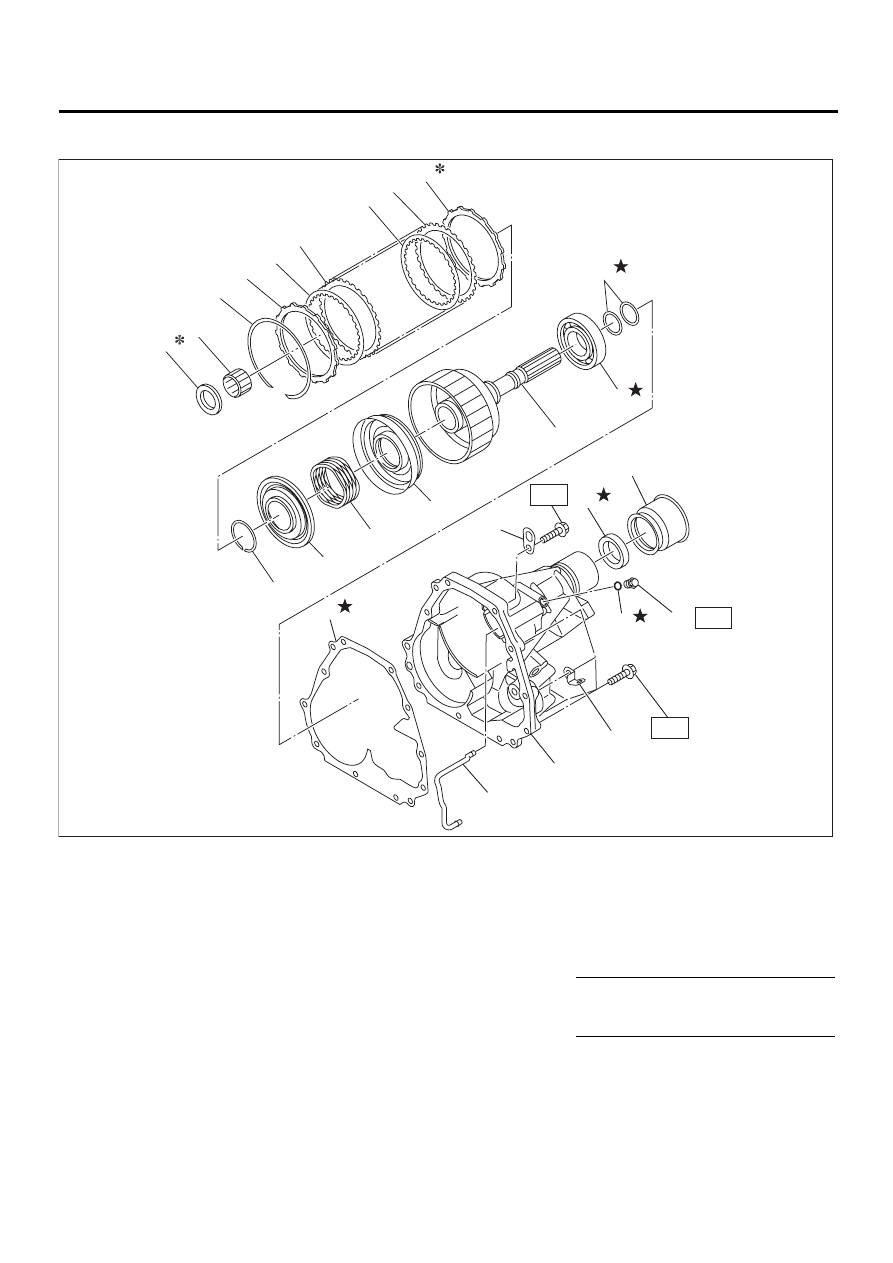

11.TRANSFER AND EXTENSION CASE (MPT)

AT-00012

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 5 )

( 6 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(22)

(21)

(23)

T1

T2

T2

(1) Thrust needle bearing

(10) Return spring

(19) Oil seal

(2) Needle bearing

(11) Transfer clutch piston

(20) Dust cover

(3) Snap ring

(12) Rear drive shaft

(21) Test plug

(4) Pressure plate

(13) Ball bearing

(22) O-ring

(5) Drive plate

(14) Seal ring

(23) Clip

(6) Driven plate

(15) Gasket

(7) Pressure plate

(16) Transfer clutch pipe

Tightening torque: N·m (kgf-m, ft-lb)

(8) Snap ring

(17) Extension case

T1: 13 (1.3, 9.4)

(9) Transfer piston seal

(18) Transmission hanger

T2: 25 (2.5, 18.1)

AT-16

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

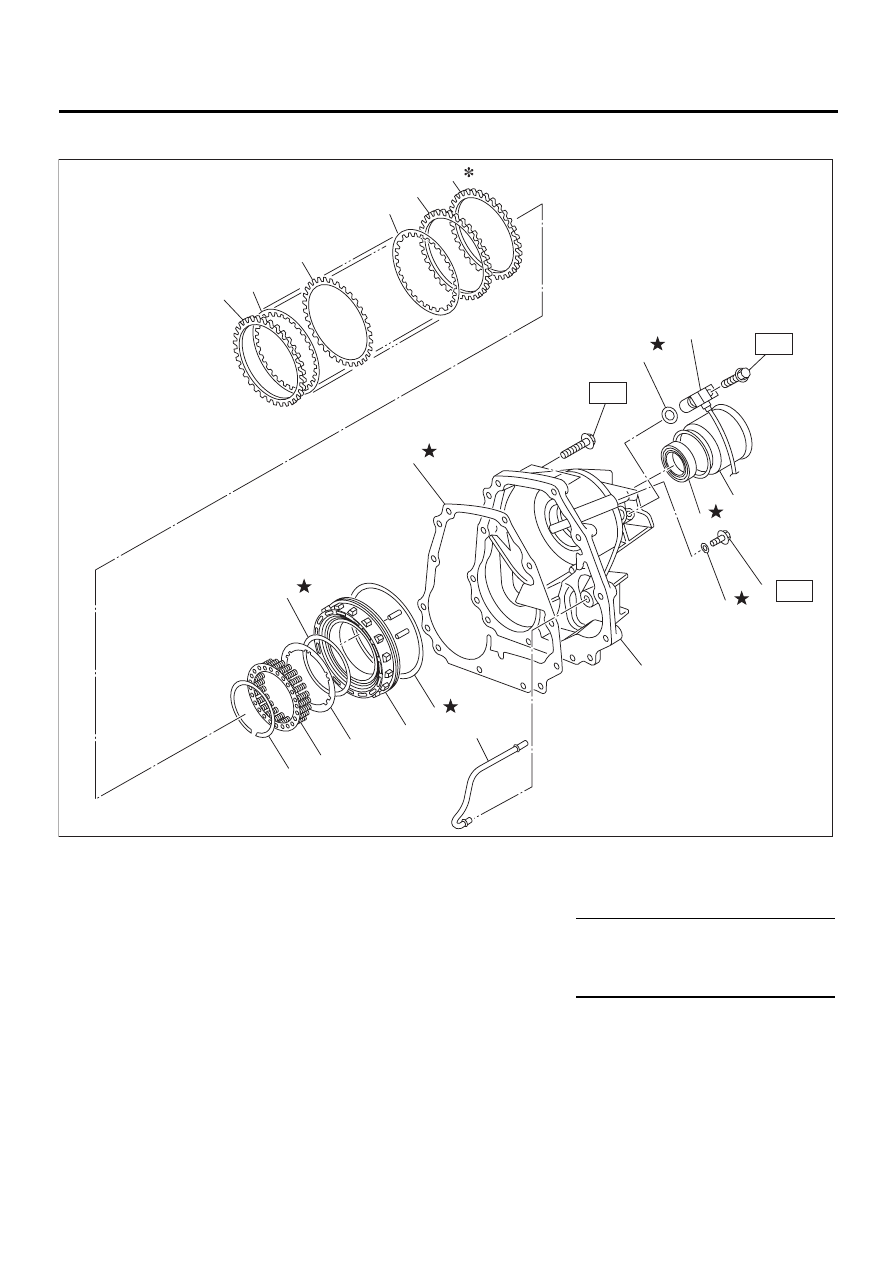

12.TRANSFER AND EXTENSION CASE (VTD)

( 1 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

T2

T1

T3

(15)

(16)

(17)

(18)

(19)

(20)

AT-00673

(1) Driven plate (Thick)

(10) Multi-plate clutch (LSD) piston

(19) O-ring

(2) Driven plate

(11) D-ring

(20) Rear wheel sensor

(3) Driven plate (Thin)

(12) Gasket

(4) Driven plate (Thick)

(13) Multi-plate clutch (LSD) pipe

Tightening torque: N·m (kgf-m)

(5) Adjust plate

(14) Extension case

T1: 7 (0.7, 5.1)

(6) Snap ring

(15) O-ring

T2: 13 (1.3, 9.4)

(7) Spring retainer

(16) Test plug

T3: 25 (2.5, 18,1)

(8) Plate

(17) Oil seal

(9) D-ring

(18) Dust cover

AT-17

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

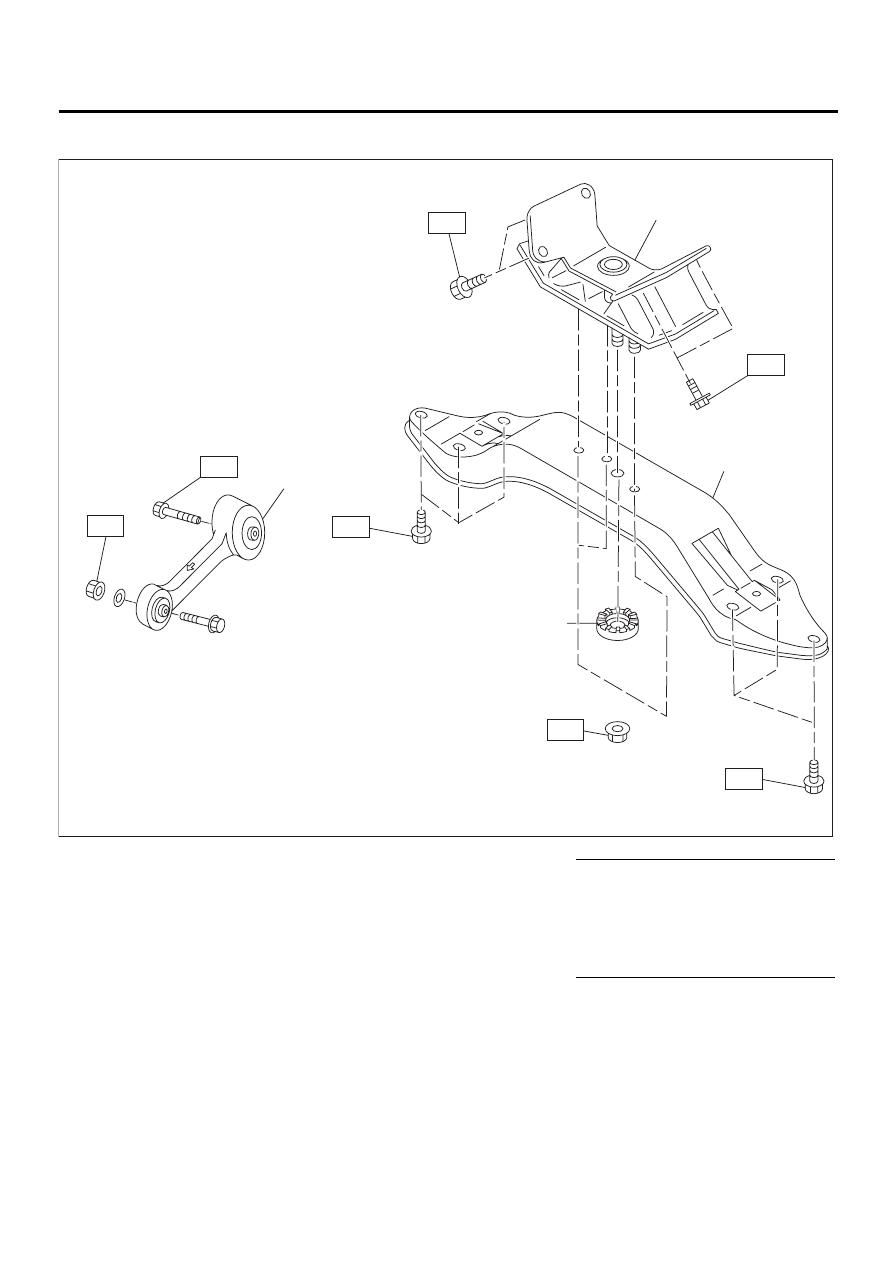

13.TRANSMISSION MOUNTING

AT-00014

T2

T2

T4

T3

T5

T5

T1

( 1 )

( 2 )

( 3 )

( 4 )

(1) Pitching stopper

Tightening torque: N·m (kgf-m, ft-lb)

(2) Rear cushion rubber

T1: 35 (3.6, 26)

(3) Transmission rear crossmember

T2: 39 (4.0, 29)

(4) Stopper

T3: 50 (5.1, 37)

T4: 58 (5.9, 43)

T5: 70 (7.1, 51)
