AT-6

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

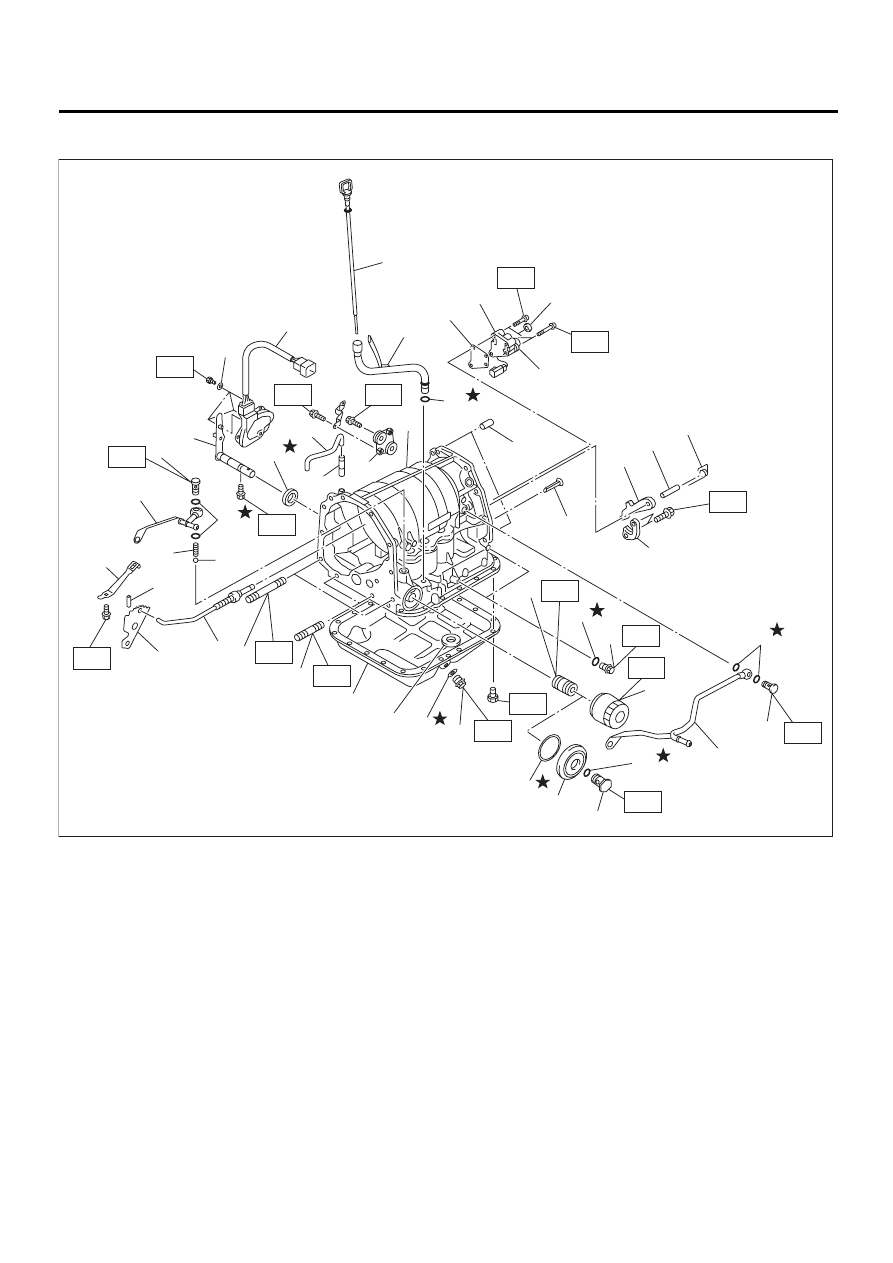

3. TRANSMISSION CASE AND CONTROL DEVICE

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(47)

(46)

(45)

(44)

(20)

(21)

(22)

(24)

(23)

(25)

(26)

(27)

(28)

(29)

(30)

(32)

(34)

(33)

(31)

(36)

(37)

(35)

(39)

(40)

(42)

(41)

(38)

(43)

T4

T9

T5

T1

T10

T4

T9

T6

T7

T9

T9

T2

T9

T8

T8

T3

T3

T9

AT-00908

AT-7

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

(1) ATF level gauge

(21) Drain plug

(41) Transmission case

(2) ATF charger pipe

(22) Gasket

(42) Plate ASSY

(3) O-ring

(23) Oil pan

(43) Washer

(4) Transfer valve plate

(24) Magnet

(44) O-ring (3.0 L and TURBO models)

(5) Transfer valve ASSY

(25) Stud bolt (Short)

(45) Cover (3.0 L and TURBO models)

(6) Transfer clutch seal

(26) Stud bolt (Long)

(46) Union screw (3.0 L and TURBO

models)

(7) Transfer duty solenoid

(27) Parking rod

(8) Straight pin

(28) Manual plate

(47) Gasket (3.0 L and TURBO mod-

els)

(9) Return spring

(29) Spring pin

(10) Shaft

(30) Detention spring

(11) Parking pawl

(31) Ball

Tightening torque: N·m (kgf-m, ft-lb)

(12) Parking support

(32) Spring

T1: 3.4 (0.35, 2.5)

(13) Inlet filter

(33) Gasket

T2: 5 (0.5, 3.6)

(14) Gasket

(34) Outlet pipe

T3: 6 (0.6, 4)

(15) Inlet pipe

(35) Union screw

T4: 8 (0.8, 6)

(16) Union screw

(22) Gasket

T5: 12 (1.2, 8.7)

(17) O-ring

(36) Oil seal

T6: 13 (1.3, 10)

(18) Test plug

(37) Select lever

T7: 14 (1.4, 10)

(19) Oil filter (Except for 3.0 L and

TURBO models)

(38) Inhibitor switch ASSY

T8: 18 (1.8, 13)

(39) Nipple

T9: 25 (2.6, 18)

(20) Oil filter stud bolt

(40) Air breather hose

T10: 44 (4.5, 32)

AT-8

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

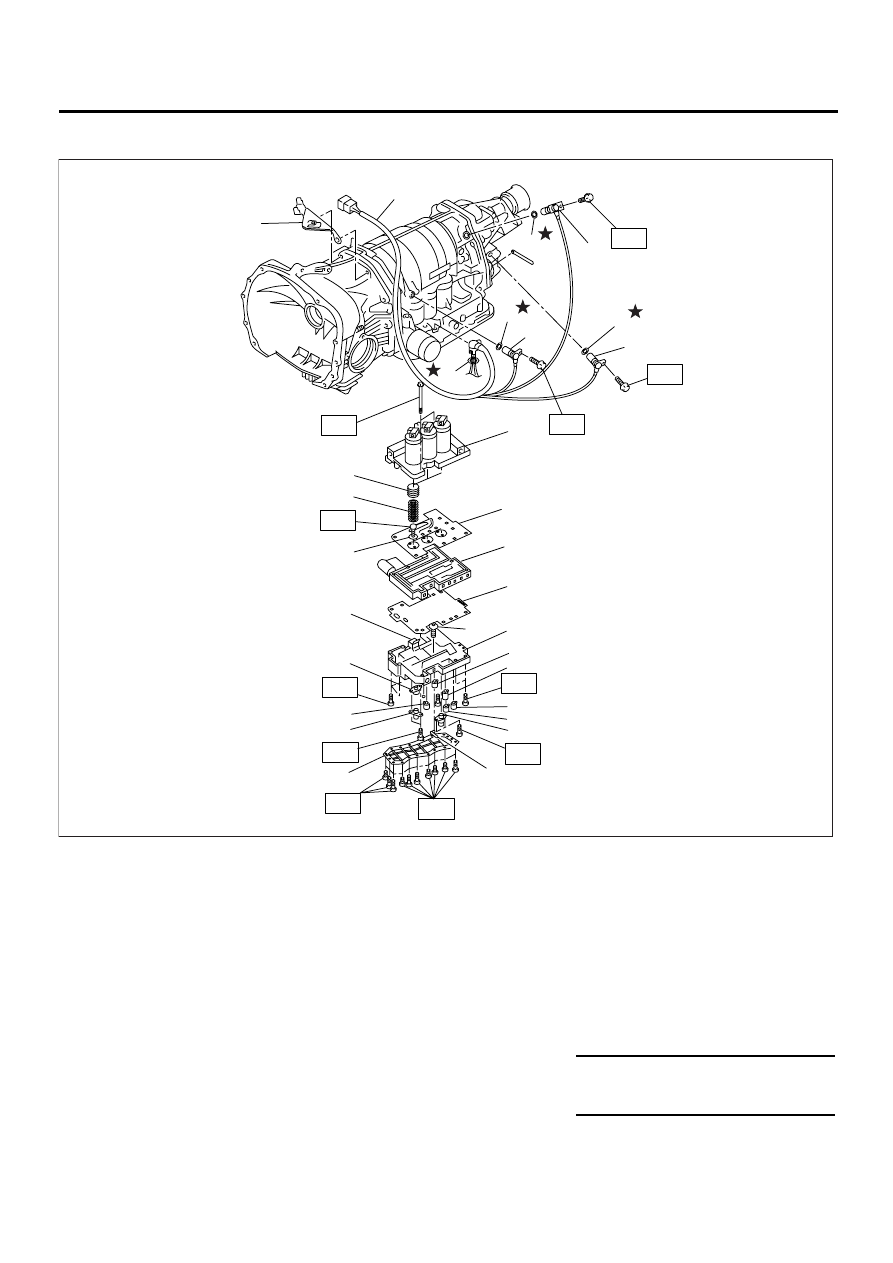

4. CONTROL VALVE AND HARNESS ROUTING

T1

T2

T2

T2

T2

T2

T2

T2

T2

T1

T1

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(14)

(13)

(15)

(16)

(17)

(25)

(19)

(18)

(20)

(21)

(22)
(29)

(23)

(24)

(27)

(26)

(28)

AT-00757

(1) Stay

(11) Accumulator piston

(22) 2-4 brake timing solenoid

(2) Transmission harness

(12) Accumulator spring

(23) 2-4 brake duty solenoid

(3) O-ring

(13) Side plate

(24) ATF temperature sensor

(4) O-ring

(14) Separate plate

(25) Line pressure duty solenoid

(5) Torque converter turbine speed

sensor

(15) Middle valve body

(26) Low clutch timing solenoid

(16) Separate plate

(27) Lock-up duty solenoid

(6) O-ring

(17) Fluid filter

(28) Oil strainer

(7) Front vehicle speed sensor

(18) Fluid filter

(29) SPORT shift solenoid

(if equipped)

(8) O-ring

(19) Lower valve body

(9) Rear vehicle speed sensor

(20) Shift solenoid 2

(10) Upper valve body

(21) Shift solenoid 1

Tightening torque: N·m (kgf-m, ft-lb)

T1: 7 (0.7, 5.1)

T2: 8 (0.8, 5.8)

AT-9

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

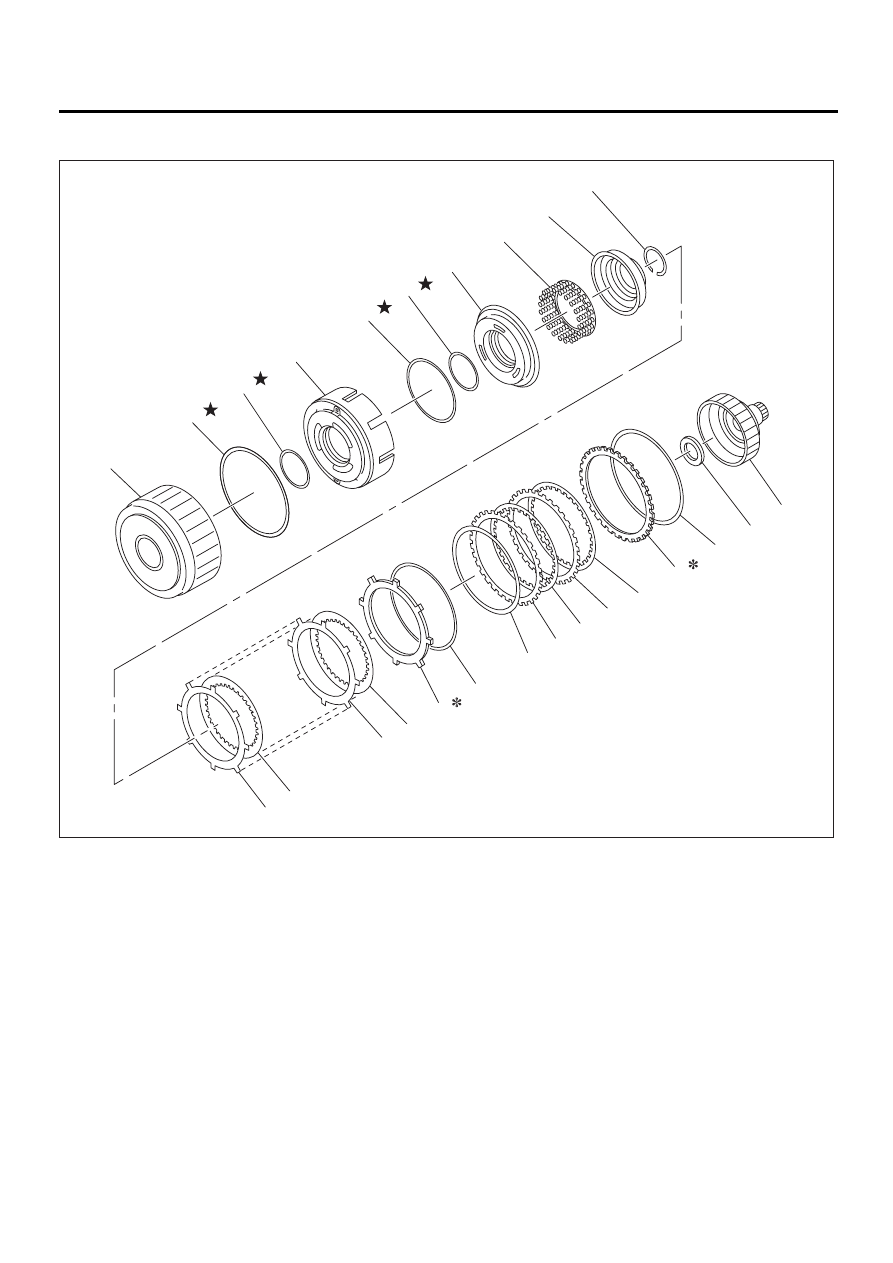

5. HIGH CLUTCH AND REVERSE CLUTCH

(10)

( 9 )

( 8 )

( 6 )

( 4 )

( 1 )

AT-00006

( 2 )

( 3 )

( 5 )

( 7 )

(11)

(12)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(16)

(17)

(18)

(19)

(20)

(21)

(1) High clutch drum

(8) Spring retainer

(15) Dish plate

(2) Lip seal

(9) Cover

(16) Driven plate

(3) D-ring

(10) Snap ring

(17) Drive plate

(4) Reverse clutch piston

(11) Driven plate

(18) Retaining plate

(5) D-ring

(12) Drive plate

(19) Snap ring

(6) D-ring

(13) Retaining plate

(20) Thrust needle bearing

(7) High clutch piston

(14) Snap ring

(21) High clutch hub
