AT-10

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

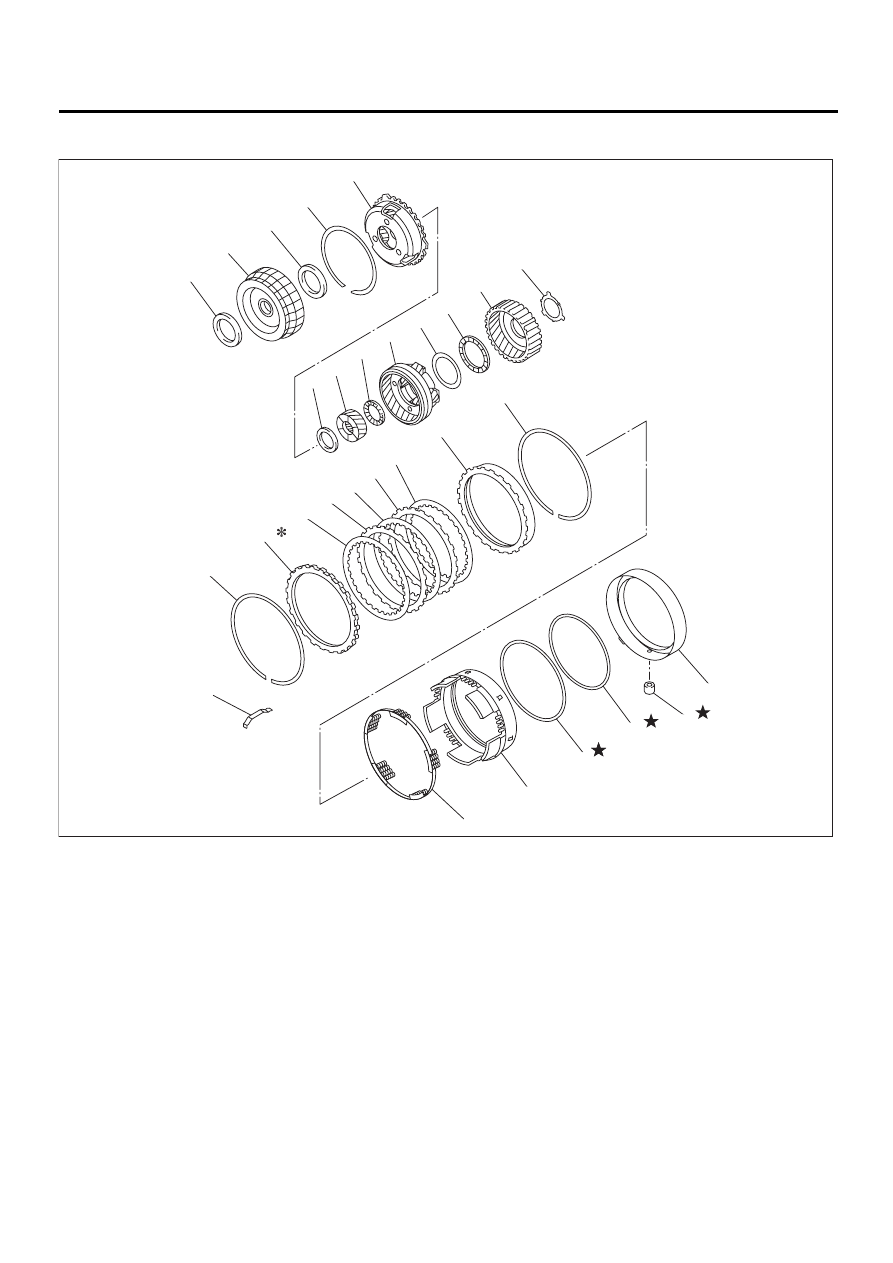

6. PLANETARY GEAR AND 2-4 BRAKE

AT-00007

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(16)

(16)

(17)

(17)

(18)

(19)

(20)

(21)

(22)

(23)

(25)

(24)

(26)

(1) Thrust needle bearing

(10) Washer

(19) Snap ring

(2) Front sun gear

(11) Thrust needle bearing

(20) Spring retainer

(3) Thrust needle bearing

(12) Rear internal gear

(21) 2-4 brake piston

(4) Snap ring

(13) Washer

(22) D-ring

(5) Front planetary carrier

(14) Snap ring

(23) D-ring

(6) Thrust needle bearing

(15) Retaining plate

(24) 2-4 brake piston retainer

(7) Rear sun gear

(16) Drive plate

(25) 2-4 brake seal

(8) Thrust needle bearing

(17) Driven plate

(26) Leaf spring

(9) Rear planetary carrier

(18) Pressure rear plate

AT-11

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

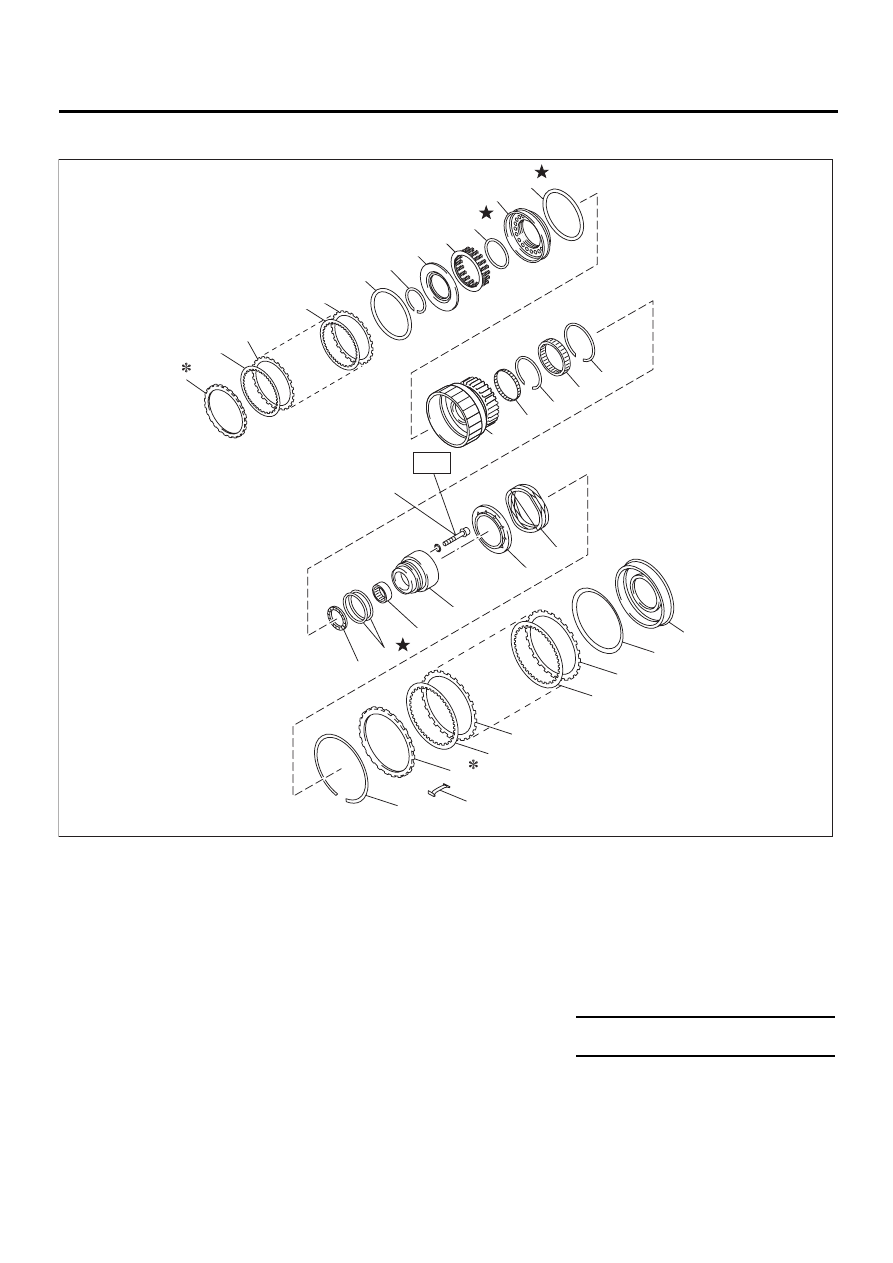

7. LOW CLUTCH AND LOW & REVERSE BRAKE

AT-00008

( 1 )

( 2 )

( 2 )

( 3 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(21)

(22)

(29)

(28)

(27)

(27)

(26)

(26)

(24)

(25)

(23)

(20)

T

(1) Retaining plate

(12) Needle bearing

(23) Snap ring

(2) Drive plate

(13) Inner snap ring

(24) Retaining plate

(3) Driven plate

(14) One-way clutch

(25) Leaf spring

(4) Dish plate

(15) Outer snap ring

(26) Drive plate

(5) Snap ring

(16) Thrust needle bearing

(27) Driven plate

(6) Cover

(17) Seal ring

(28) Dish plate

(7) Spring retainer

(18) Needle bearing

(29) Low and reverse brake piston

(8) D-ring

(19) One-way clutch inner race

(9) Low clutch piston

(20) Socket bolt

Tightening torque: N·m (kgf-m, ft-lb)

(10) D-ring

(21) Spring retainer

T: 25 (2.5, 18.1)

(11) Low clutch drum

(22) Return spring

AT-12

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

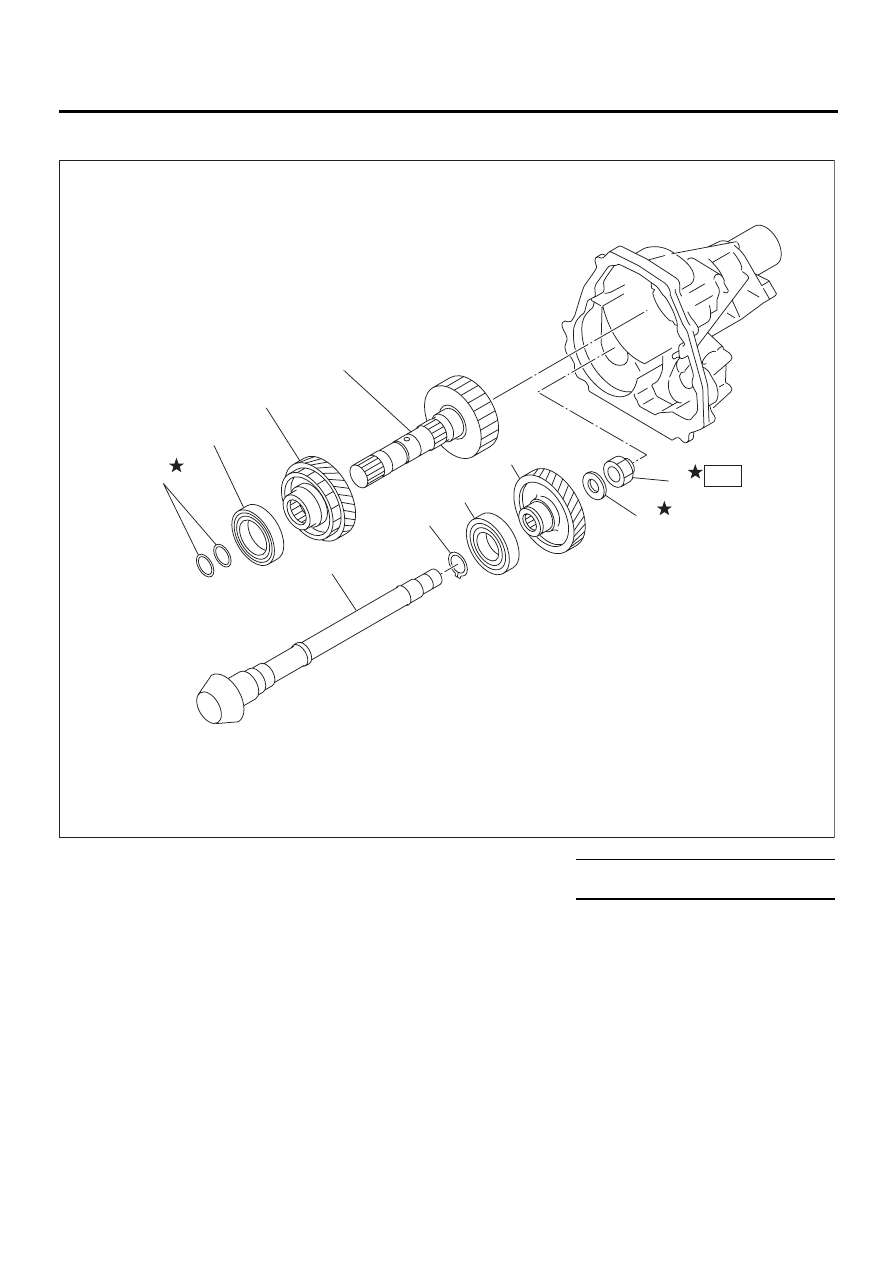

8. REDUCTION GEAR (MPT)

AT-00909

( 4 )

( 3 )

( 2 )

( 1 )

( 5 )

( 6 )

( 7 )

( 8 )

(9)

(10)

T

(1) Seal ring

(6) Snap ring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Ball bearing

(7) Ball bearing

T: 100 (10.2, 73.8)

(3) Reduction drive gear

(8) Reduction driven gear

(4) Reduction drive shaft

(9) Washer

(5) Drive pinion shaft

(10) Lock nut

AT-13

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

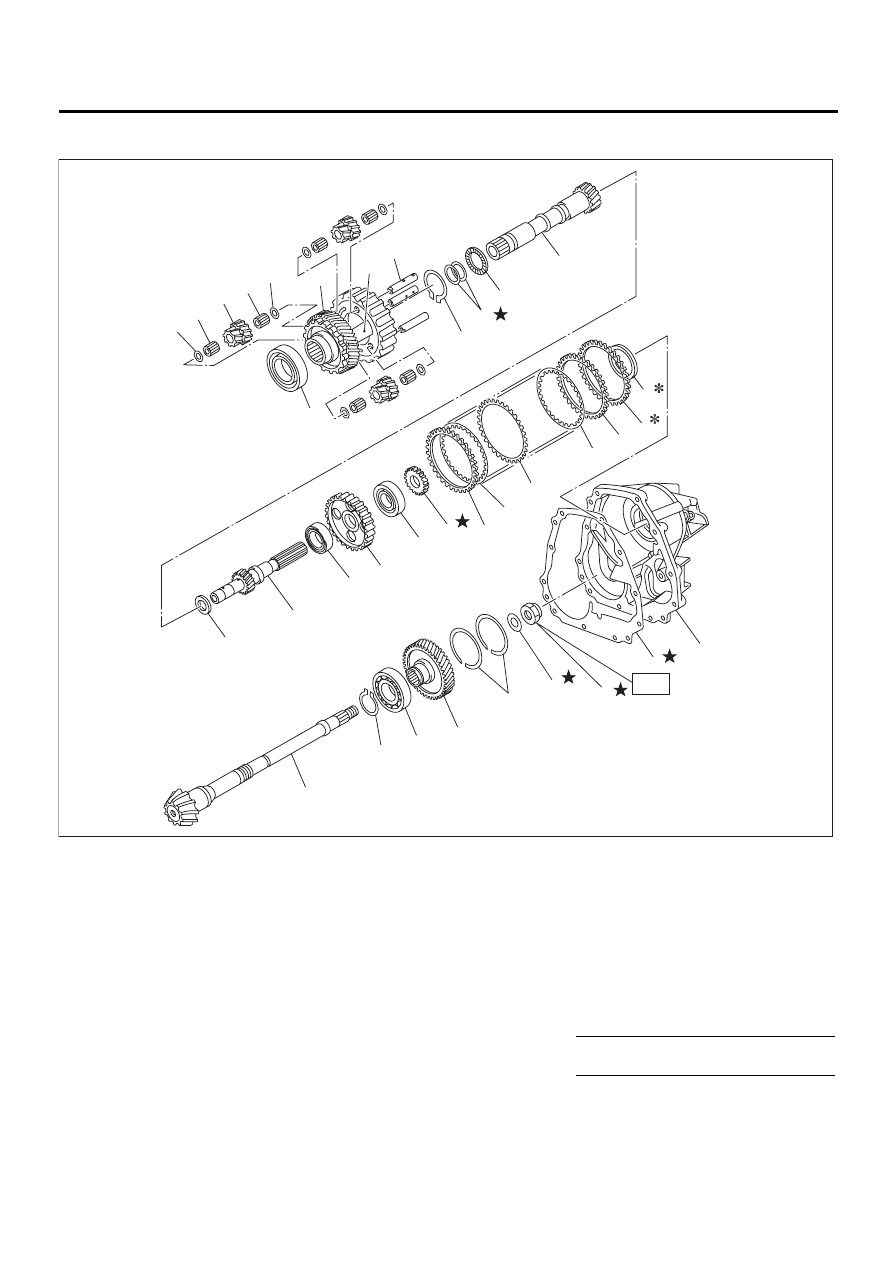

9. REDUCTION GEAR (VTD)

( 1 )

( 2 )

( 3 )

( 3 )

( 4 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(24)

(25)

(26)

(27)

(28)

(29)

(30)

(31)

(32)

(19)

(21)

(22)

(23)

T

AT-00911

(1) Ball bearing

(13) Rear drive shaft

(25) Snap ring

(2) Reduction drive gear

(14) Ball bearing

(26) Ball bearing

(3) Washer

(15) Multi-plate clutch (LSD) hub

(27) Reduction driven gear

(4) Needle bearing

(16) Ball bearing

(28) Snap ring (3.0 L model)

(5) Pinion gear

(17) Revolution gear

(29) Lock washer

(6) Carrier

(18) Driven plate (Thick)

(30) Lock nut

(7) Planetary pinion shaft

(19) Driven plate

(31) Gasket

(8) Snap ring

(20) Driven plate (Thin)

(32) Extension case

(9) Seal ring

(21) Driven plate (Thick)

(10) Thrast needle bearing

(22) Pressure plate

Tightening torque: N·m (kgf-m, ft-lb)

(11) Intermidiate shaft

(23) Rear drive shaft shim

T: 100 (10.2, 73.8)

(12) Thrast washer

(24) Drive pinion shaft
