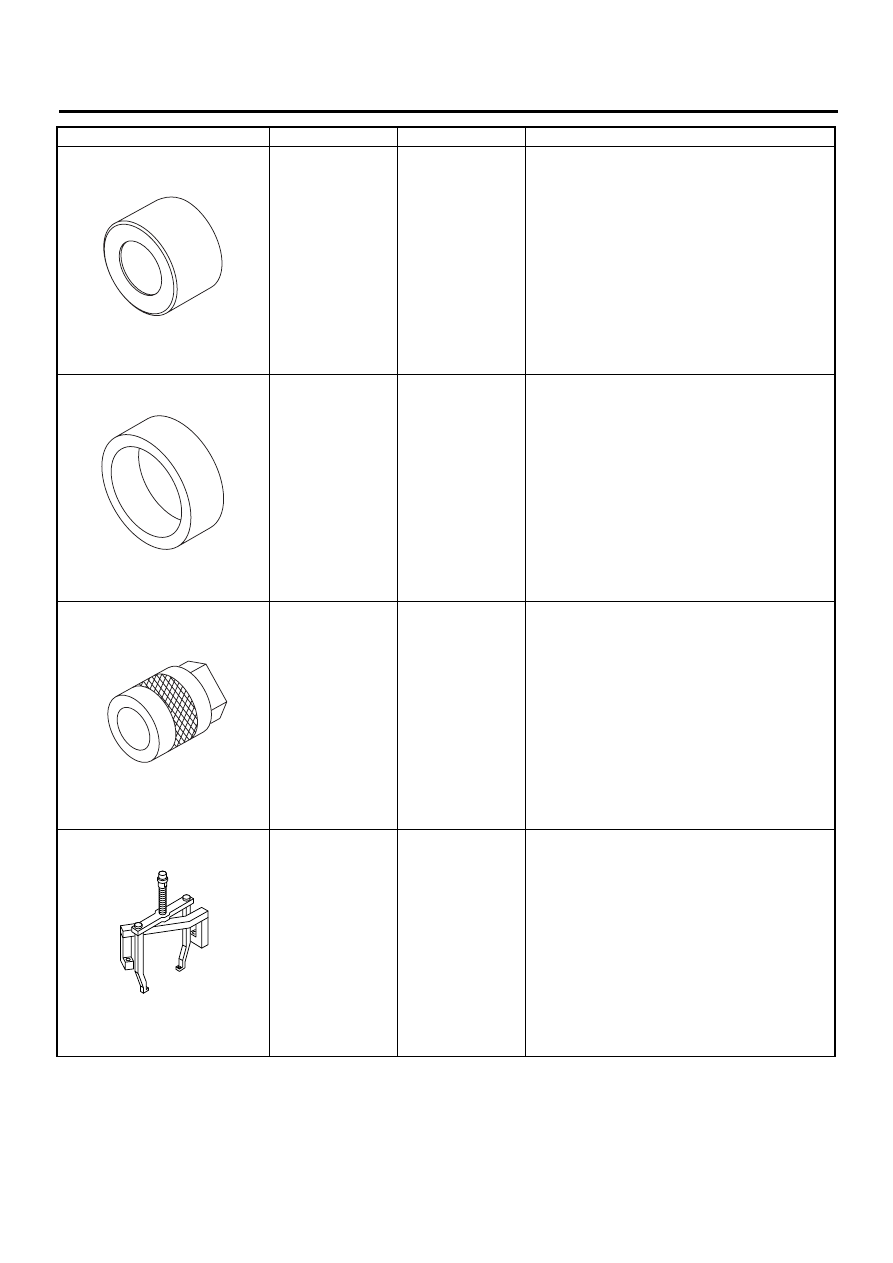

AT-26

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

499577000

GAUGE

Used for measuring the transmission case mating
surface to the reduction gear end surface.

398744300

GAUGE

• Use for measuring contact face between multi-
plate clutch end and transmission.
• VTD model

499737000

PULLER

Used for removing reduction driven gear assem-
bly.

499737100

PULLER SET

Used for removing reduction drive gear assembly.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499577000

ST-398744300

ST-499737000

ST-499737100

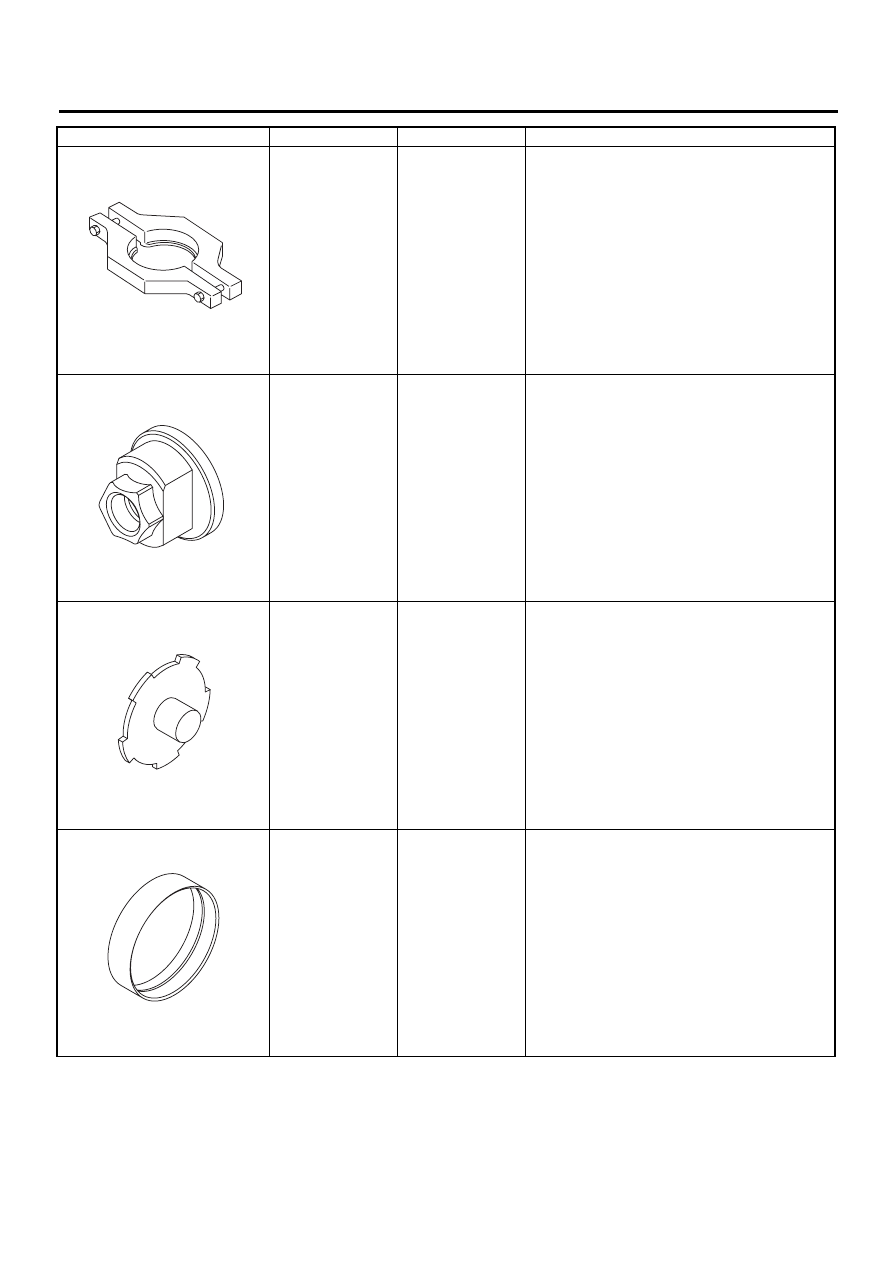

AT-27

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

498077600

REMOVER

Used for removing ball bearing.

498937110

HOLDER

Used for removing and installing drive pinion lock
nut.

498677100

COMPRESSOR

Used for installing 2-4 brake snap ring.

498437000

HIGH CLUTCH
PISTON GUIDE

Used for installing high clutch piston.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498077600

ST-498937110

ST-498677100

ST-498437000

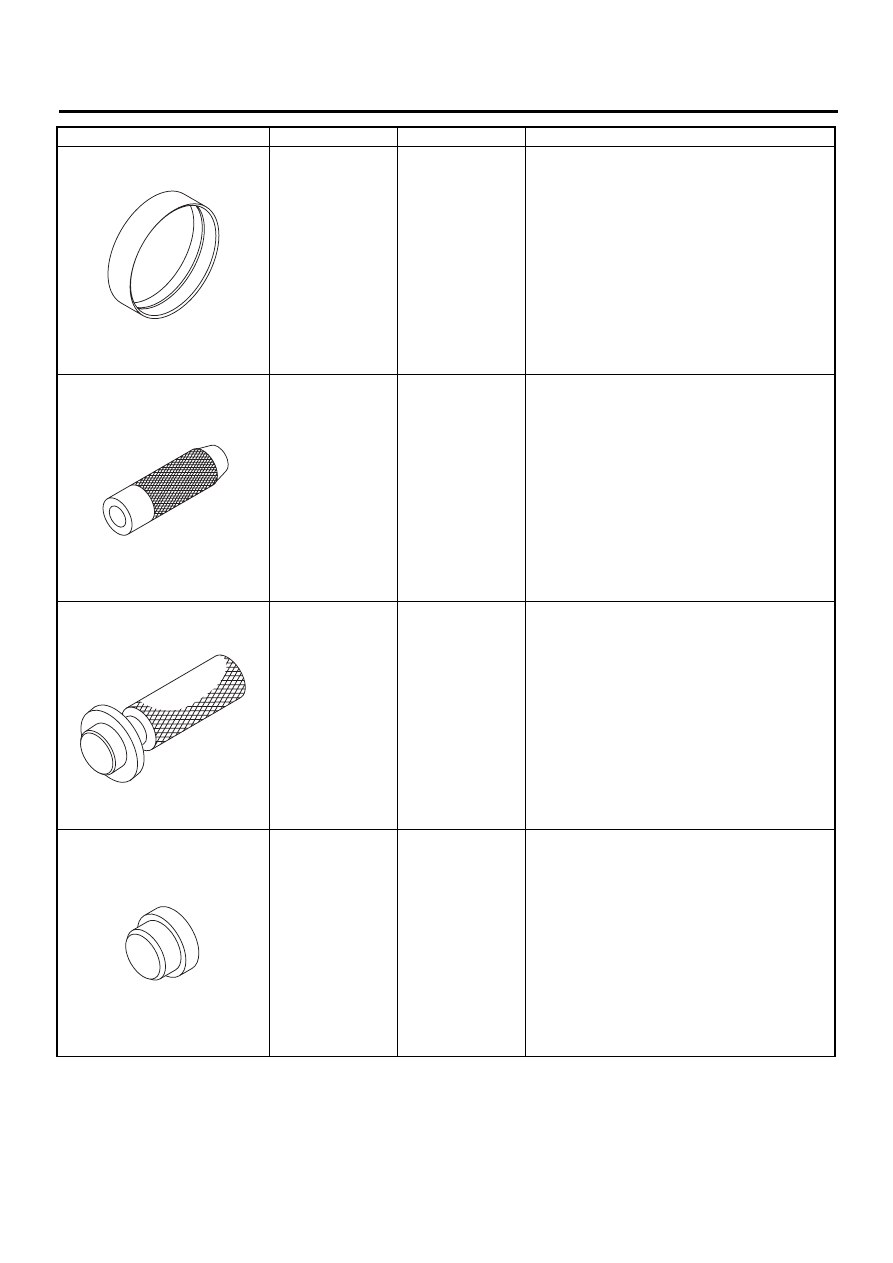

AT-28

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

498437100

LOW CLUTCH
PISTON GUIDE

Used for installing low clutch piston.

899580100

INSTALLER

Used for press-fitting the ball bearing for transfer
clutch.

499797000

DIFFERENTIAL
OIL SEAL
INSTALLER

Used for installing differential side retainer oil seal.

398497701

SEAT

Used for installing needle bearing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498437100

ST-899580100

ST-499797000

ST-398497701

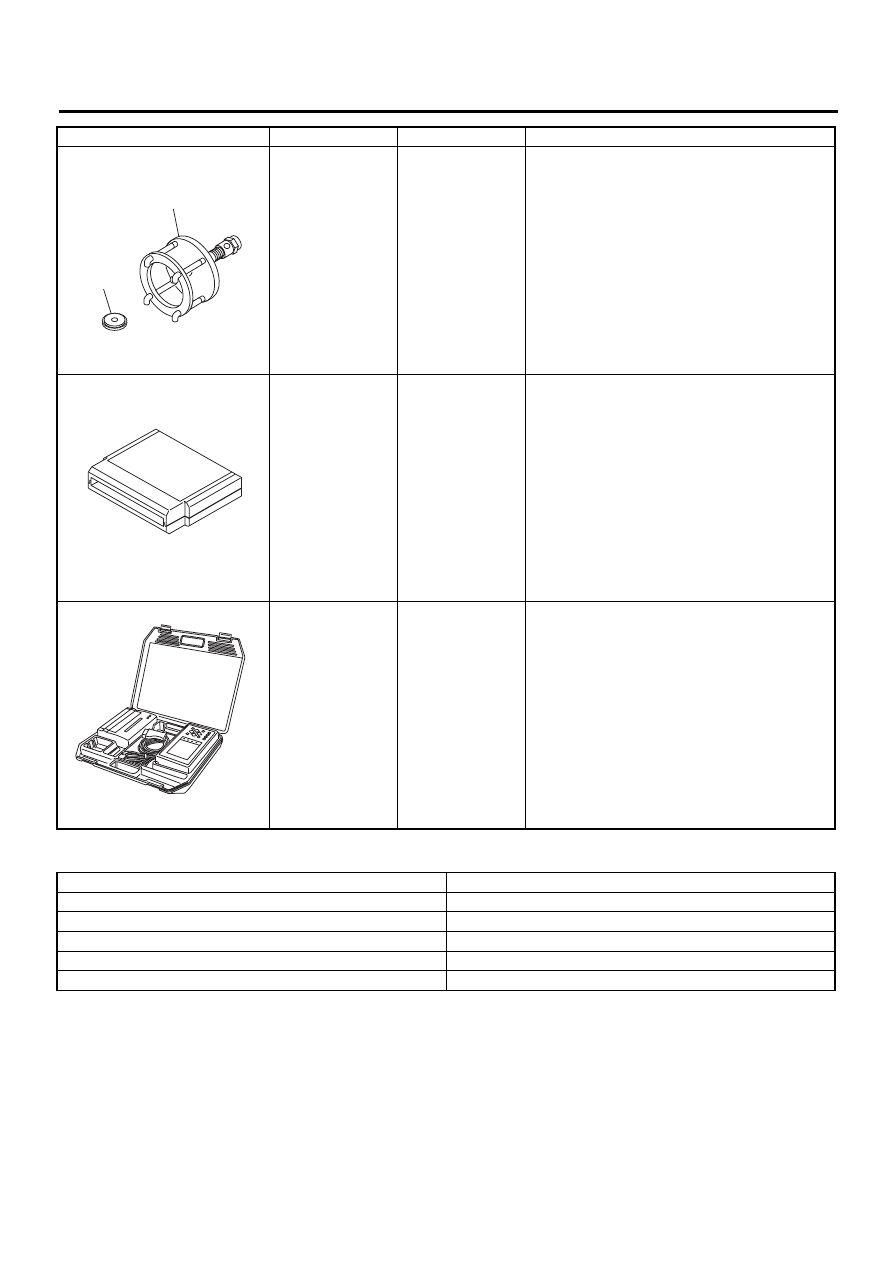

AT-29

AUTOMATIC TRANSMISSION

GENERAL DESCRIPTION

2. GENERAL PURPOSE TOOLS

899524100

PULLER SET

• Using the bolt only.
(1) Bolt
• Used with PULLER SET (499737100).
• Used with PULLER (499737000).
(1) Puller
(2) Cap

24082AA210

<Newly adopted

tool>

CARTRIDGE

Troubleshooting for electrical systems.

22771AA010

SELECT MONI-
TOR KIT

Troubleshooting for electrical systems.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-899524100

( 1 )

( 2 )

ST24082AA210

ST22771AA010

TOOL NAME

REMARKS

Depth gauge

Used for measuring transmission end play.

Thickness gauge

Used for measuring clearances of clutch, brake and oil pump.

Micro meter

Used for measuring thickness of drive pinion.

Spring balance

Used for measuring starting torque of drive pinion.

Circuit tester

Used for measuring resistance and voltage.
