Subaru Legacy III (2000-2003 year). Manual - part 521

CS-4

CONTROL SYSTEMS

GENERAL DESCRIPTION

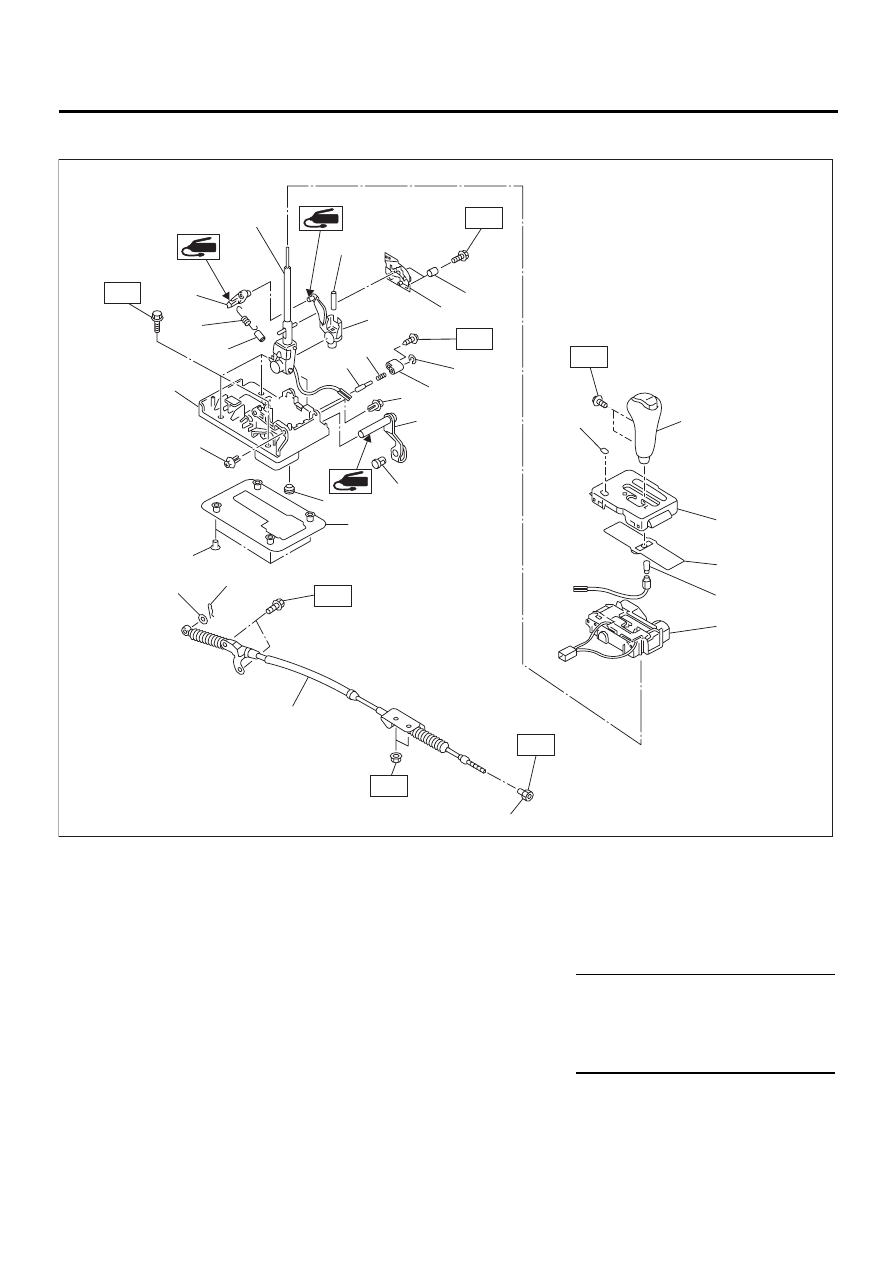

2. AT SELECT LEVER (SPORT SHIFT MODEL)

(1) Grip

(13) Detent spring

(25) Spacer

(2) Cover

(14) Tube

(26) Washer

(3) Indicator

(15) Clip

(27) Snap pin

(4) Blind

(16) Bushing

(28) Select cable

(5) Bulb

(17) Spring

(29) Nut A

(6) Guide plate

(18) Rod

(7) Lever

(19) Clip

Tightening torque: N·m (kgf-m, ft-lb)

(8) Spacer

(20) Base plate

T1: 2.0 (0.2, 1.4)

(9) Bracket guide

(21) Arm

T2: 7.5 (0.76, 5.5)

(10) Spring pin

(22) Bushing

T3: 13 (1.3, 9.4)

(11) Arm bracket

(23) Grommet

T4: 18 (1.8, 13.0)

(12) Detent arm

(24) Packing

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

T1

CS-00177

( 7 )

( 8 )

( 9 )

(10)

(12)

(15)

(16)

(19)

(20)

(13)

(14)

(11)

(17)

(18)

(19)

(23)

(21)

(24)

(25)

(26)

(27)

(28)

(29)

T1

T2

T4

T3

T4

T2

(22)

CS-5

CONTROL SYSTEMS

GENERAL DESCRIPTION

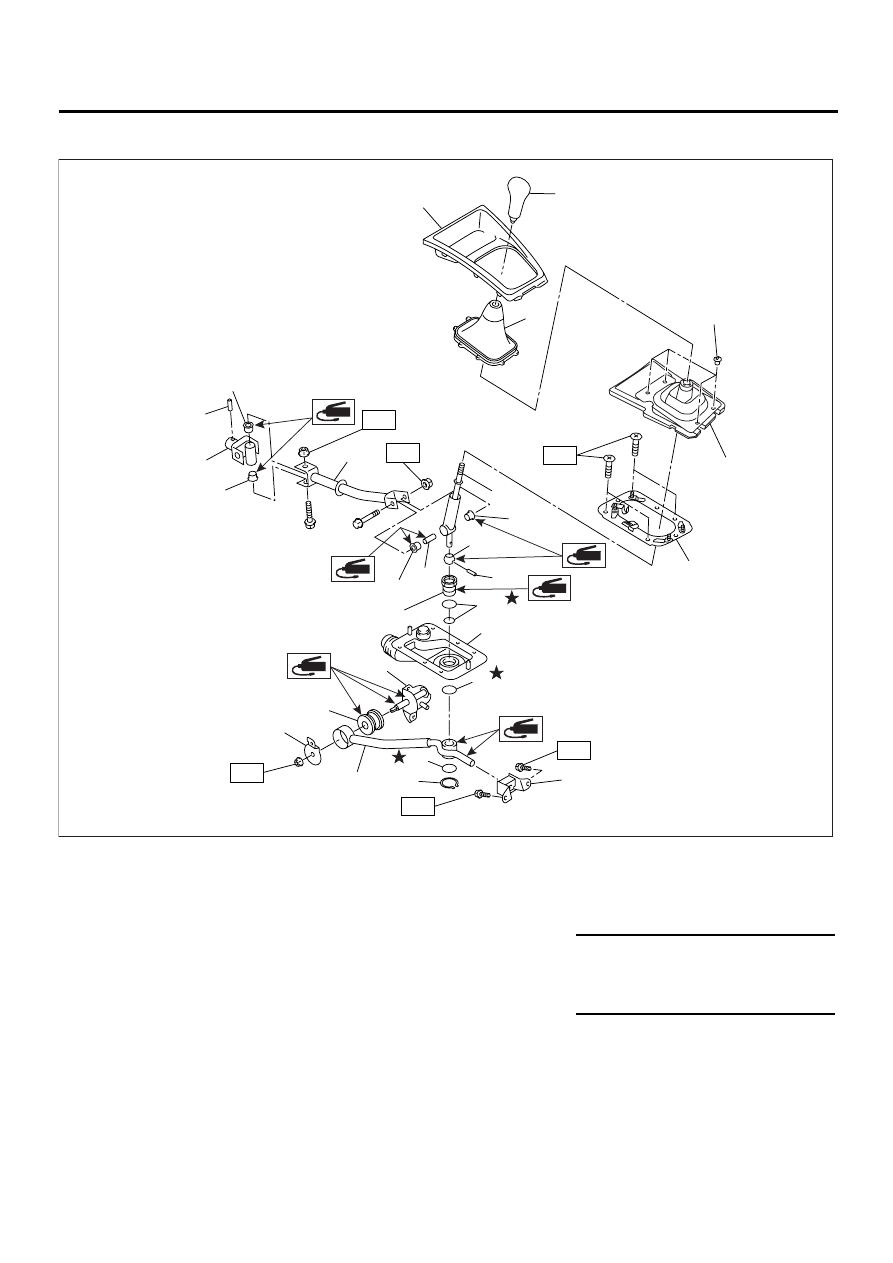

3. MT GEAR SHIFT LEVER

(1) Gear shift knob

(11) Bushing A

(21) Boot and insulator ASSY

(2) Console boot

(12) Spring pin

(22) Front cover

(3) Plate ASSY

(13) Cushion rubber

(23) Clamp

(4) Lever

(14) Bushing B

(5) Bushing

(15) Joint

Tightening torque: N·m (kgf-m, ft-lb)

(6) Bushing

(16) Rod

T1: 7.5 (0.76, 5.5)

(7) Lock wire

(17) Bracket

T2: 12 (1.2, 8.7)

(8) Boot

(18) Washer

T3: 18 (1.8, 13.0)

(9) Snap ring

(19) Stay

(10) O-ring

(20) Spacer

CS-00125

T2

(5)

(5)

(5)

(5)

(4)

(6)

(3)

(2)

(1)

(18)

(21)

(22)

(20)

(19)

(17)

T1

(14)

(13)

(16)

(15)

(12)

(12)

(11)

(10)

(10)

(9)

(8)

(7)

T3

T3

T3

T3

(23)

CS-6

CONTROL SYSTEMS

GENERAL DESCRIPTION

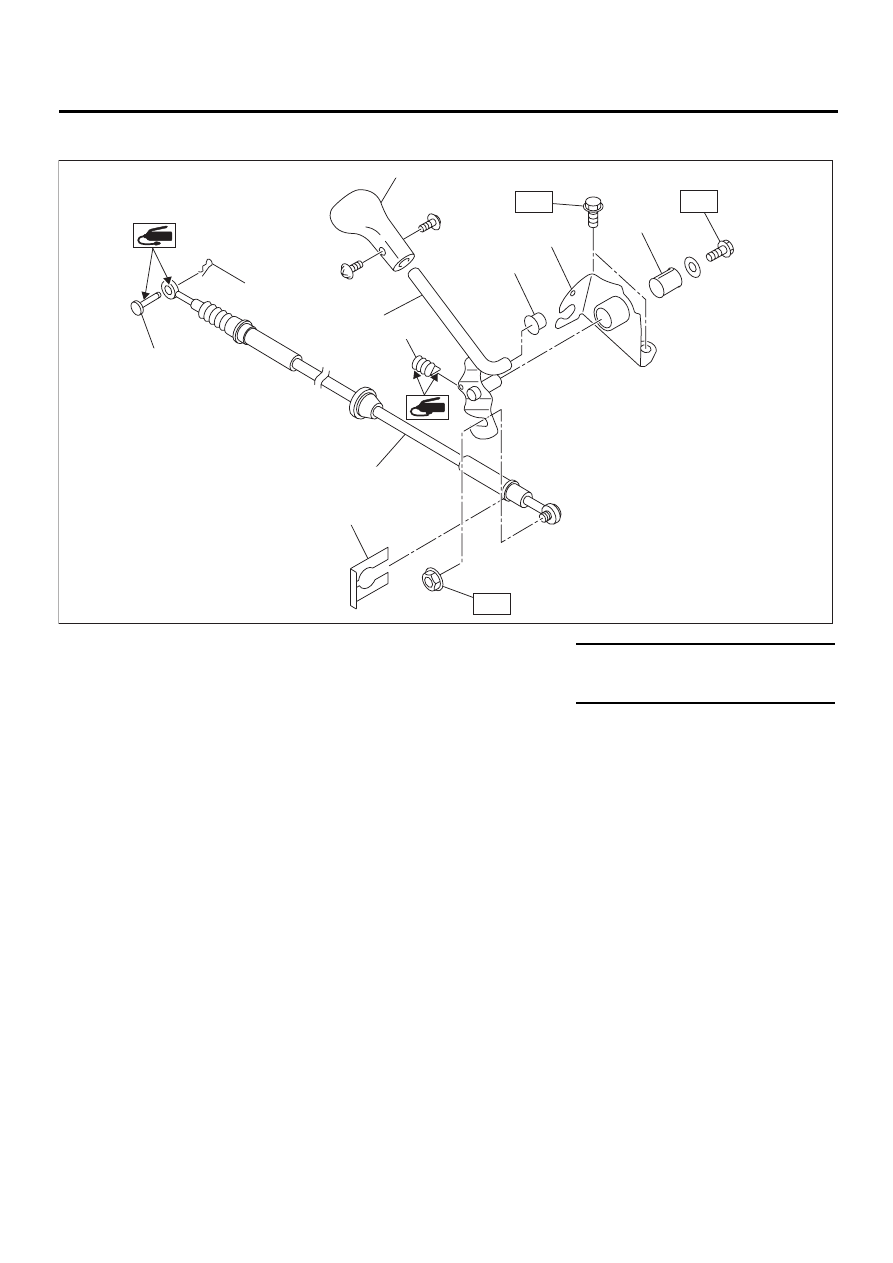

4. DRIVE SELECT LEVER

(1) Knob

(6) Spring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Cushion

(7) Lever ASSY

T1: 1.6 (0.16, 1.2)

(3) Plate ASSY

(8) Clip

T2: 18 (1.8, 13.0)

(4) Bushing

(9) Clevis pin

(5) Cable

(10) Snap pin

CS-00178

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

T2

T2

T1

CS-7

CONTROL SYSTEMS

GENERAL DESCRIPTION

C: CAUTION

• Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust or dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
• Use SUBARU genuine grease etc. or the equiv-
alent. Do not mix grease etc. with that of another
grade or from other manufacturers.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or safety stands at the specified
points.
• Apply grease onto sliding or revolution surfaces
before installation.
• Before installing O-rings or snap rings, apply suf-
ficient amount of grease to avoid damage and de-
formation.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or shop cloth between the part and the vise.
• Before disconnecting electrical connectors, be
sure to disconnect ground cable from battery.
