CONTROL SYSTEMS

CS

Page

1.

General Description ....................................................................................2

2.

Select Lever ................................................................................................8

3.

Select Cable..............................................................................................12

4.

MT Gear Shift Lever ..................................................................................15

5.

MT Drive Select Lever...............................................................................21

6.

Drive Select Cable ....................................................................................23

7.

General Diagnostic Table..........................................................................25

CS-2

CONTROL SYSTEMS

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Item

Specification

Swing torque of rod against lever

N (kgf, lb)

3.7 (0.38, 0.84) or less

CS-3

CONTROL SYSTEMS

GENERAL DESCRIPTION

B: COMPONENT

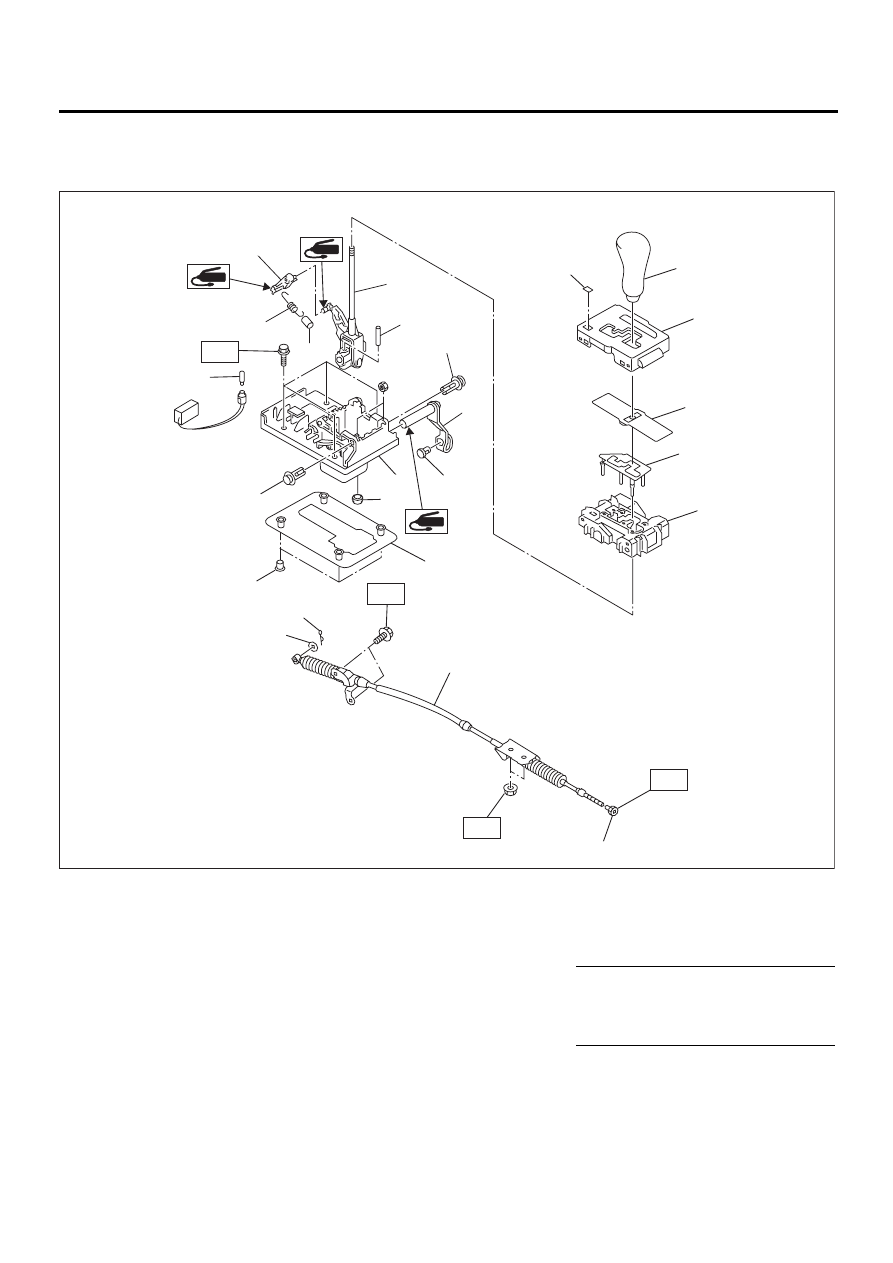

1. AT SELECT LEVER (EXCEPT SPORT SHIFT MODEL)

(1) Indicator light bulb

(11) Spacer

(21) Clip

(2) Detent arm

(12) Grip

(22) Tube

(3) Detent spring

(13) Indicator

(23) Cover

(4) Select lever ASSY

(14) Blind

(5) Spring pin

(15) Cushion

Tightening torque: N·m (kgf-m, ft-lb)

(6) Arm ASSY

(16) Guide plate

T1: 7.5 (0.76, 5.5)

(7) Bushing

(17) Snap pin

T2: 13 (1.3, 9.4)

(8) Base plate

(18) Washer

T3: 18 (1.8, 13.0)

(9) Grommet

(19) Selector cable

(10) Packing

(20) Nut A

CS-00176

T3

T2

T3

T1

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(21)

(12)

(23)

(13)

(14)

(17)

(19)

(20)

(18)

(21)

(22)

(15)

(16)
