Subaru Legacy III (2000-2003 year). Manual - part 453





IG(H4DOSTC)-8

IGNITION

IGNITION COIL AND IGNITOR ASSEMBLY

3. Ignition Coil and Ignitor As-

sembly

A: REMOVAL

Direct ignition type has been adopted.
Refer to the "Spark Plug Removal" for removal pro-
cedure. <Ref. to IG(H4DOSTC)-5, REMOVAL,
Spark Plug.>

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

16 N·m (1.6 kgf-m, 11.7 ft-lb)

C: INSPECTION

Ignitor is integrated with the coil. Therefore resis-
tance cannot be measured.
For inspection procedure of ignition system, refer to
the following.
 <Ref. to EN(H4DOSTC)-144, DTC P0350 — IGNI-
TION COIL PRIMARY/SECONDARY CIRCUIT —,
Diagnostic Procedure with Diagnostic Trouble
Code (DTC).>

SC(H4DOSTC)-2

STARTING/CHARGING SYSTEMS

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Item

Designation

Starter

Type

Reduction type

Vehicle type

MT vehicles

AT vehicles

Model

M000T83881

M000T86381

Manufacturer

Mitsubishi Electric

Voltage and output

12 V — 1.0 kW

12 V — 1.4 kW

Direction of rotation

Counterclockwise (viewed from pinion gear side)

Number of pinion teeth

8

9

No-load characteristics

Voltage

11 V

Current

90 A or less

Rotating speed

2,800 rpm or more

2,400 rpm or more

Load characteristics

Voltage

7.5 V

7.7 V

Current

300 A

400 A

Torque

8.6 N (0.88 kgf, 6.4 lb) or more

16.0 N (1.63 kgf, 11.8 lb) or more

Rotating speed

920 rpm or more

740 rpm or more

Lock characteristics

Voltage

4 V

3.5 V

Current

650 A or less

940 A or less

Torque

14.7 N (1.50 kgf, 10.8 lb) or more

28.9 N (2.95 kgf, 21.3 lb) or more

Generator

Type

Rotating-field three-phase type, Voltage regulator built-in type, with

load response control system

Model

LR1100-733

Manufacturer

HITACHI

Voltage and output

12 V — 100 A

Polarity on ground side

Negative

Rotating direction

Clockwise (viewed from pulley side)

Armature connection

3-phase Y-type

Output current

1,500 rpm — 49 A or more
2,500 rpm — 79 A or more

5,000 rpm — 102 A or more

Regulated voltage

14.1 — 14.8 V [20

°

C (68

°

F)]

SC(H4DOSTC)-3

STARTING/CHARGING SYSTEMS

GENERAL DESCRIPTION

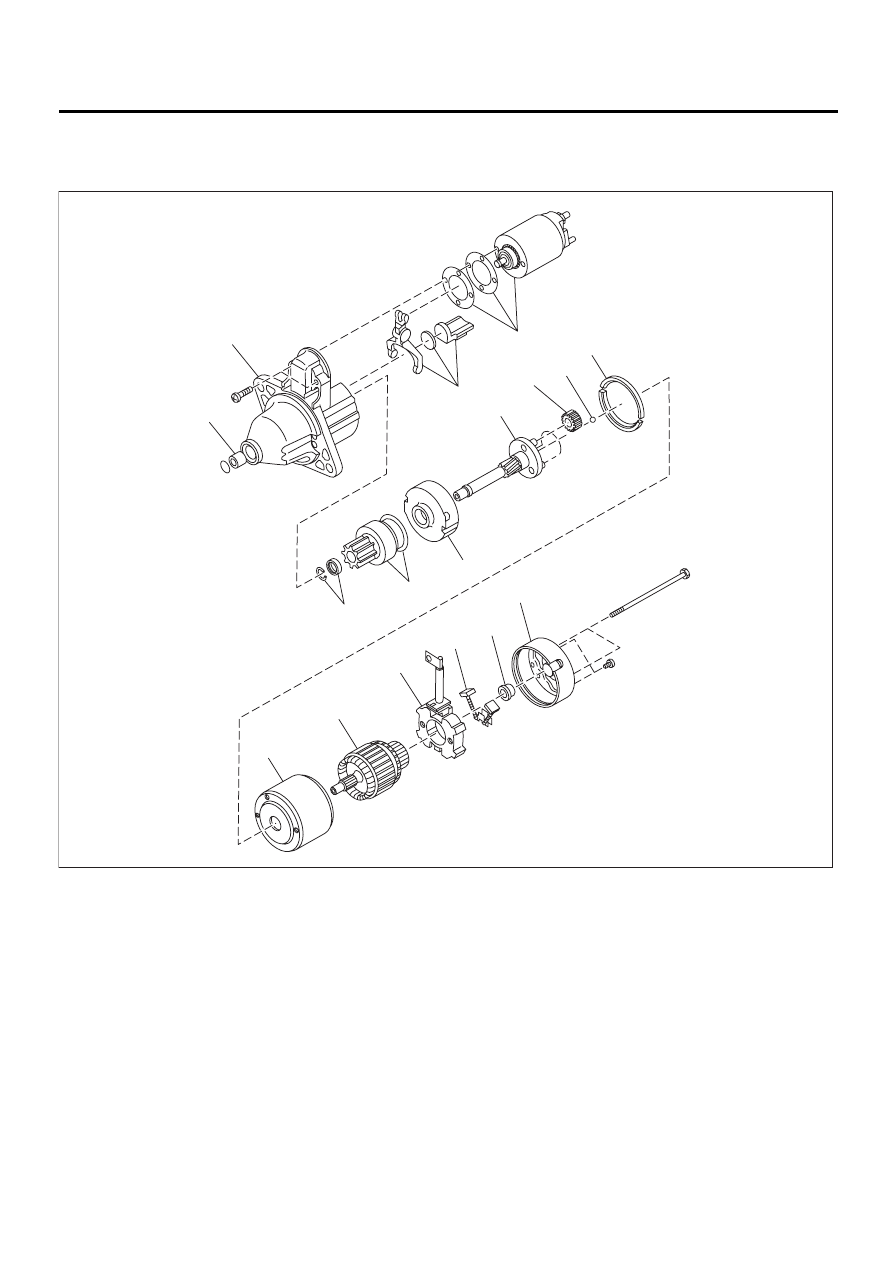

B: COMPONENT

1. STARTER

(1) Sleeve bearing

(7) Internal gear ASSY

(13) Armature

(2) Front bracket

(8) Shaft ASSY

(14) Brush holder

(3) Lever set

(9) Shaft ASSY

(15) Brush

(4) Magnet switch ASSY

(10) Ball

(16) Sleeve bearing

(5) Stopper set

(11) Packing

(17) Rear bracket

(6) Over running clutch

(12) Yoke

SC-00146

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)
