IGNITION

IG(H4DOSTC)

Page

1.

General Description ....................................................................................2

2.

Spark Plug...................................................................................................5

3.

Ignition Coil and Ignitor Assembly ...............................................................8

IG(H4DOSTC)-2

IGNITION

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Item

Designation

Ignition coil and
ignitor assembly

Model

FK0186

Ignition type

Direct ignition

Manufacturer

DIAMOND

Spark plug

Type and manufacturer

NGK : PFR6G

Thread size

mm

14, P = 1.25

Spark gap

mm (in)

0.7 — 0.8 (0.028 — 0.031)

Electrode

Platinum

IG(H4DOSTC)-3

IGNITION

GENERAL DESCRIPTION

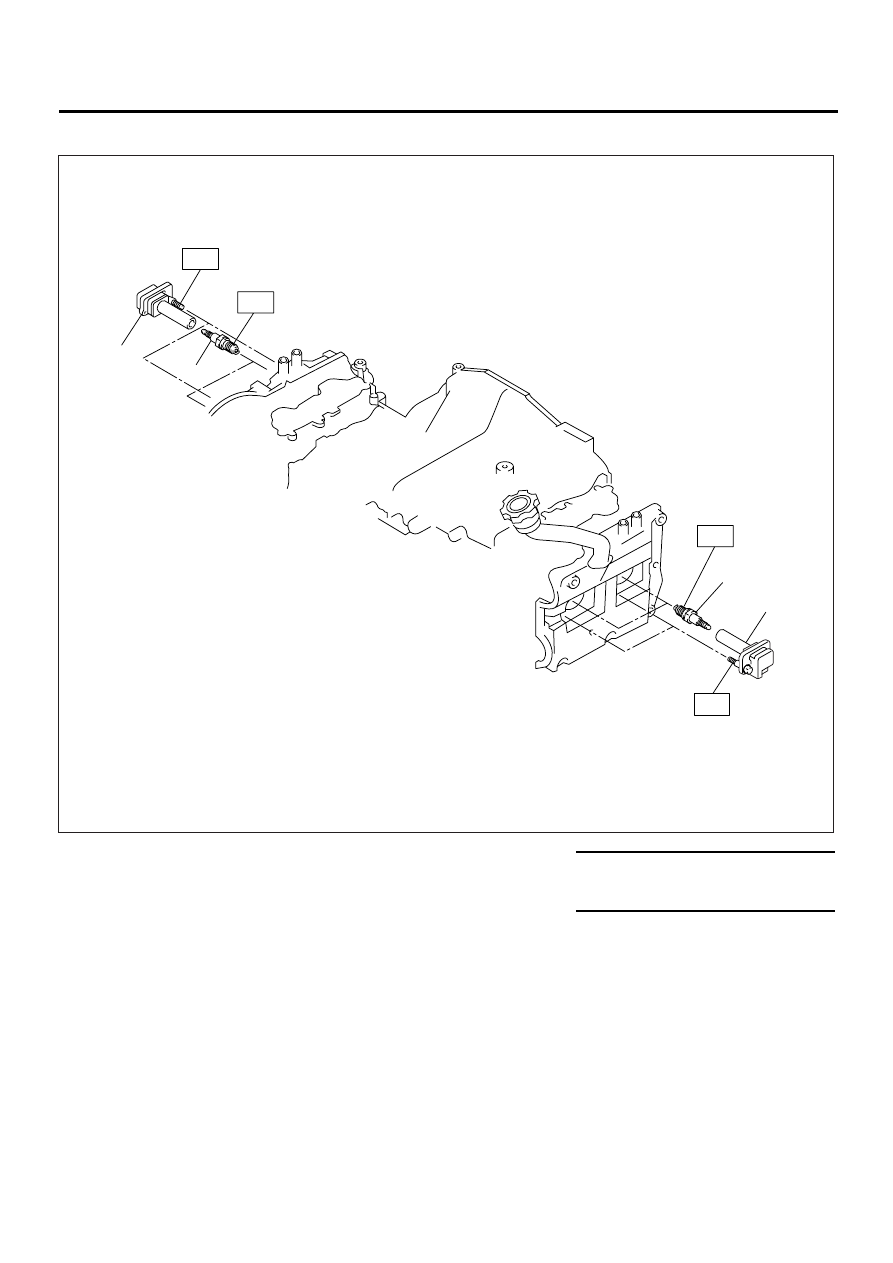

B: COMPONENT

(1) Spark plug

Tightening torque: N·m (kgf-m, ft-lb)

(2) Ignition coil and ignitor ASSY

T1: 21 (2.1, 15.2)

T2: 16 (1.6, 11.7)

IG-00001

(1)

T1

T2

T1

(1)

(2)

(2)

T2
