LU(H4DOSTC)-16

LUBRICATION

OIL PAN AND STRAINER

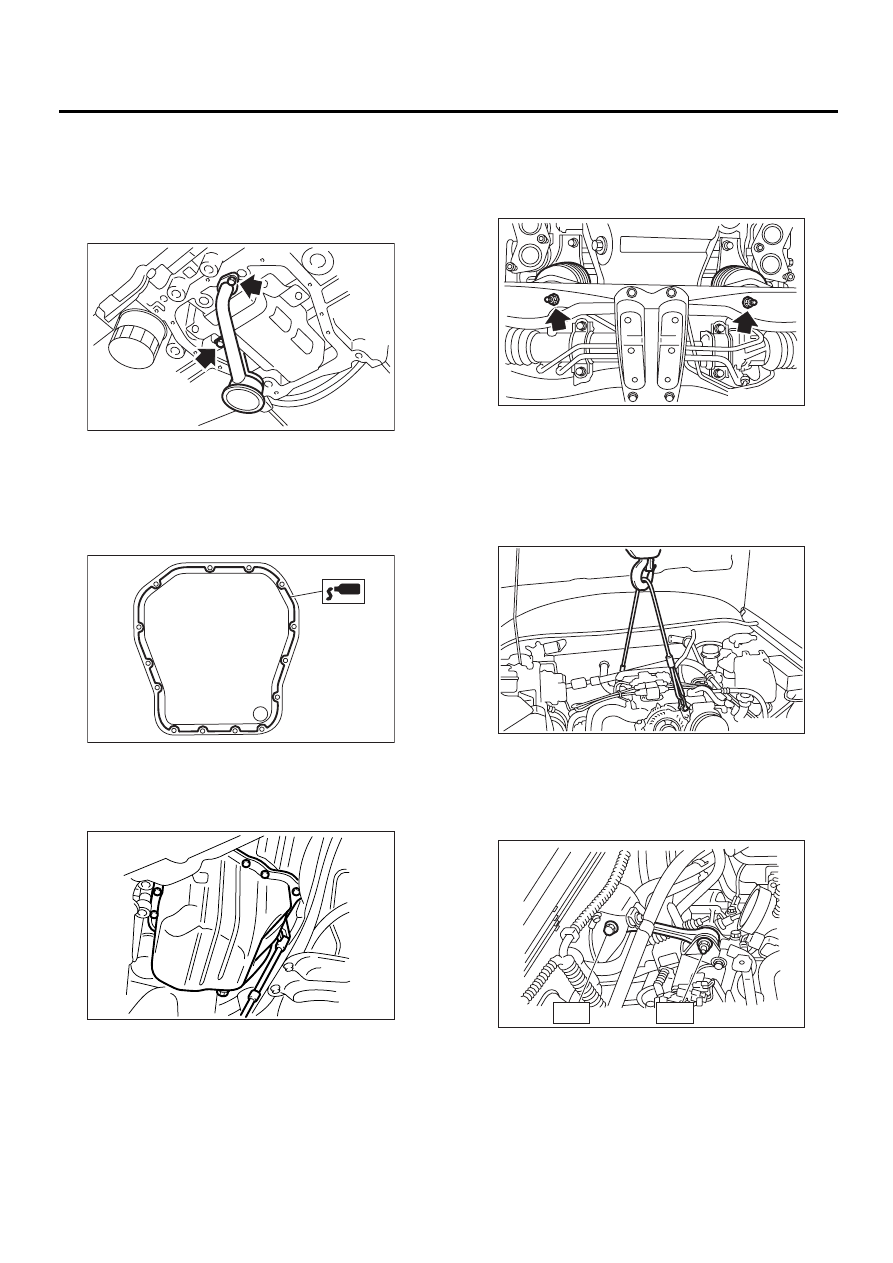

2) Install oil strainer onto baffle plate.

CAUTION:
Replace O-ring with a new one.

Tightening torque:

10 N·m (1.0 kgf-m, 7 ft-lb)

3) Apply fluid gasket to mating surfaces and install
oil pan.

Fluid gasket:

Part No. 004403007

THREE BOND 1215 or equivalent

4) Mount oil pan on engine block.

Tightening torque:

5 N·m (0.5 kgf-m, 3.6 ft-lb)

5) Lower engine onto front crossmember.

6) Tighten nuts which secure front cushion rubber
onto front crossmember.

Tightening torque:

69 N·m (7.0 kgf-m, 51 ft-lb)

7) Install under cover.
8) Lower the vehicle.

CAUTION:
When lowering vehicle, wire rope must be re-
leased at the same time.
9) Remove lifting device and steel cables.

10) Install pitching stopper.

Tightening torque:

T1: 50 N·m (5.1 kgf-m, 37 ft-lb)
T2: 58 N·m (5.9 kgf-m, 43 ft-lb)

LU-00032

LU-00034

LU-00031

LU-00030

LU-00028

ME-00218

T2

T1

LU(H4DOSTC)-17

LUBRICATION

OIL PAN AND STRAINER

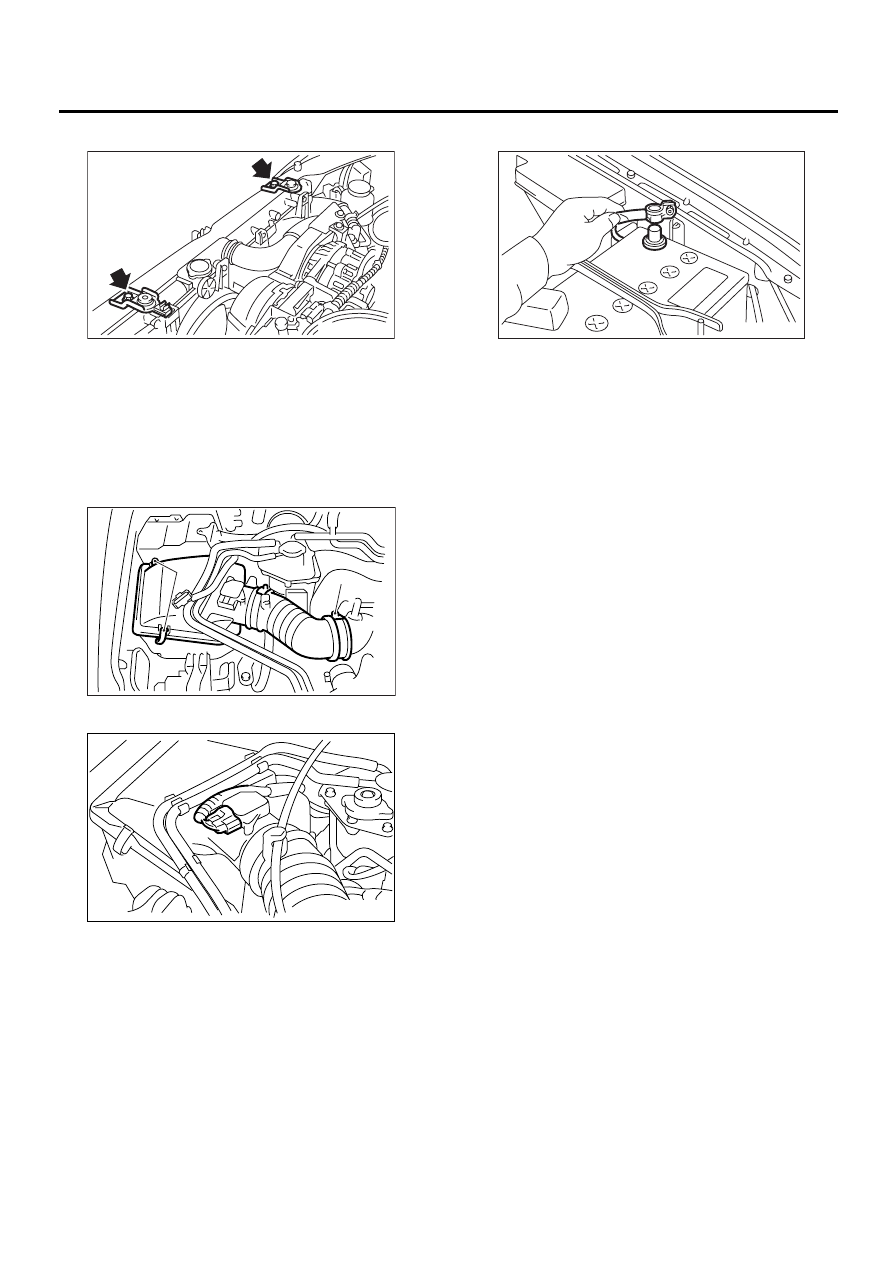

11) Install radiator upper brackets.

12) Install the intercooler. <Ref. to IN(H4DOSTC)-
14, INSTALLATION, Intercooler.>
13) Install the air intake boot and air cleaner upper
cover.
14) Tighten the clamp (A) which connects air intake
boot to intake duct.
15) Lock the two clips (B) to air cleaner upper cov-
er.

16) Connect the connector to mass air flow sensor.

17) Install front wheels.

18) Connect battery ground cable.

19) Fill engine oil. <Ref. to LU(H4DOSTC)-8, IN-
SPECTION, Engine Oil.>

C: INSPECTION

By visual check make sure oil pan, oil strainer, oil
strainer stay and baffle plate are not damaged.

LU-00097

(B)

(A)

LU-00153

LU-00026

FU-00009

LU(H4DOSTC)-18

LUBRICATION

OIL PRESSURE SWITCH

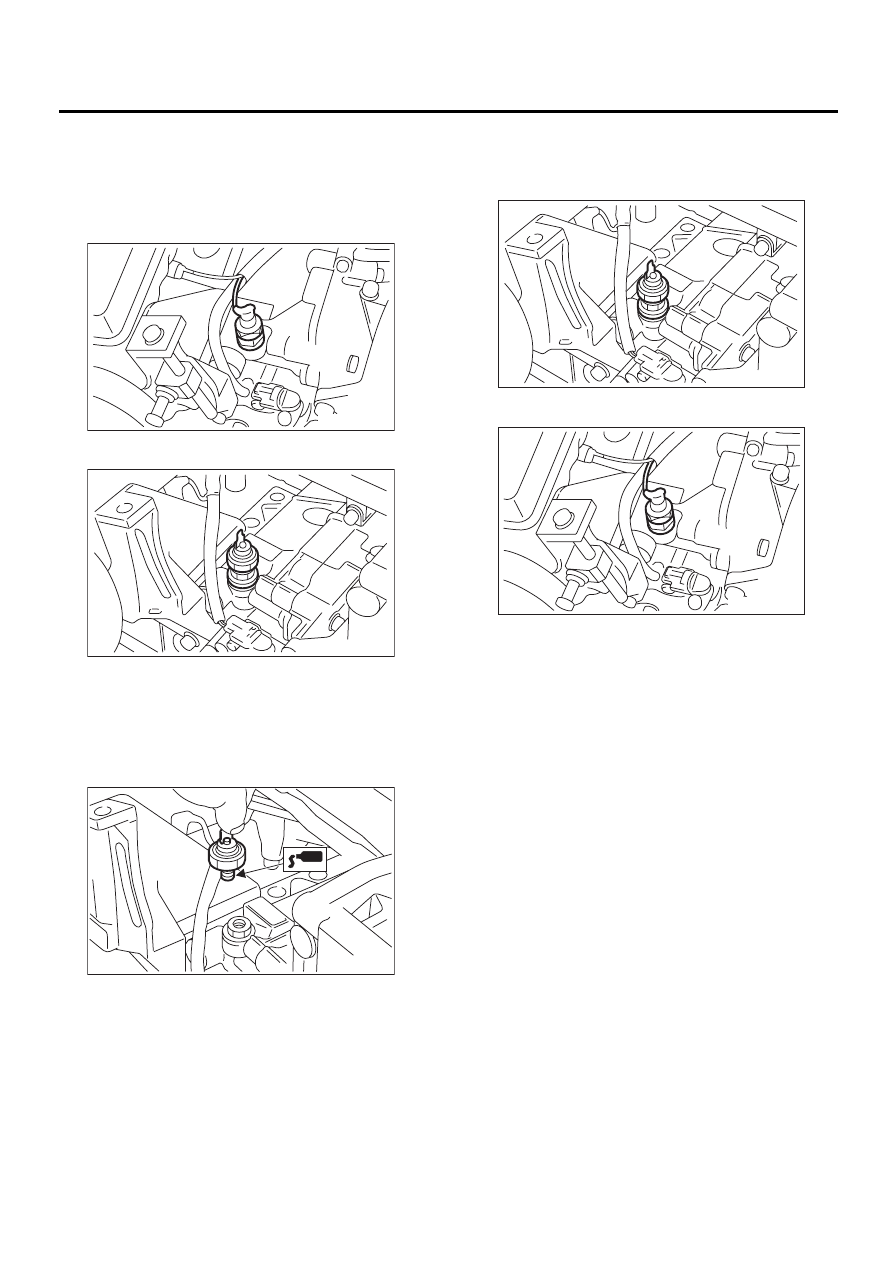

6. Oil Pressure Switch

A: REMOVAL

1) Remove generator from bracket. <Ref. to
SC(H4DOSTC)-14, REMOVAL, Generator.>
2) Disconnect terminal from oil pressure switch.

3) Remove oil pressure switch.

B: INSTALLATION

1) Apply fluid gasket to oil pressure switch threads.

Fluid gasket:

Part No. 004403042

THREE BOND 1324 or equivalent

2) Install oil pressure switch onto engine block.

Tightening torque:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

3) Connect terminal of oil pressure switch.

4) Install generator on bracket.  <Ref. to
SC(H4DOSTC)-14, INSTALLATION, Generator.>

C: INSPECTION

Make sure oil does not leak or seep from where the
oil pressure switch is installed.

LU-00036

LU-00037

LU-00038

LU-00037

LU-00036

LU(H4DOSTC)-19

LUBRICATION

ENGINE OIL COOLER

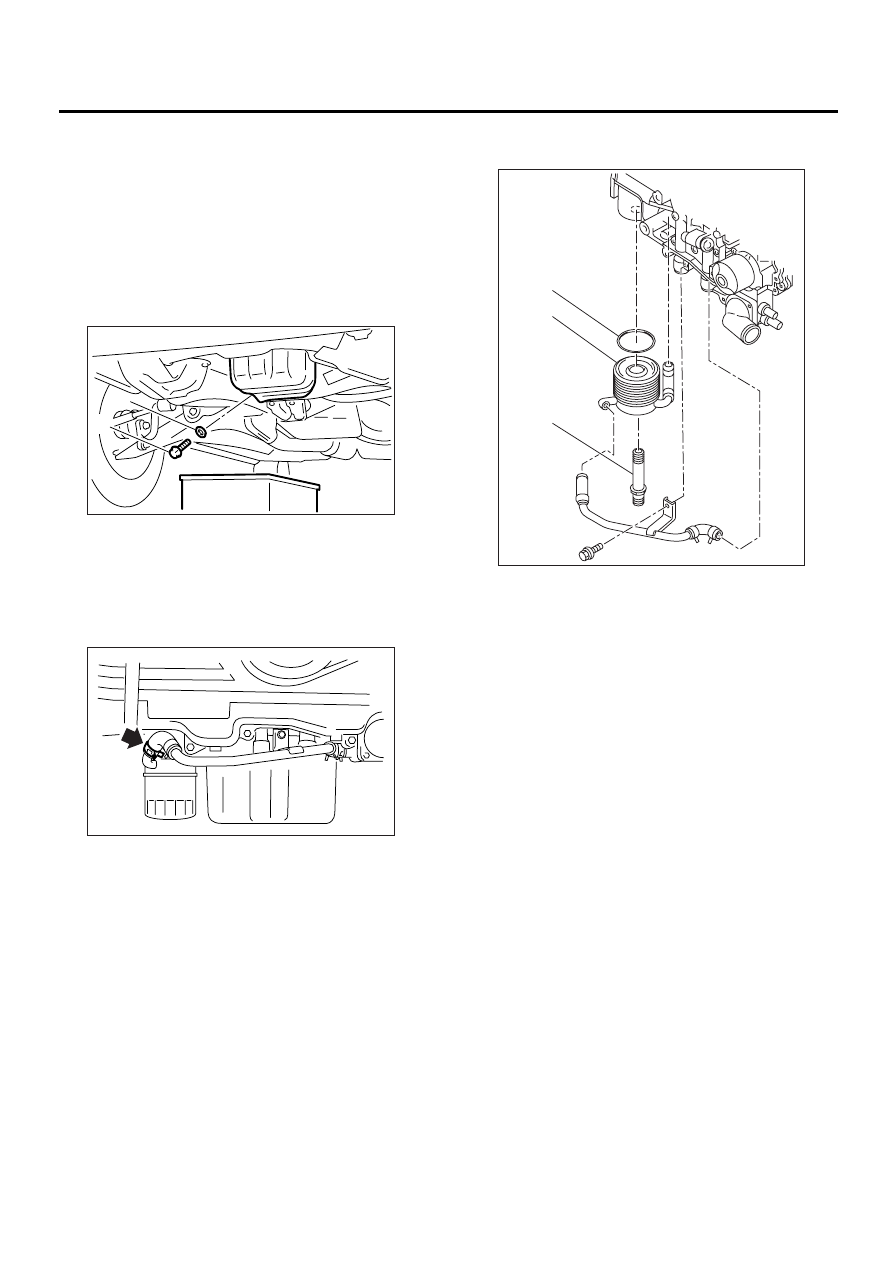

7. Engine Oil Cooler

A: REMOVAL

NOTE:
Equipped only for MT model.
1) Lift-up the vehicle.
2) Remove the under cover.
3) Drain the engine oil.
Set a container under the vehicle, and remove the
drain plug from oil pan.

4) Drain the coolant.
5) Remove the water by-pass pipe between oil
cooler and water pump.

6) Remove the engine oil filter. <Ref. to
LU(H4DOSTC)-21, REMOVAL, Engine Oil Filter.>

7) Remove the connector, and then remove the oil
cooler.

(A) Metal gasket

(B) Drain plug

LU-00151

(B)

(A)

LU-00154

(A) O-ring

(B) Oil cooler

(C) Connector

LU-00155

( A )

( B )

( C )
