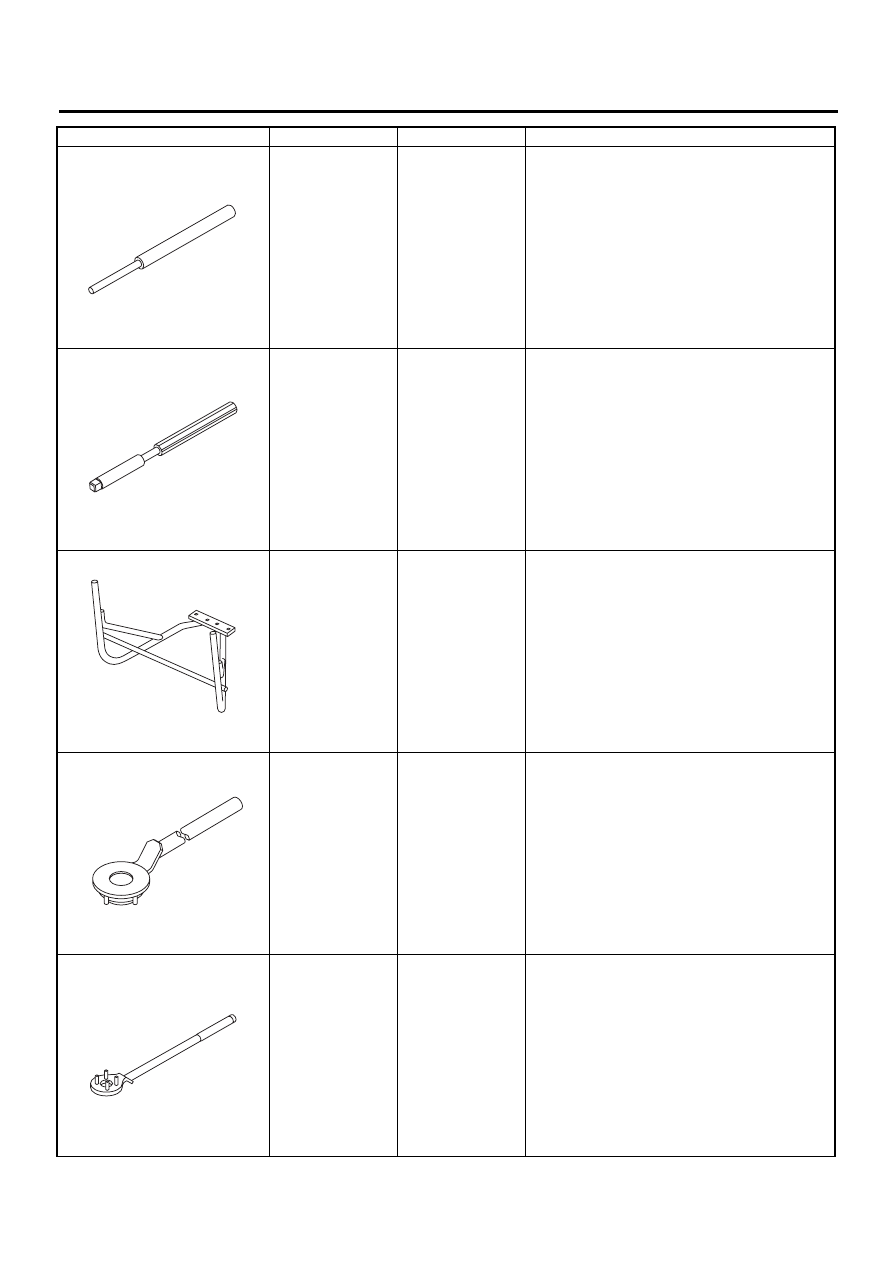

GENERAL DESCRIPTION

499037100

CONNECTING
ROD BUSHING
REMOVER &
INSTALLER

Used for removing and installing connecting rod
bushing.

499097600

(MT vehicles)

PISTON PIN
REMOVER ASSY

Used for removing piston pin.

499097700

(AT vehicles)

PISTON PIN
REMOVER ASSY

Used for removing piston pin.

499207400

CAMSHAFT
SPROCKET
WRENCH

Used for removing and installing exhaust cam-
shaft sprocket.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499037100

ST-499097600

ST-499097700

ST-499207400

ME(H4DOSTC)-17

MECHANICAL

GENERAL DESCRIPTION

18231AA010

(Newly adopted

tool)

CAMSHAFT
SPROCKET
WRENCH

Used for removing and installing intake camshaft
sprocket. (Intake camshaft sprocket LH)

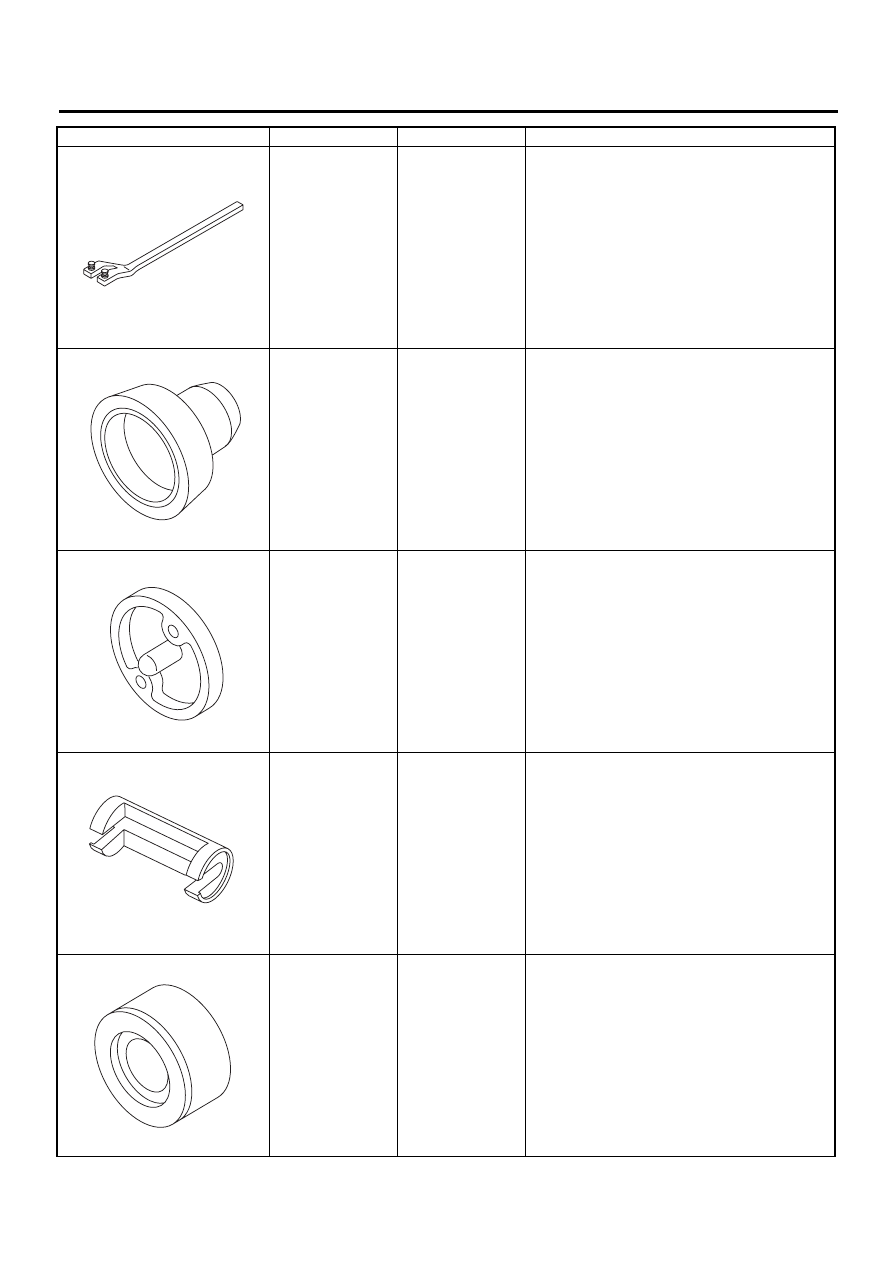

499587200

CRANKSHAFT
OIL SEAL
INSTALLER

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL GUIDE
(499597100).

499597100

CRANKSHAFT
OIL SEAL GUIDE

• Used for installing crankshaft oil seal.
• Used with CRANKSHAFT OIL SEAL
INSTALLER (499587200).

499718000

VALVE SPRING
REMOVER

Used for removing and installing valve spring.

18251AA020

VALVE GUIDE
ADJUSTER

Used for installing intake and exhaust valve
guides.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST18231AA010

ST-499587200

ST-499597100

ST-499718000

ST18251AA020

ME(H4DOSTC)-18

MECHANICAL

GENERAL DESCRIPTION

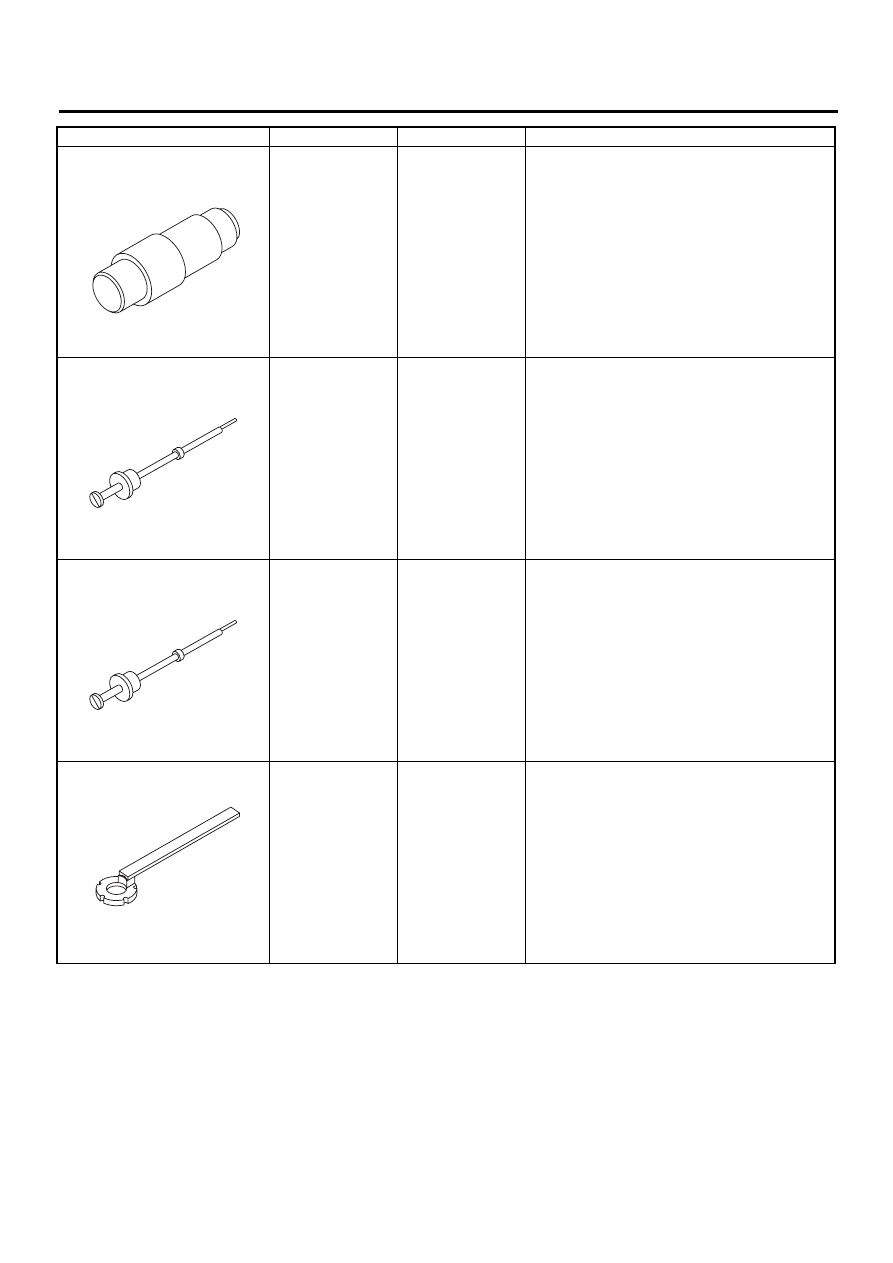

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499817000

ENGINE STAND

• Stand used for engine disassembly and assem-
bly.
• Used with ENGINE STAND ADAPTER RH
(498457000) & LH (498457100).

499977400

CRANK PULLEY
WRENCH



(AT

vehicles)

Used for stopping rotation of crankshaft pulley
when loosening and tightening crankshaft pulley
bolts.

499977100

CRANK PULLEY
WRENCH



(MT

vehicles)

Used for stopping rotation of crankshaft pulley
when loosening and tightening crankshaft pulley
bolts.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499767200

ST-499767400

ST-499817100

ST-499977400

ST-499977100

ME(H4DOSTC)-19

MECHANICAL

GENERAL DESCRIPTION

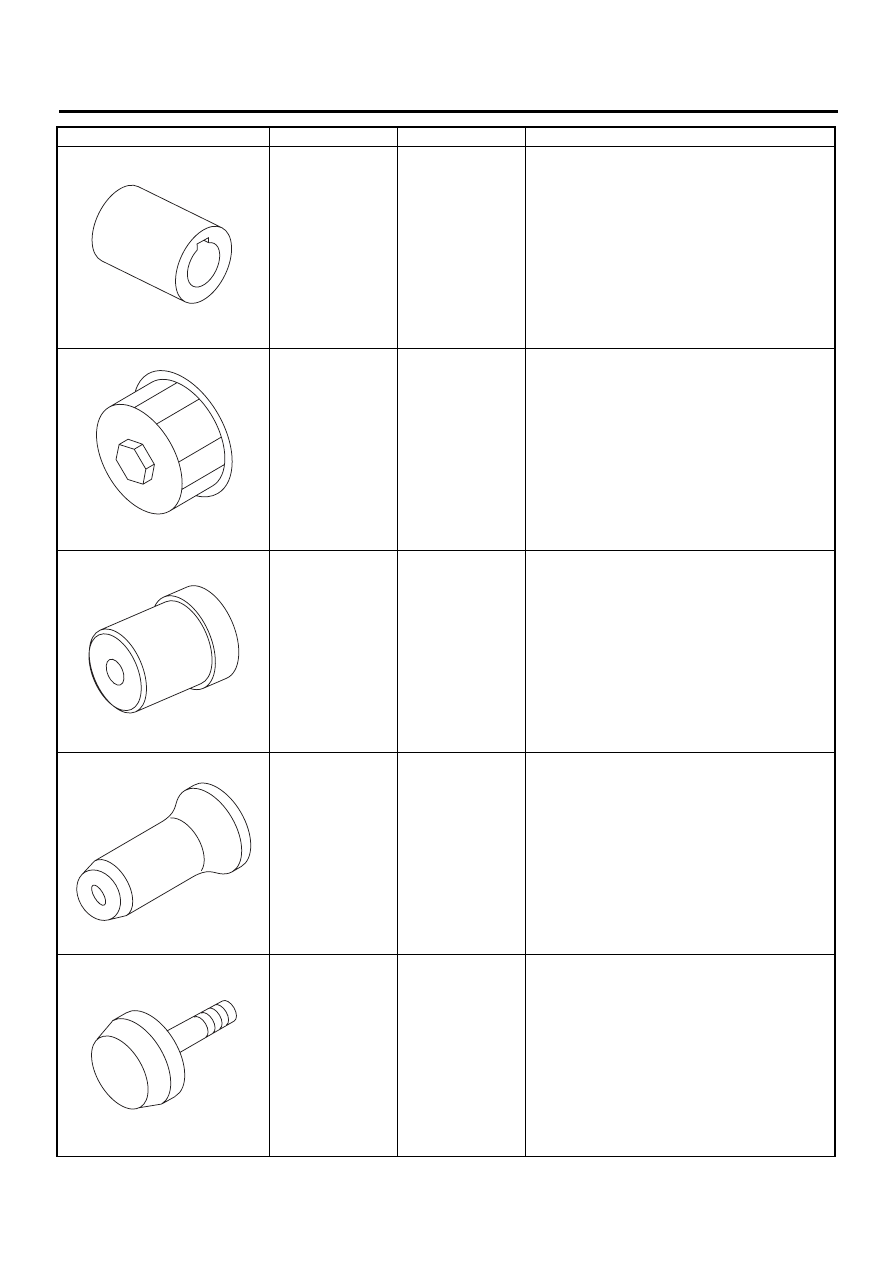

499987500

CRANKSHAFT
SOCKET

Used for rotating crankshaft.

498547000

OIL FILTER
WRENCH

Used for removing and installing the oil filter.

499587100

OIL SEAL
INSTALLER

Used for installing oil pump oil seal.

499587600

OIL SEAL
INSTALLER

Used for installing camshaft oil seal for DOHC
engine.

499597200

OIL SEAL GUIDE

• Used for installing camshaft oil seal for DOHC
engine.
• Used with OIL SEAL GUIDE (499587600).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499987500

ST-498547000

ST-499587100

ST-499587600

ST-499597200
