GENERAL DESCRIPTION

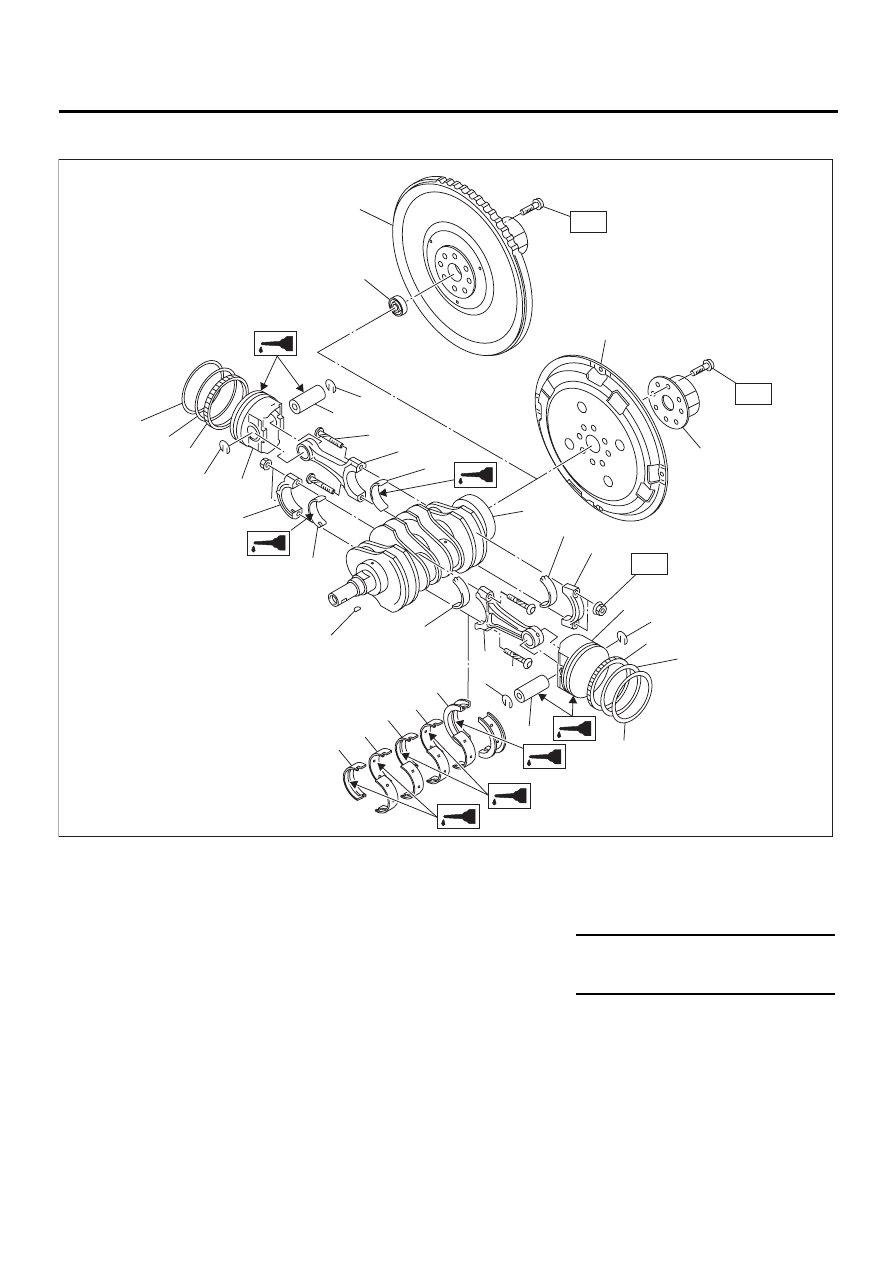

5. CRANKSHAFT AND PISTON

(1) Flywheel (MT vehicles only)

(9) Piston pin

(17) Crankshaft bearing #1, #3

(2) Ball bearing (MT vehicles only)

(10) Circlip

(18) Crankshaft bearing #2, #4

(3) Reinforcement (AT vehicles only)

(11) Connecting rod bolt

(19) Crankshaft bearing #5

(4) Drive plate (AT vehicles only)

(12) Connecting rod

(5) Top ring

(13) Connecting rod bearing

Tightening torque: N·m (kgf-m, ft-lb)

(6) Second ring

(14) Connecting rod cap

T1: 45 (4.6, 33.3)

(7) Oil ring

(15) Crankshaft

T2: 72 (7.3, 52.8)

(8) Piston

(16) Woodruff key

ME-00005

( 9 )

(10)

(10) (11)

( 7 )

( 7 )

( 5 )

( 9 )

(11)

(12)

(12)

( 3 )

( 4 )

(13)

(13)

(13)

(13)

(14)

(14)

(15)

(16)

(10)

(10)

( 6 )

( 6 )

( 5 )

( 8 )

( 2 )

( 1 )

(19)

(17)

(18)

(18)

(17)

T1

( 8 )

T2

T2

ME(H4DOSTC)-13

MECHANICAL

GENERAL DESCRIPTION

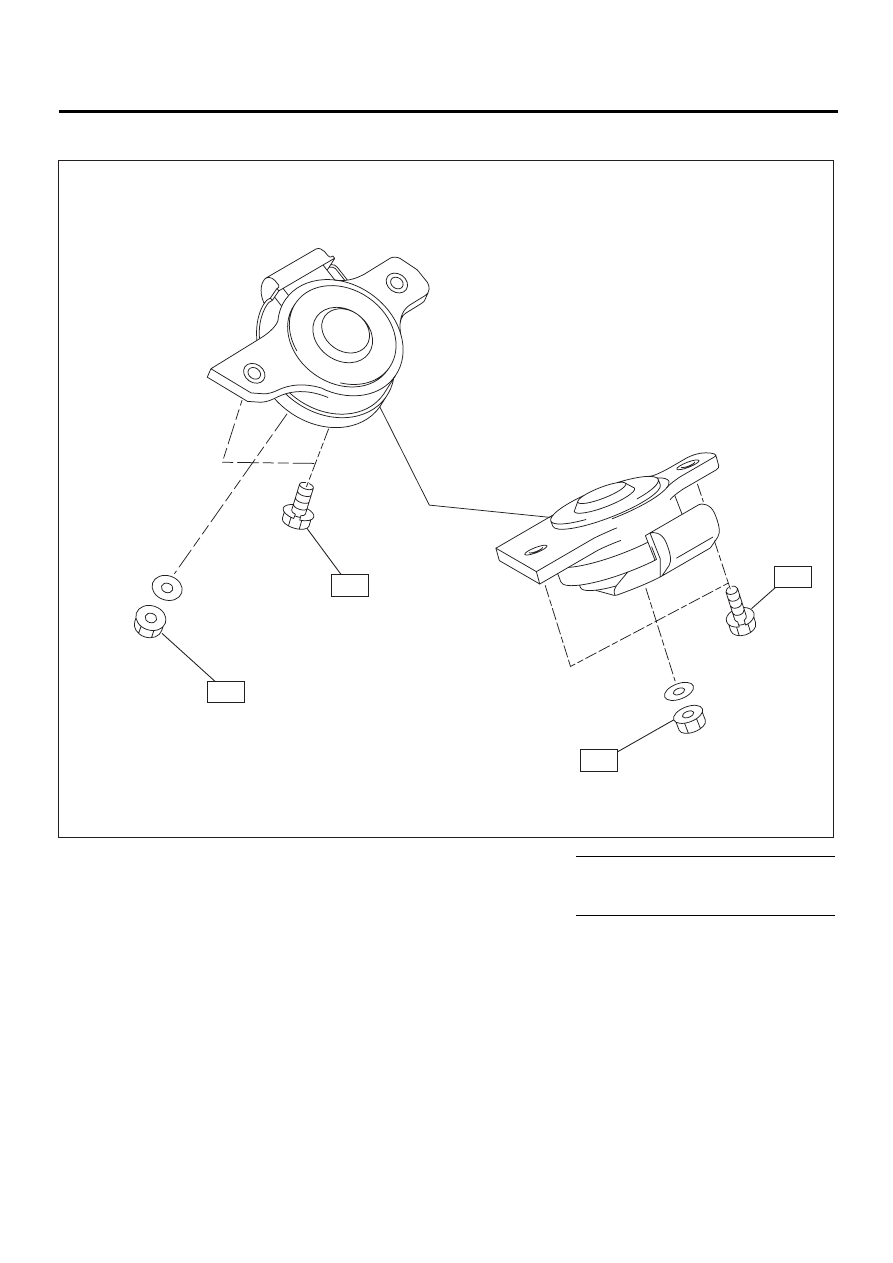

6. ENGINE MOUNTING

(1) Front cushion rubber

Tightening torque: N·m (kgf-m, ft-lb)

T1: 35 (3.5, 25.3)

T2: 85 (8.7, 62.7)

ME-00407

T1

T1

T2

T2

( 1 )

ME(H4DOSTC)-14

MECHANICAL

GENERAL DESCRIPTION

C: CAUTION

• Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust or dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
• Be careful not to burn your hands, because each
part in the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or safety stands at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect the ground
cable from battery.
• All parts should be thoroughly cleaned, paying
special attention to the engine oil passages, pis-
tons and bearings.

• Rotating parts and sliding parts such as piston,
bearing and gear should be coated with oil prior to
assembly.
• Be careful not to let oil, grease or coolant contact
the timing belt, clutch disc and flywheel.
• All removed parts, if to be reused, should be re-
installed in the original positions and directions.
• Bolts, nuts and washers should be replaced with
new ones as required.
• Even if necessary inspections have been made
in advance, proceed with assembly work while
making rechecks.
• Remove or install the engine in an area where
chain hoists, lifting devices, etc. are available for
ready use.
• Be sure not to damage coated surfaces of body
panels with tools or stain seats and windows with
coolant or oil. Place a cover over fenders, as re-
quired, for protection.
• Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch cool-
ant and oil, wire ropes, chain hoist, transmission
jacks, etc.
• Lift-up or lower the vehicle when necessary.
Make sure to support the correct positions.

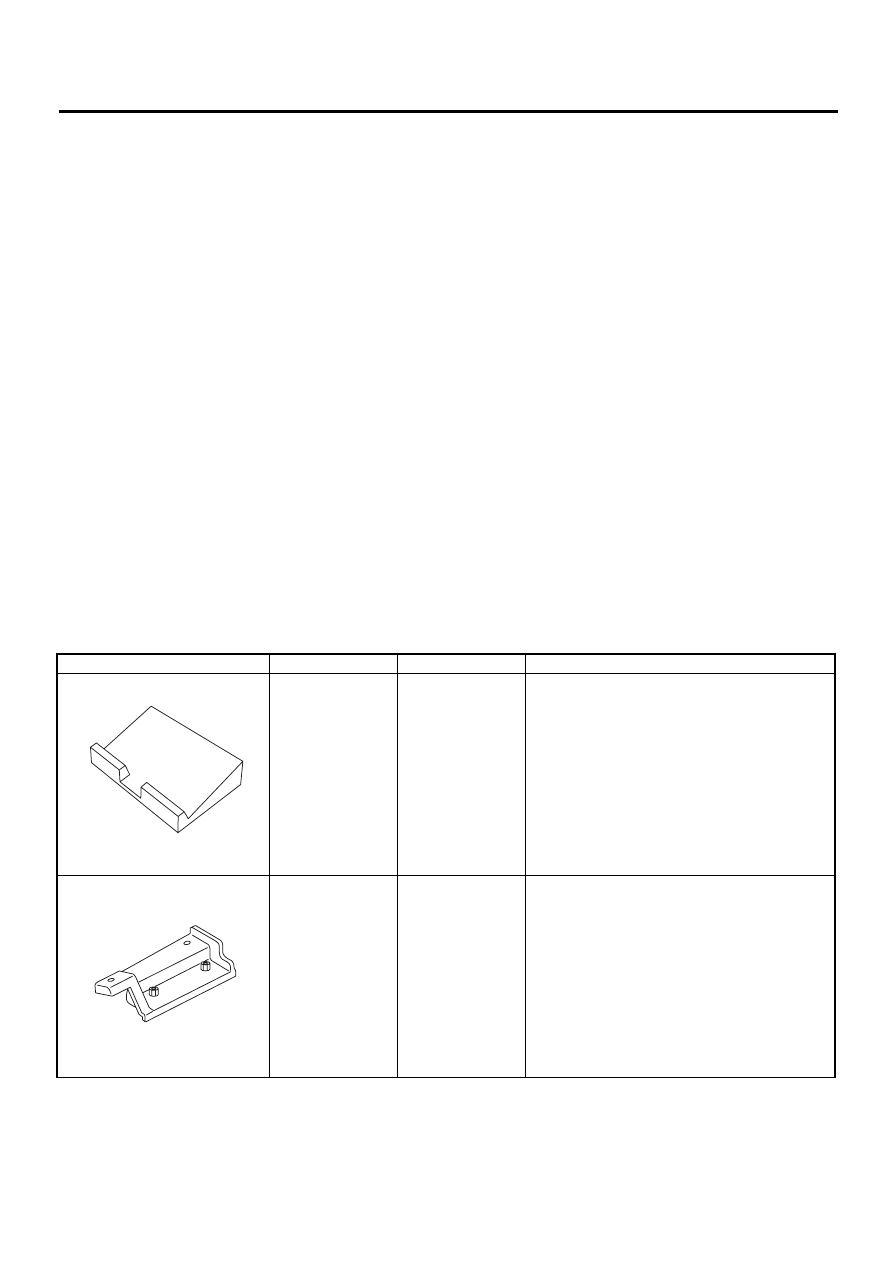

D: PREPARATION TOOL

1. SPECIAL TOOLS

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

498267600

CYLINDER HEAD
TABLE

• Used for replacing valve guides.
• Used for removing and installing valve springs.

498457000

ENGINE STAND
ADAPTER RH

Used with ENGINE STAND (499817000).

ST-498267600

ST-498457000

ME(H4DOSTC)-15

MECHANICAL

GENERAL DESCRIPTION

498457100

ENGINE STAND
ADAPTER LH

Used with ENGINE STAND (499817000).

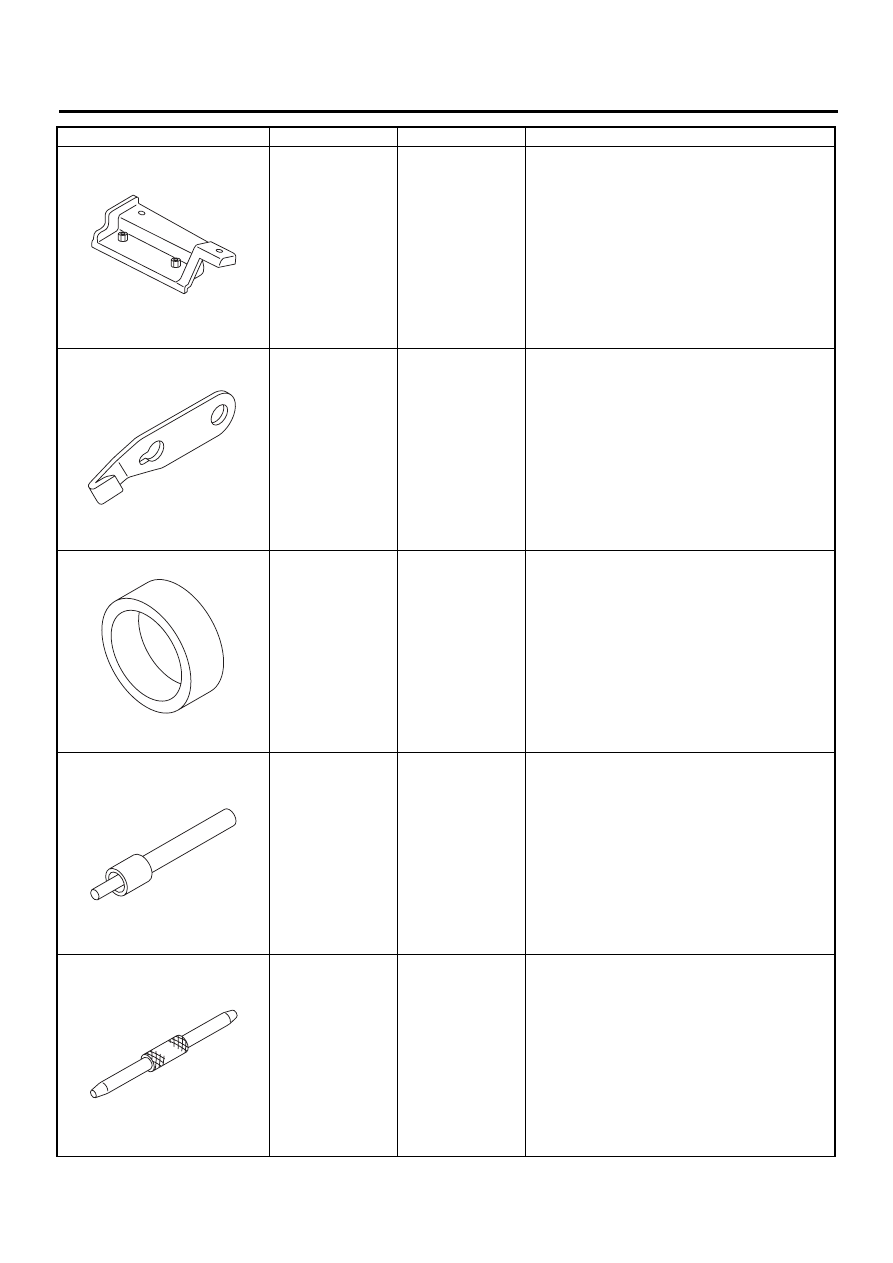

498497100

CRANKSHAFT
STOPPER

Used for stopping rotation of flywheel when loos-
ening and tightening crankshaft pulley bolt, etc.

398744300

PISTON GUIDE

Used for installing piston in cylinder for 2000 cc
engine.

498857100

VALVE OIL SEAL
GUIDE

Used for press-fitting of intake and exhaust valve
guide oil seals.

499017100

PISTON PIN
GUIDE

Used for installing piston pin, piston and connect-
ing rod.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498457100

ST-498497100

ST-398744300

ST-498857100

ST-499017100
