Subaru Legacy III (2000-2003 year). Manual - part 411

ME(H4DOSTC)-8

MECHANICAL

GENERAL DESCRIPTION

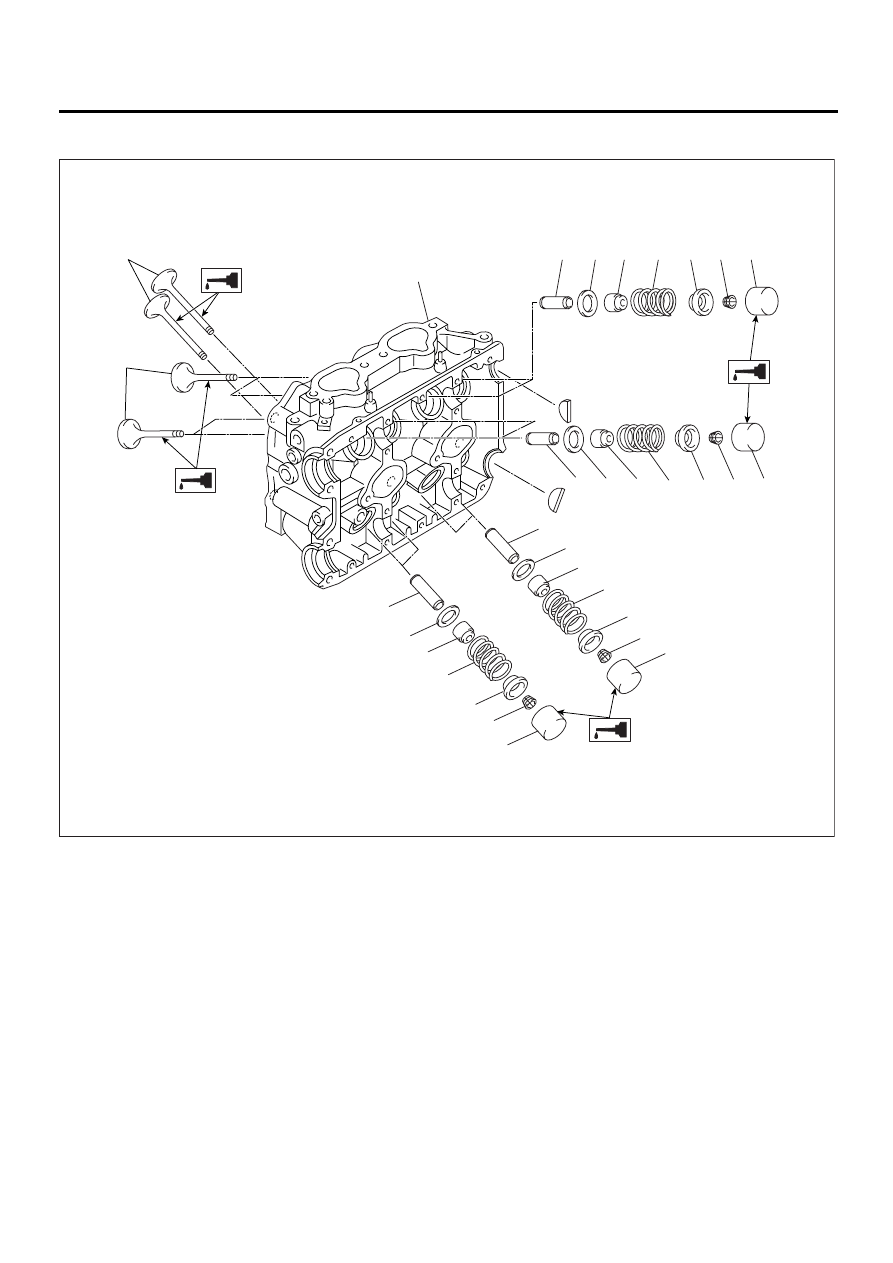

3. CYLINDER HEAD AND VALVE ASSEMBLY

(1) Exhaust valve

(5) Intake valve oil seal

(9) Valve lifter

(2) Intake valve

(6) Valve spring

(10) Exhaust valve oil seal

(3) Cylinder head

(7) Retainer

(11) Intake valve guide

(4) Valve spring seat

(8) Retainer key

(12) Exhaust valve guide

ME-00003

(3)

(1)

(2)

(11)

(4)

(5)

(6)

(7)

(8)

(9)

(11)

(12)

(12)

(10)

(4)

(4)

(5)

(6)

(6)

(7)

(7)

(8)

(8)

(9)

(9)

(10)

(4)

(6)

(7)

(8)

(9)

ME(H4DOSTC)-9

MECHANICAL

GENERAL DESCRIPTION

MEMO:

ME(H4DOSTC)-10

MECHANICAL

GENERAL DESCRIPTION

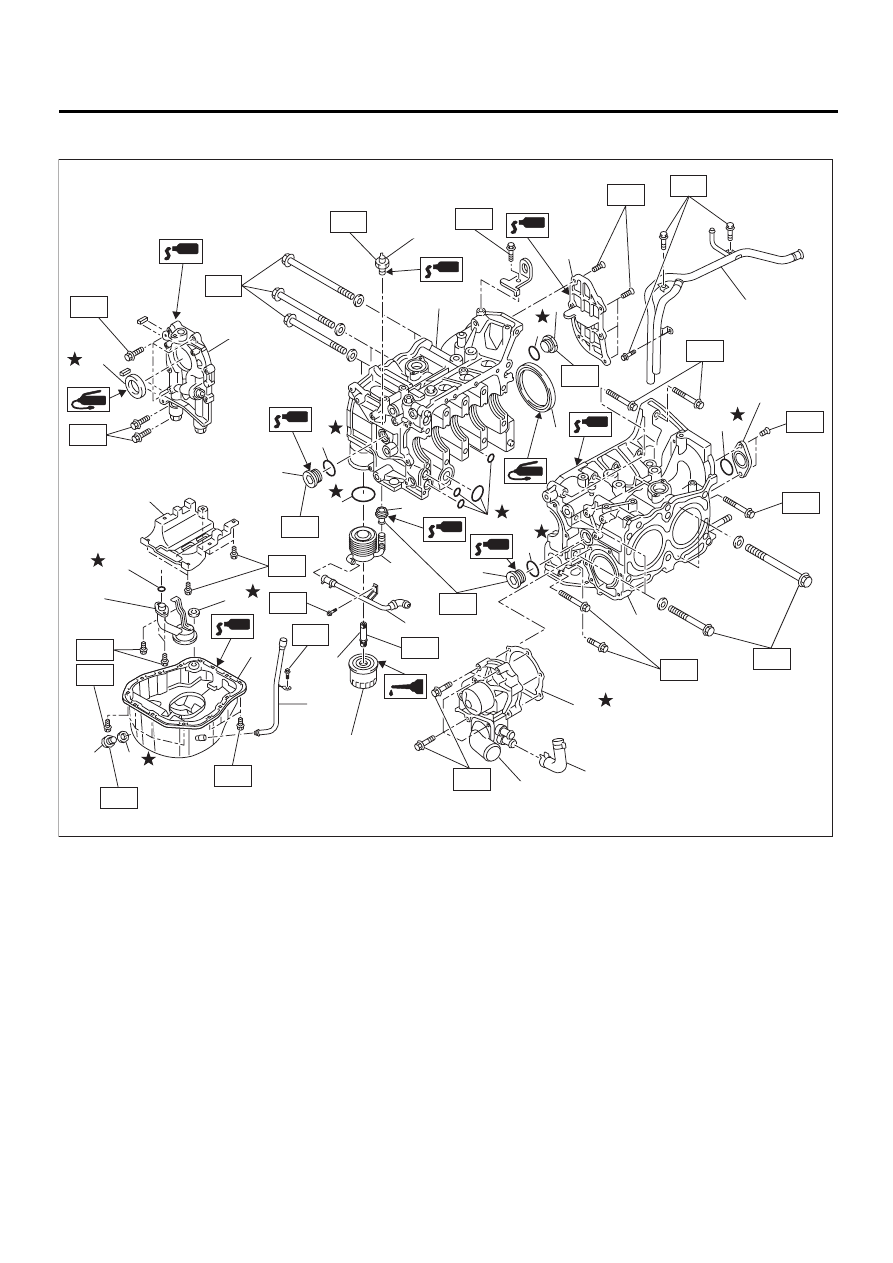

4. CYLINDER BLOCK

ME-00623

( 7 )

T2

T2

T2

T3

T1

T9

( 8 )

(14)

(10)

(18)

(19)

(21)

(22)

(20)

(23)

T5

T10

T6

T8

T6

T2

T4

T6

T2

T5

T2

T4

T2

( 3 )

( 4 )

( 1 )

( 2 )

(10)

(27)

(15)

(16)

T2

(17)

T11

(24)

(25)

(26)

( 3 )

( 4 )

( 4 )

( 5 )

( 9 )

( 6 )

(10)

(10)

(11)

(12)

(13)

( 3 )

T2

T7

T1

ME(H4DOSTC)-11

MECHANICAL

GENERAL DESCRIPTION

(1) Oil pressure switch

(15) Oil cooler (MT vehicles)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Cylinder block (RH)

(16) Waster by-pass pipe (AT vehicles)

T1: 5 (0.5, 3.6)

(3) Service hole plug

(17) Connector

T2: 6.4 (0.65, 4.7)

(4) Gasket

(18) Oil strainer

T3: 10 (1.0, 7.2)

(5) Oil separator cover

(19) Gasket

T4: 25 (2.5, 18.1)

(6) Water by-pass pipe

(20) Oil pan

T5: <Ref. to ME(H4DOSTC)-74,

INSTALLATION, CYLINDER
BLOCK.>

(7) Oil pump

(21) Drain plug

(8) Front oil seal

(22) Metal gasket

(9) Rear oil seal

(23) Oil level gauge guide

T6: 70 (7.1, 50.6)

(10) O-ring

(24) Oil filter

T7: First 12 (1.2, 8.7)

(11) Service hole cover

(25) Gasket

Second 12 (1.2, 8.7)

(12) Cylinder block (LH)

(26) Water pump hose

T8: 16 (1.6, 11.6)

(13) Water pump

(27) Plug

T9: 44 (4.5, 33)

(14) Baffle plate

T10: 25 (2.5, 18.1)

T11: 54 (5.5, 40)
