Subaru Legacy III (2000-2003 year). Manual - part 315





EN(H6DO)-62

ENGINE (DIAGNOSTICS)

ENGINE MALFUNCTION INDICATOR LAMP (MI)

6

CHECK HARNESS BETWEEN COMBINA-
TION METER AND IGNITION SWITCH CON-
NECTOR.
Measure voltage between combination meter
connector and chassis ground.

Connector & terminal

(i10) No. 8 (+) — Chassis ground (

−−−−

):

(i11) No. 5 (+) — Chassis ground (

−−−−

):

Does the measured value exceed the specified
value?

10 V

Go to step 7.

Check the follow-
ing and repair if
necessary.

NOTE:
• Broken down
ignition relay.
• Blown out fuse
(No. 5).
• If replaced fuse
(No. 5) blows eas-
ily, check the har-
ness for short
circuit of harness
between fuse (No.
5) and ignition
relay connector.
• Open or short
circuit in harness
between fuse (No.
5) and battery ter-
minal
• Open circuit in
harness between
fuse (No. 5) and
ignition relay con-
nector
• Poor contact in
ignition relay con-
nector
• Poor contact in
ignition switch
connector

7

CHECK LAMP BULB.
Remove engine malfunction indicator lamp
bulb.
Is lamp bulb condition OK?

Bulb is OK.

Repair combina-
tion meter connec-
tor.

Replace lamp
bulb.

Step

Value

Yes

No

EN(H6DO)-63

ENGINE (DIAGNOSTICS)

ENGINE MALFUNCTION INDICATOR LAMP (MI)

MEMO:

EN(H6DO)-64

ENGINE (DIAGNOSTICS)

ENGINE MALFUNCTION INDICATOR LAMP (MI)

D: CHECK ENGINE MALFUNCTION INDICATOR LAMP (MI) DOES NOT GO

OFF.

• DIAGNOSIS:

• The CHECK ENGINE malfunction indicator lamp (MI) circuit is shorted.

• TROUBLE SYMPTOM:

• Although MI comes on when engine runs, trouble code is not shown on Subaru select monitor or OBD-
II general scan tool display.

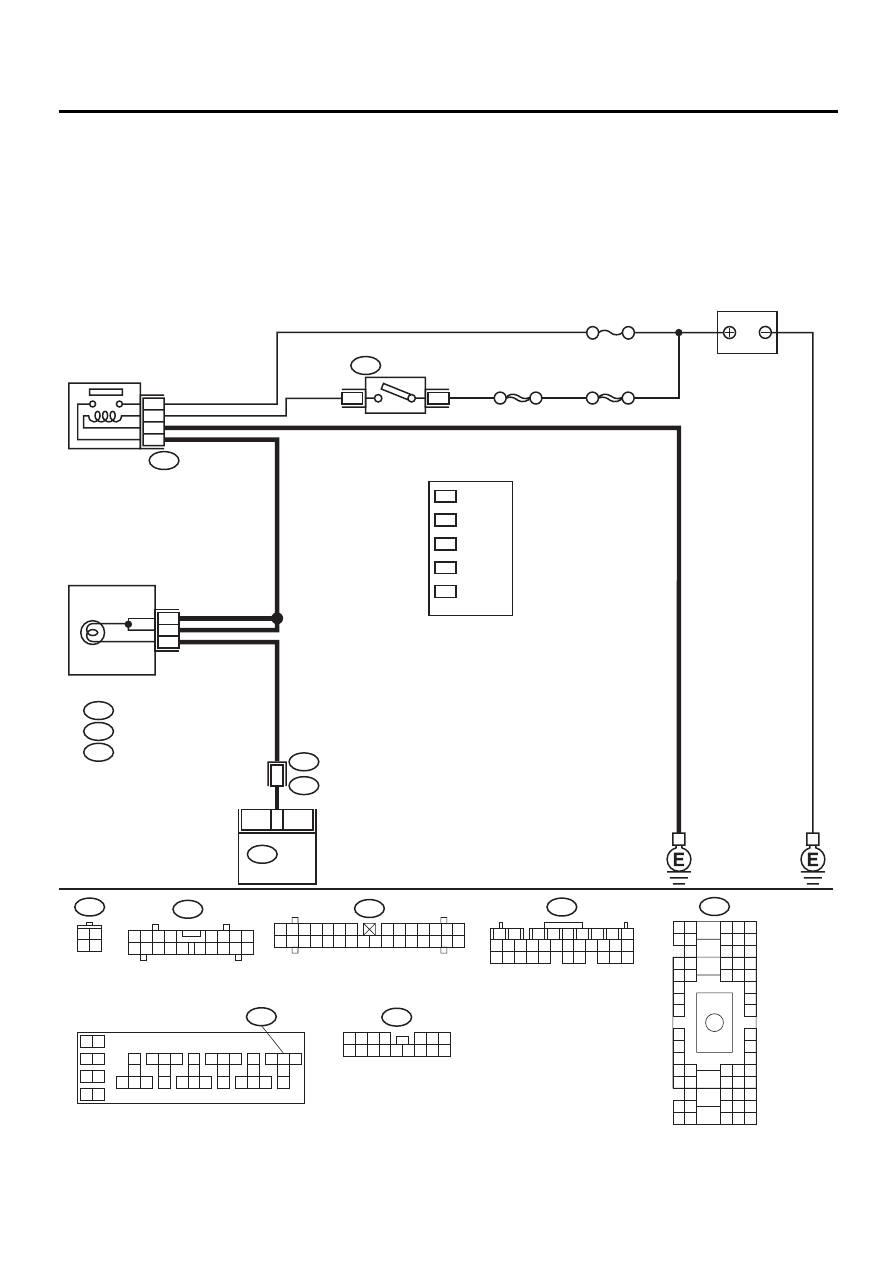

• WIRING DIAGRAM:

EN-01080

IGNITION
RELAY

SBF-4

No. 5

SBF-1

A4

4

1

B157

B72

B137

B36

i1

IGNITION
SWITCH

B36

B4 B5 B6

A4 A5 A6

C5 C6

F6

D4 D5 D6

F1

H1

C4

G6

G1

C2

K1

M1 M2

K6

L1

D1 D2

A1 A2
B1 B2

I6

J6

L2

I1

J1

H6

M4 M5 M6

L4 L5 L6

N5 N6

O4 O5 O6

N4

P4 P5

N2

O1 O2

P1 P2

N3

O3

P3

P6

A3

B3

C3

E4 E5 E6

E1 E2

B137

i10

B72

3 4

1 2

BATTERY

15

ECM

B157

10

11 12 13

14 15 16

17
18

19

20

21 22 23

24 25 26

27
28

29

30

31 32 33

34 35 36

37
38

1 2

9

3 4

5 6

7 8

COMBINATION
METER

A:

A8
B5

i10

B:

i11

C:

i12

1

2

7

8

9

5

6

3

4

10 11 12

19 20 21
29 30 31

13 14 15 16 17

27 28

18

22 23 24 25 26

 LHD : 9
 RHD : 38

1

*

2

*

3

*

4

*

5

*

 LHD : 13
 RHD : 36

 LHD : 11
 RHD : 34

 LHD : 10
 RHD : 37

 LHD : C11
 RHD : B10

1 2 3 4 5 6 7

8 9 10 11 12 13 14

15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

i11

B:

1 2 3 4

5 6 7

8 9 10 11 12 13 14 15 16

C:

A:

i12

1 2 3

8

9 10

4

11 12 13

14 15 16

5 6 7

17 18

5

*

1

*

2

*

3

*

4

*

EN(H6DO)-65

ENGINE (DIAGNOSTICS)

ENGINE MALFUNCTION INDICATOR LAMP (MI)

Step

Value

Yes

No

1

CHECK HARNESS BETWEEN COMBINA-
TION METER AND ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from ECM.
3) Turn ignition switch to ON.

Does the MI come on?

MI comes on.

Repair short circuit
in harness
between combina-
tion meter and
ECM connector.

Replace ECM.
<Ref. to
FU(H6DO)-46,
Engine Control
Module.>
