EN(H6DO)-54

ENGINE (DIAGNOSTICS)

CLEAR MEMORY MODE

14.Clear Memory Mode

A: OPERATION

1. SUBARU SELECT MONITOR (NORMAL
MODE)

1) On the «Main Menu» display screen, select the
{2. Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display
screen, select the {Engine Control System} and
press the [YES] key.
3) Press the [YES] key after displayed the informa-
tion of engine type.
4) On the «Engine Diagnosis» display screen, se-
lect the {Clear Memory} and press the [YES] key.
5) When the `Done' and `Turn Ignition Switch OFF'
are shown on the display screen, turn the Subaru
Select Monitor and ignition switch to OFF.

NOTE:
For detailed operation procedure, refer to the SUB-
ARU SELECT MONITOR OPERATION MANUAL.

2. SUBARU SELECT MONITOR (OBD
MODE)

1) On the «Main Menu» display screen, select the
{2. Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display
screen, select the {Engine Control System} and
press the [YES] key.
3) Press the [YES] key after displayed the informa-
tion of engine type.
4) On the «Engine Diagnosis» display screen, se-
lect the {OBD System} and press the [YES] key.
5) On the «OBD Menu» display screen, select the
{4. Diagnosis Code(s) Cleared} and press the
[YES] key.
6) When the `Clear Diagnostic Code?' is shown on
the display screen, press the [YES] key.
7) Turn Subaru Select Monitor and ignition switch
to OFF.

NOTE:
For detailed operation procedure, refer to the SUB-
ARU SELECT MONITOR OPERATION MANUAL.

3. OBD-II GENERAL SCAN TOOL

For clear memory procedures using the OBD-II
general scan tool, refer to the OBD-II General Scan
Tool Instruction Manual.

EN(H6DO)-55

ENGINE (DIAGNOSTICS)

COMPULSORY VALVE OPERATION CHECK MODE

15.Compulsory Valve Operation

Check Mode

A: OPERATION

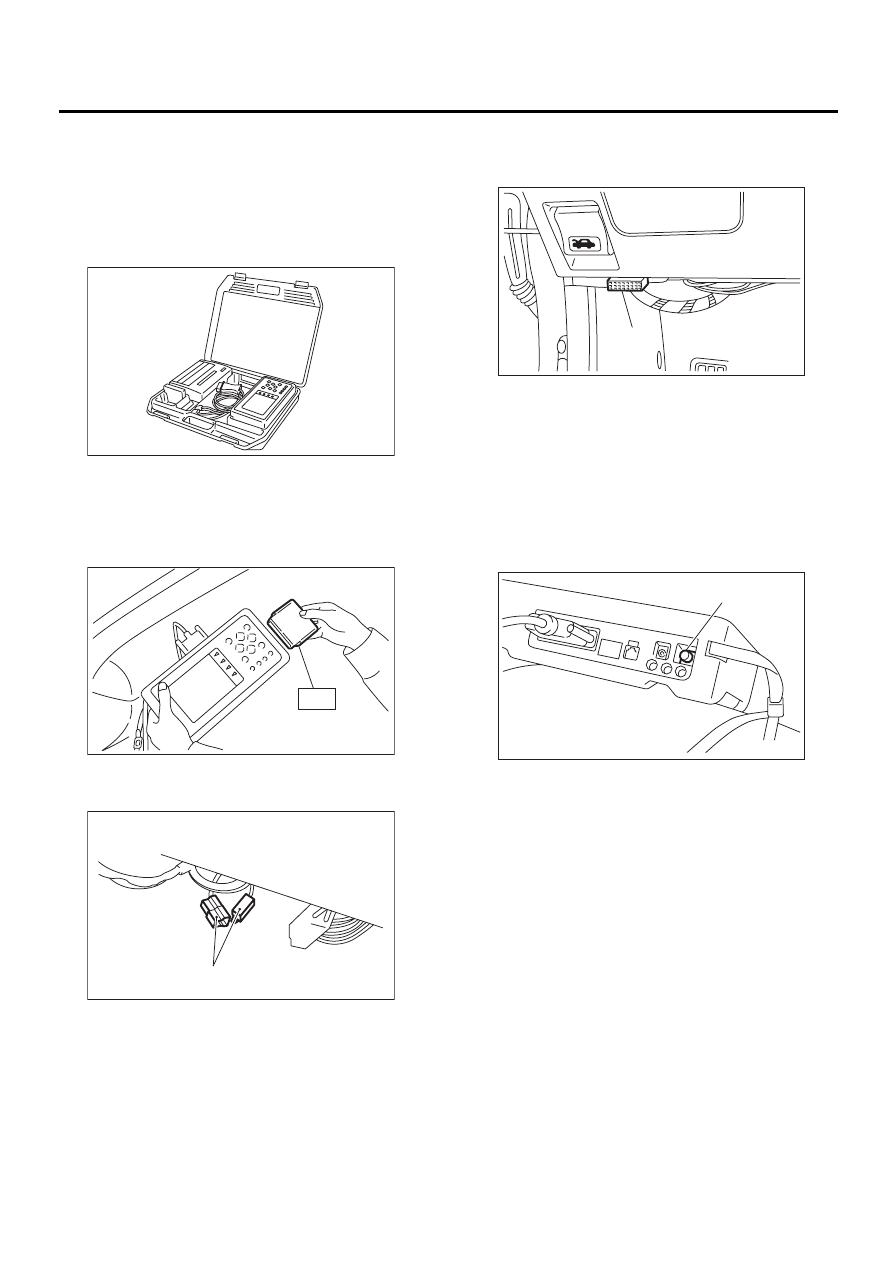

1) Prepare Subaru Select Monitor kit. <Ref. to
EN(H6DO)-9, PREPARATION TOOL, General De-
scription.>

2) Connect diagnosis cable to Subaru Select Mon-
itor.
3) Insert cartridge into Subaru Select Monitor.
<Ref. to EN(H6DO)-9, PREPARATION TOOL,
General Description.>

4) Connect test mode connector at the lower por-
tion of instrument panel (on the driver's side).

5) Connect Subaru Select Monitor to data link con-
nector.

(1) Data link connector is located in the lower
portion of the instrument panel (on the driver's
side).

(2) Connect diagnosis cable to data link con-
nector.

CAUTION:
Do not connect scan tools except for Subaru
Select Monitor and OBD-II general scan tool.
6) Turn ignition switch to ON (engine OFF) and
Subaru Select Monitor switch to ON.

7) On the «Main Menu» display screen, select the
{2. Each System Check} and press the [YES] key.
8) On the «System Selection Menu» display
screen, select the {Engine Control System} and
press the [YES] key.
9) Press the [YES] key after displayed the informa-
tion of engine type.
10)  On the «Engine Diagnosis» display screen, se-
lect the {System Operation Check Mode} and press
the [YES] key.
11) On the «System Operation Check Mode» dis-
play screen, select the {Actuator ON/OFF Opera-
tion} and press the [YES] key.
12) Select the desired compulsory actuator on the
«Actuator ON/OFF Operation» display screen and
press the [YES] key.

(A) Test mode connector

EN-00038

ST

EN-00039

EN-00711

( A )

(A) Data link connector

(A) Power switch

EN-00710

( A )

EN-00040

( A )

EN(H6DO)-56

ENGINE (DIAGNOSTICS)

COMPULSORY VALVE OPERATION CHECK MODE

13) Pressing the [NO] key completes the compulsory operation check mode. The display will then return to
the «Actuator ON/OFF Operation» screen.
• A list of the support data is shown in the following table.

NOTE:
• The following parts will be displayed but not functional because they are not installed on the vehicle.

• For detailed operation procedure, refer to the
SUBARU SELECT MONITOR OPERATION MAN-
UAL.

Contents

Display

Compulsory fuel pump relay operation check

Fuel Pump Relay

Compulsory radiator fan relay operation check

Radiator Fan Relay

Compulsory air conditioning relay operation check

A/C Compressor Relay

Compulsory purge control solenoid valve operation check

CPC Solenoid Valve

Compulsory air assist injector solenoid valve operation check

AAI Solenoid Valve

Display

ASV Solenoid Valve

FICD Solenoid

Pressure Switching Sol. 1

Pressure Switching Sol. 2

Fuel Tank Sensor Control Valve

AAI Solenoid Valve

EN(H6DO)-57

ENGINE (DIAGNOSTICS)

COMPULSORY VALVE OPERATION CHECK MODE

MEMO:
