ME(H6DO)-48

MECHANICAL

REAR CHAIN COVER

15.Rear Chain Cover

A: REMOVAL

1) Remove crankshaft pulley. <Ref. to ME(H6DO)-
38, REMOVAL, Crankshaft Pulley.>
2) Remove front chain cover. <Ref. to ME(H6DO)-
39, REMOVAL, Front Chain Cover.>
3) Remove timing chain. <Ref. to ME(H6DO)-41,
REMOVAL, Timing Chain Assembly.>
4) Remove camshaft sprocket. <Ref. to
ME(H6DO)-46, REMOVAL, Camshaft Sprocket.>
5) Remove crankshaft sprocket.
6) Remove oil pump. <Ref. to LU(H6DO)-11, RE-
MOVAL, Oil Pump.>
7) Remove oil pump relief valve. <Ref. to
LU(H6DO)-13, REMOVAL, Oil Pump Relief
Valve.>
8) Remove water pump. <Ref. to CO(H6DO)-24,
REMOVAL, Water Pump.>
9) Remove rear chain cover.

NOTE:
There are seven different types of mounting bolts.
Sort them into separate containers to avoid confu-
sion at installation.

Bolt dimension:

B: INSTALLATION

1) Remove old fluid gasket on the matching sur-
face, and degrease it.
2) Apply fluid gasket to the mating surface of rear
chain cover.

Fluid gasket:

THREE BOND 1280B
Part No.: K0877YA018

Fluid gasket application diameter:

(A) 1.0

±±±±

0.5 mm (0.039

±±±±

0.020 in)

(B) 3.0

±±±±

1.0 mm (0.118

±±±±

0.039 in)

3) Install O-ring.

NOTE:
Do not reuse the O-ring.

(A) 6

(B) 6

18 (Silver)

(D) 6

(E) 6

(F) 6

(G) 6

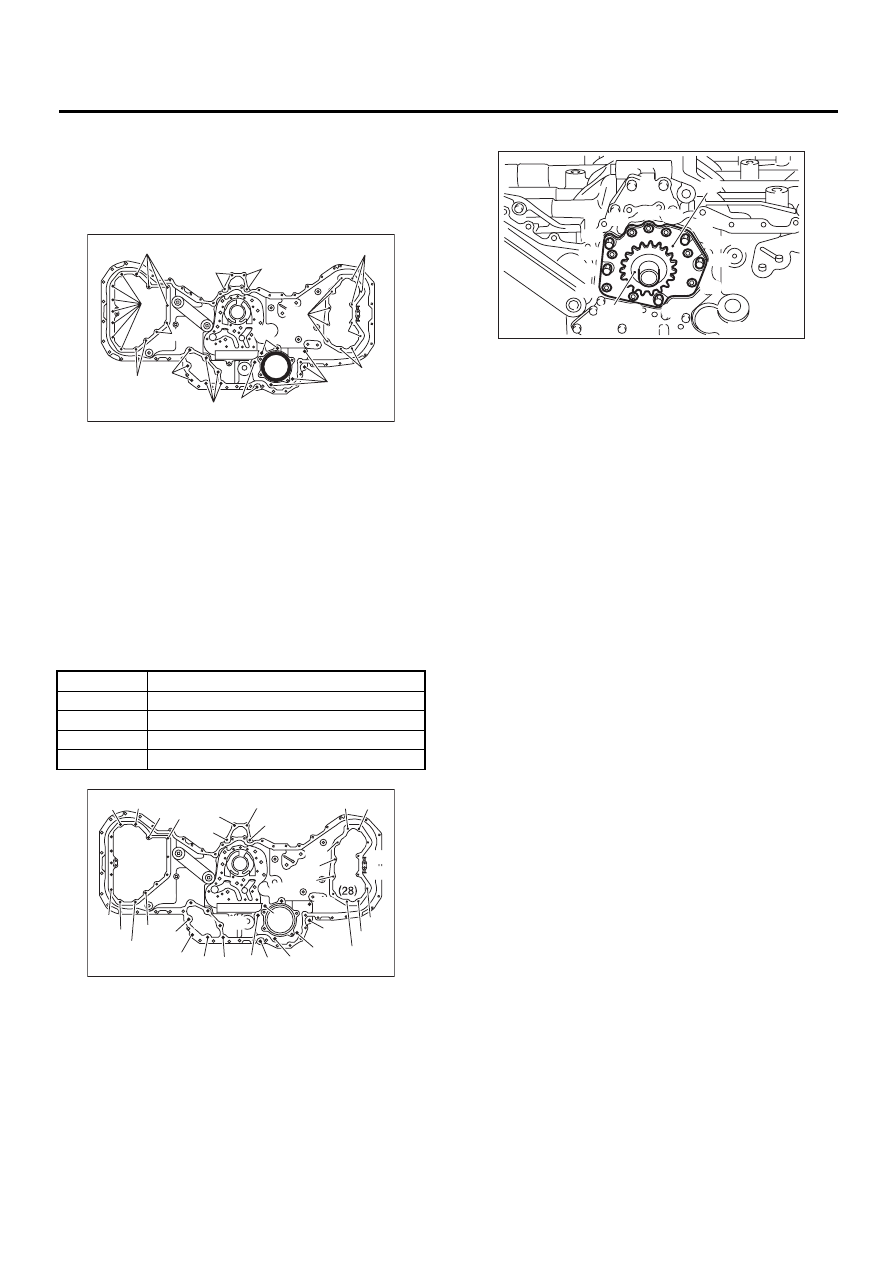

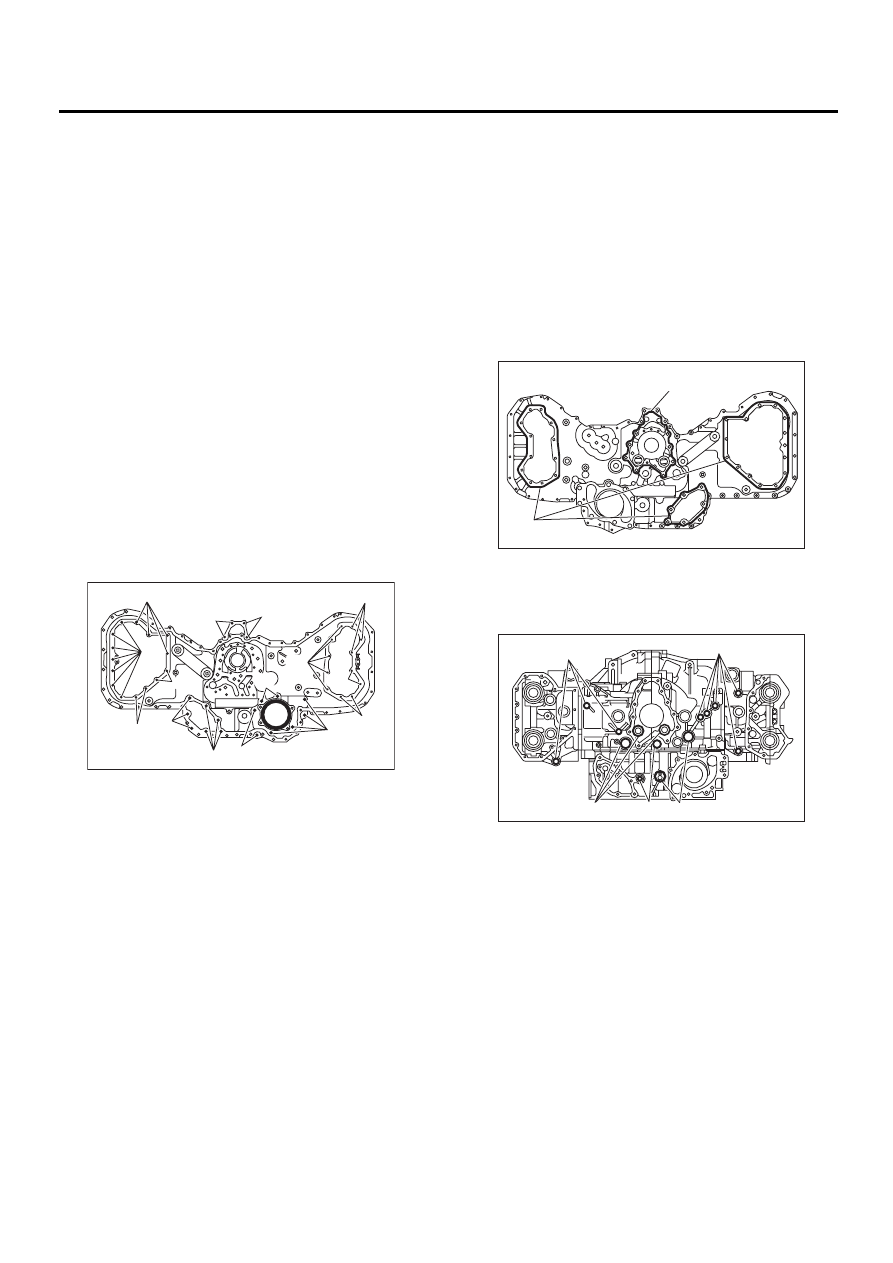

ME-00524

( A )

( B )

( C )

( D )

( E )

( F )

( G )

(A) O-ring (Large)

(B) O-ring (Medium)

ME-00525

( A )

( B )

ME-00526

( A )

( B )

( C )

ME(H6DO)-49

MECHANICAL

REAR CHAIN COVER

4) Temporarily tighten rear chain cover.

NOTE:
• Do not confuse the mounting positions of the
bolts.
• Replace mounting bolts (G) with new ones.

Bolt dimension:

5) Tighten the bolts in the numerical sequence
shown in figure.

Tightening torque:

6) Install water pump. <Ref. to CO(H6DO)-24, RE-
MOVAL, Water Pump.>
7) Install oil pump relief valve. <Ref. to LU(H6DO)-
13, INSTALLATION, Oil Pump Relief Valve.>
8) Install oil pump. <Ref. to LU(H6DO)-11, IN-
STALLATION, Oil Pump.>

9) Install crankshaft sprocket.

10) Install camshaft sprocket. <Ref. to ME(H6DO)-
46, INSTALLATION, Camshaft Sprocket.>
11) Install timing chain. <Ref. to ME(H6DO)-42, IN-
STALLATION, Timing Chain Assembly.>
12) Install front chain cover. <Ref. to ME(H6DO)-
39, INSTALLATION, Front Chain Cover.>
13) Install crankshaft pulley. <Ref. to ME(H6DO)-
38, INSTALLATION, Crankshaft Pulley.>

(A) 6

(B) 6

18 (Silver)

(D) 6

(E) 8

(F) 8

(G) 6

(1) to (11)

9 N·m (0.9 kgf-m, 6.5 ft-lb)

(12) to (19)

20 N·m (2.0 kgf-m, 14 ft-lb)

(20) to (31)

9 N·m (0.9 kgf-m, 6.5 ft-lb)

(32) to (39)

12 N·m (1.2 kgf-m, 8.7 ft-lb)

(40) to (46)

9 N·m (0.9 kgf-m, 6.5 ft-lb)

ME-00524

( A )

( B )

( C )

( D )

( E )

( F )

( G )

ME-00527

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(38)

(39)

(40)

(41)

(42)

(43)

(44)

(45)

(35)

(36)

(37)

(34)

(33)

(32)

(46)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(27)

(26)

(25)

(24)

(23)

(22)

(31)

(30)

(29)

(21)

ME-00528

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

( A )

( B )

ME(H6DO)-50

MECHANICAL

CAMSHAFT

16.Camshaft

A: REMOVAL

1) Remove crankshaft pulley. <Ref. to ME(H6DO)-
38, REMOVAL, Crankshaft Pulley.>
2) Remove front chain cover. <Ref. to ME(H6DO)-
39, REMOVAL, Front Chain Cover.>
3) Remove timing chain assembly. <Ref. to
ME(H6DO)-41, REMOVAL, Timing Chain Assem-
bly.>
4) Remove camshaft sprockets. <Ref. to
ME(H6DO)-46, REMOVAL, Camshaft Sprocket.>
5) Remove crankshaft sprocket. <Ref. to
ME(H6DO)-47, REMOVAL, Crankshaft Sprocket.>
6) Remove rear chain cover. <Ref. to ME(H6DO)-
48, REMOVAL, Rear Chain Cover.>
7) Remove rocker cover (RH).

8) Loosen front camshaft cap bolts equally, a little
at a time in numerical sequence shown in the figure
(RH).

9) Remove camshaft cap and intake camshaft
(RH).

10) Loosen camshaft cap bolts equally, a little at a
time in the numerical sequence shown in the figure.

11) Remove camshaft cap and exhaust camshaft
(RH).

CAUTION:
Arrange camshaft caps in order so that they
can be installed in their original position.
12) Remove plug (LH).

13) Similarly, remove left-hand camshafts and re-
lated parts.

B: INSTALLATION

1) Apply a coat of engine oil to camshaft journals
and install camshaft.

NOTE:
When installing camshaft, adjust camshaft front
flange knock pin (A) position as follows:
LH side: 12 o'clock
RH side: 10 o'clock

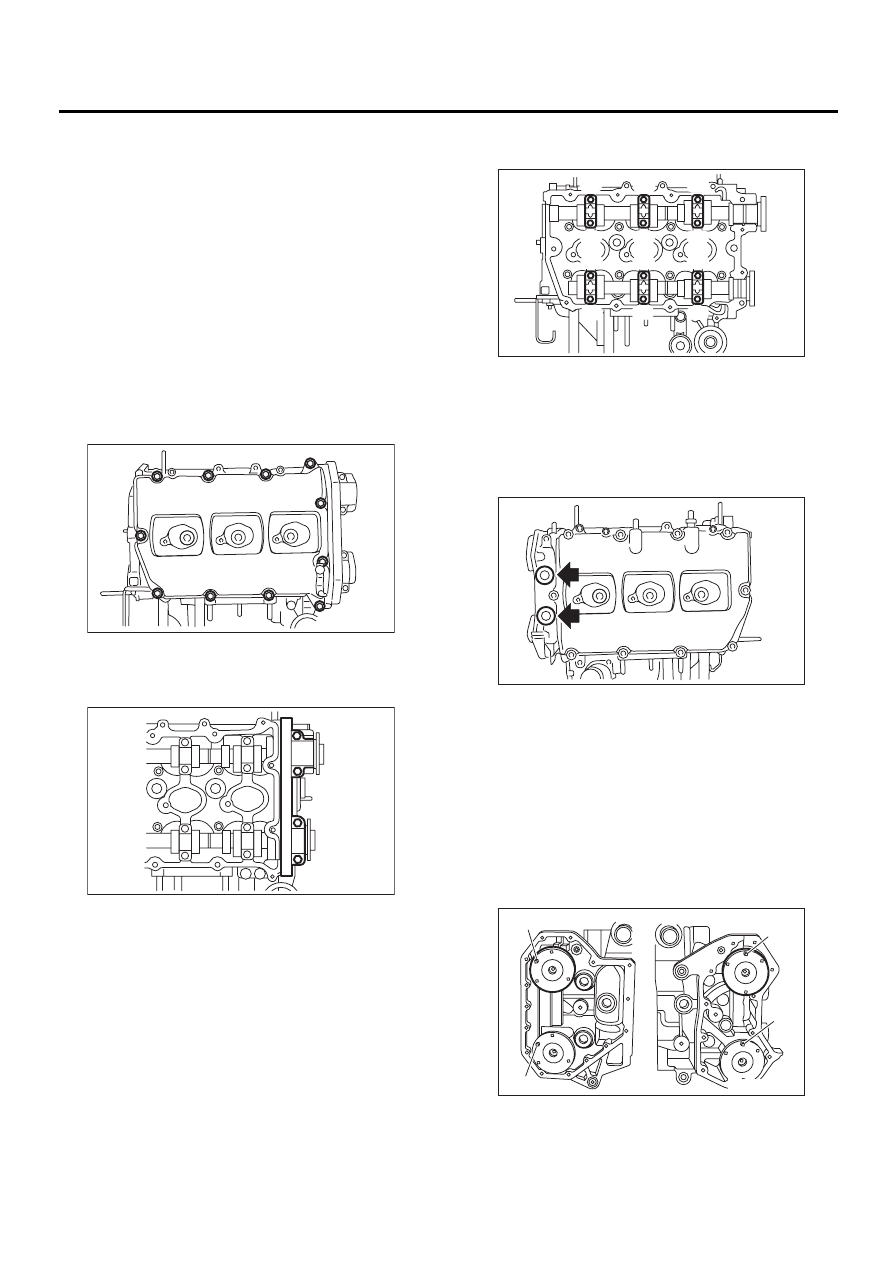

ME-00529

ME-00530

( 1 )

( 2 )

( 3 )

( 4 )

ME-00531

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

ME-00532

LH side

RH side

ME-00533

( A )

ME(H6DO)-51

MECHANICAL

CAMSHAFT

2) Install camshaft cap.

(1) Apply fluid packing sparingly to back of front
camshaft cap shown in the figure.

CAUTION:
Do not apply fluid gasket excessively. Failure to
do so may cause excess fluid gasket to come
out and flow toward camshaft journal, resulting
burning stuck of engine.

Fluid gasket:

THREE BOND 1280B
Part No.: K0877YA018

Fluid gasket application diameter:

2.0

±±±±

0.5 mm (0.079

±±±±

0.020 in)

(2) Apply engine oil to cap bearing surface and
install cap on camshaft.
(3) Tighten the camshaft cap bolts in the nu-
merical sequence shown in the figure.

Tightening torque:

16 N·m (1.6 kgf-m, 11.6 ft-lb)

(4) Tighten the front camshaft cap bolts in the
numerical sequence shown in the figure.

Tightening torque:

9.8 N·m (1.0 kgf-m, 7.2 ft-lb)

3) Install rocker cover.

(1) Apply fluid gasket sparingly to matching sur-
face of cylinder heads and rocker covers shown
in the figure.

CAUTION:
Do not apply fluid gasket excessively. Doing so
may cause excess fluid gasket to come out and
flow toward camshaft journal, resulting burning
stuck of engine.

Fluid gasket:

THREE BOND 1280B

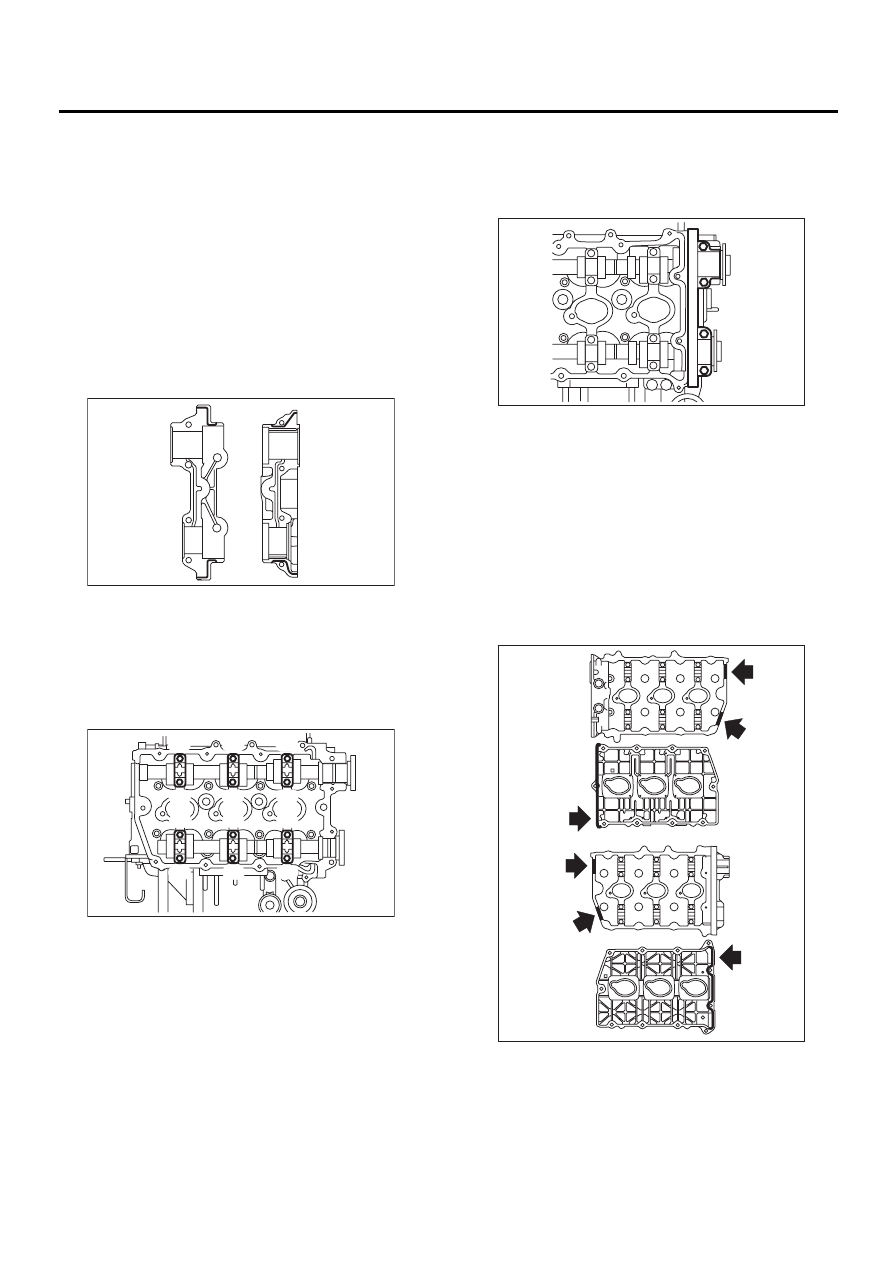

ME-00534

ME-00535

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

ME-00536

( 1 )

( 2 )

( 3 )

( 4 )

ME-00537
