FRONT CHAIN COVER

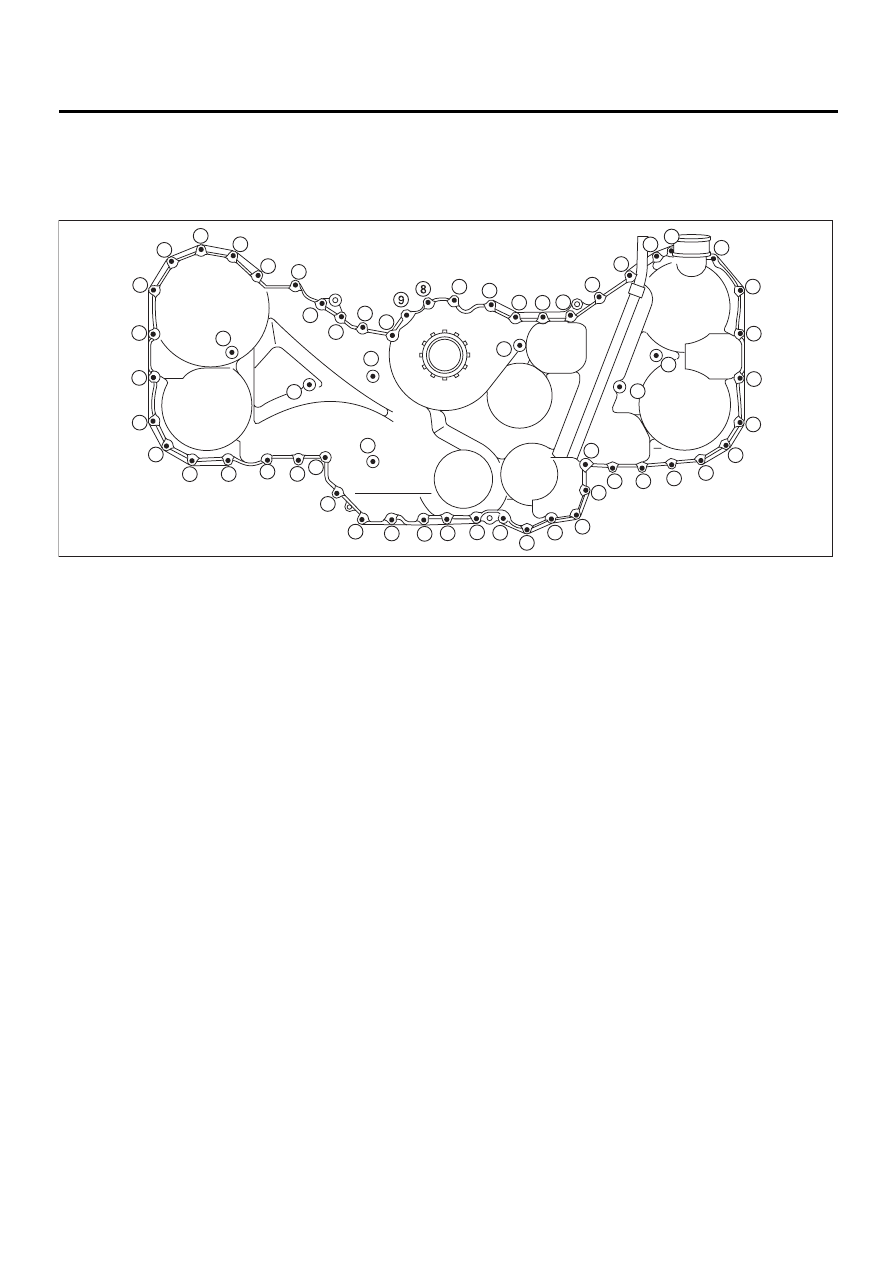

4) Tighten the bolts in the numerical sequence
shown in figure.

Tightening torque:

6.6 N·m (0.67 kgf-m, 4.8 ft-lb)

5) Install crankshaft pulley. <Ref. to ME(H6DO)-38,
INSTALLATION, Crankshaft Pulley.>

C: INSPECTION

Check the cover surface for flaws and dents.
Check the cover mating surface and the mounting
point of crankshaft pulley for oil leaks.

ME-00500

1

2

3

5

6

4

7

10

26

25

24

23

22

21

20

19

27

28

29

30

31

32

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

18

17

16

15

14

13

12

11

ME(H6DO)-41

MECHANICAL

TIMING CHAIN ASSEMBLY

12.Timing Chain Assembly

A: REMOVAL

1) Remove crankshaft pulley. <Ref. to ME(H6DO)-
38, REMOVAL, Crankshaft Pulley.>
2) Remove front chain cover. <Ref. to ME(H6DO)-
39, REMOVAL, Front Chain Cover.>

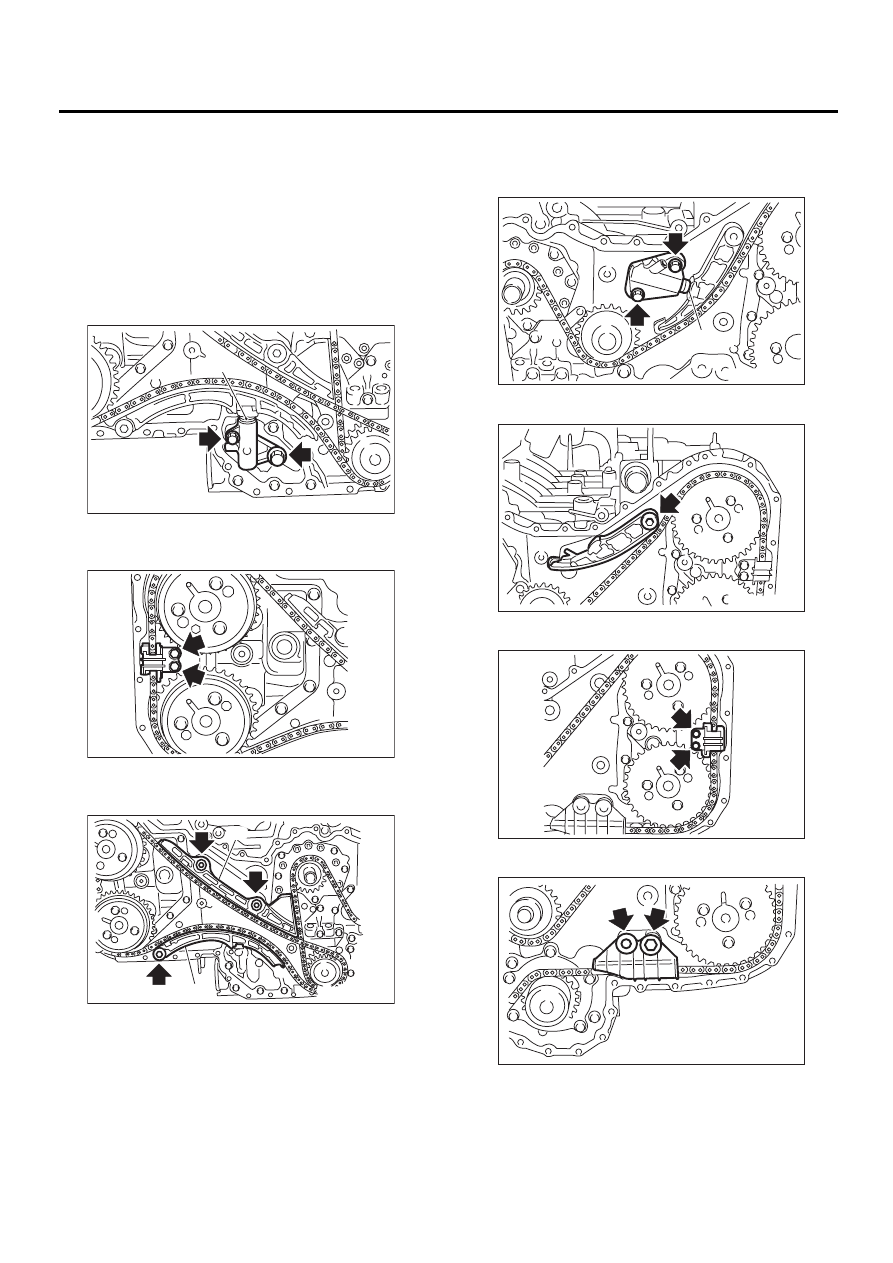

3) Remove chain tensioner (RH).

NOTE:
Make sure plunger (A) does not come out.

4) Remove chain guide. (Right-hand between
cams)

5) Remove chain guide (RH).
6) Remove chain tensioner lever (RH).

7) Remove timing chain (RH).

8) Remove chain tensioner (LH).

NOTE:
Make sure plunger (A) does not come out.

9) Remove chain tensioner lever (LH).

Remove chain guide. (Left-hand between cams)

10) Remove chain guide (LH).

(A) Chain guide (RH)

(B) Chain tensioner lever (RH)

ME-00501

( A )

ME-00502

ME-00503

( A )

( B )

ME-00504

( A )

ME-00505

ME-00506

ME-00507

ME(H6DO)-42

MECHANICAL

TIMING CHAIN ASSEMBLY

11) Remove chain guide. (Center)

12) Remove idler sprocket. (Upper)

13) Remove timing chain (LH).
14) Remove idler sprocket. (Lower)

B: INSTALLATION

NOTE:
• During installation, be careful to prevent foreign
objects from attaching to or mixing with assembled
components.
• Apply engine oil to chain guide, chain tensioner
lever, and idler sprocket during installation.
1) Preparation for installation of chain tensioner.

(1) Put the screw, spring, pin and tension rod
into the tensioner body.
(2) While pressing tensioner onto rubber mat,
twist it left and right to shorten tension rod. Then
set a thin pin into the holes between tension rod
and tensioner body to hold it.

NOTE:
Carry out the work on rubber mat or other nonslip
material.

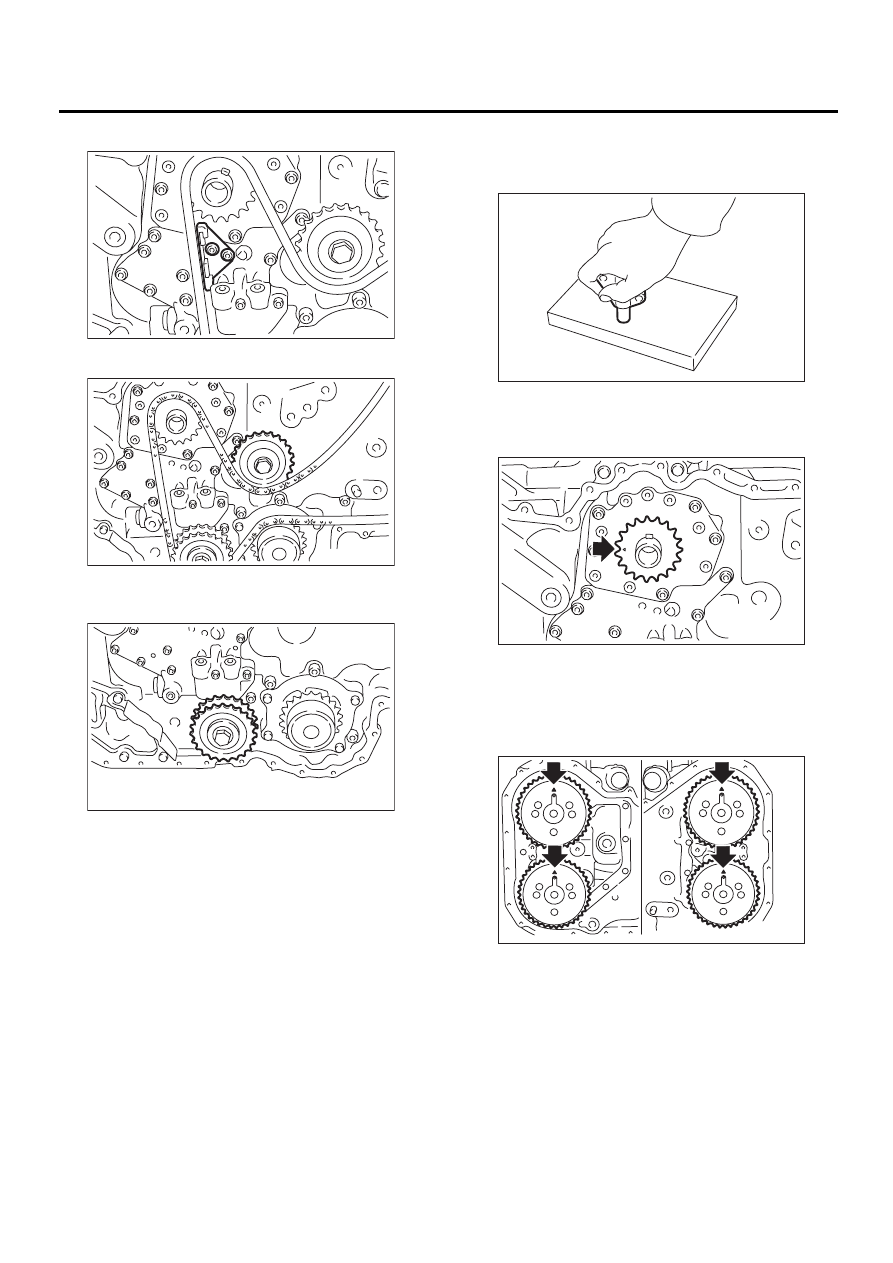

2) Using ST, align “top mark” on crankshaft sprock-
et at 9 o'clock position as shown in the figure.
ST

18252AA000

CRANKSHAFT SOCKET

3) Using ST, align four key grooves on camshaft
sprocket at 12 o'clock position as shown in the fig-
ure.
ST

18231AA000

CAMSHAFT SPROCKET
WRENCH

ME-00508

ME-00509

ME-00510

ME-00511

ME-00512

ME-00513

ME(H6DO)-43

MECHANICAL

TIMING CHAIN ASSEMBLY

4) Rotate crankshaft sprocket clockwise to align
“top mark” at 12 o'clock position as shown in the fig-
ure. (Piston # 1 is at TDC.)

NOTE:
Do not rotate crankshaft and camshaft sprockets
until timing chain is completely routed.

5) Install the idler sprocket. (Lower)

Tightening torque:

69 N·m (7.0 kgf-m, 50.6 ft-lb)

6) Install timing chain LH.

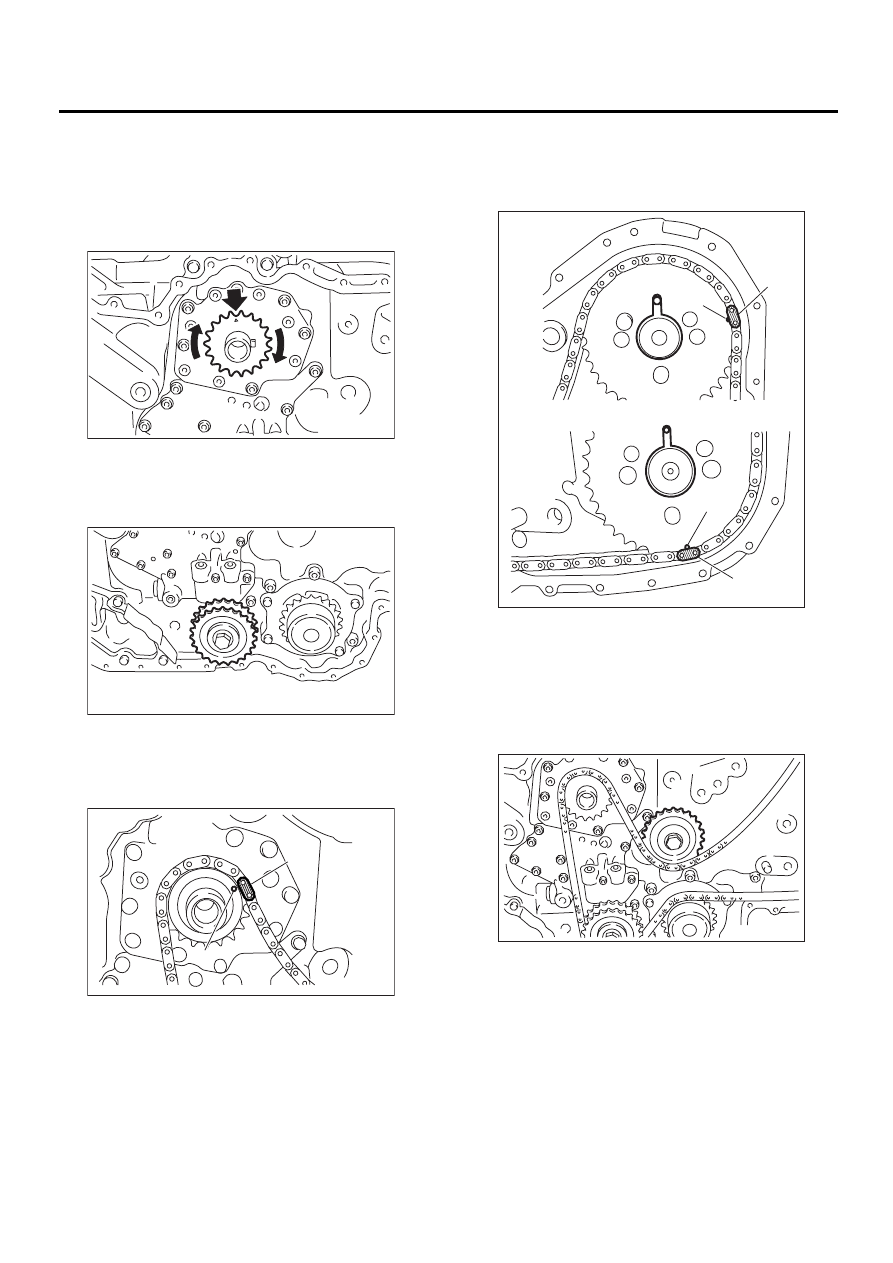

(1) Align the timing mark (B) on crankshaft
sprocket with the matching mark (A) on timing
chain LH.

(2) Route timing chain LH on idler sprocket
(Lower), water pump, exhaust cam sprocket,
and intake cam sprocket in order.

NOTE:
Make sure that matching marks on the timing chain
(A) and camshaft sprocket (B) are aligned the
same way as the one on crankshaft sprocket.

(3) Install chain idler. (Upper)

Tightening torque:

69 N·m (7.0 kgf-m, 50.6 ft-lb)

(A) Gold

(B) Mark

ME-00514

ME-00510

ME-00515

( A )

( B )

(A) Dark blue

(B) Mark

ME-00516

( A )

( B )

( A )

( B )

ME-00509
