Subaru Legacy III (2000-2003 year). Manual - part 238

FU(H6DO)-36

FUEL INJECTION (FUEL SYSTEMS)

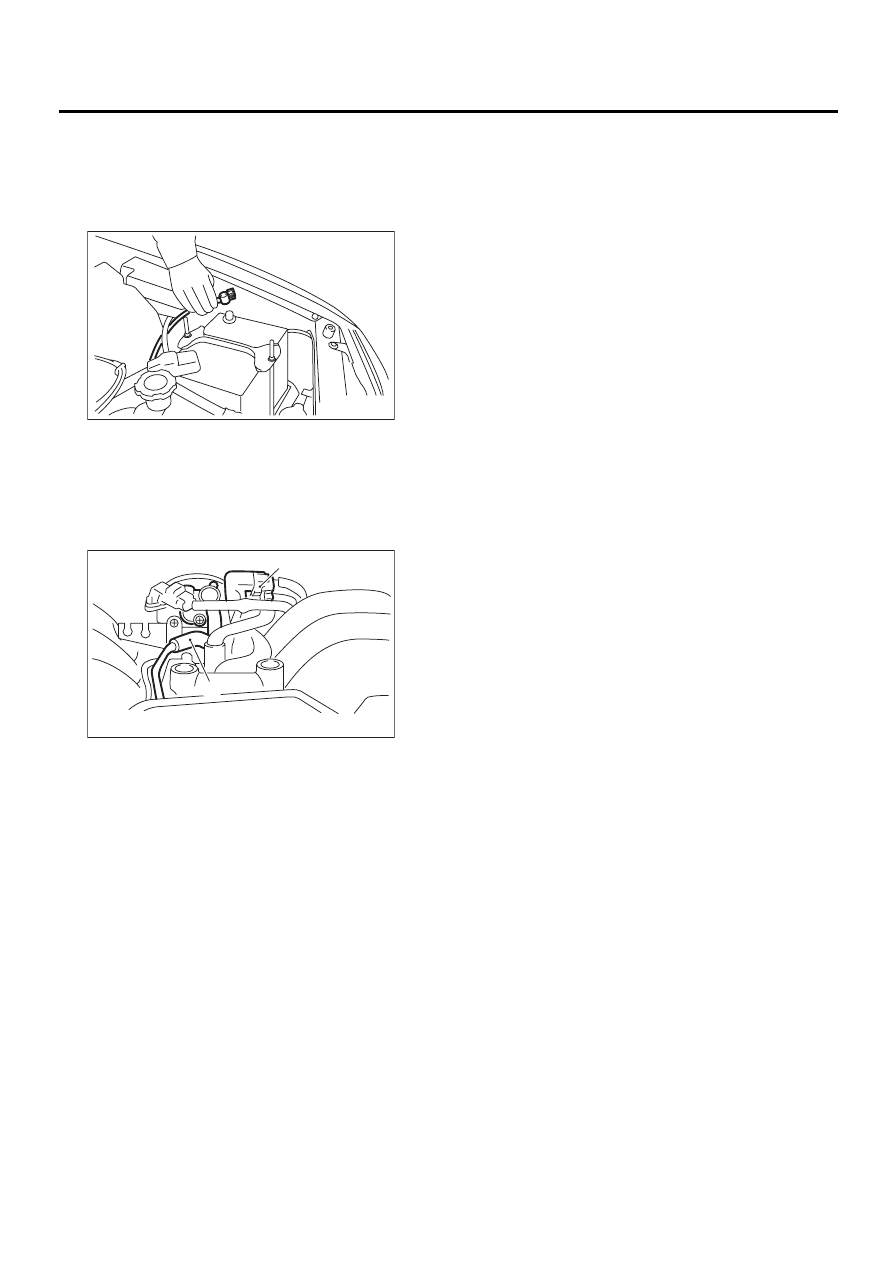

IDLE AIR CONTROL SOLENOID VALVE

11.Idle Air Control Solenoid

Valve

A: REMOVAL

1) Disconnect battery ground cable.

2) Disconnect connector (A) from idle air control
solenoid valve.
3) Disconnect air by-pass hose (B) from idle air
control solenoid valve.
4) Remove idle air control solenoid valve from
throttle body.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Replace gasket with a new one.

Tightening torque:

2.8 N·m (0.29 kgf-m, 2.1 ft-lb)

FU-00535

FU-00581

( A )

( B )

FU(H6DO)-37

FUEL INJECTION (FUEL SYSTEMS)

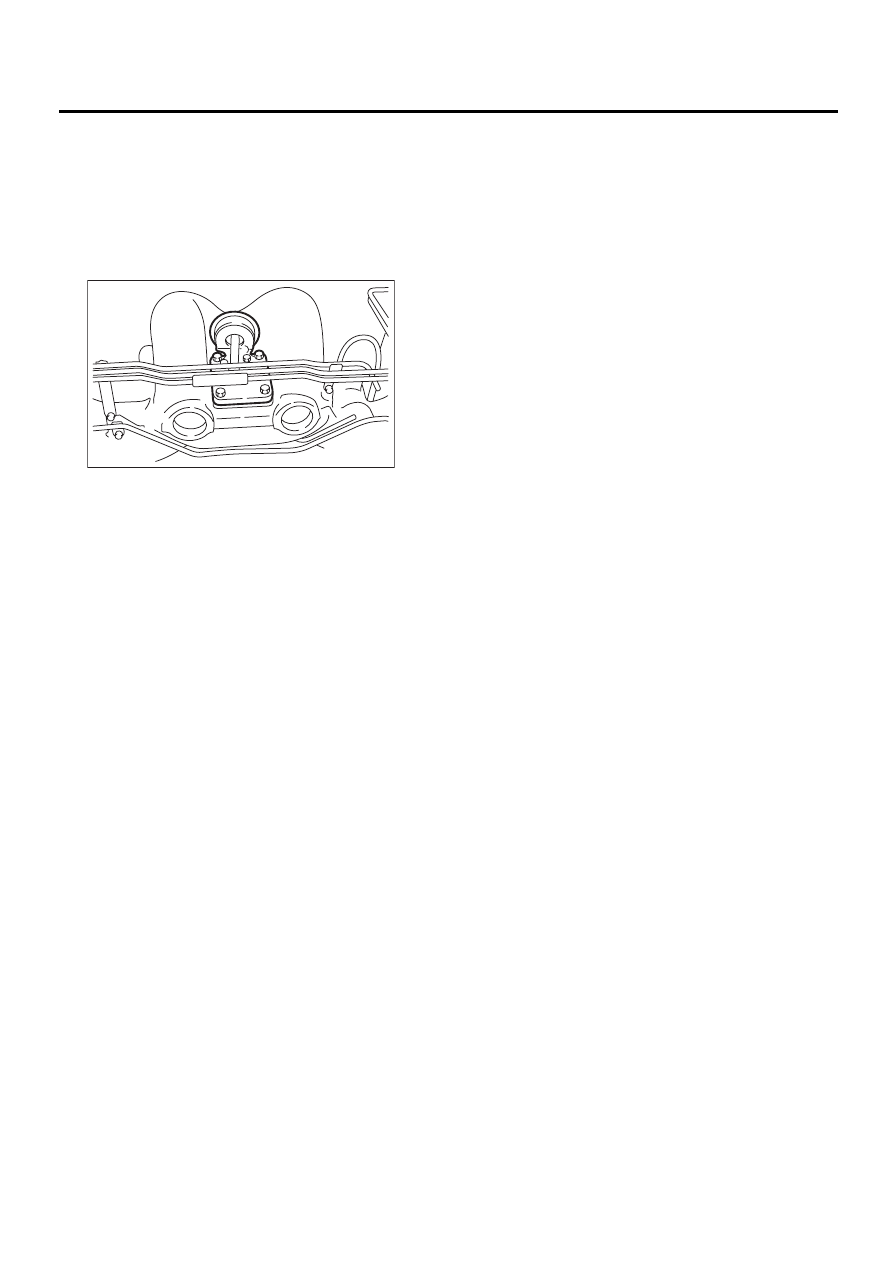

INDUCTION VALVE

12.Induction Valve

A: REMOVAL

1) Disconnect battery ground cable.
2) Remove intake manifold.
<Ref. to FU(H6DO)-17, REMOVAL, Intake Mani-
fold.>
3) Remove induction valve from intake manifold.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Always use a new gasket.

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

FU-00560

FU(H6DO)-38

FUEL INJECTION (FUEL SYSTEMS)

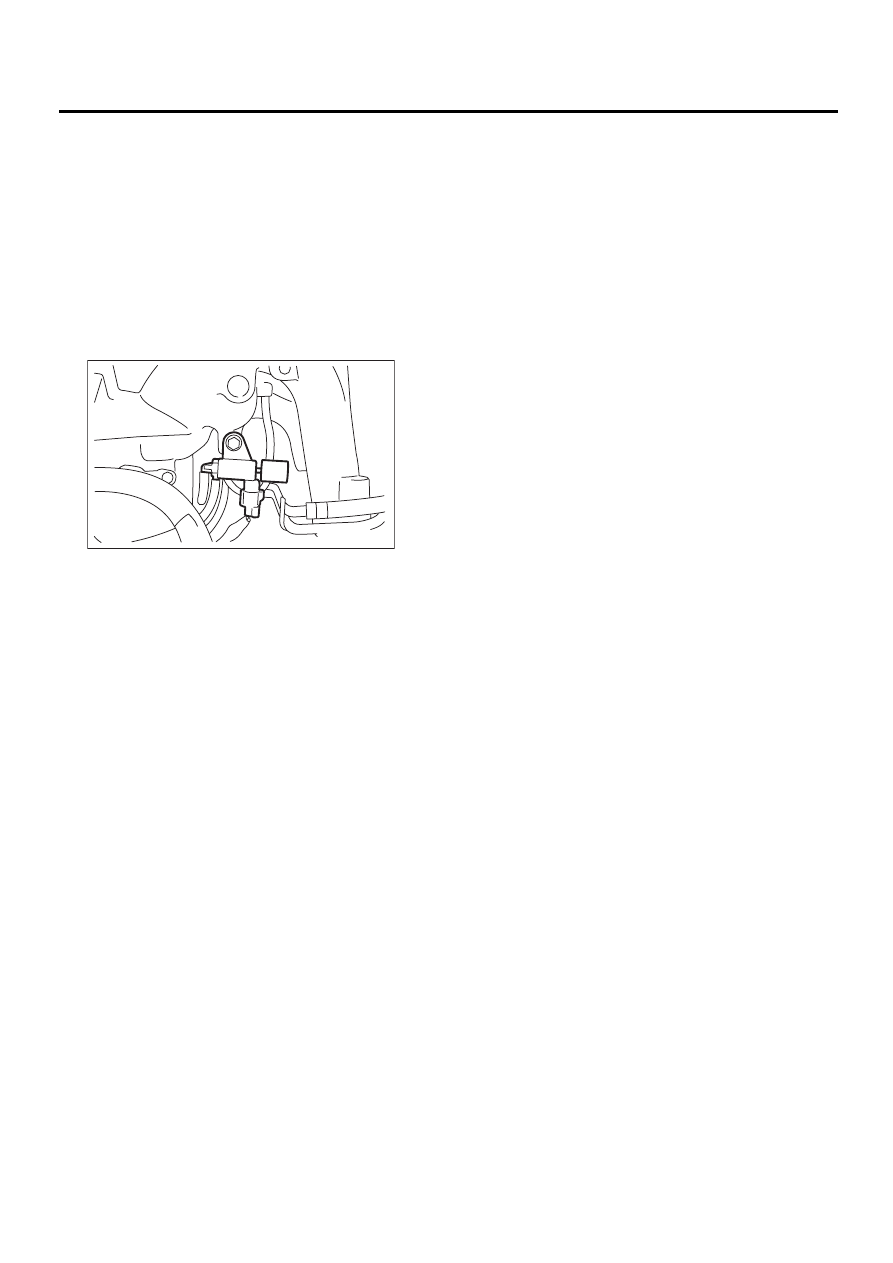

INDUCTION VALVE CONTROL SOLENOID

13.Induction Valve Control Sole-

noid

A: REMOVAL

1) Disconnect battery ground cable.
2) Remove intake manifold.
<Ref. to FU(H6DO)-17, REMOVAL, Intake Mani-
fold.>
3) Disconnect connector from induction valve con-
trol solenoid.
4) Remove induction valve control solenoid from in-
take manifold.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Always use a new gasket.

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

FU-00561

FU(H6DO)-39

FUEL INJECTION (FUEL SYSTEMS)

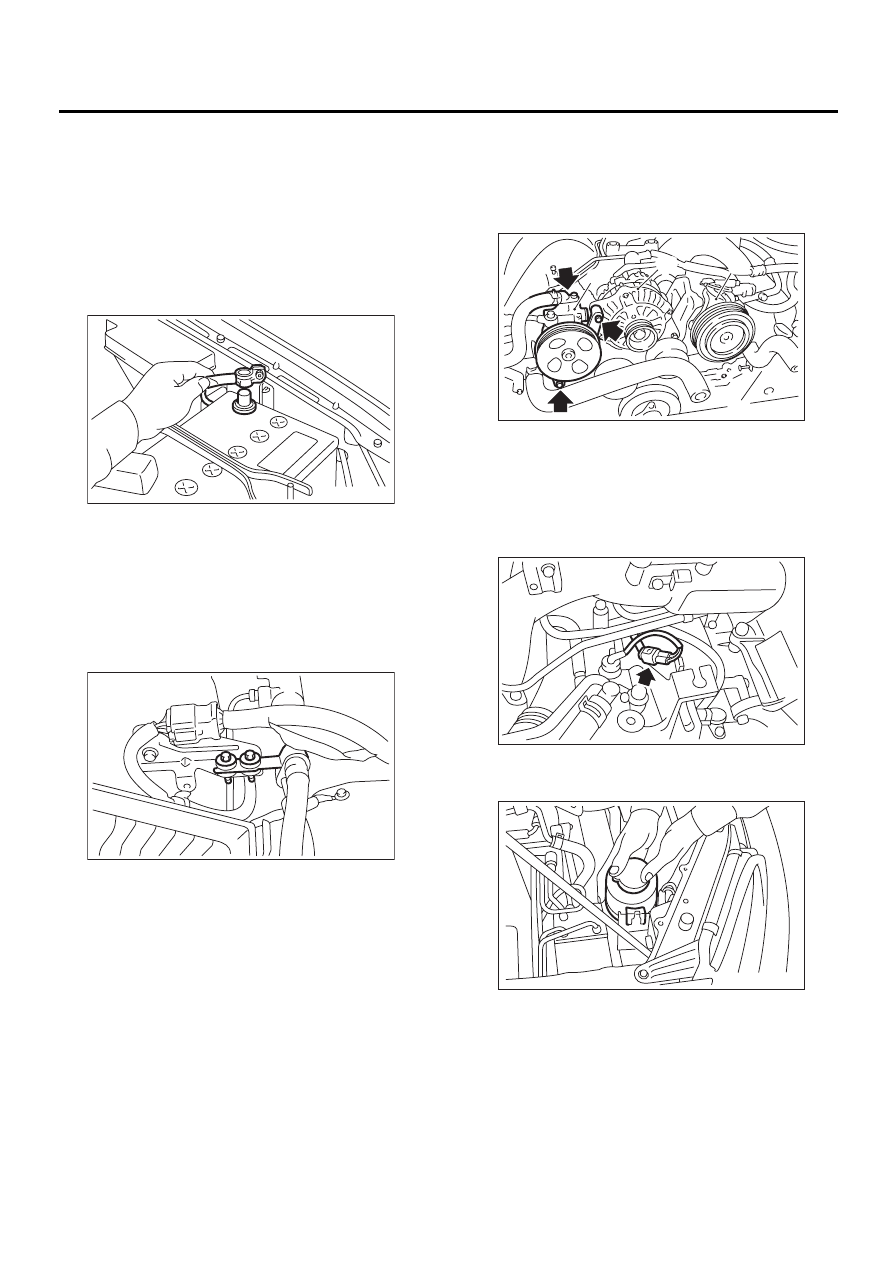

FUEL INJECTOR

14.Fuel Injector

A: REMOVAL

1. RH SIDE

1) Release fuel pressure.
<Ref. to FU(H6DO)-50, RELEASING OF FUEL
PRESSURE, OPERATION, Fuel.>
2) Open fuel flap lid, and remove fuel filler cap.
3) Disconnect battery ground cable.

4) Remove air cleaner lower case. <Ref. to
IN(H6DO)-5, REMOVAL, Air Cleaner.>
5) Remove power steering pump and tank from
brackets.

(1) Remove V-belt.
<Ref. to ME(H6DO)-28, REMOVAL, V-belt.>
(2) Remove power steering oil pipe with brack-
et.

(3) Remove bolts which install power steering
pump bracket.

CAUTION:
Do not separate hose and pipe from the main
pump.

(4) Disconnect power steering pump switch
connector.

(5) Remove power steering tank from the
bracket by pulling it upward.

FU-00009

ME-00449

(A) Power steering pump

(B) Generator

(C) A/C compressor

ME-00482

( A )

( B )

( C )

FU-00541

FU-00429
