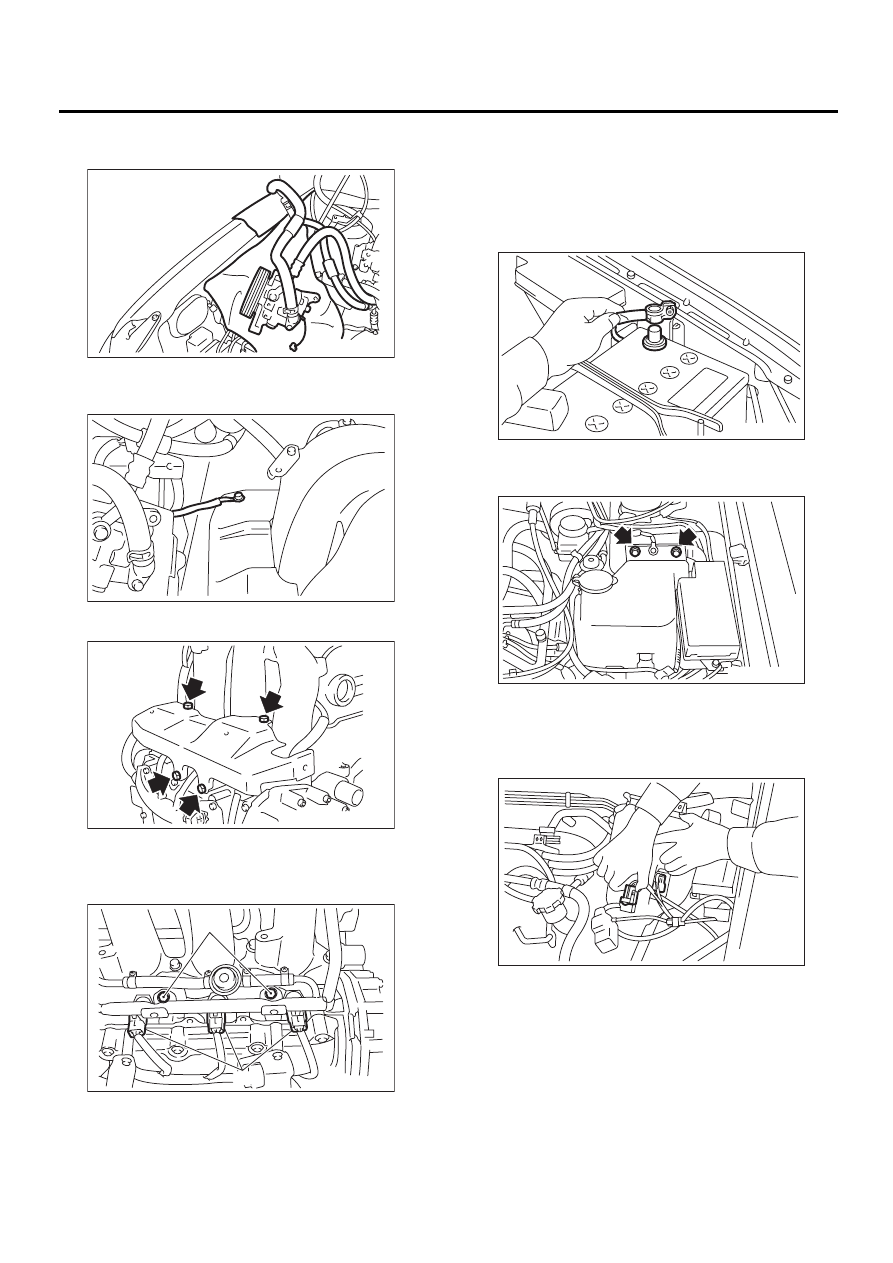

FU(H6DO)-40

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

(6) Place power steering pump on the right side
wheel apron.

6) Remove ground cable from fuel pipe protector
RH.

7) Remove fuel pipe protector RH.

8) Disconnect connector (A) from fuel injector.
9) Remove bolt (B) which holds injector pipe onto
cylinder head.

10) Remove fuel injector while lifting up fuel injector
pipe.

2. LH SIDE

1) Release fuel pressure. <Ref. to FU(H6DO)-50,
RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Open fuel flap lid, and remove fuel filler cap.
3) Disconnect battery ground cable.

4) Remove two bolts which install washer tank on
body.

5) Disconnect connector from front window washer
motor.
6) Disconnect connector from rear gate glass
washer motor.

7) Disconnect rear window glass washer hose from
washer motor, then plug connection with a suitable
cap.

FU-00542

FU-00554

FU-00555

FU-00582

( A )

( B )

FU-00009

FU-00190

FU-00191

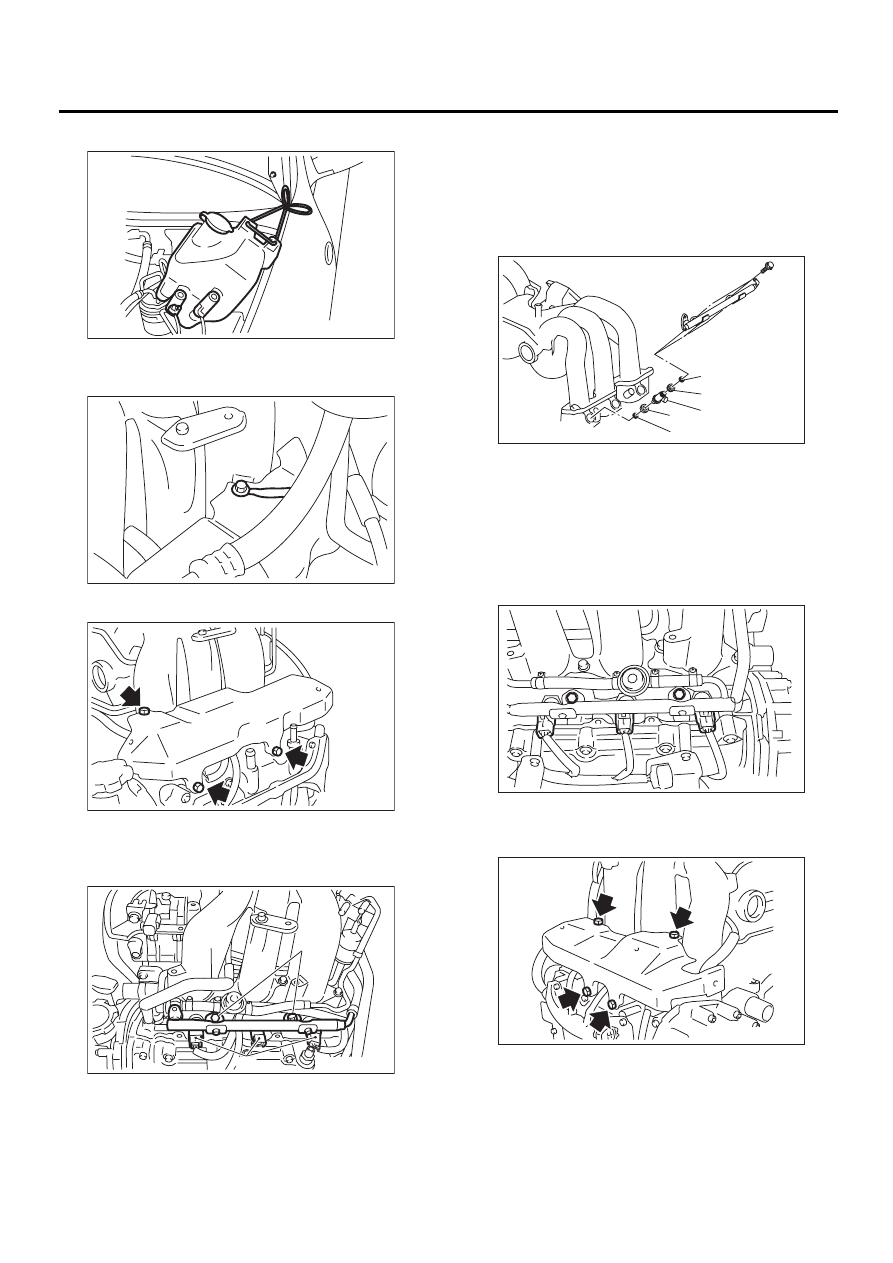

FU(H6DO)-41

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

8) Move washer tank upward.

9) Remove ground cable from fuel pipe protector
LH.

10) Remove fuel pipe protector LH.

11) Disconnect connector (A) from fuel injector.
12) Remove bolt (B) which holds injector pipe onto
cylinder head.

13) Remove fuel injector while lifting up fuel injector
pipe.

B: INSTALLATION

1. RH SIDE

Install in the reverse order of removal.

NOTE:
Replace O-rings and insulators with new ones.

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

ME-00459

FU-00551

FU-00552

FU-00583

( A )

( B )

(A) O-ring

(B) Injection rubber

(C) Fuel injector

(D) Insulator

FU-00584

( A )

( A )

( B )

( C )

( D )

FU-00585

FU-00555

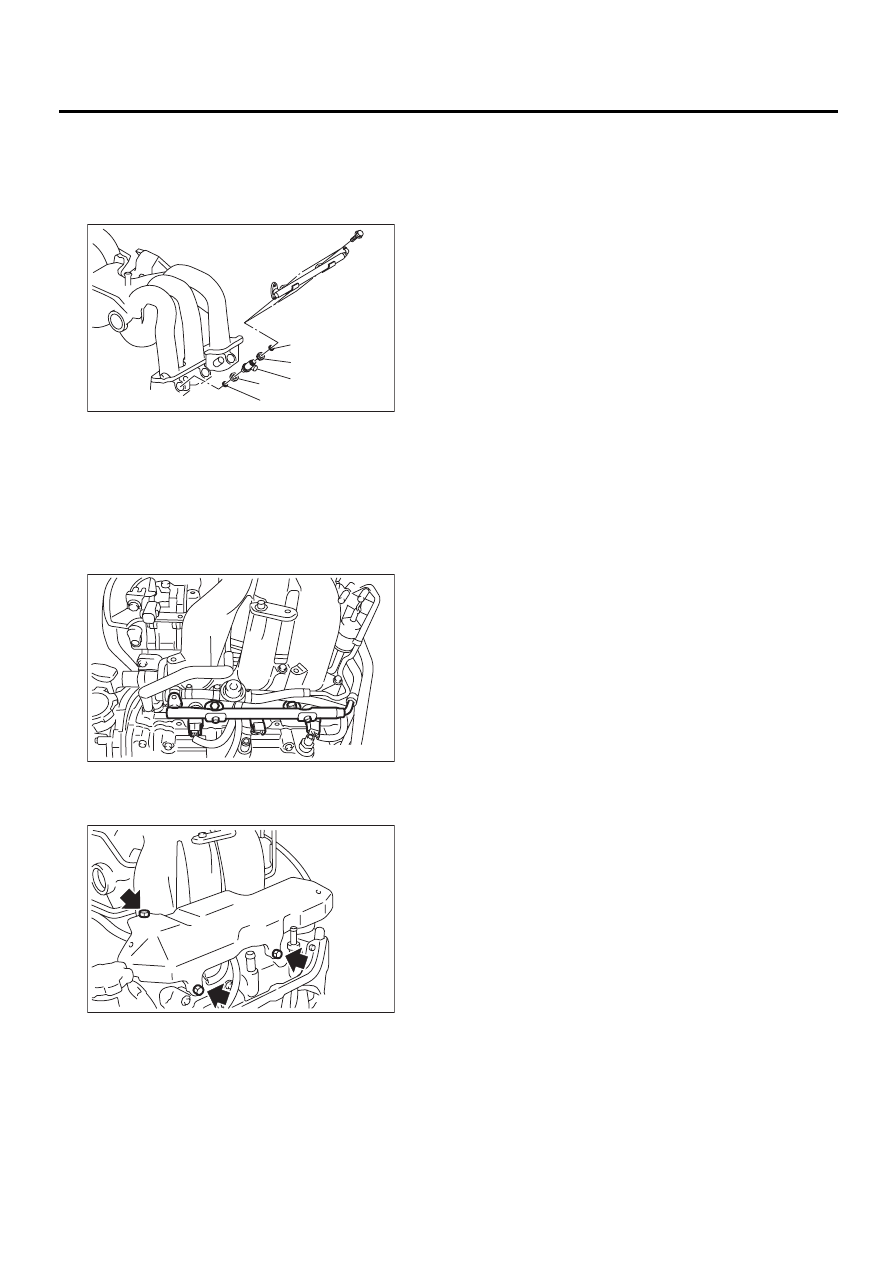

FU(H6DO)-42

FUEL INJECTION (FUEL SYSTEMS)

FUEL INJECTOR

2. LH SIDE

Install in the reverse order of removal.

NOTE:
Replace O-rings and insulators with new ones.

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

Tightening torque:

19 N·m (1.9 kgf-m, 14 ft-lb)

(A) O-ring

(B) Injection rubber

(C) Fuel injector

(D) Insulator

FU-00584

( A )

( A )

( B )

( C )

( D )

FU-00586

FU-00552

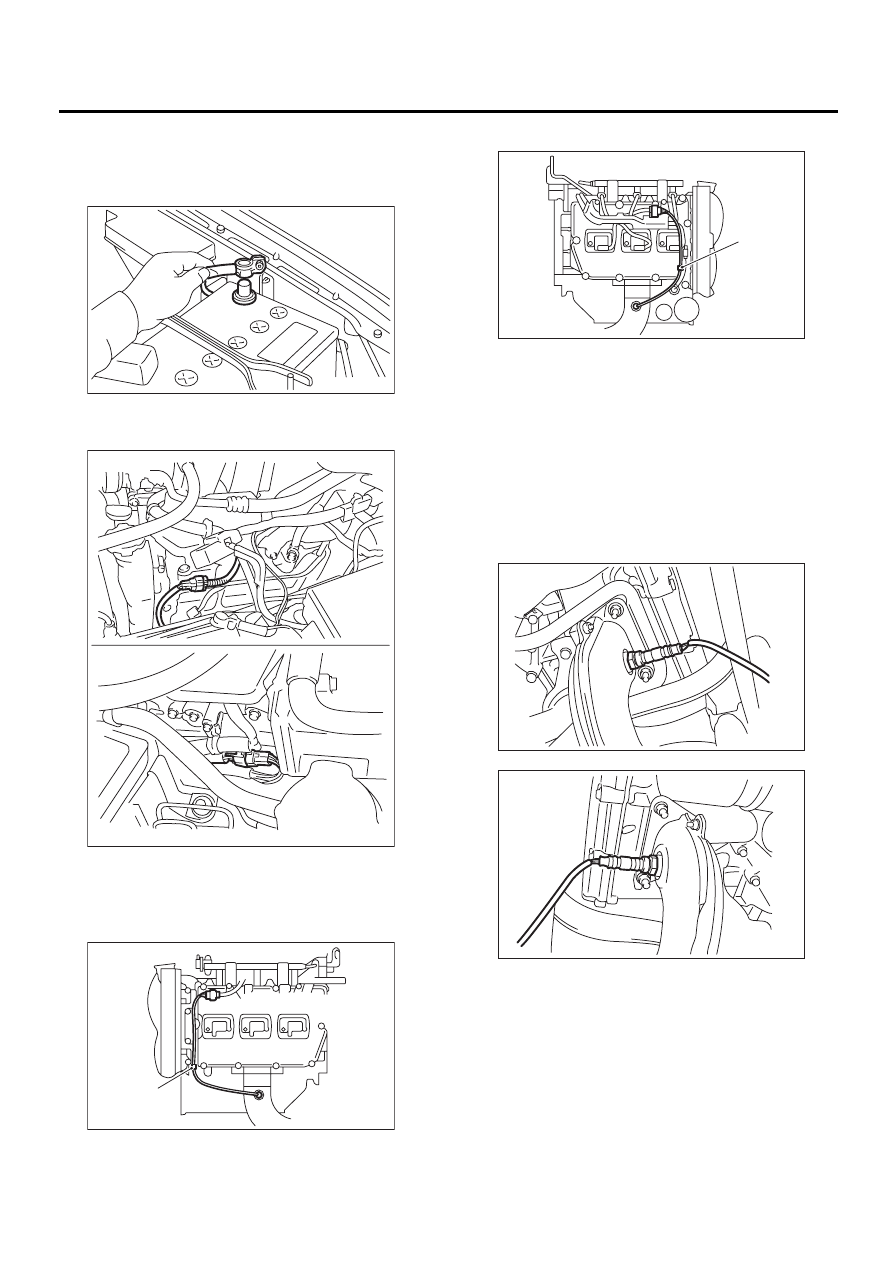

FU(H6DO)-43

FUEL INJECTION (FUEL SYSTEMS)

FRONT OXYGEN (A/F) SENSOR

15.Front Oxygen (A/F) Sensor

A: REMOVAL

1) Disconnect battery ground cable.

2) Disconnect connector from front oxygen (A/F)
sensor.

3) Lift-up the vehicle.
4) Remove under cover.
5) Separate harness from clip (A).
• LH side

• RH side

6) Apply SUBARU CRC or its equivalent to thread-
ed portion of front oxygen (A/F) sensor, and leave it
for one minute or more.

SUBARU CRC (Part No. 004301003)
7) Remove front oxygen (A/F) sensor.

CAUTION:
When removing front oxygen (A/F) sensor, do
not force front oxygen (A/F) sensor especially
when exhaust pipe is cold, otherwise it will
damage exhaust pipe.

FU-00009

EX-00056

LH side

RH side

FU-00587

( A )

FU-00588

( A )

FU-00589

FU-00590
