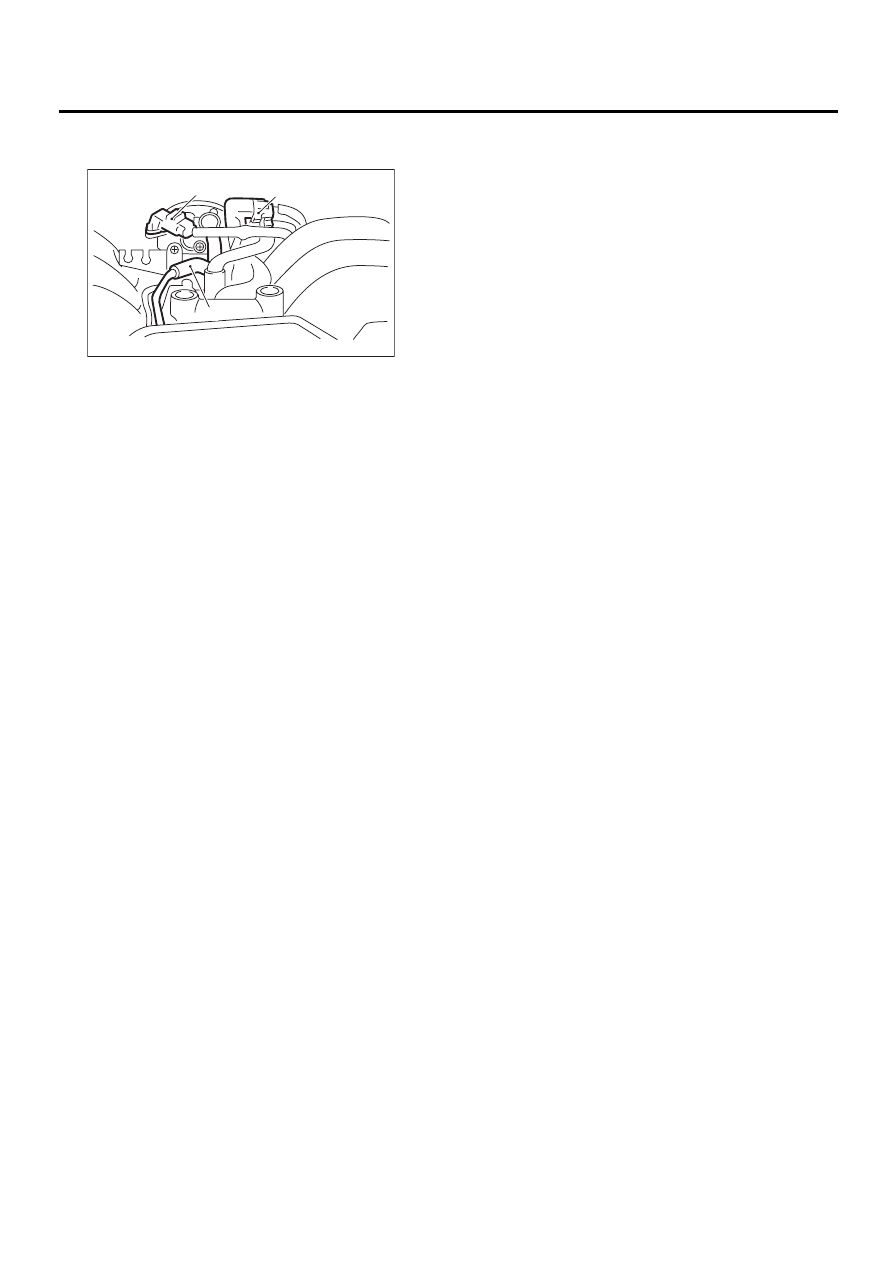

FU(H6DO)-28

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

19) Connect air by-pass hose (C) to idle air control
solenoid valve.

FU-00537

( A )

( B )

( C )

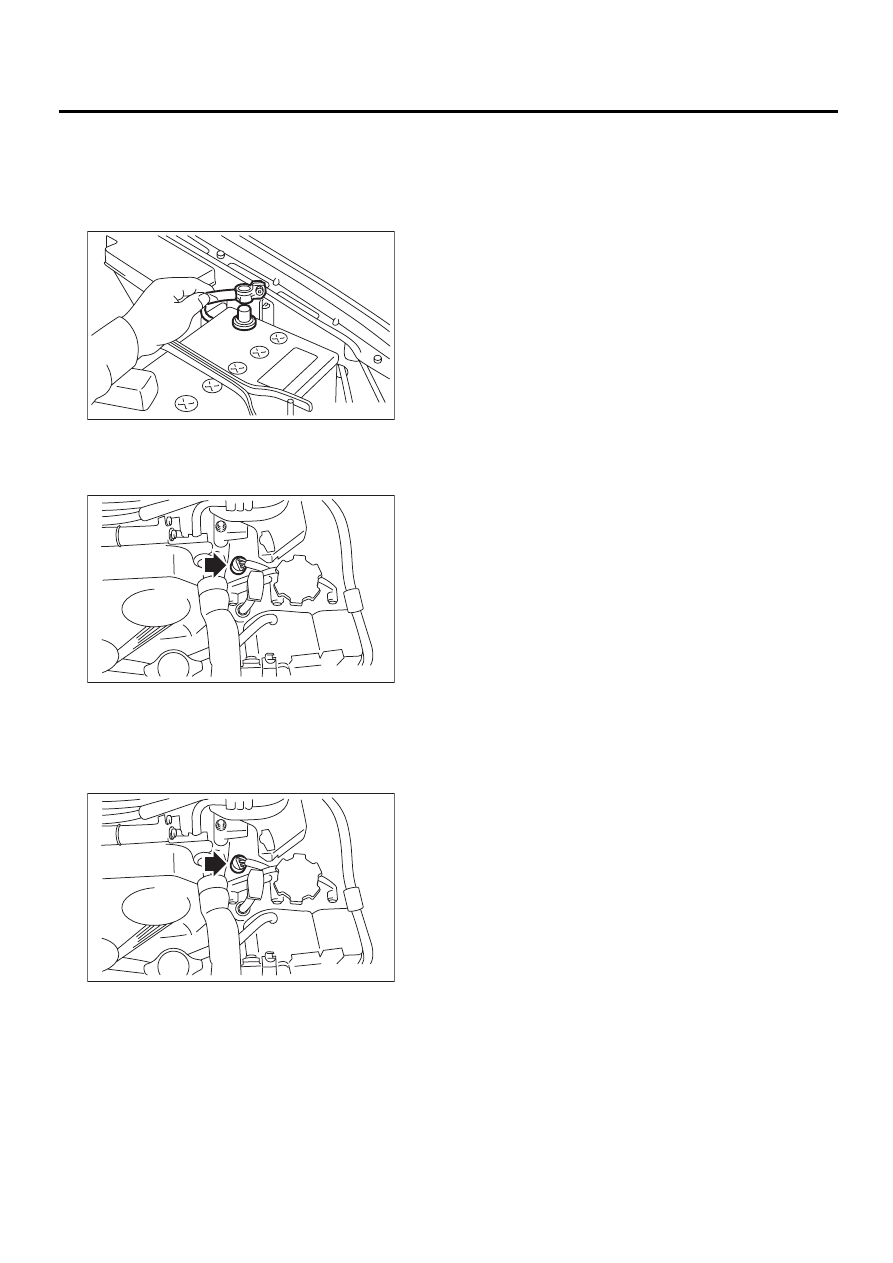

FU(H6DO)-29

FUEL INJECTION (FUEL SYSTEMS)

ENGINE COOLANT TEMPERATURE SENSOR

4. Engine Coolant Temperature

Sensor

A: REMOVAL

1) Disconnect battery ground cable.

2) Disconnect connector from engine coolant tem-
perature sensor.
3) Remove engine coolant temperature sensor.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

16 N·m (1.6 kgf-m, 12 ft-lb)

FU-00009

FU-00572

FU-00572

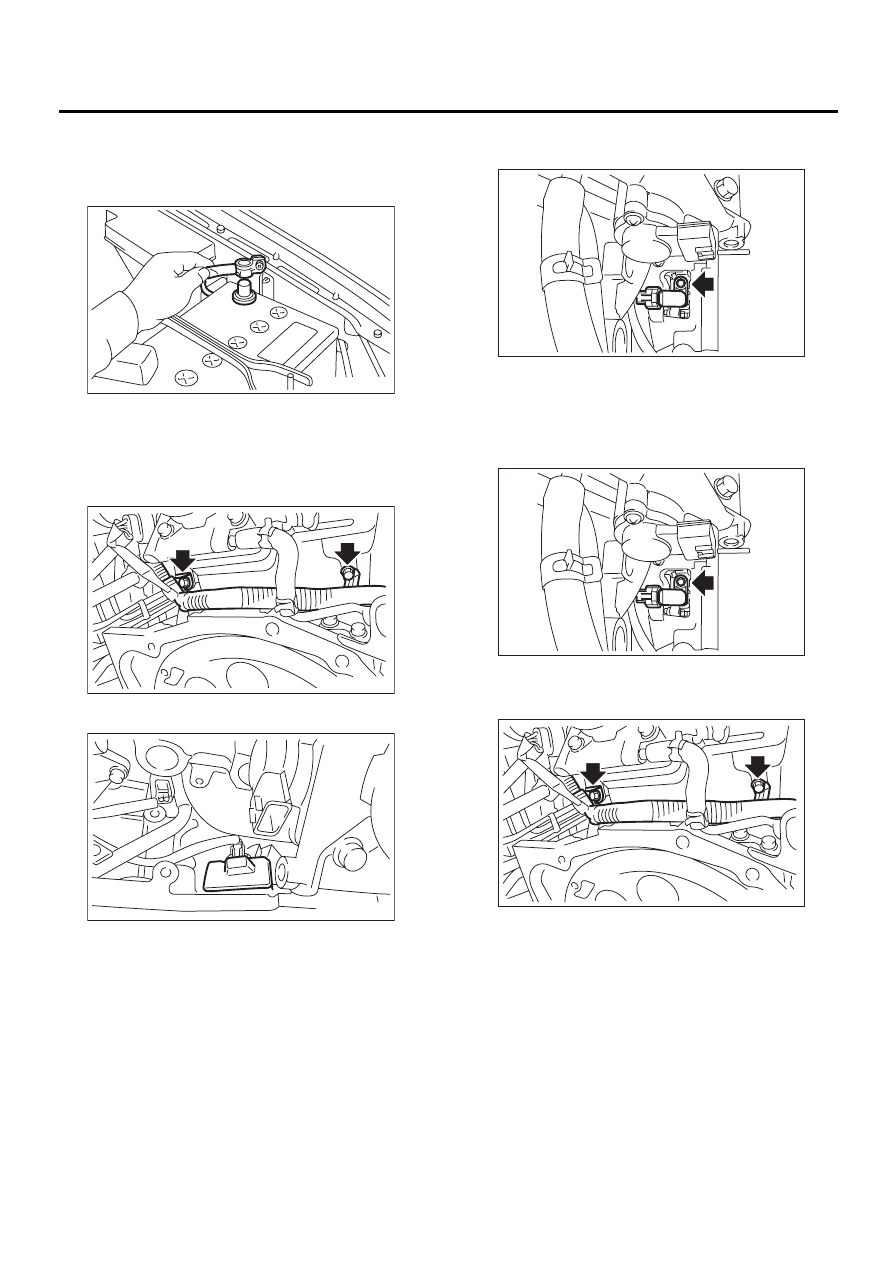

FU(H6DO)-30

FUEL INJECTION (FUEL SYSTEMS)

CRANKSHAFT POSITION SENSOR

5. Crankshaft Position Sensor

A: REMOVAL

1) Disconnect battery ground cable.

2) Remove air intake chamber.
<Ref. to IN(H6DO)-6, REMOVAL, Air Intake Cham-
ber.>
3) Remove engine harness bracket from intake
manifold.

4) Remove service hole cover.

5) Remove bolt which install crankshaft position
sensor to cylinder block.

6) Remove crankshaft position sensor, and discon-
nect connector from it.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

6.4 N·m (0.65 kgf-m, 4.7 ft-lb)

Tightening torque:

5.0 N·m (0.51 kgf-m, 3.7 ft-lb)

FU-00009

FU-00573

FU-00574

FU-00575

FU-00575

FU-00573

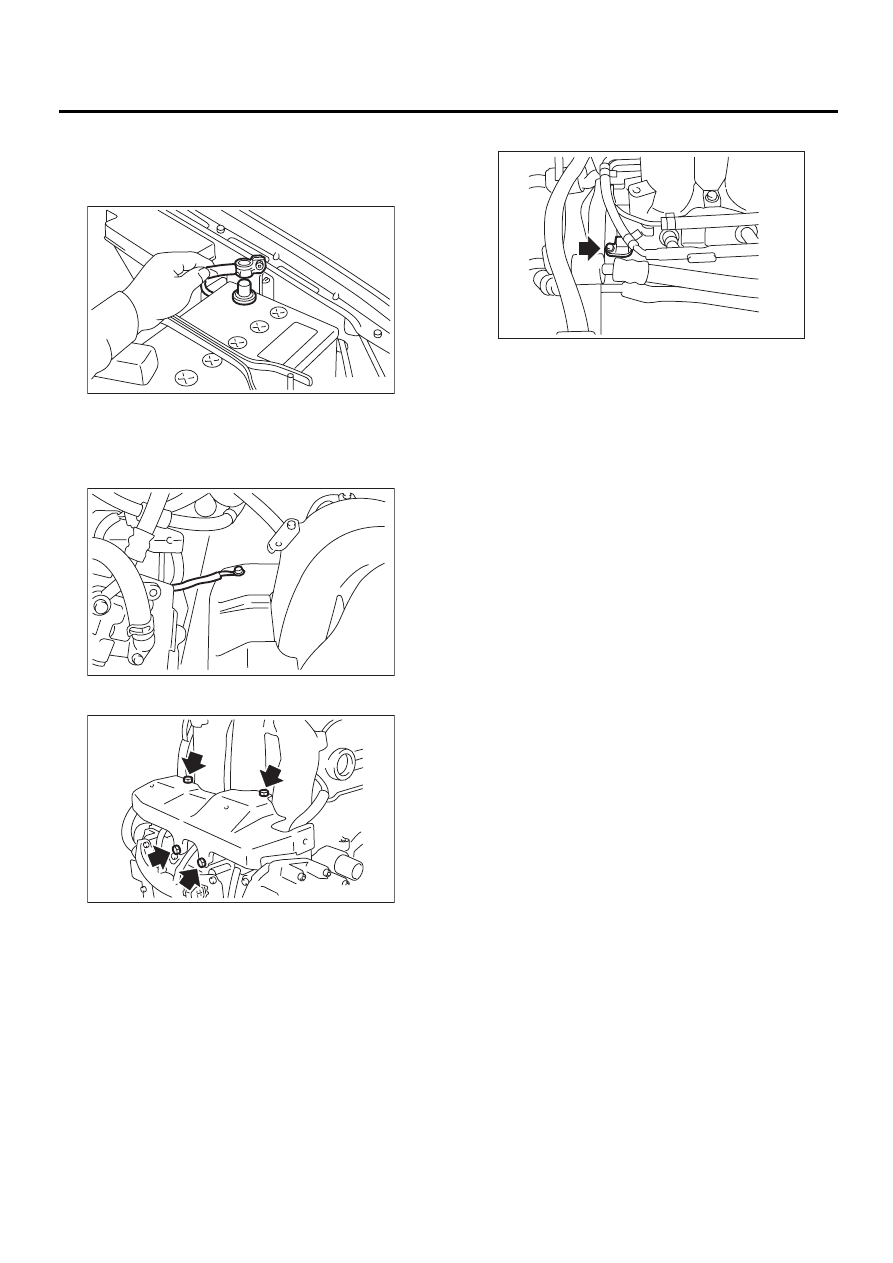

FU(H6DO)-31

FUEL INJECTION (FUEL SYSTEMS)

CAMSHAFT POSITION SENSOR

6. Camshaft Position Sensor

A: REMOVAL

1) Disconnect battery ground cable.

2) Remove air cleaner.
<Ref. to IN(H6DO)-5, REMOVAL, Air Cleaner.>
3) Remove ground cable from fuel pipe protector
RH.

4) Remove fuel pipe protector RH.

5) Disconnect connector from camshaft position
sensor.

6) Remove camshaft position sensor.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

•

Camshaft position sensor;

6.4 N·m (0.65 kgf-m, 4.7 ft-lb)

•

Fuel pipe protector RH;

19 N·m (1.9 kgf-m, 14 ft-lb)

FU-00009

FU-00554

FU-00555

FU-00576
