WI-382
WIRING SYSTEM

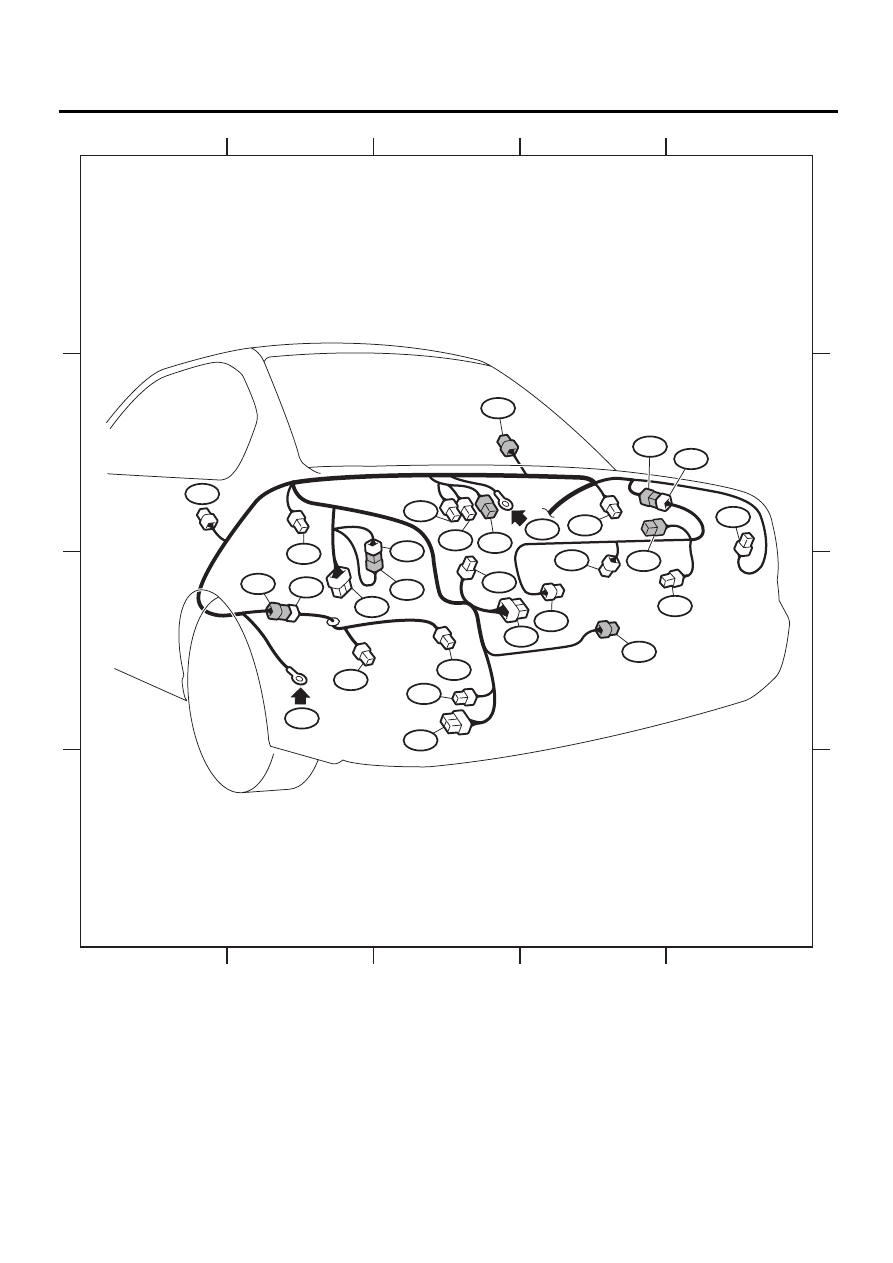

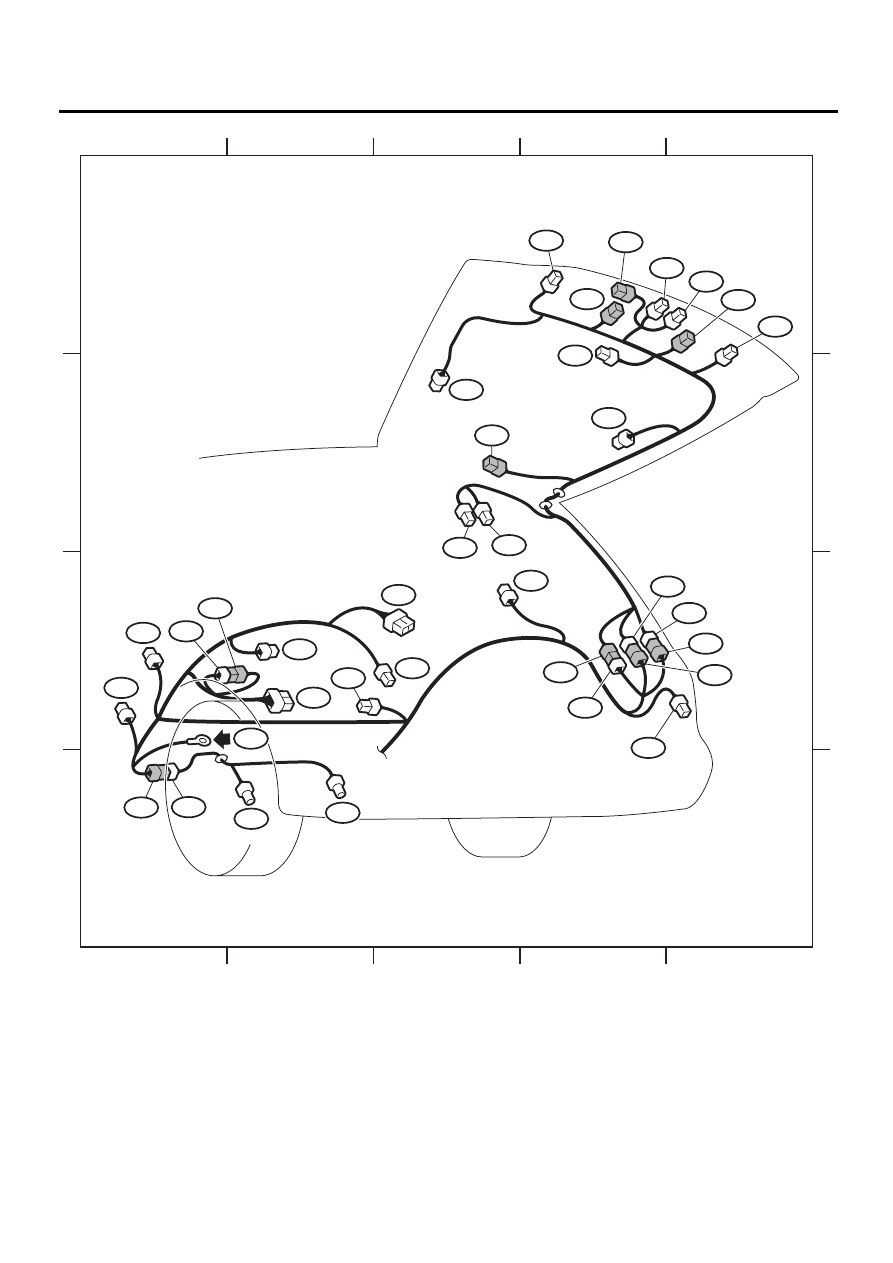

REAR WIRING HARNESS AND TRUNK LID CORD
57.Rear Wiring Harness and Trunk Lid Cord
A: LOCATION
Connector
Connecting to
No.
Pole
Color
Area
No.
Name
R15
6
Black
C-2
R57
Fuel tank cord
R19
2
★
B-2
High-mounted stop light
R20
2
Blue
B-3
Trunk room light
R22
3
Black
B-1
Rear door switch LH
R24
8
★
B-4
R60
Trunk lid cord
R25
2
★
B-3
Rear defogger condenser
R26
4
★
B-4
Rear combination light RH
R27
2
★
C-3
Trunk room light switch
R28
4
★
C-3
Rear combination light LH
R57
6
Black
C-2
R15
Rear wiring harness
R58
6
★
C-2
Fuel gauge module & fuel pump assembly
R59
2
★
C-2
Fuel gauge sub module
R60
8
★
B-4
R24
Rear wiring harness
R62
4
★
C-4
Rear finisher light RH
R63
2
★
C-3
License plate light
R64
4
★
C-3
Rear finisher light LH
R66
2
★
B-4
High-mounted stop light (Rear spoiler)
R79
10
★
C-3
Trailer connector
R97
2
★
B-2
Antenna amplifier
R117
2
★
B-3
Sub woofer (Mcintosh audio) (RHD model)
R122
10
★
C-2
Fuel pump control module
R124
1
★
B-2
R125
Fuel pump control module shield joint connector
R125
1
★
B-2
R124
Fuel pump control module shield joint connector
R126
6
★
C-3
Muffler actuator control module (RHD model)
R127
2
★
C-3
Muffler actuator (RHD model)
R130
2
★
B-3
Rear defogger (choke coil)
★
: Non-colored
