Subaru Legacy III (2000-2003 year). Manual - part 1105
WI-374
WIRING SYSTEM

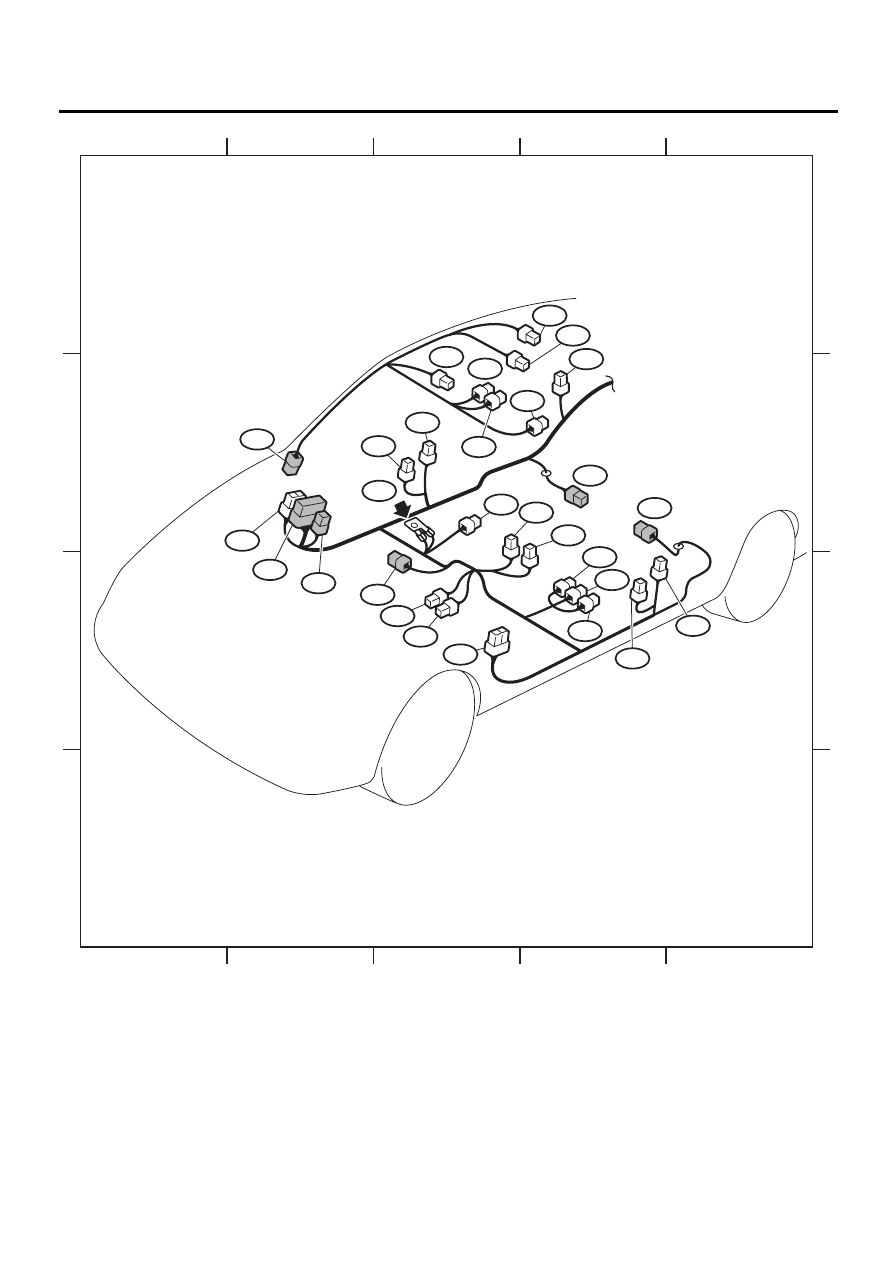

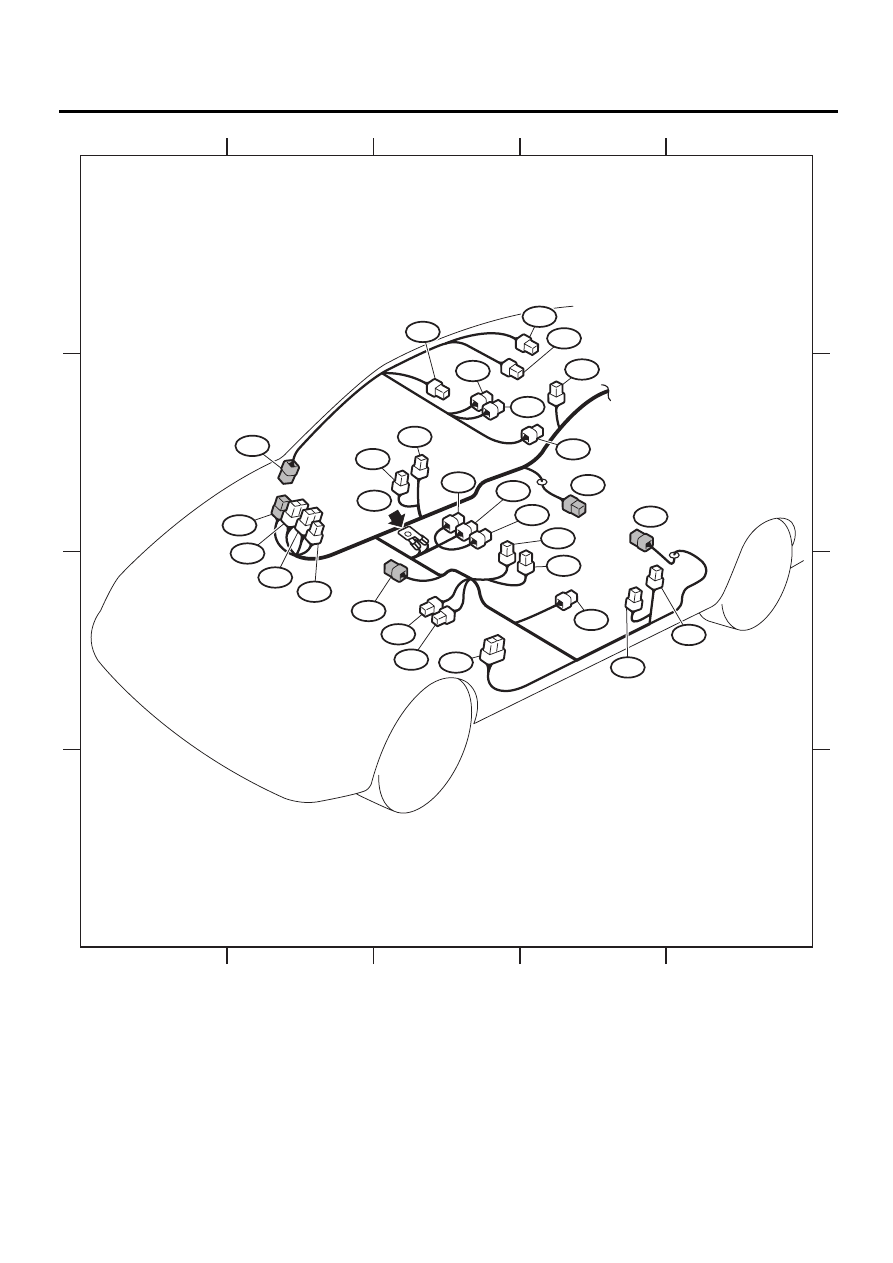

REAR WIRING HARNESS
3. LHD WAGON MODEL
Connector
Connecting to
No.
Pole
Color
Area
No.
Name
R1
8
★
B-2
B97
Bulkhead wiring harness
R3
32
★
B-2
B99
R4
1
★
B-2
Parking brake switch
R8
4
★
C-3
Seat belt switch
R9
3
★
C-4
Front door switch LH
R11
8
★
B-4
D21
Rear door cord LH
R12
3
★
B-2
Front door switch RH
R14
8
★
B-2
D27
Rear door cord RH
R16
3
Black
B-3
Rear door switch RH
R41
4
Blue
B-3
Seat heater RH
R42
6
★
B-3
Seat heater switch RH
R43
6
Blue
B-3
Seat heater switch LH
R44
4
Blue
C-3
Seat heater LH
R49
8
★
C-3
F55
Front wiring harness (without VDC model)
12
★
C-3
Front wiring harness (with VDC model)
R50
6
★
B-2
B90
Bulkhead wiring harness (With vanity mirror illumi.)
R51
2
★
B-2
Vanity mirror illumination light RH
R52
3
★
B-3
Room light
R54
2
★
B-3
Vanity mirror illumination light LH
R55
8
★
A-3
Sunroof control module
R56
2
★
B-3
Spot light
R70
3
★
C-2
ABS G sensor
R72
2
★
B-3
Rear ABS sensor RH
R73
2
★
B-4
Rear ABS sensor LH
R98
14
★
B-2
i53
Instrument panel wiring harness
R100
6
★
C-2
Yaw rate sensor
R109
2
Black
C-3
Power seat motor
R128
5
★
B-3
Sunroof switch
★
: Non-colored
