WIRING SYSTEM

INSTRUMENT PANEL WIRING HARNESS

54.Instrument Panel Wiring Harness

A: LOCATION

1. LHD MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Name

i1

66

★

C-1

B36

Bulkhead wiring harness (SMJ)

i5

12

Blue

C-1

Fuse & relay box (F/B)

i7

6

Black

C-2

Front fog light switch

i10

30

Green

B-2

Combination meter

i11

16

Green

B-1/B-2

i12

14

Green

B-2

Combination meter (4-cylinder engine model)

18

Green

B-2

Combination meter (6-cylinder engine model)

i15

6

★

B-3

Mode control panel (Manual A/C NA model)

i17

20

Gray

B-3

i19

6

Brown

C-2/C-3

Cruise control main switch

i20

8

Black

C-2

B80

Bulkhead wiring harness

i21

2

★

C-3

Ash tray illumination light

i22

8

★

B-3

Hazard switch

i23

2

★

B-4

Glove box illumination light

i24

2

★

C-3

Front accessory power supply socket

i25

2

★

C-3

Front accessory power supply illumination light

i26

14

★

C-3

Radio

i28

1

★

C-3

Body ground

i29

1

Black

C-3

Body ground (Radio)

i33

6

★

C-2

Rear fog light switch

i39

6

★

C-2

Headlight leveling switch

i40

10

Black

C-2

B201

Bulkhead wiring harness

i43

6

★

C-3

Wiper deicer switch

i48

16

Gray

B-3

Auto A/C control module

i49

20

Gray

B-3

i51

2

Black

B-4

Sunload sensor

i53

14

★

C-4

R98

Rear wiring harness

i55

2

★

B-3

In vehicle temperature sensor

i60

18

★

C-3

i61

Switch adaptor cord

i61

18

★

C-3

i60

Instrument panel wiring harness

i62

6

Black

C-4

VDC off switch

★

: Non-colored

WI-367

WIRING SYSTEM

INSTRUMENT PANEL WIRING HARNESS

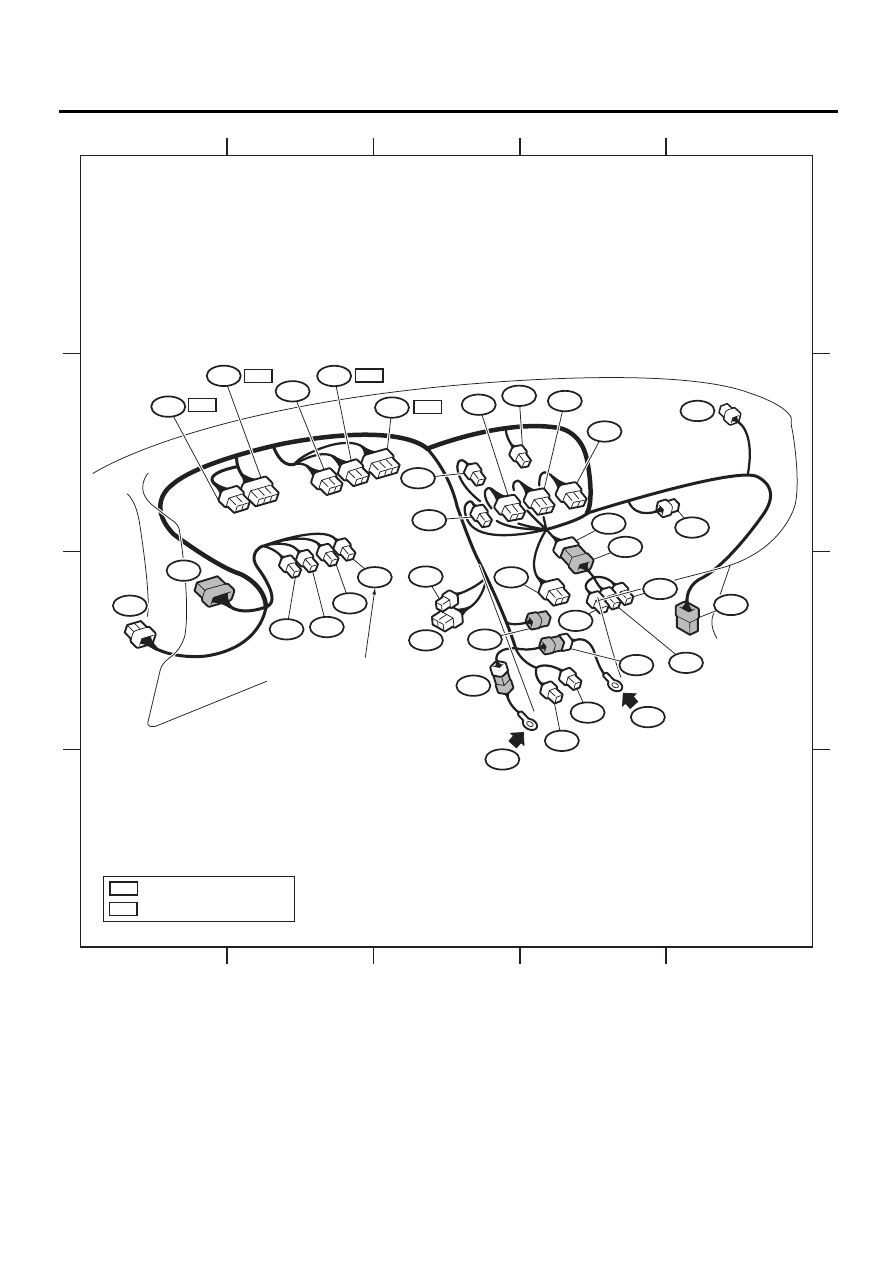

WI-01043

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

i5

i1

i39

i7

i33

i19

i20

i26

i60

i61

i53

i23

i62

i19

i43

i40

i55

i17

i22

i49

i48

i51

i15

i21

i28

i25

i24

GR

GB-7

i29

(Switch is in
sterring side panel)

(Switch is in
center panel)

4-Cylinder engine model

6-Cylinder engine model

:

H4

H6

H6

H4

H4

:

H6

i11

i10

i12

i11

i10

WI-368

WIRING SYSTEM

INSTRUMENT PANEL WIRING HARNESS

2. RHD MODEL

Connector

Connecting to

No.

Pole

Color

Area

No.

Name

i1

66

★

C-4

B36

Bulkhead wiring harness (SMJ)

i5

12

Blue

C-4

Fuse & relay box (F/B)

i7

6

Black

B-3/C-3

Front fog light switch

i10

30

Green

B-3

Combination meter

i11

16

Green

B-3

i12

14

Green

B-3

Combination meter (4-cylinder engine model)

18

Green

B-3

Combination meter (6-cylinder engine model)

i15

6

★

B-2

Mode control panel (Manual A/C)

i17

16

★

B-2

i19

6

Brown

C-3

Cruise control main switch

i20

8

★

C-2

B80

Bulkhead wiring harness

i21

2

★

C-2

Ash tray illumination light

i22

8

★

B-2

Hazard switch

i23

2

★

B-1

Glove box illumination light

i24

2

★

C-2

Front accessory power supply socket

i25

2

★

C-2

Front accessory power supply socket illumination light

i26

14

★

C-2

Radio

i28

1

★

C-2

Body ground

i29

1

Black

C-2

Body ground (Radio)

i33

6

★

B-3

Rear fog light switch

i39

6

★

B-3

Headlight leveling switch

i43

6

★

C-3

Wiper deicer switch

i45

14

Black

C-2

Heater module (Auto A/C)

i48

16

Black

B-2

Auto A/C control module

i49

20

Black

B-2

i51

2

Black

B-1

Sunload sensor

i52

14

Black

B-1

Blower module (Auto A/C)

i53

16

★

C-1

R98

Rear wiring harness

i60

14

★

B-2

i61

Switch adaptor cord

i61

14

★

B-2

i60

Instrument panel wiring harness

i62

6

Black

C-3

VDC off switch

★

: Non-colored

WI-369

WIRING SYSTEM

INSTRUMENT PANEL WIRING HARNESS

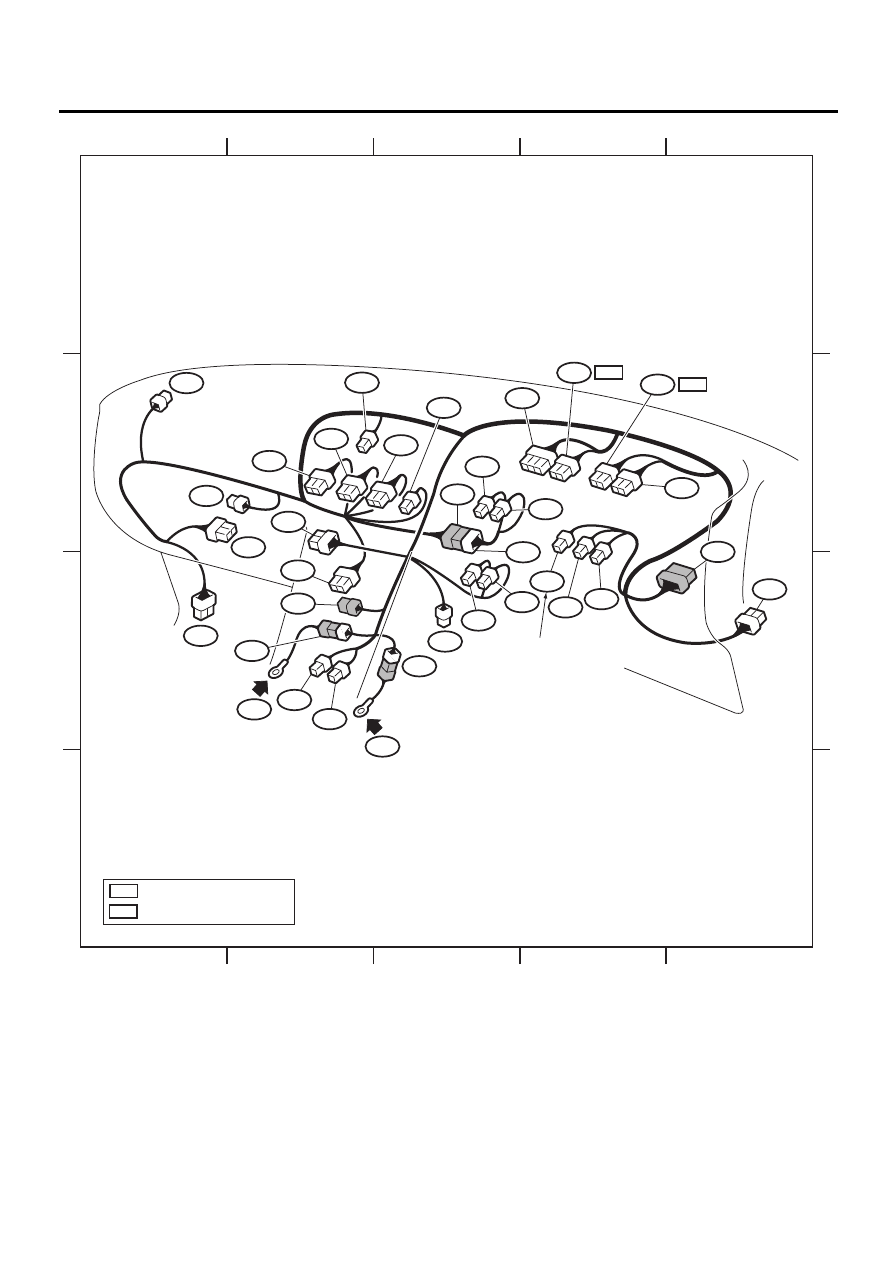

WI-01044

1

2

3

4

5

1

2

3

4

5

A

B

C

D

A

B

C

D

4-Cylinder engine model

6-Cylinder engine model

:

H4

H4

:

H6

i51

i23

i52

i22

i48

i45

i26

i21

i28

GB-7

i24

i25

i20

i62

i39

i60

i61

i33

i7

i7

i1

i5

i19

i43

i10

i12

i12

i11

GR

i29

i49

i17

i15

i53

(without rear fog
light model)

(with rear fog light model)

H6
