WI-358
WIRING SYSTEM

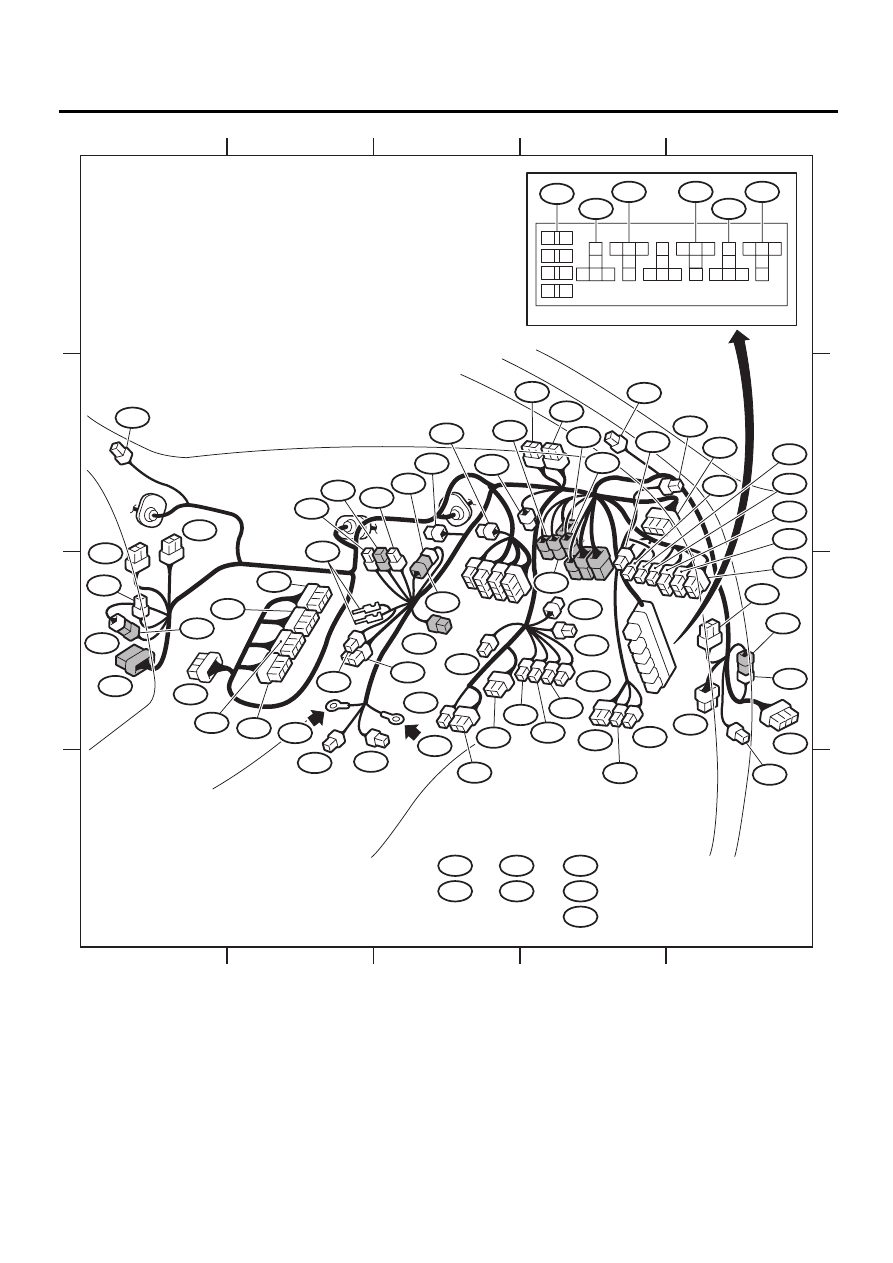

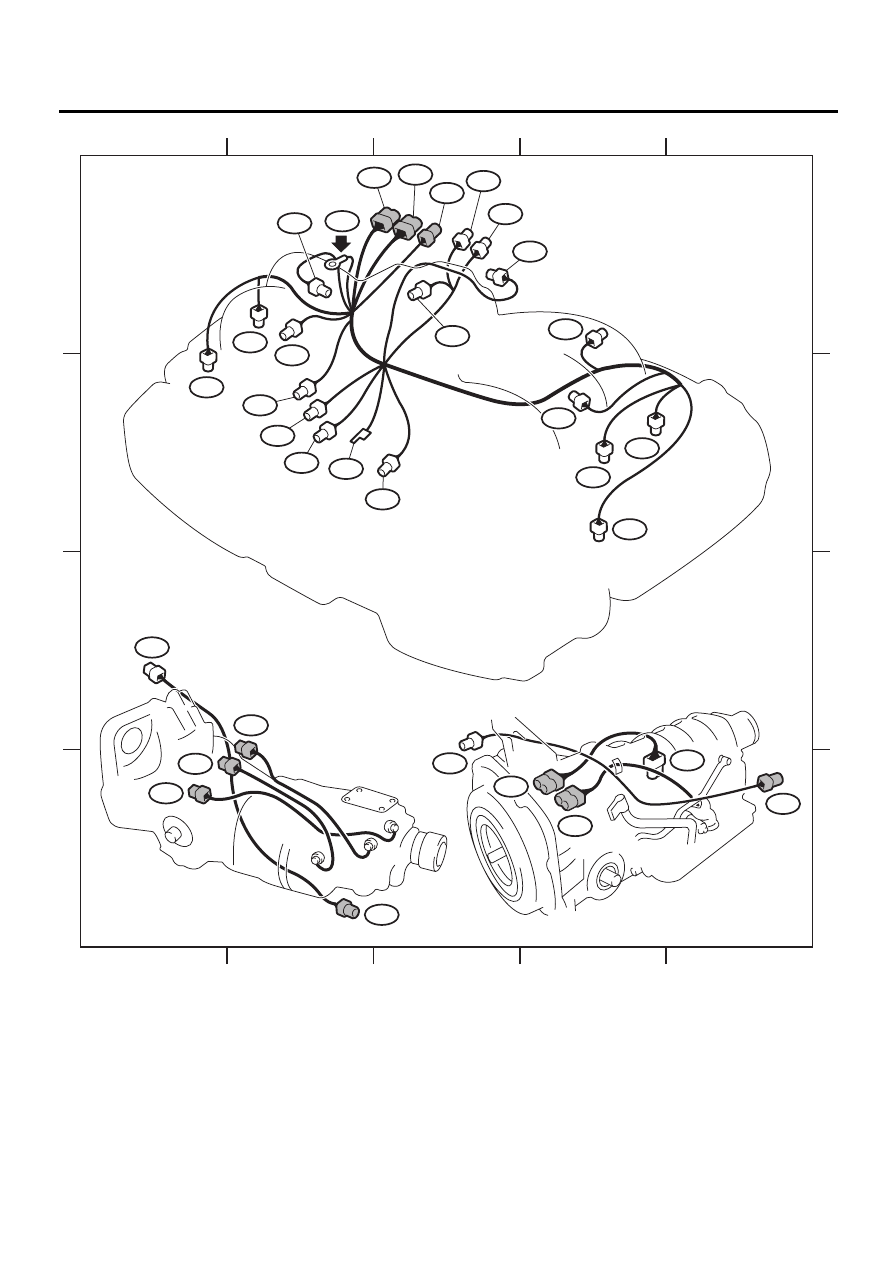

BULKHEAD WIRING HARNESS (IN COMPARTMENT)
4. RHD 6-CYLINDER ENGINE MODEL
Connector
Connecting to
No.
Pole
Color
Area
No.
Name
B30
25
★
C-4
D1
Front door cord RH
B31
12
Yellow
C-4
AB1
SRS (Airbag) harness
B32
3
Black
B-3
Turn & hazard module
B35
2
★
C-3
Diode (step light)
B36
66
★
B-4
i1
Instrument panel wir-
ing harness (SMJ)
B40
16
★
C-4
Data link connector
B41
2
★
C-4
Power window circuit
breaker
B42
5
★
A-4
Power window relay
(Relay block)
B44
10
★
B-3
Seat belt timer
B46
4
Green
C-3
Fuel pump relay
B47
6
Brown
C-1
Main relay
B48
5
★
A-4
Front fog light relay
(Relay block)
B50
4
Black
C-4
Blower relay
B51
8
★
C-4
Fuse & relay box (F/B)
B52
7
★
C-4
B53
12
Black
C-3
Shield joint connector
(AT)
B54
24
★
C-3
Transmission control
module
B55
24
Gray
C-3
B56
24
Green
C-3
B61
8
★
B-3
F44
Front wiring harness
B62
8
★
B-3
F45
Front wiring harness
B65
4
Black
B-3
Stop & brake switch
B68
5
Black
C-3
Cruise control sub
switch
B69
4
★
C-3
Parking switch
B70
18
★
C-3
Combination switch
B71
17
★
C-3
B72
4
Blue
C-3
Ignition switch
B74
2
Black
C-3
Key warning switch
B75
2
Green
B-2
B76
Test mode connector
B76
2
Green
B-2
B75
B79
14
Gray
C-2
Check connector
B80
8
★
C-3
i20
Instrument panel wir-
ing harness
B81
1
×
2
★
B-2
Diagnosis terminal
(Ground)
B82
8
★
C-2
Diagnosis connector
B83
22
★
C-1
Shield & sensor
ground joint connec-
tor (E/G)
B90
6
★
B-4
R50
Roof cord
B94
20
Black
C-1
Cruise control module
B97
6
★
B-3
R1
Rear wiring harness
B98
20
Blue
B-3
R2
B99
20
★
B-3
R3
B100
24
Black
B-3
F2
Front wiring harness
B101
25
★
C-1
D11
Front door cord LH
B104
4
★
B-3
Seat heater/rear
accessory power sup-
ply relay
B116
6
★
C-2
Select lever illumina-
tion light (AT)
B129
2
★
B-4
Kick-down switch (AT)
B131
5
★
A-4
Rear fog light relay
(Relay block)
B133
6
★
C-2
AT power mode &
hold mode switch
B134
22
★
C-2
Engine control module
B135
28
★
C-2
B136
24
★
C-2
B137
31
★
C-2
B141
12
★
B-3
Immobiliser control
module
B152
12
★
B-4
Fuse & relay box (F/B)
B157
5
★
A-4
Ignition relay-2 (Relay
block)
B158
10
Gray
B-4
Fuse & relay box (F/B)
B159
9
Brown
B-4
Fuse & relay box (F/B)
B176
18
★
B-1
Keyless entry control
module
B177
2
★
B-1
Wiper deicer
B181
1
★
B-3
B182
Fan ground joint con-
nector
B182
1
★
B-3
B181
B183
1
★
C-4
B184
Keyless registration
connector (Keyless
entry)
B184
1
★
C-4
B183
B191
5
★
A-4
Wiper deicer relay
(Relay block)
B192
4
★
C-4
Wiper deicer timer
B196
2
★
C-3
Diode (Rear fog light)
B224
2
★
C-3
Key switch illumina-
tion light
B225
8
★
A-4
Fuse (Relay block)
B228
15
★
C-3
OP connector
B231
4
★
C-3
Steering angle sensor
(VDC)
B234
6
★
B-3
Joint connector (VDC)
B255
20
★
B-4
F96
Front wiring harness
B297
2
Black
C-1
B298
A/C cut connector
B298
2
Black
C-1
B297
B300
6
★
B-2
Line end check con-
nector
★
: Non-colored
Connector
Connecting to
No.
Pole
Color
Area
No.
Name
