Subaru Legacy III (2000-2003 year). Manual - part 28

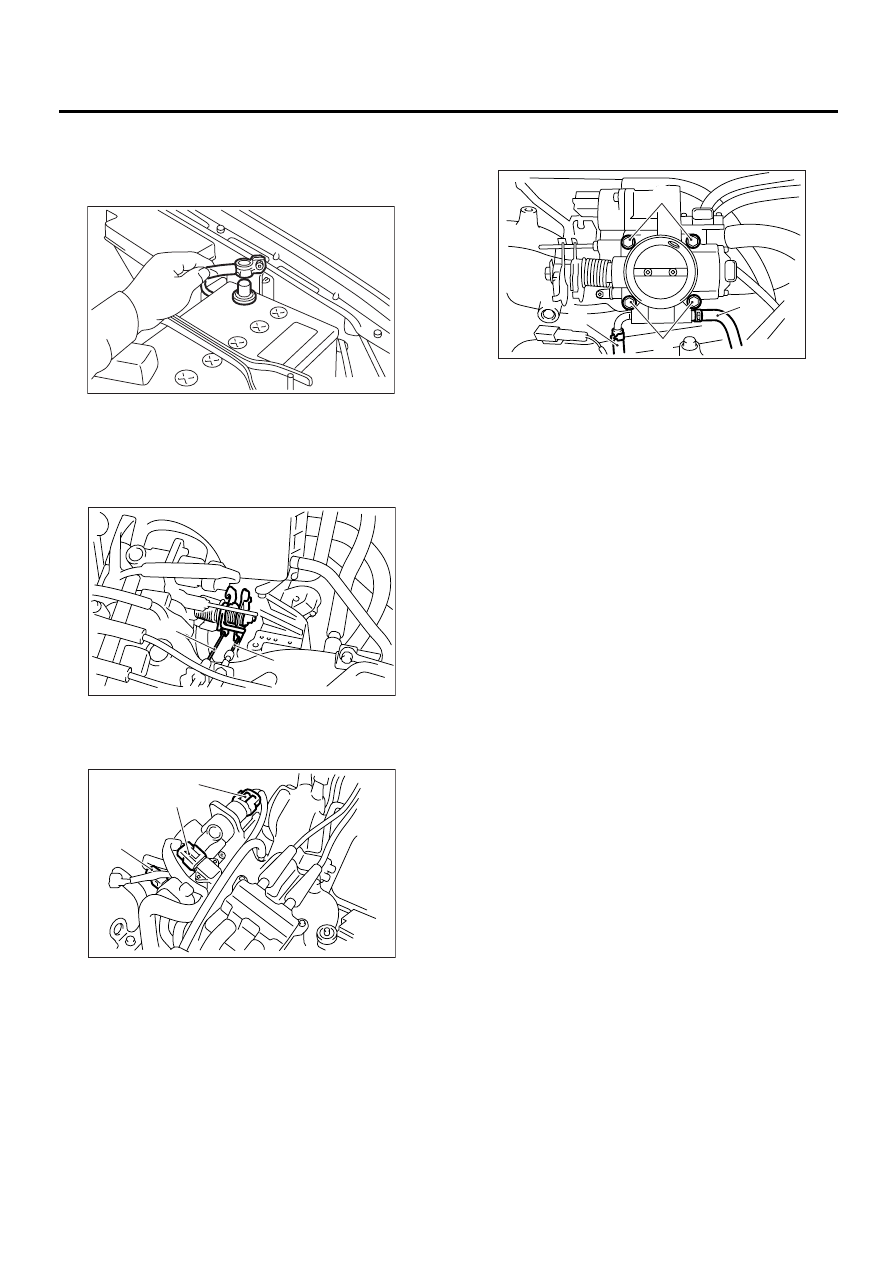

FU(H4SO)-14

FUEL INJECTION (FUEL SYSTEMS)

THROTTLE BODY

2. Throttle Body

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the air cleaner case. <Ref. to
IN(H4SO)-6, REMOVAL, Air Cleaner Case.>
3) Disconnect the accelerator cable (A).
4) Disconnect the cruise control cable (B). (With
cruise control model)

5) Disconnect the connectors from idle air control
solenoid valve, throttle position sensor and pres-
sure sensor.

6) Disconnect the engine coolant hoses (A) from
the throttle body.

7) Remove the bolts (B) which install throttle body
to the intake manifold.

B: INSTALLATION

1) Install in the reverse order of removal.

NOTE:
Replace the gasket with a new one.

Tightening torque:

Throttle body;

22 N·m (2.2 kgf-m, 15.9 ft-lb)

2) Adjust the accelerator cable play. <Ref. to
SP(H4SO)-10, REMOVAL, Accelerator Control
Cable.>

(A) Throttle position sensor

(B) Pressure sensor

(C) Idle air control solenoid valve

FU-00009

FU-00251

(B)

(A)

FU-00378

(B)

(A)

(C)

FU-00253

(B)

(B)

(A)

(A)

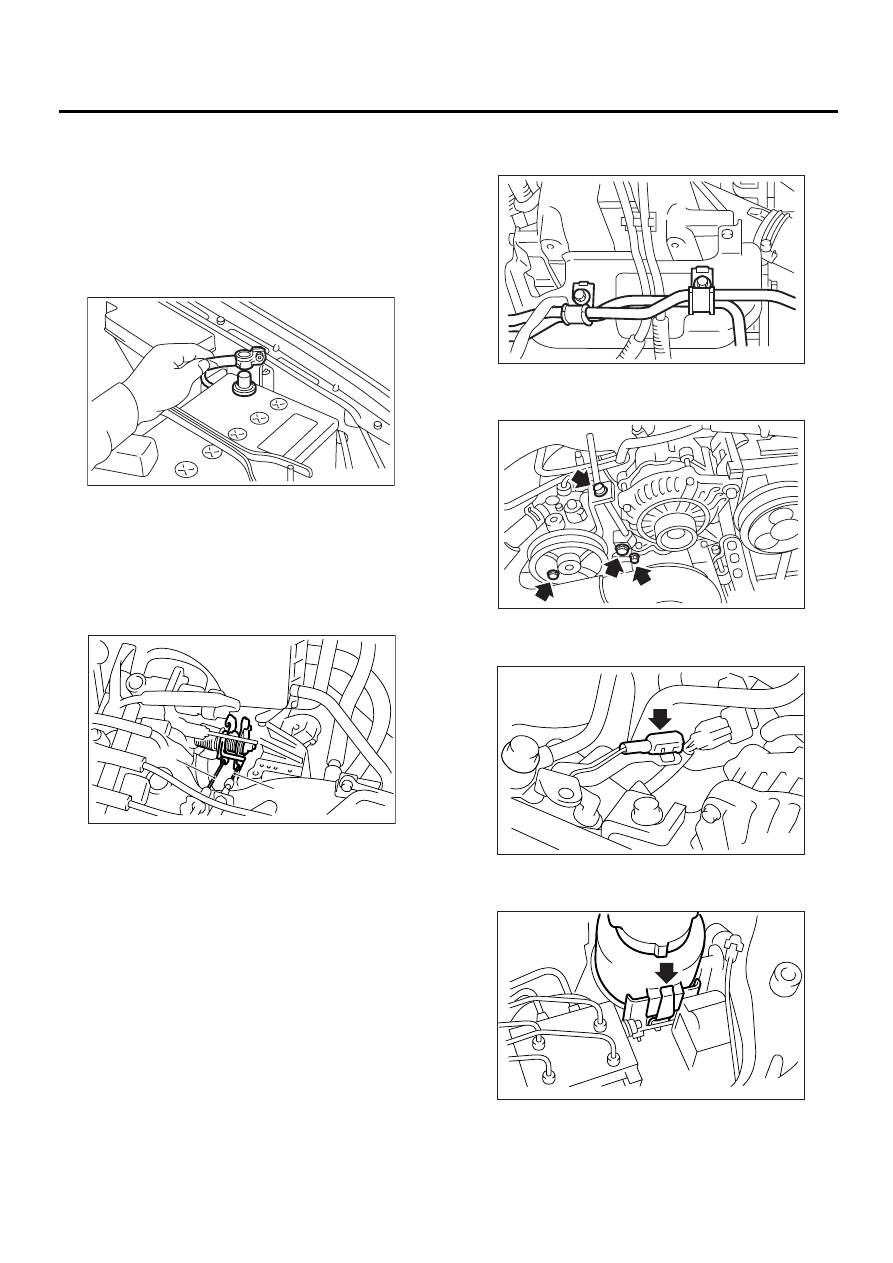

FU(H4SO)-15

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

3. Intake Manifold

A: REMOVAL

1) Release the fuel pressure. <Ref. to FU(H4SO)-
48, RELEASING OF FUEL PRESSURE, OPERA-
TION, Fuel.>
2) Open the fuel flap lid, and remove the fuel filler
cap.
3) Disconnect the ground cable from battery.

4) Remove the air intake duct and air cleaner case.
<Ref. to IN(H4SO)-7, REMOVAL, Air Intake Duct.>
and <Ref. to IN(H4SO)-6, REMOVAL, Air Cleaner
Case.>
5) Disconnect the accelerator cable (A).
6) Disconnect the cruise control cable (B). (With
cruise control model)

7) Remove the power steering pump and reservoir
tank from bracket.

(1) Remove the resonator chamber. <Ref. to
IN(H4SO)-8, REMOVAL, Resonator Chamber.>
(2) Remove the front side V-belt. <Ref. to
ME(H4SO)-41, REMOVAL, V-belt.>
(3) Remove the bolts which hold power steering
pipes onto the intake manifold protector.

NOTE:
Do not disconnect the power steering hose.

(4) Remove the bolts which install power steer-
ing pump bracket.

(5) Disconnect the connector from the power
steering pump switch.

(6) Remove the power steering tank from the
bracket by pulling it upwards.

FU-00009

FU-00251

(B)

(A)

FU-00255

FU-00139

FU-00017

FU-00020

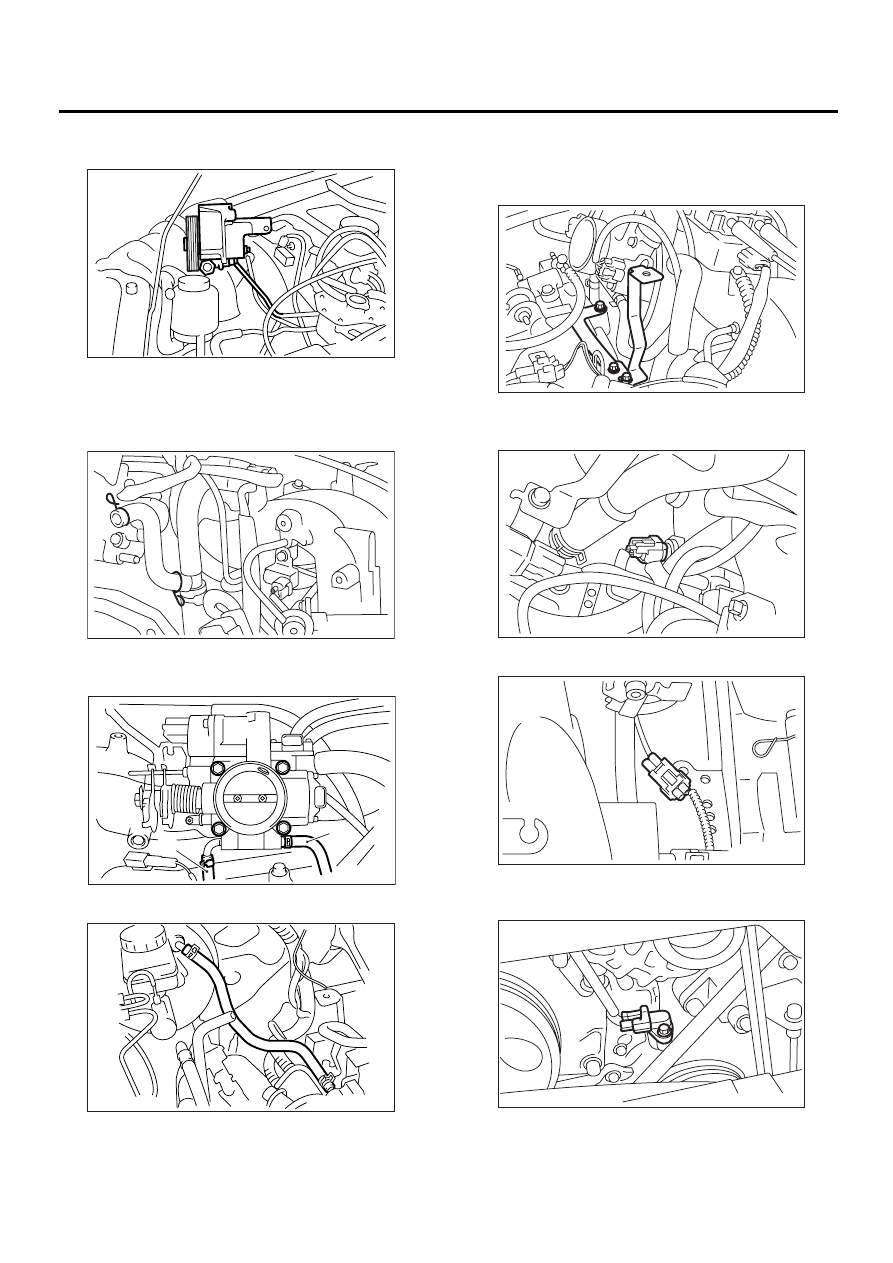

FU(H4SO)-16

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

(7) Place the power steering pump on the right
side wheel apron.

8) Disconnect the spark plug cords from the spark
plugs.
9) Disconnect the PCV hose from the intake mani-
fold.

10) Disconnect the engine coolant hose (A) from
the throttle body.

11) Disconnect the brake booster hose.

12) Remove the air cleaner case stay RH and en-
gine harness bracket, and disconnect the engine
harness connectors from the bulkhead harness
connectors.

13) Disconnect the connectors from the engine
coolant temperature sensor.

14) Disconnect the knock sensor connector.

15) Disconnect the connector from the crankshaft
position sensor.

FU-00021

FU-00141

FU-00361

(A)

(A)

FU-00143

FU-00258

FU-00145

FU-00062

FU-00056

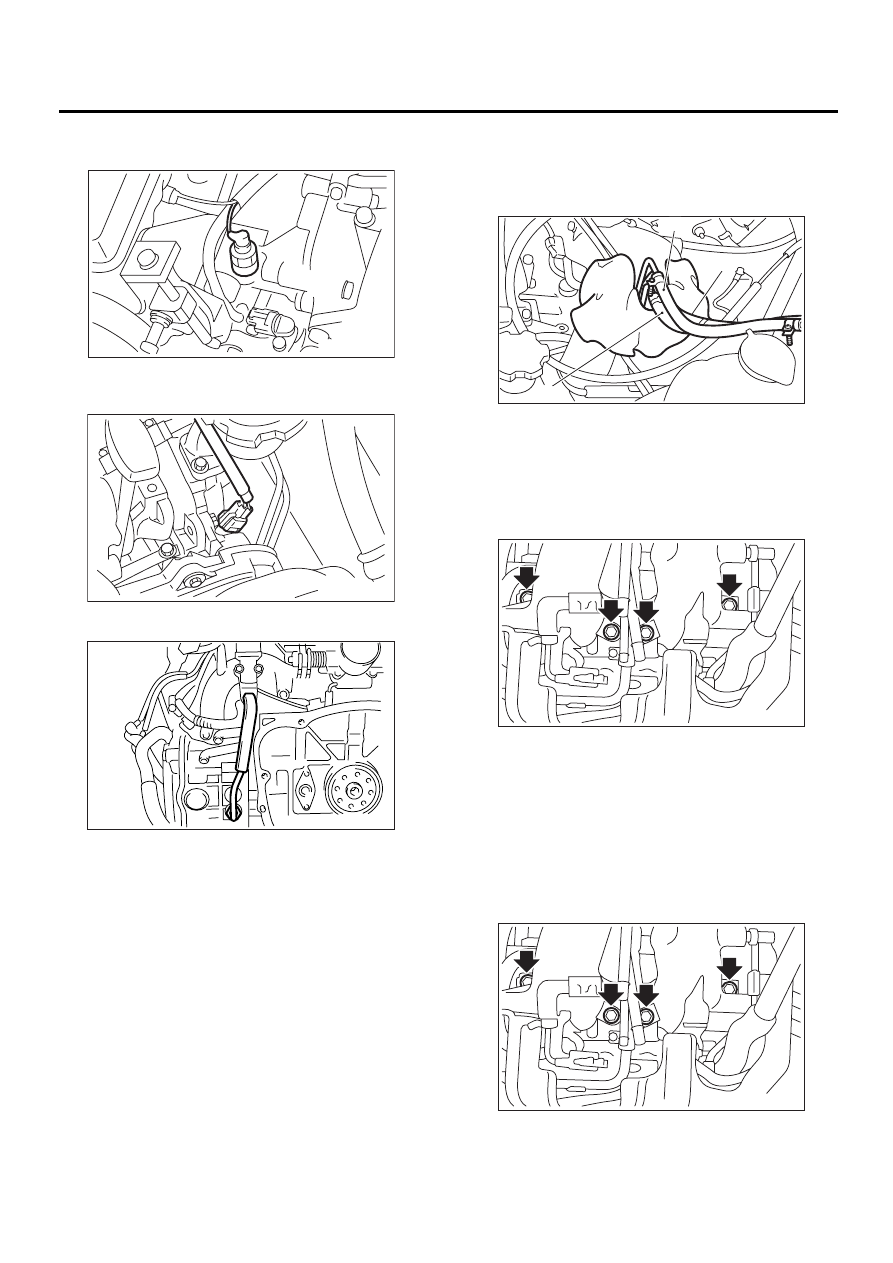

FU(H4SO)-17

FUEL INJECTION (FUEL SYSTEMS)

INTAKE MANIFOLD

16) Disconnect the connector from the oil pressure
switch.

17) Disconnect the connector from the camshaft
position sensor.

18) Remove the EGR pipe from intake manifold.

19) Disconnect the fuel hoses from the fuel pipes.

WARNING:
• Do not spill fuel.
• Catch fuel from hoses in a container or cloth.

20) Remove the bolts which hold intake manifold
onto the cylinder heads.

21) Remove the intake manifold.

B: INSTALLATION

1) Install the intake manifold onto the cylinder
heads.

NOTE:
Replace the gaskets with new ones.

Tightening torque:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

FU-00146

FU-00147

FU-00148

(A) Fuel delivery hose

(B) Return hose

(C) Evaporation hose

FU-00259

( A )

( B )

( C )

FU-00260

FU-00260
