FU(H4SO)-10

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

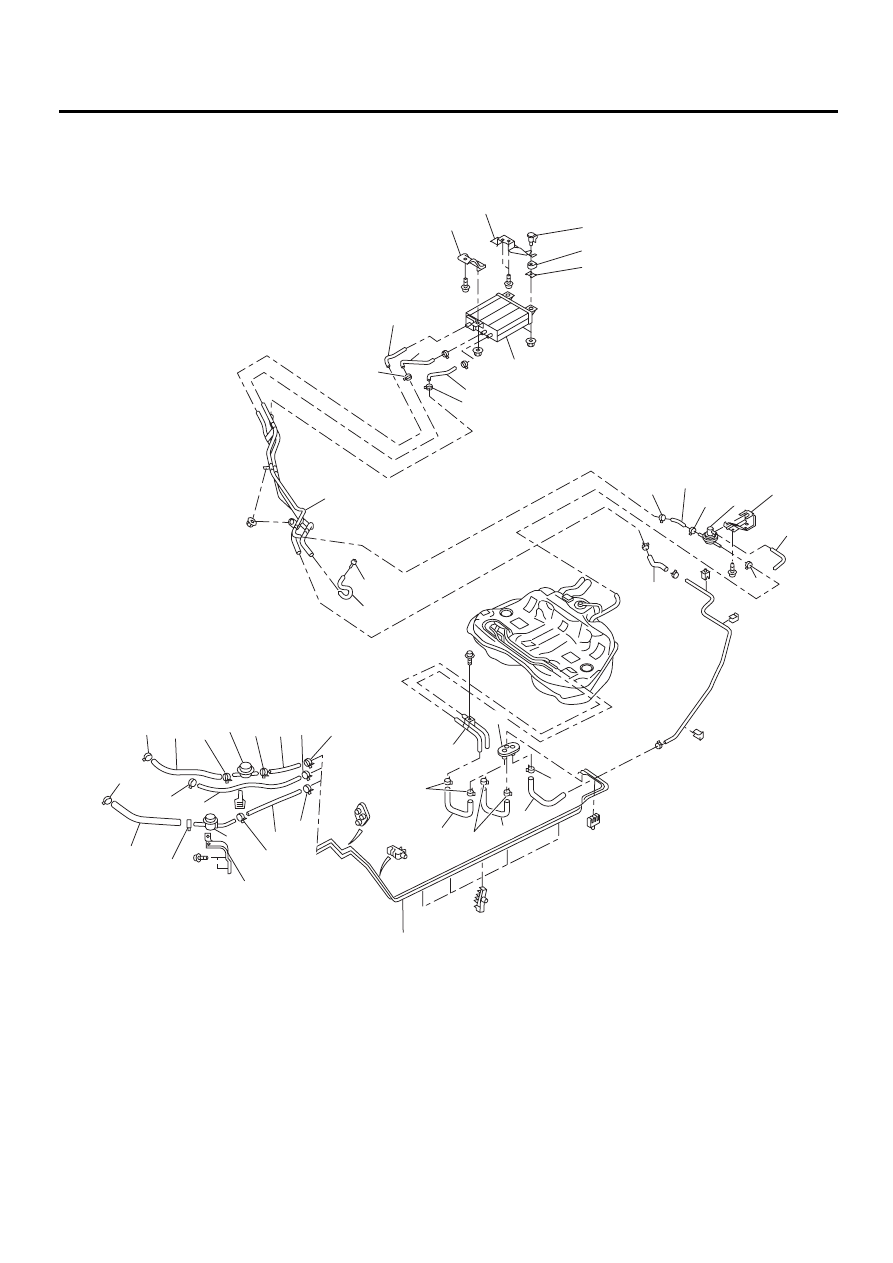

5. FUEL LINE

B2M4171A

FU-00627

( 9 )

( 8 )

( 7 )

( 6 )

( 5 )

( 4 )

( 4 )

( 3 )

( 3 )

( 2 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

( 1 )

(23)

(22)

(21)

(14)

(13)

(11)

(12)

(15)

(10)

(20)

(19)

(18)

(17)

(16)

(32)

(31)

(30)

(29)

(28)

(27)

(26)

(25)

(24)

FU(H4SO)-11

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

(1) Clamp

(12) Damper valve (Delivery)

(23) Evaporation pipe ASSY

(2) Fuel return hose A

(13) Bracket

(24) Purge hose

(3) Damper valve (Return)

(14) Fuel delivery hose C

(25) Evaporation hose C

(4) Fuel return hose B

(15) Fuel pipe ASSY

(26) Canister drain hose

(5) Clip

(16) Evaporation hose B

(27) Canister

(6) Fuel pipe ASSY

(17) Two-way valve hose

(28) Front canister bracket

(7) Grommet

(18) Two-way valve

(29) Rear canister bracket

(8) Evaporation hose A

(19) Two-way valve bracket

(30) Canister bracket spacer

(9) Fuel return hose C

(20) Two-way valve drain hose

(31) Cushion

(10) Fuel delivery hose A

(21) Drain hose

(32) Canister bracket plate

(11) Fuel delivery hose B

(22) Fuel pipe connector

FU(H4SO)-12

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

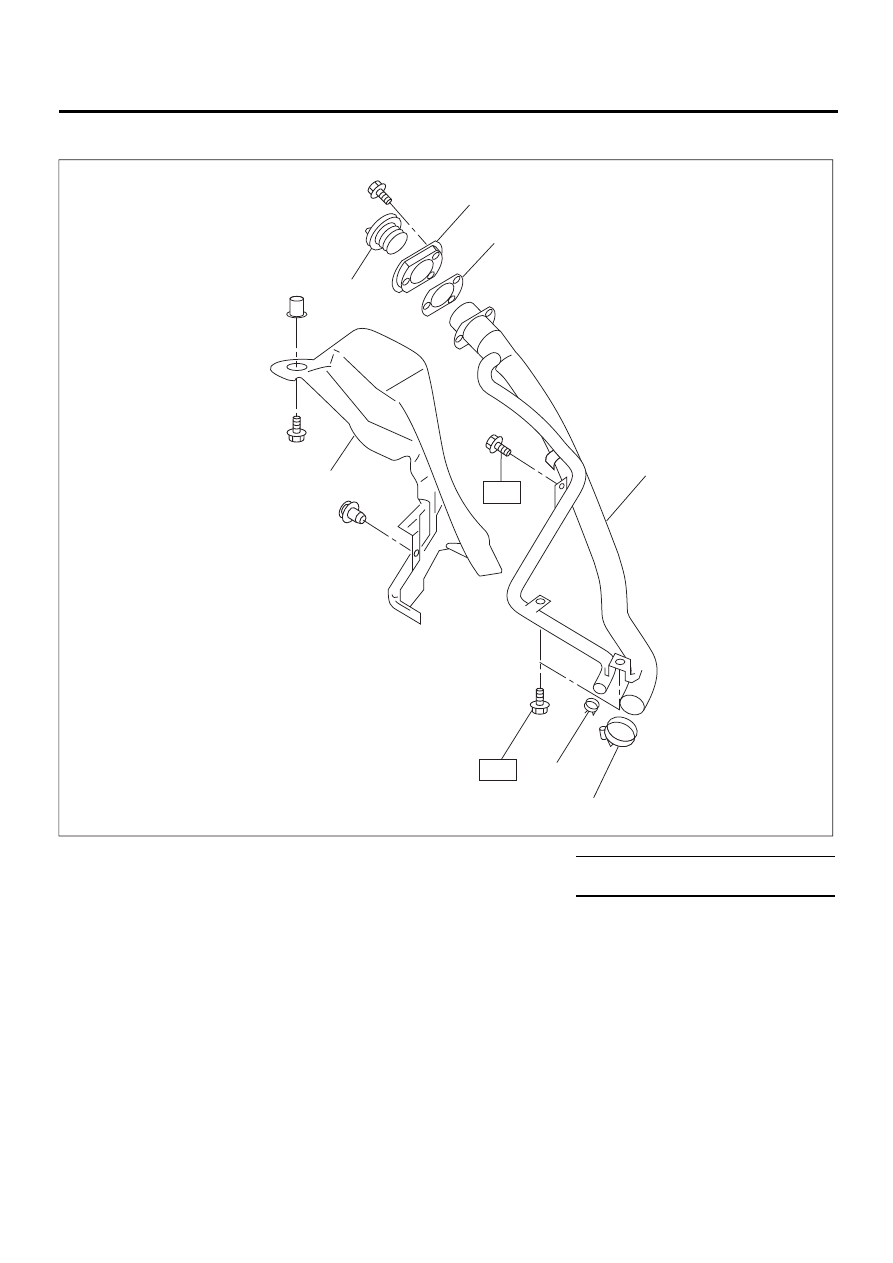

6. FUEL FILLER PIPE

(1) Fuel filler pipe ASSY

(5) Filler ring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Clip

(6) Filler cap

T: 7.4 (0.75, 5.4)

(3) Clamp

(7) Fuel filler pipe protector

(4) Filler pipe packing

FU-00628

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

T

T

FU(H4SO)-13

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

C: CAUTION

• Wear working clothing, including a cap, protec-
tive goggles, and protective shoes during opera-
tion.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust or dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.

• Be careful not to burn your hands, because each
part on the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or safety stands at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect negative
terminal from battery.
• Place “NO FIRE” signs near the working area.
• Be careful not to spill fuel on the floor.

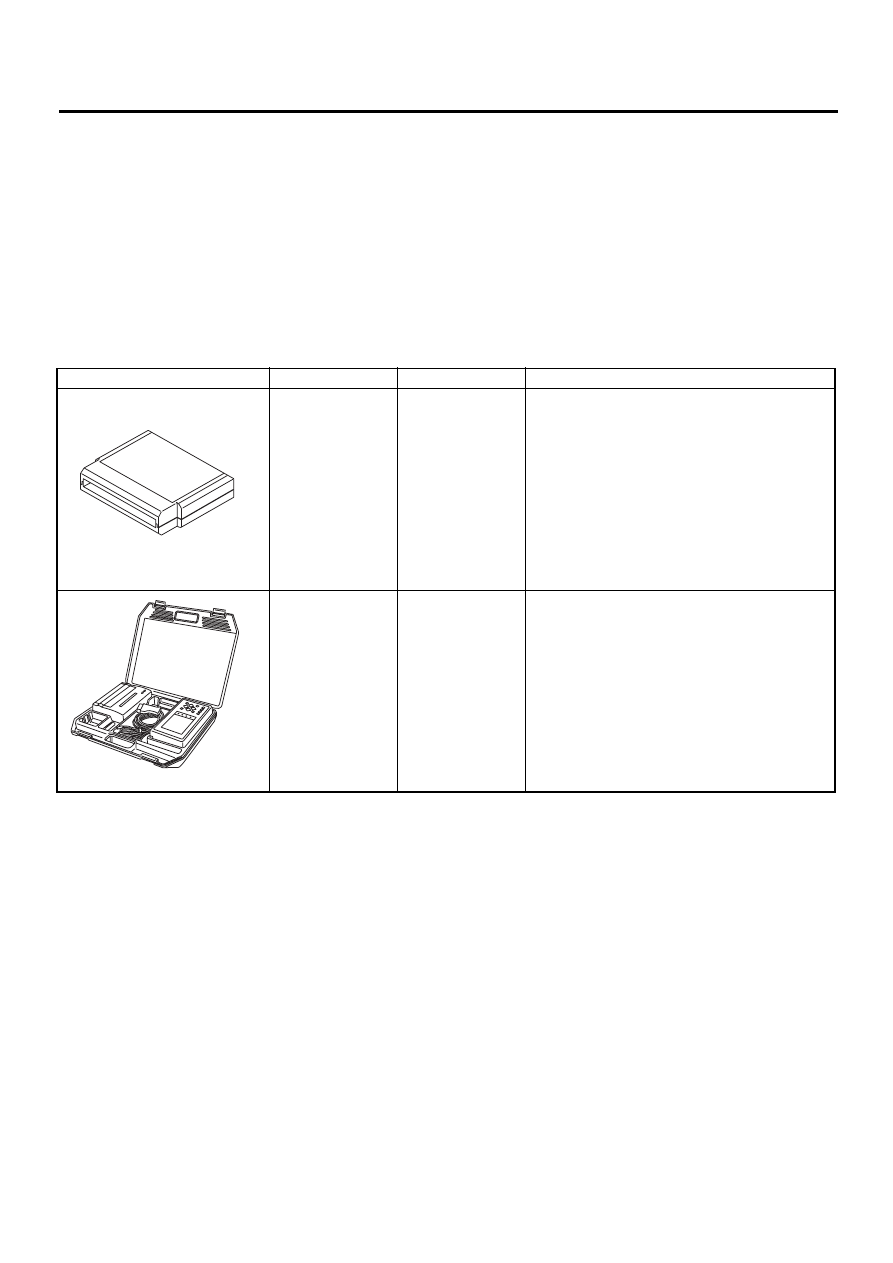

D: PREPARATION TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

24082AA210

(Newly adopted

tool)

CARTRIDGE

Troubleshooting for electrical system.

22771AA030

SUBARU SELECT
MONITOR KIT

Troubleshooting for electrical systems.
• English: 22771AA030 (Without printer)
• German: 22771AA070 (Without printer)
• French: 22771AA080 (Without printer)
• Spanish: 22771AA090 (Without printer)

ST24082AA210

ST22771AA030
