Basic Diagnostic Procedure

WIRING SYSTEM

1. Basic Diagnostic Procedure

A: BASIC PROCEDURES

1. GENERAL DESCRIPTION

The  most  important  purpose  of  diagnostics  is  to

quickly determine which part is malfunctioning, to

save time and labor.

2. IDENTIFICATION OF TROUBLE SYMP-

TOM

Determine what the problem is based on the symp-

tom.

3. PROBABLE CAUSE OF TROUBLE

Look at the wiring diagram and check the system’s

circuit. Then check the switch, relay, fuse, ground,

etc.

4. LOCATION AND REPAIR OF TROUBLE

1) Using the diagnostics, narrow down the causes.

2) If necessary, use a voltmeter, ohmmeter, etc.

3) Before  replacing  certain  component  parts

(switch,  relay,  etc.),  check  the  power  supply,

ground, for open wiring harness, poor connectors,

etc. If no problem is encountered, check the com-

ponent parts.

5. SYSTEM OPERATION CHECK

After  repairing,  ensure  that  the  system  operates

properly.

B: BASIC INSPECTION

1. VOLTAGE MEASUREMENT

1) Using a voltmeter, connect the negative lead to a

good ground point or negative battery terminal and

the positive lead to the connector or component ter-

minal.

2) Contact  the  positive  lead  of  the  voltmeter  on

connector (A). The voltmeter will indicate a voltage.

3) Touch connector (B) with the positive probe. The

voltmeter will indicate no voltage.

4) With the test set-up held as it is, turn the switch

to ON. The voltmeter will indicate a voltage and, at

the same time, the light will illuminate.

5) The circuit is in good order. If a problem such as

a  light  failing  to  illuminate  occurs,  use  the  proce-

dures  outlined  above  to  track  down  the  malfunc-

tion.

2. CIRCUIT CONTINUITY CHECKS

1) Disconnect the battery terminal or connector so

there is no voltage between the check points.

Contact the two leads of an ohmmeter to each of

the check points.

If the circuit has diodes, reverse the two leads and

check again.

2) Use an ohmmeter to check for diode continuity.

When  contacting  the  negative  lead  to  the  diode

positive side and the positive lead to the negative

side, there should be continuity.

When  contacting  the  two  leads  in  reverse,  there

should be no continuity.

3) The symbol “  —  ” indicates that continuity

exists between two points or terminals. For exam-

ple, when a switch position is at “3”, continuity ex-

ists among terminals 1, 3 and 6, as shown in the

table below.

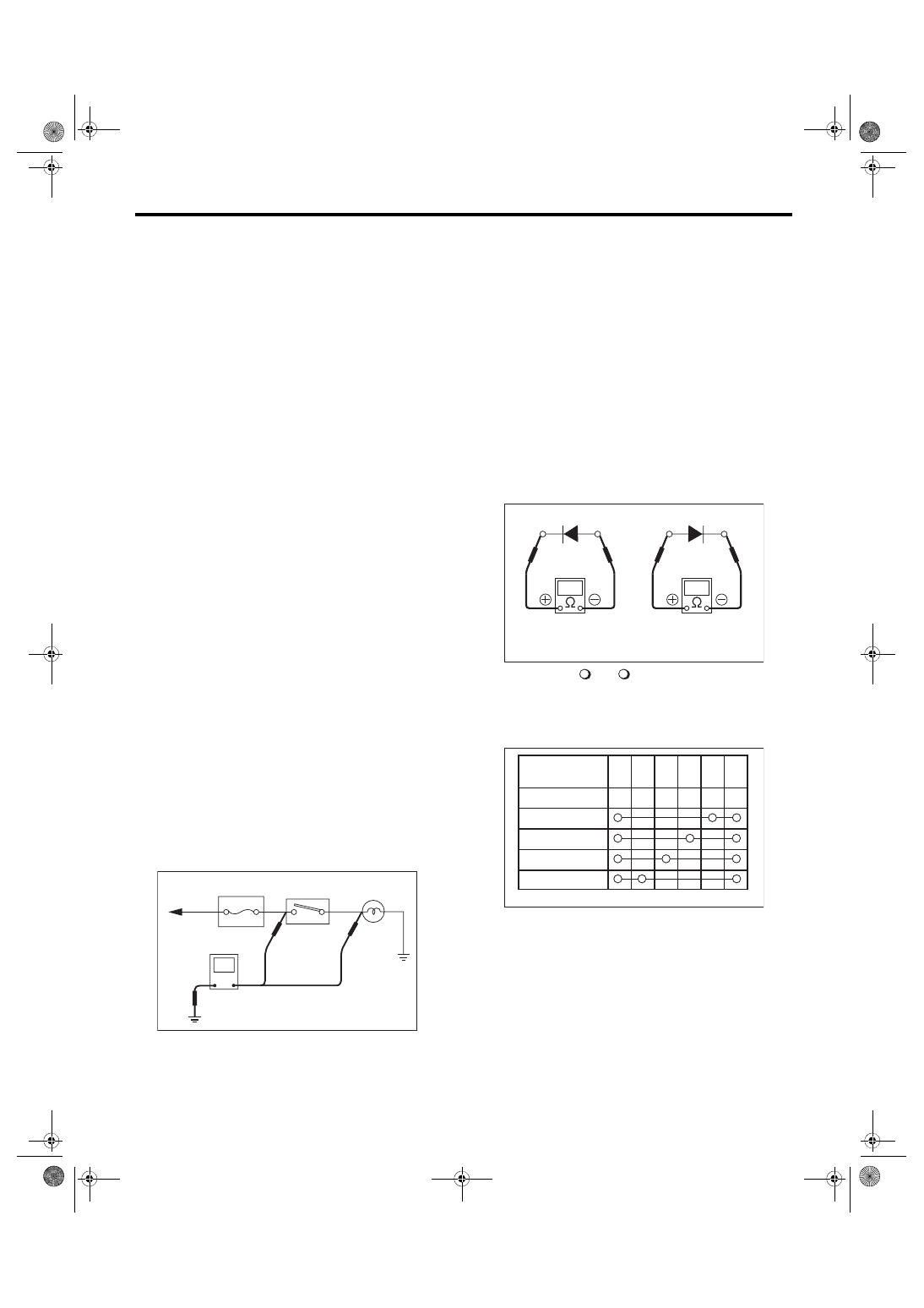

To power

Fuse

supply

Switch

Light

V

(A)

(B)

WI-02739

Continuity

No continuity

WI-02740

Terminal

Switch  Position

OFF

1

2

3

4

1

2

3

4

5

6

WI-02741

WI-4

Basic Diagnostic Procedure

WIRING SYSTEM

3. HOW TO DETERMINE AN OPEN CIR-

CUIT

1) WITH VOLTMETER:

An  open  circuit  is  determined  by  measuring  the

voltage between respective connectors and ground

using a voltmeter, starting with the connector clos-

est to the power supply. The power supply must be

turned ON so that current flows in the circuit. If volt-

age is not present between a particular connector

and ground, the circuit between that connector and

the previous connector is open.

2) WITH OHMMETER:

Disconnect all connectors affected, and check con-

tinuity in the wiring between adjacent connectors.

When the ohmmeter indicates “infinite”, the wiring

is open.

4. HOW TO DETERMINE A SHORT CIR-

CUIT

1) WITH TEST LIGHT:

Connect  a  test  light  (rated  at  approx.  3  watts)  in

place of the blown fuse and allow current to flow

through the circuit. Disconnect one connector at a

time from the circuit. Starting with the one located

farthest from the power supply. If the test light goes

out when a connector is disconnected, the wiring

between  that  connector  and  the  next  connector

(farther from the power supply) is shorted.

2) WITH OHMMETER:

Disconnect all affected connectors, and check con-

tinuity between each connector and ground. When

the ohmmeter indicates continuity between a par-

ticular  connector  and  a  ground,  that  connector  is

shorted.

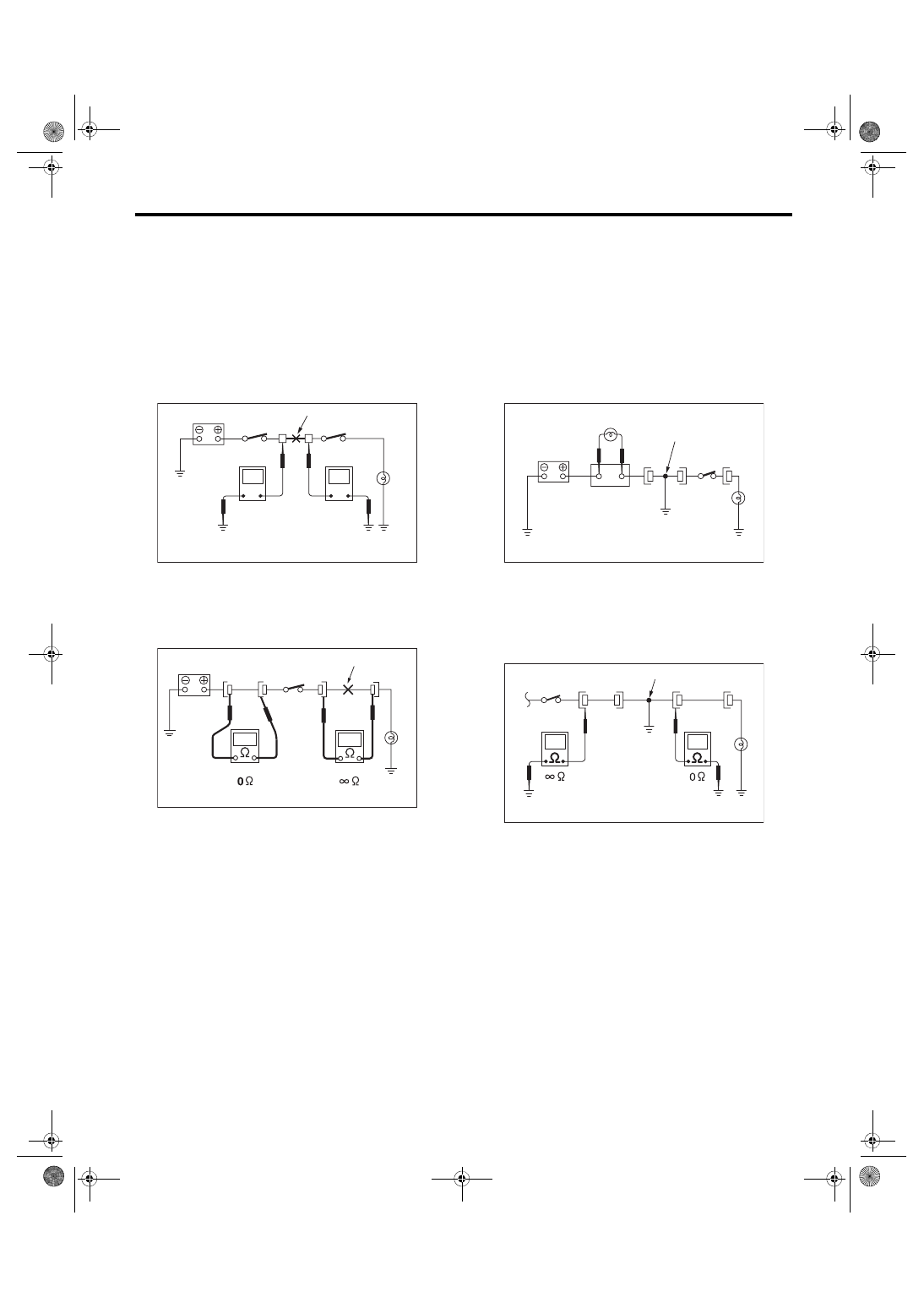

Open circuit or wiring

12V

V

V

0V

WI-02742

Open circuit

WI-09860

Shorted wiring

Test light

Fuse holder

WI-02744

Shorted connector

WI-02745
