Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 714





SL-5

General Description

SECURITY AND LOCKS

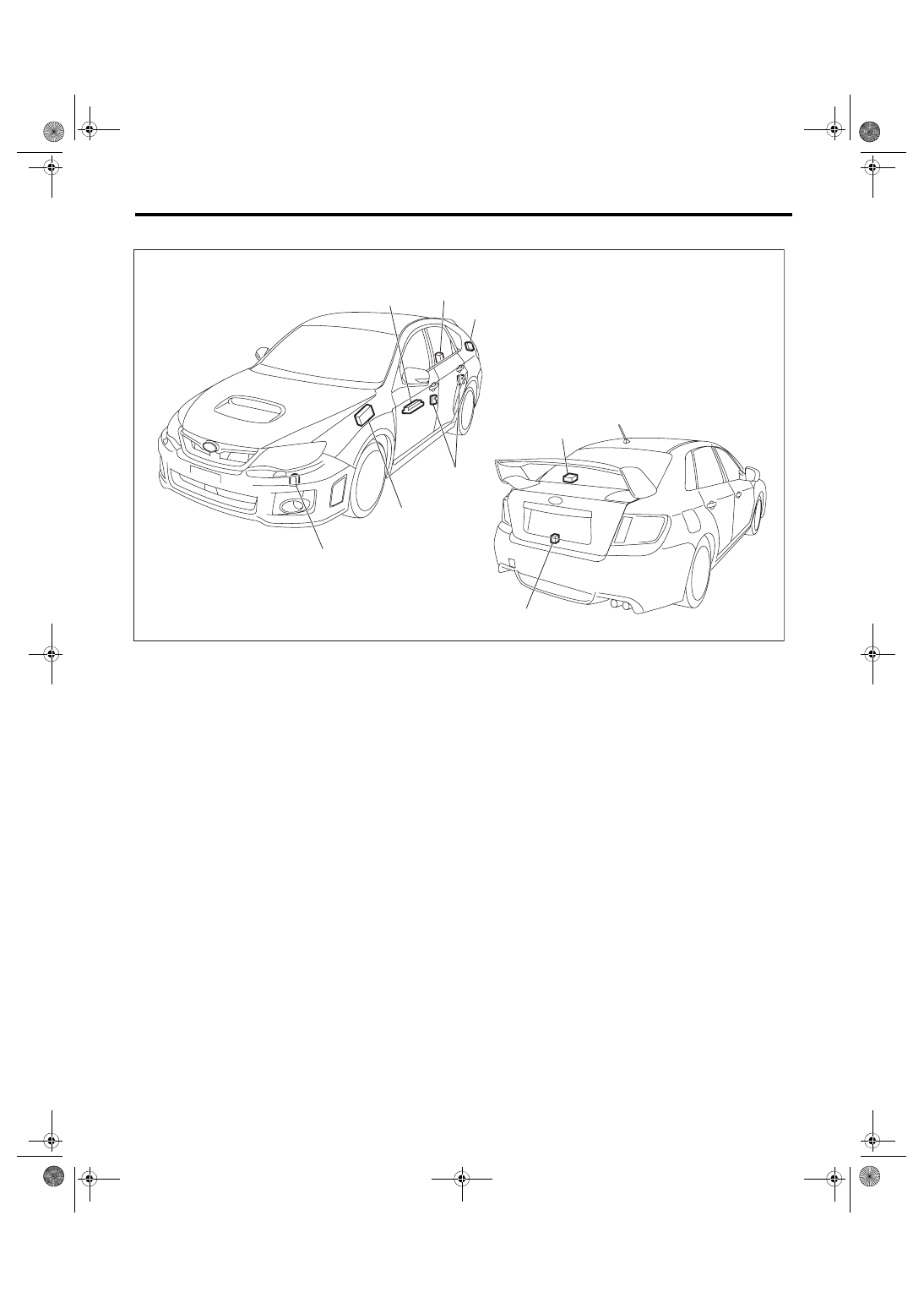

4. KEYLESS ENTRY SYSTEM

(1)

Body integrated unit

(4)

Keyless entry control module

(7)

Trunk lid latch switch (4 door
model)

(2)

Power window main switch

(5)

Door switch





(3)

Rear gate latch switch (5 door
model)

(6)

Keyless buzzer





SL-01356

(1)

(2)

(3)

(4)

(5)

(4)

(7)

(6)

SL-6

General Description

SECURITY AND LOCKS

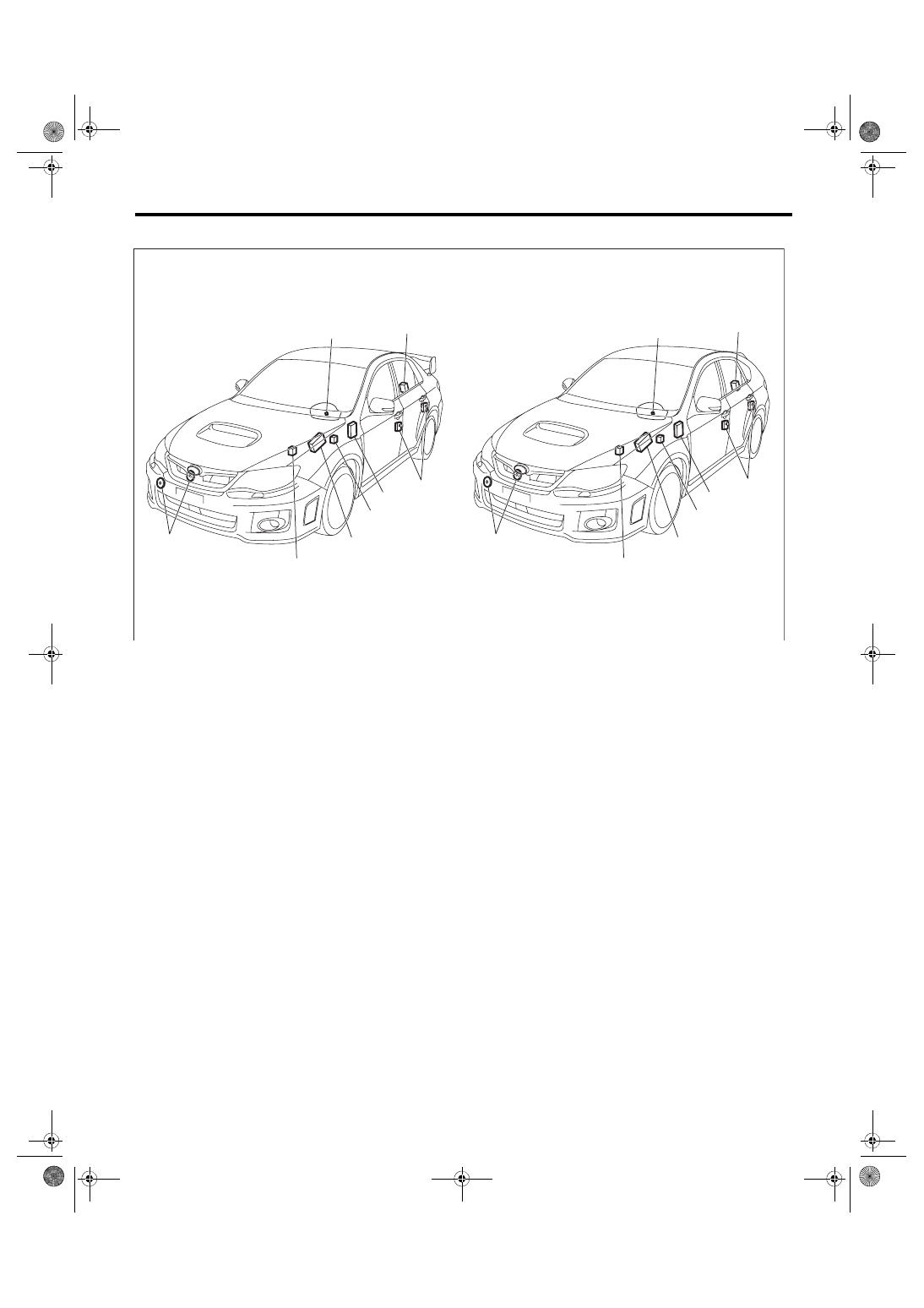

5. SECURITY SYSTEM

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.

When replacing the audio, control module and other parts provided with memory functions, record the mem-

ory contents before disconnecting the battery ground cable. Otherwise, the memory is cleared.

• When performing a check after disconnecting the battery or restoring from a dead battery condition, per-

form the check after turning the ignition to ON and OFF, then opening and closing the driver’s side door a few

times.

• Reassemble the parts in the reverse order of disassembly procedure unless otherwise indicated.

• Connect the connectors securely during reassembly.

• After reassembly, make sure that the functional parts operate normally.

• If any immobilizer related part has been replaced, make sure to register the immobilizer.

• Do not use any electrical test equipment on the airbag system wiring harnesses and connector circuits.

• Be careful not to damage the airbag system wiring harness when servicing the ignition key cylinder.

(1)

Horn

(4)

Body integrated unit

(7)

Turn signal and hazard module

(2)

Security indicator light (in combi-
nation meter)

(5)

Horn relay (in main fuse box)

(8)

Trunk lid latch switch (4 door
model)

(3)

Impact sensor (driver’s seat instru-
ment panel side) (dealer option)

(6)

Door switch

(9)

Rear gate latch switch (5 door
model)

SL-01357

(1)

(2)

(7)

(4)

(5)

(5)

(1)

(3)

(6)

(6)

(9)

(8)

(2)

(7)

(4)

(3)

SL-7

General Description

SECURITY AND LOCKS

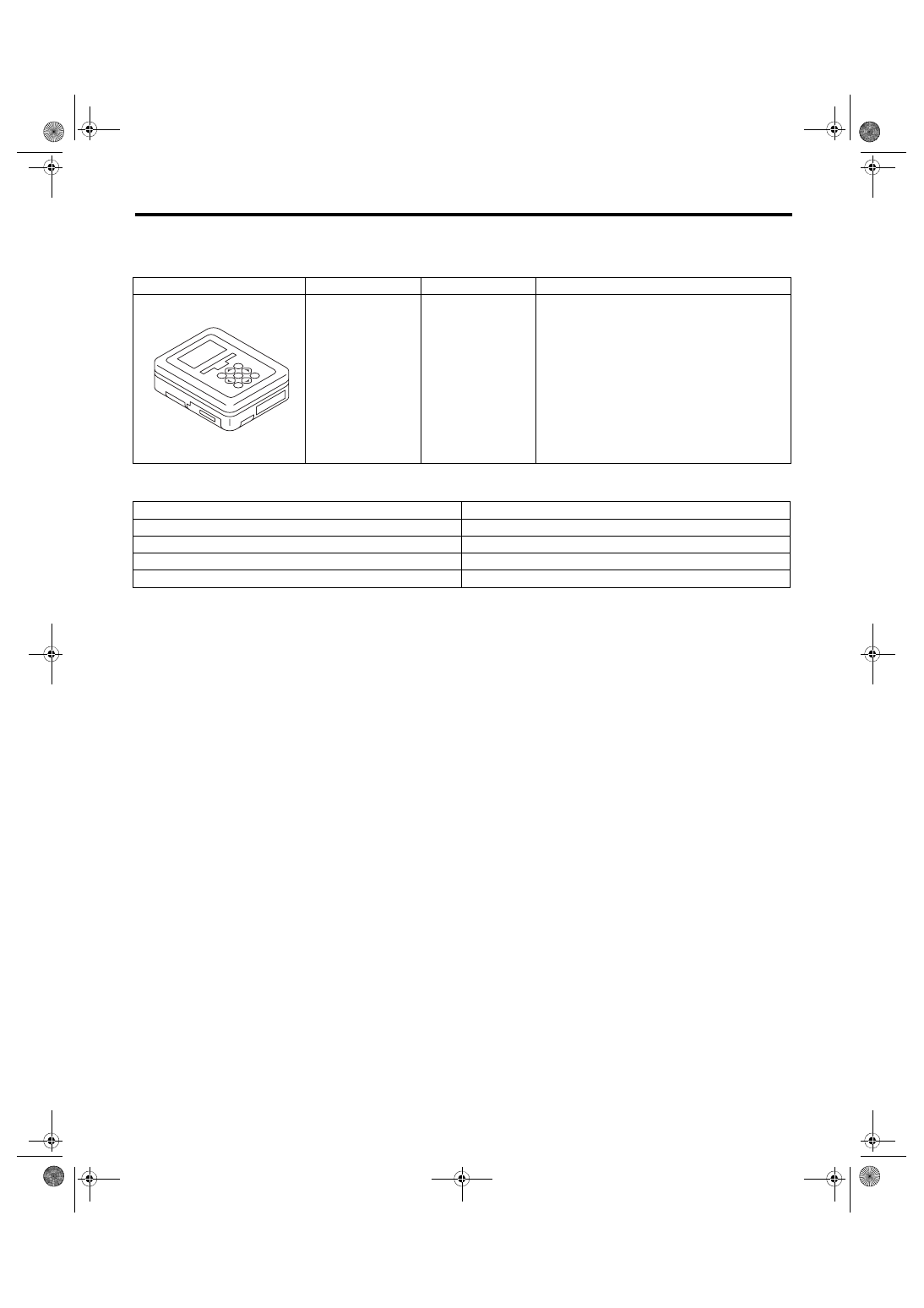

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

Drill

Used for replacing ignition key lock.

TORX

®

 T30

Used for removing and installing the door outer handle.

Clip remover

Used for removing trim clip

ST1B022XU0

SL-8

Door Lock Control System

SECURITY AND LOCKS

2. Door Lock Control System

A: WIRING DIAGRAM

Refer to “Keyless Entry System” in WI section. <Ref. to WI-159, WIRING DIAGRAM, Keyless Entry System.>

B: ELECTRICAL SPECIFICATION

1. BODY INTEGRATED UNIT

Refer to the Control Module I/O Signal of the LAN SYSTEM (DIAGNOSTICS) section. <Ref. to LAN(diag)-

10, ELECTRICAL SPECIFICATION, Control Module I/O Signal.>

C: INSPECTION

1. SYMPTOM CHART

Symptom

Repair order

Index

The door lock control system does
not operate.

1. Remove and visually inspect the following
fuses.
• No. 3 (in fuse & relay box)
• No. 7 (in fuse & relay box)
• No. 8 (in main fuse box)

If the fuse is blown out, replace the
fuse with a new part.
When there is no defective with the
fuse, check the power supply and
ground circuit. <Ref. to SL-9,
CHECK POWER SUPPLY AND
GROUND CIRCUIT, INSPECTION,
Door Lock Control System.>

2. Check the power supply and ground circuit for
body integrated unit.

<Ref. to SL-9, CHECK POWER
SUPPLY AND GROUND CIRCUIT,
INSPECTION, Door Lock Control
System.>

3. Check the door lock switch and the circuit.

<Ref. to SL-9, CHECK DOOR LOCK
SWITCH, INSPECTION, Door Lock
Control System.>

4. Check the rear gate opener button and the cir-
cuit.

<Ref. to SL-10, CHECK REAR
GATE OPENER BUTTON CIRCUIT,
INSPECTION, Door Lock Control
System.>

5. Check the door lock actuator and the circuit.

<Ref. to SL-11, CHECK DOOR
LOCK ACTUATOR AND CIRCUIT,
INSPECTION, Door Lock Control
System.>

A specific door lock actuator does not
operate.

Check the door lock actuator and circuit.

<Ref. to SL-11, CHECK DOOR
LOCK ACTUATOR AND CIRCUIT,
INSPECTION, Door Lock Control
System.>
