SECURITY AND LOCKS

SL

Page

1.

General Description  ...................................................................................2

2.

Door Lock Control System  .........................................................................8

3.

Keyless Entry System  ..............................................................................13

4.

Security System  .......................................................................................26

5.

Front Inner Remote  ..................................................................................30

6.

Front Outer Handle  ..................................................................................31

7.

Front Door Latch and Door Lock Actuator Assembly ...............................32

8.

Rear Inner Remote ...................................................................................33

9.

Rear Outer Handle  ...................................................................................34

10.

Rear Door Latch and Door Lock Actuator Assembly  ...............................35

11.

Rear Gate Opener Button  ........................................................................36

12.

Rear Gate Latch and Actuator Assembly .................................................37

13.

Trunk Lid Latch and Actuator Assembly  ..................................................38

14.

Front Hood Lock Assembly  ......................................................................39

15.

Remote Openers ......................................................................................40

16.

Ignition Key Lock ......................................................................................42

17.

Key Lock Cylinders  ..................................................................................43

18.

Security Control Module ...........................................................................44

19.

Impact Sensor  ..........................................................................................45

20.

Keyless Entry Control Module ..................................................................46

21.

Keyless Buzzer  ........................................................................................47

22.

Body Integrated Unit  ................................................................................48

23.

Transmitter  ...............................................................................................49

24.

Immobilizer Control Module  .....................................................................51

25.

Immobilizer Antenna  ................................................................................52

SL-2

General Description

SECURITY AND LOCKS

1. General Description

A: COMPONENT

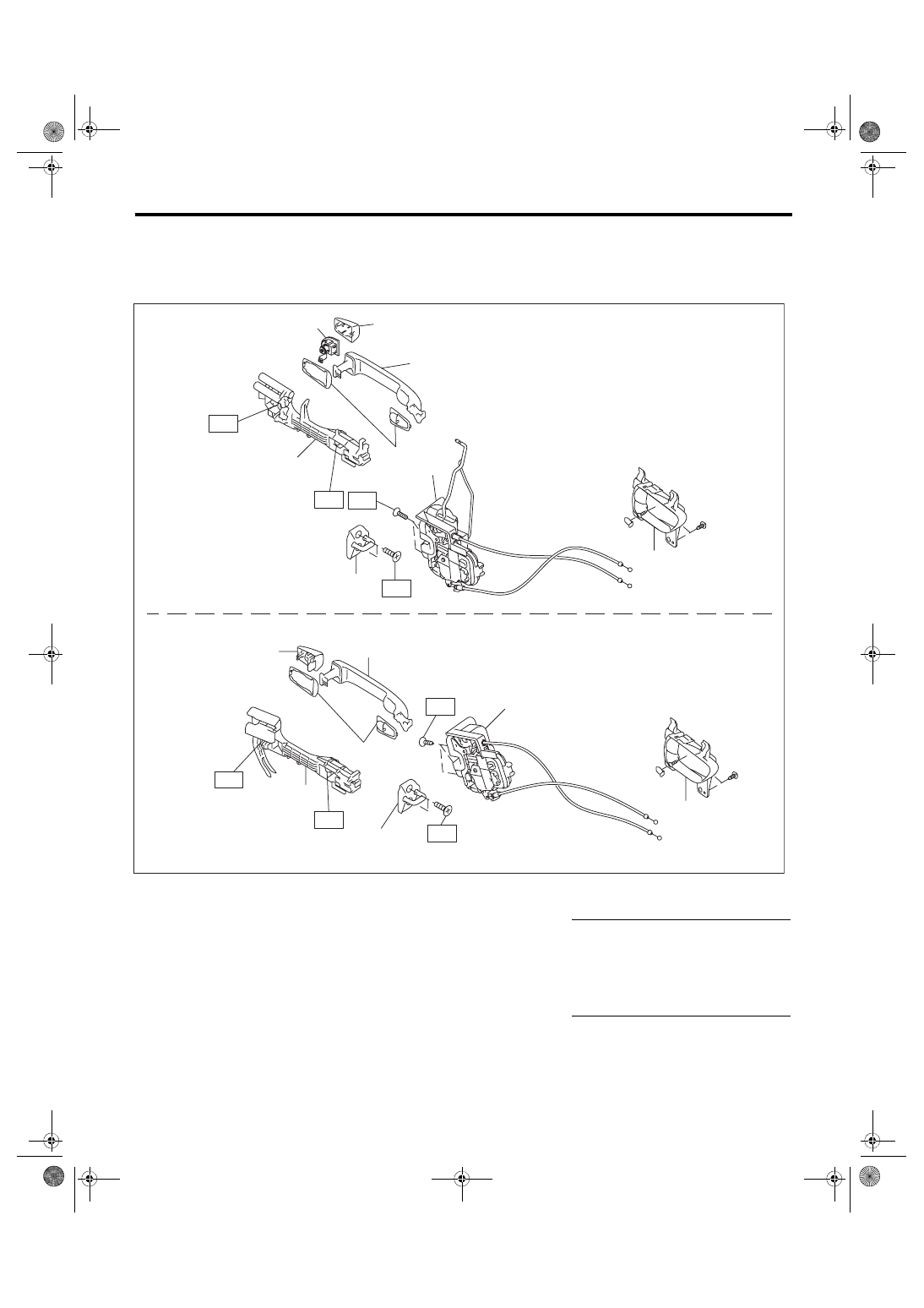

1. DOOR LOCK ASSEMBLY

(A)

Front

(B)

Rear













(1)

Inner remote ASSY

(6)

Door outer handle spacer

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Front door latch and door lock
actuator ASSY

(7)

Front door outer handle frame
ASSY

T1: 6.5 (0.66, 4.8)

(3)

Door outer handle

(8)

Striker

T2: 7.5 (0.76, 5.5)

(4)

Door outer handle cover

(9)

Rear door latch and door lock
actuator ASSY

T3: 18 (1.84, 13.3)

(5)

Key cylinder (driver’s side only)

(10) Rear door outer handle frame

ASSY





SL-00860

(B)

(A)

(9)

(2)

(1)

(3)

(8)

(10)

(1)

(6)

(3)

(4)

(8)

T1

T3

T2

T2

T3

T1

T2

T2

(4)

(7)

(6)

(5)

SL-3

General Description

SECURITY AND LOCKS

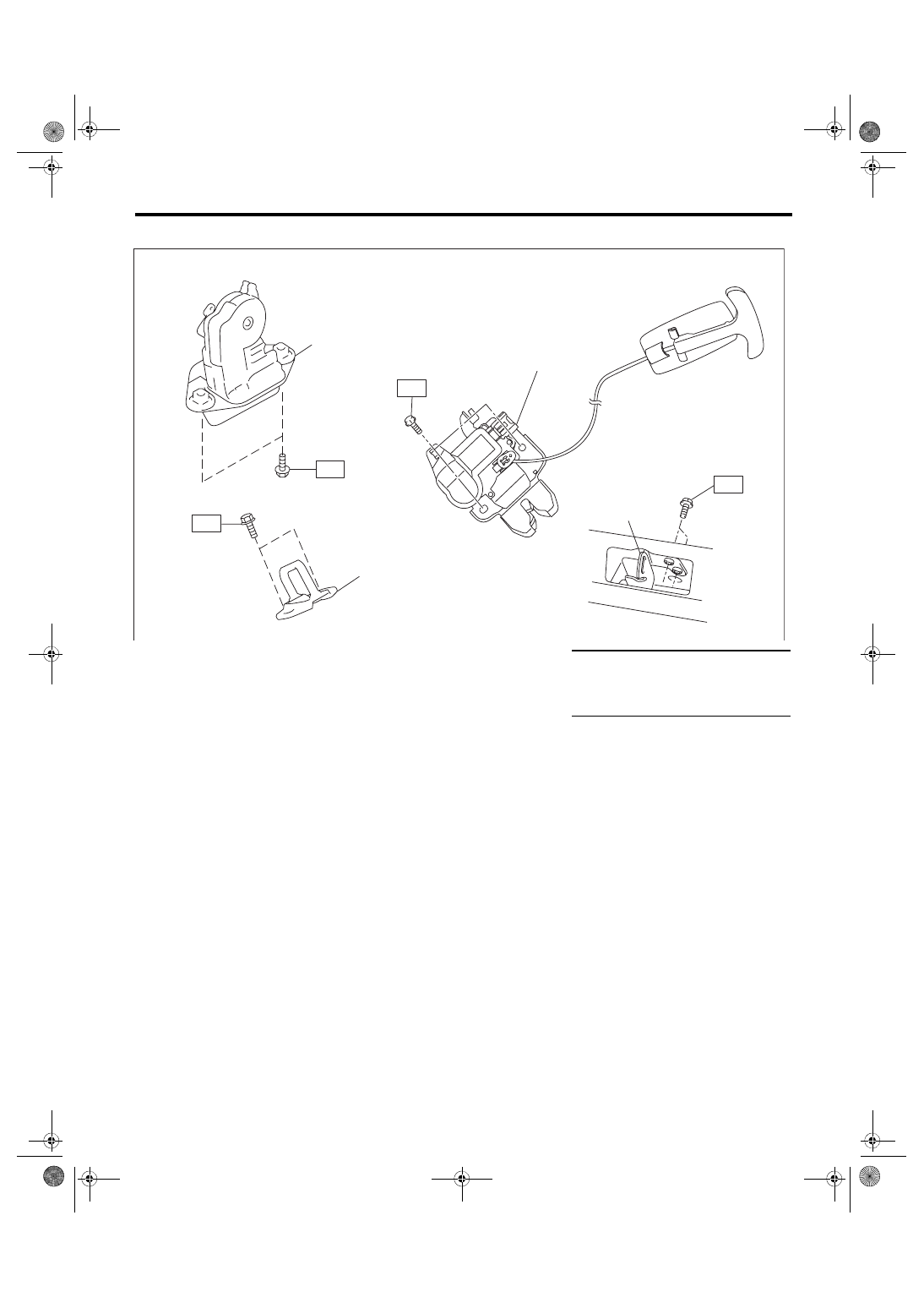

2. REAR GATE LOCK AND TRUNK LID

(1)

Rear gate latch and actuator
ASSY

(3)

Trunk lid latch and actuator ASSY

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear gate striker

(4)

Trunk lid striker

T1: 7.5 (0.76, 5.5)









T2: 25 (2.55, 18.4)













(1)

(2)

T2

SL-00861

(3)

T1

T1

(4)

T2

SL-4

General Description

SECURITY AND LOCKS

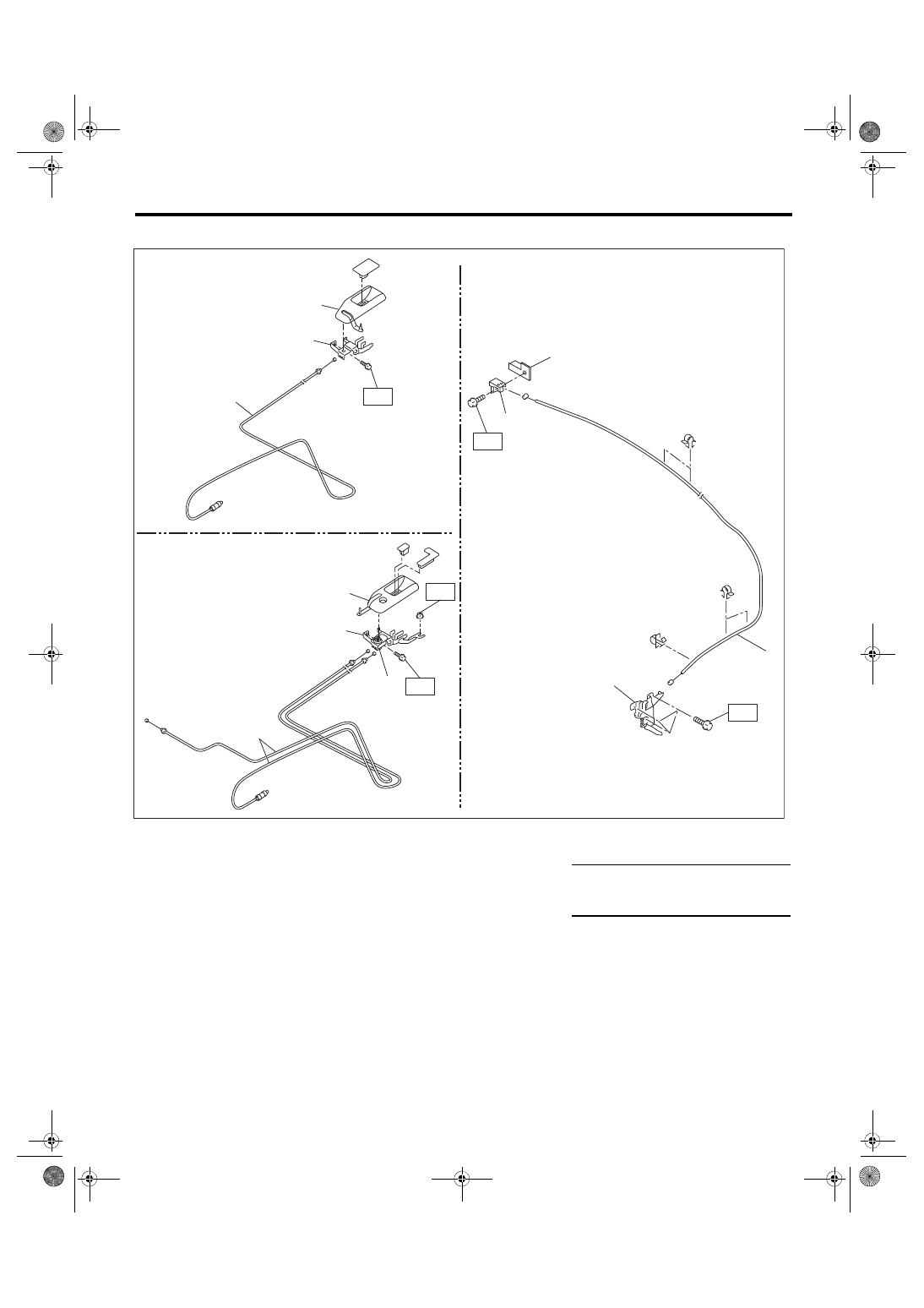

3. FRONT HOOD LOCK AND REMOTE OPENERS

(A)

Fuel lock release

(B)

Fuel and trunk lock release

(C)

Hood lock release













(1)

Cover

(5)

Lever ASSY bracket

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Pull handle ASSY

(6)

Lever ASSY

T1: 7.5 (0.76, 5.5)

(3)

Cable

(7)

Front hood lock ASSY

T2: 33 (3.36, 24.2)

(4)

Key cylinder









(C)

(3)

(7)

(5)

(B)

(3)

(1)

(2)

(1)

(2)

(4)

(3)

(A)

(6)

T1

T2

T1

T1

T1

SL-01884
