General Description

INSTRUMENTATION/DRIVER INFO

STI model

• Combination meter

Meter, display

Operation method,

display method

Drive control

When checking the

indicator needle

operation/needle

reading operation

Speedometer

Stepping motor type

Combination meter

Light ON

Tachometer
Engine coolant temperature gauge
Fuel gauge
ABS warning light

LED

Combination meter

On/Off

Seat belt warning light
Door open warning light
Tire pressure warning light
Hill start assist warning light
HI-beam indicator light
[I] Indicator light
[S] Indicator light
[S#] Indicator light
AUTO [–] indicator light
AUTO [+] indicator light
AUTO indicator light
REV indicator light
Shift-up indicator light
Cruise indicator light
Cruise set indicator light
Front fog light indicator light
Light illumination indicator light
Oil pressure warning light
Meter illumination back light

Light ON

LCD back light
VDC warning light/VDC indicator light (yellow)

On (yellow)/Off

VDC OFF (yellow)/VDC traction mode indicator light
(green)

Off/On (green)

Fuel level warning light

On/Off (Turns on

near E)

Malfunction indicator light

ECM

Turns on or off

according to module

control

Oil pressure warning light

Oil pressure switch

Airbag warning light

Airbag CM

Charge warning light

Generator

Rear differential oil temperature warning light

Rear differential oil

temperature switch

Turn signal indicator light

Turn signal and haz-

ard unit

Security/immobilizer indicator light

Body integrated unit

Brake fluid/parking brake warning light

Combination meter/

brake fluid level

switch

On/Turns on or off

according to module

control

Odo/Trip indicator

LCD

Combination meter

—

DCCD torque indicator
REV indicator

IDI-4

General Description

INSTRUMENTATION/DRIVER INFO

• Clock

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.

When replacing the audio, control module and other parts provided with memory functions, record the mem-

ory contents before disconnecting the battery ground cable. Otherwise, the memory is cleared.

• Reassemble the parts in the reverse order of disassembly procedure unless otherwise indicated.

• Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

• Do not apply an excessive force on the printed circuit.

• Do not drop or otherwise apply impact.

• Connect the connectors securely during reassembly.

• After reassembly, make sure that the functional parts operate normally.

• When the combination meter has been replaced, be sure to perform the registration of immobilizer.

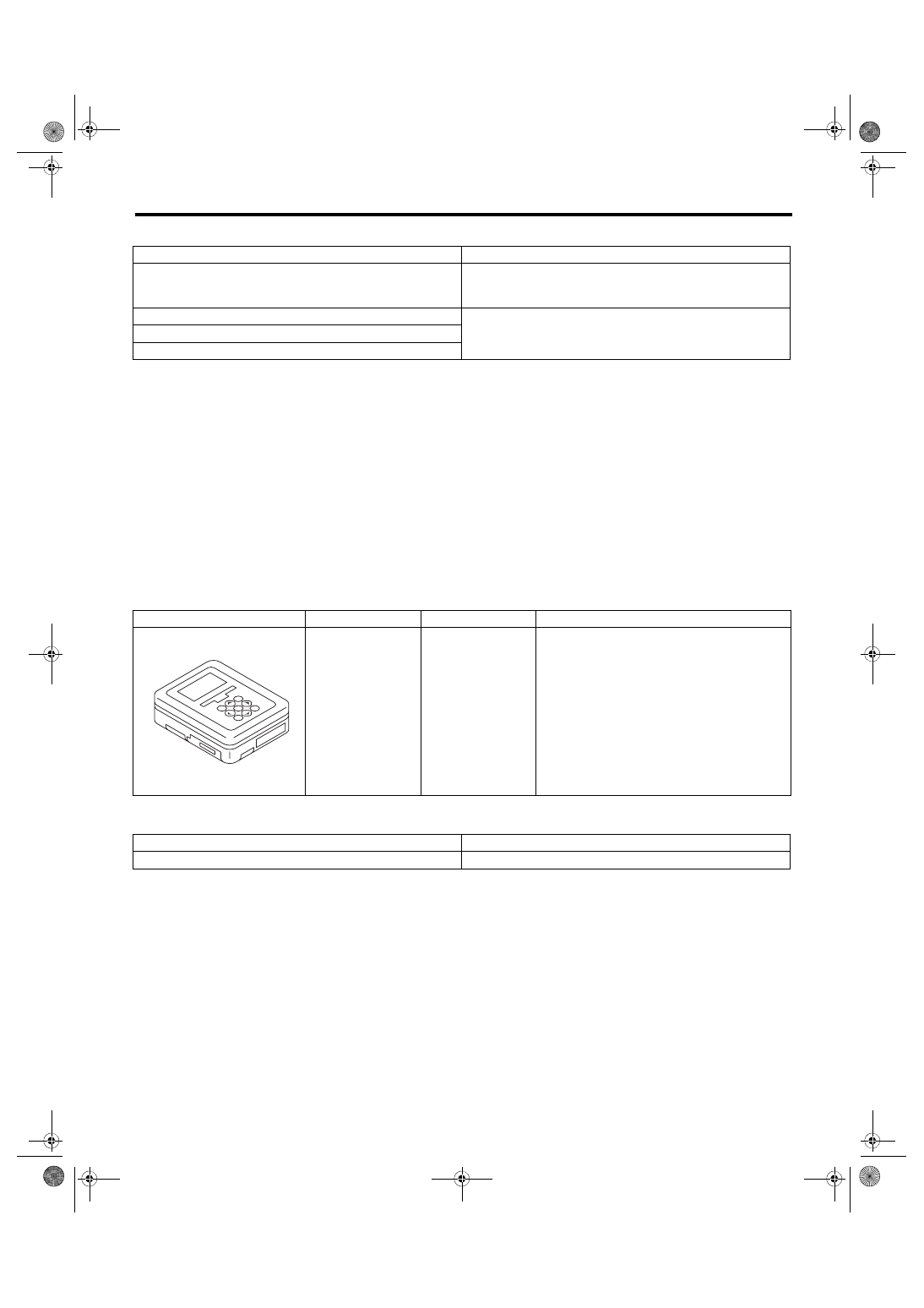

C: PREPARATION TOOL

1. SPECIAL TOOL

2. GENERAL TOOL

Display

Display method

Average fuel economy/instantaneous fuel economy (except for
U4 model), average fuel economy/blank display (U4 model),
ambient temperature, current time, trouble warning light

VFD

Passenger’s airbag ON indicator

LED

Passenger’s airbag OFF indicator
Passenger’ seat belt warning light

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

ST1B022XU0

IDI-5

Combination Meter System

INSTRUMENTATION/DRIVER INFO

2. Combination Meter System

A: WIRING DIAGRAM

Refer to “Combination Meter System” in WI section. <Ref. to WI-136, WIRING DIAGRAM, Combination

Meter System.>

B: INSPECTION

1. SELF-DIAGNOSIS

The self-diagnosis (checking of each meter, warning light, indicator light, illumination, LCD) of combination

meter can be performed in the following procedure.
CAUTION:

Perform the steps described in 2) through 4) within 10 seconds.

1) Within 3 seconds after turning the ignition switch to ON, set the lighting switch to tail light or headlight po-

sition.

2) Press the odo/trip meter knob three times.

3) Turn the lighting switch to OFF, and press the odo/trip meter knob three times.

4) Set the lighting switch to tail light or headlight position again, and press the odo/trip meter knob three

times.
NOTE:

• When pressing the odo/trip meter knob four times, the display changes to DTC display mode. <Ref. to IDI-

12, DTC DISPLAY MODE, INSPECTION, Combination Meter System.>

• Warning light, indicator light, and LCD display checks are performed when self-diagnosis is performed. Af-

ter this, every time the odo/trip meter knob is pressed, the buzzer will sound for 0.5 seconds, and operation

checks for meter operation, meter readings, and the LCD are performed in this order. Turn the ignition switch

to OFF to cancel the self-diagnosis function.

• The self-diagnosis function is not canceled if the engine is started during diagnosis. However, the self-di-

agnosis function is canceled automatically for safety when you start to drive the vehicle.

5) Go to “Check meter indicator operation”.

Check meter operation, warning light, indicator light, and LCD.

: Warning lights and indicator lights controlled by the meter drive circuit are illuminated. <Ref. to IDI-2,

SPECIFICATION, General Description.>

: Warning lights and indicator lights controlled by other module are turned on/off according to the module

control. <Ref. to IDI-2, SPECIFICATION, General Description.>

: VDC multi mode indicator light (VDC warning light/VDC indicator light and VDC OFF indicator light) illu-

minates in yellow. (STI model)

6) Press the odo/trip meter knob once.

Meter indicator

LCD display, illumination

Warning light,

indicator light

MIN indication

↓

MAX indication

ILL1 (Min. brightness)

↓(Display for one second for each level)

ILL6 (Max. brightness)

*1, *2, *3

MAX indication

↓

MIN indication

ILL6 (Max. brightness)

↓(Display for one second for each level)

ILL1 (Min. brightness)

IDI-6

Combination Meter System

INSTRUMENTATION/DRIVER INFO

7) Go to “Meter Indicator Needle Indication Check”.

Check meter operation, warning light, indicator light, and LCD.
NOTE:

• The meter indicator needle will switch every 1.5 seconds.

• ILL indication illuminates at the same brightness as when entering “Meter Indicator Needle Indication

Check”.

: Warning lights and indicator lights controlled by the meter drive circuit turn off. <Ref. to IDI-2, SPECIFI-

CATION, General Description.>

: Warning lights and indicator lights controlled by other module are turned on/off according to the module

control. <Ref. to IDI-2, SPECIFICATION, General Description.>

: VDC multi mode indicator light (VDC traction indicator light) illuminates to green. (STI model)

8) Press the odo/trip meter knob once.

9) Go to “Check LCD display”.

Check the LCD.
NOTE:

• Warning lights and indicator lights controlled by the meter drive circuit turn off. <Ref. to IDI-2, SPECIFICA-

TION, General Description.>

• Warning lights and indicator lights controlled by other module are turned on/off according to the module

control. <Ref. to IDI-2, SPECIFICATION, General Description.>

• The meter indication remains at the same level as “Meter Indicator Needle Indication Check”.

• ILL indication illuminates at ILL6 level (max. brightness).

• Except for STI model

• STI model

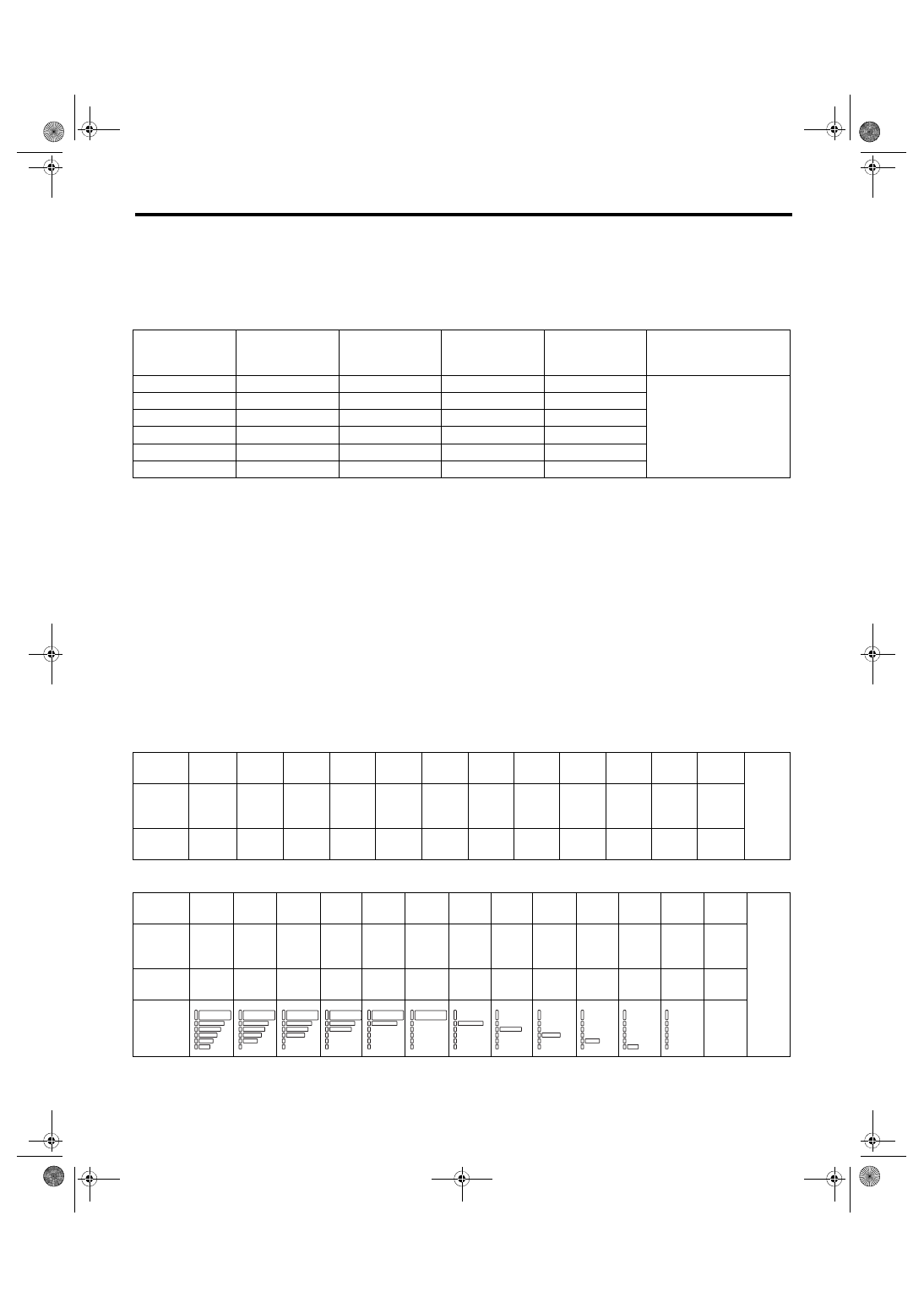

Speedometer

(km/h)

Tachometer

(rpm)

Fuel gauge

Engine coolant

temperature

gauge

Fuel level warn-

ing light

Warning light,

indicator light

Lowest point

Light ON

*1, *2, *3

Light ON

1000

1/2

Light OFF

100

4000

Light OFF

1000

1/2

Light OFF

Light ON

Illuminat-
ing order

back to

1 and

repeat.

ODO,
TRIP
A/B

All

lights

All

lights

OFF

ODO

All

lights

OFF

TRIP A

All

lights

OFF

TRIP

All

lights

OFF

REV.

All

lights

OFF

TRIP

All

lights

OFF

Odo/trip
meter

88888.8 111111 22222.2 333333 44444.4 555555 66666.6 777777 88888.8 999999 00000.0 888888

Illuminat-
ing order

back to

1 and

repeat.

ODO,
TRIP
A/B, REV.

All

lights

All

lights

OFF

ODO

All

lights

OFF

TRIP

All

lights

OFF

TRIP

All

lights

OFF

REV.

All

lights

OFF

TRIP

All

lights

OFF

TRIP

Odo/trip
meter

88888.8 111111 22222.2 333333 44444.4 555555 66666.6 777777 88888.8 999999 00000.0 888888 88888.8

DCCD
torque
indicator

All

lights

OFF

L O C K
