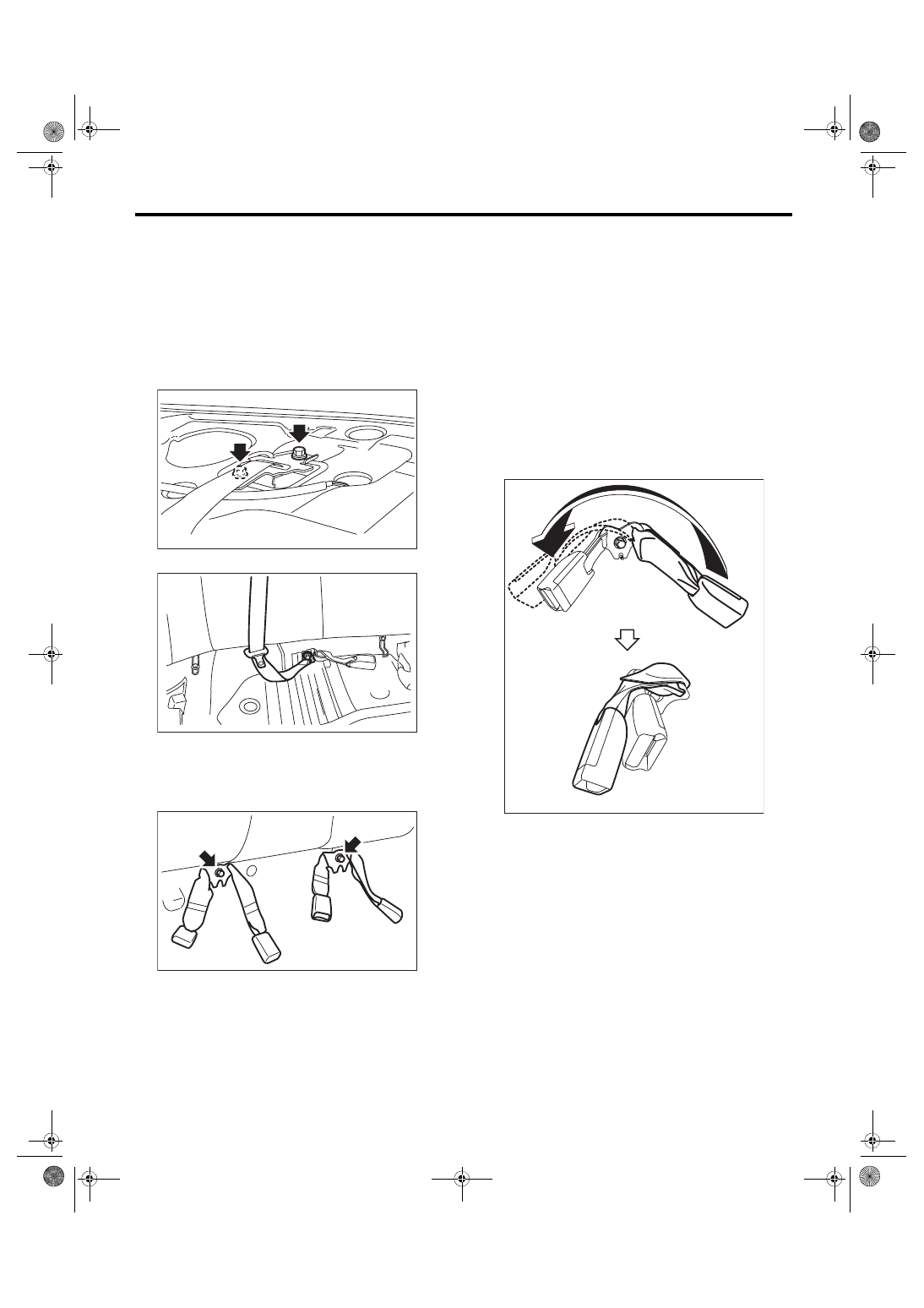

SB-21

Rear Seat Belt

SEAT BELT SYSTEM

3. SHOULDER SEAT BELT CENTER AS-

SEMBLY (4 DOOR MODEL)

1) Remove the rear seat. <Ref. to SE-13, REMOV-

AL, Rear Seat.>

2) Remove  the  rear  quarter  trim.  <Ref.  to  EI-60,

REMOVAL, Rear Quarter Trim.>

3) Remove the rear shelf trim. <Ref. to EI-62, RE-

MOVAL, Rear Shelf Trim.>

4) Remove  the  bolts,  then  remove  the  shoulder

seat belt assembly.

5) Remove the seat belt lower anchor bolt.

4. CENTER SEAT BELT ASSEMBLY

1) Remove the rear seat cushion.

2) Remove the bolts, then remove the center seat

belt assembly.

B: INSTALLATION

CAUTION:

• During  installation,  make  sure  that  the  seat

belts are not twisted.

• After  installation,  make  sure  that  the  seat

belts are smoothly extended and wound.

• Make sure that the center seat belt is securely

installed.

1) Install each part in the reverse order of removal.
Tightening torque:

Refer to “COMPONENT” of “General Descrip-

tion”. <Ref. to SB-3, REAR SEAT BELT, COM-

PONENT, General Description.>

2) Turn the seat belt as shown in the figure.

• LH side

SB-00368

SB-00088

SB-00426

SB-00375

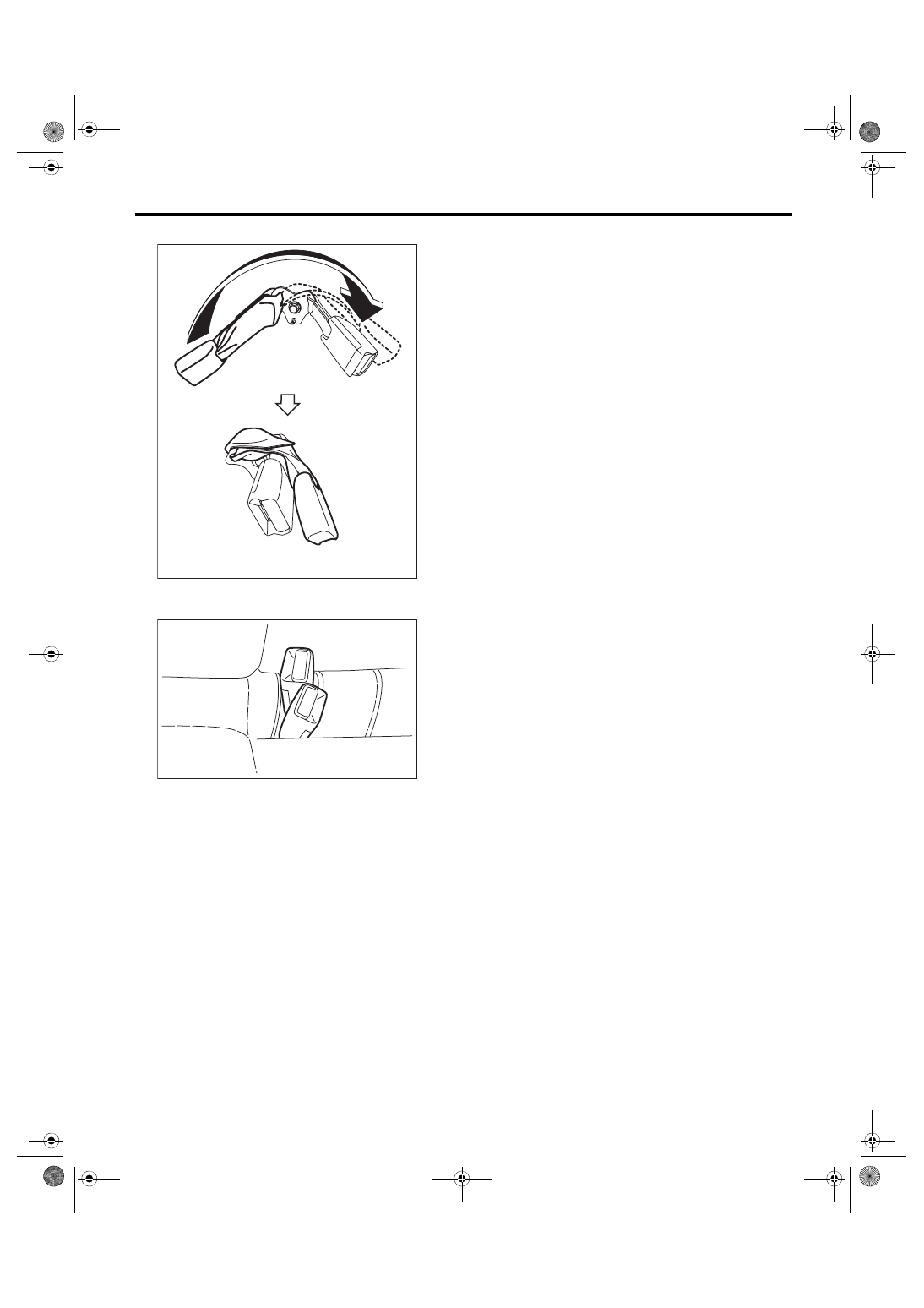

SB-22

Rear Seat Belt

SEAT BELT SYSTEM

• RH side (5 door model only)

3) Install the seat cushion and pull out the center

seat belt assembly as follows.

C: INSPECTION

Check for the following, and replace with new parts

if necessary.

• Seat belt is slackened, bent or worn.

• Seat belt is abnormally wound or extended.

• Inner seat belt is deformed or damaged.

• Seat belt buckle cannot be engaged properly.

SB-00379

SB-00452

LIGHTING SYSTEM

LI

Page

1.

General Description  ...................................................................................2

2.

Headlight and Tail Light System  ................................................................4

3.

Day Time Running Light System ................................................................5

4.

Front Fog Light System ..............................................................................6

5.

Turn Signal Light and Hazard Light System ...............................................7

6.

Back-up Light System  ................................................................................8

7.

Stop Light System  ......................................................................................9

8.

Room Light System ..................................................................................10

9.

Combination Switch (Light)  ......................................................................11

10.

Headlight Beam Leveler System ..............................................................13

11.

Combination Base Switch Assembly ........................................................14

12.

Headlight Assembly  .................................................................................15

13.

Headlight Bulb ..........................................................................................17

14.

Front Turn Signal Light Bulb  ....................................................................19

15.

Front Side Marker Light Bulb  ...................................................................20

16.

Front Fog Light Assembly  ........................................................................21

17.

Front Fog Light Bulb .................................................................................23

18.

Side Turn Signal Light Assembly  .............................................................24

19.

Rear Combination Light Assembly ...........................................................25

20.

Tail/Stop Light Bulb  ..................................................................................26

21.

Rear Turn Signal Light Bulb  .....................................................................27

22.

Rear Side Marker Light Bulb  ....................................................................28

23.

Rear Finisher Light Assembly  ..................................................................29

24.

Back-up Light Bulb  ...................................................................................30

25.

License Plate Light ...................................................................................31

26.

High-mounted Stop Light  .........................................................................32

27.

Spot Map Light  .........................................................................................33

28.

Room Light ...............................................................................................34

29.

Luggage Room Light ................................................................................35

30.

Trunk Room Light .....................................................................................36

31.

Ignition Switch Illumination .......................................................................37

32.

Day Time Running Resistor  .....................................................................39

33.

Reflex Reflector ........................................................................................40

34.

Door Switch ..............................................................................................41

LI-2

General Description

LIGHTING SYSTEM

1. General Description

A: SPECIFICATION

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.

When replacing the audio, control module and other parts provided with memory functions, record the mem-

ory contents before disconnecting the battery ground cable. Otherwise, the memory is cleared.

• Reassemble the parts in the reverse order of disassembly procedure unless otherwise indicated.

• Connect the connectors securely during reassembly.

• After reassembly, make sure that the functional parts operate normally.

• Yellow connectors and harnesses with yellow tapes around them are the connectors and harnesses for the

airbag system. Using a tester above such circuits may cause malfunction of airbag system. Follow the cau-

tions for the airbag system in this case. <Ref. to AB-5, CAUTION, General Description.>

• Be careful not to damage the airbag system wiring harness when servicing electrical parts and switches.

Headlight

Low beam (halogen type)

12 V — 55 W

Low beam (HID type)

12 V — 35 W

High beam

12 V — 60 W

Front turn signal/front side marker light

12 V — 27 / 8 W

Front fog light

12 V — 51 W

Side turn signal light

12 V — 1.4 W (LED)

Rear combination light (4 door model)

Tail/stop light

12 V — 5 / 21 W

Turn signal light

12 V — 21 W

Back-up light

12 V — 16 W

Rear combination light (5 door model)

Tail/stop light

12 V — 0.3 W (LED)/12 V — 4.8 W (LED)

Turn signal light

12 V — 21 W

Side marker light

12 V — 5 W

Back-up light (5 door model)

12 V — 21 W

License plate light

12 V — 5 W

High-mounted stop light

4 door model (standard type)

12 V — 21 W

4 door model (with built-in rear spoiler type)

12 V — 1.2 W (LED)

5 door model

12 V — 1.2 W (LED)

Room light

12 V — 8 W

Spot map light

12 V — 8 W

Luggage room light

12 V — 5 W

Trunk room light

12 V — 5 W
