BR-25

Rear Brake Pad

BRAKE

B: INSTALLATION

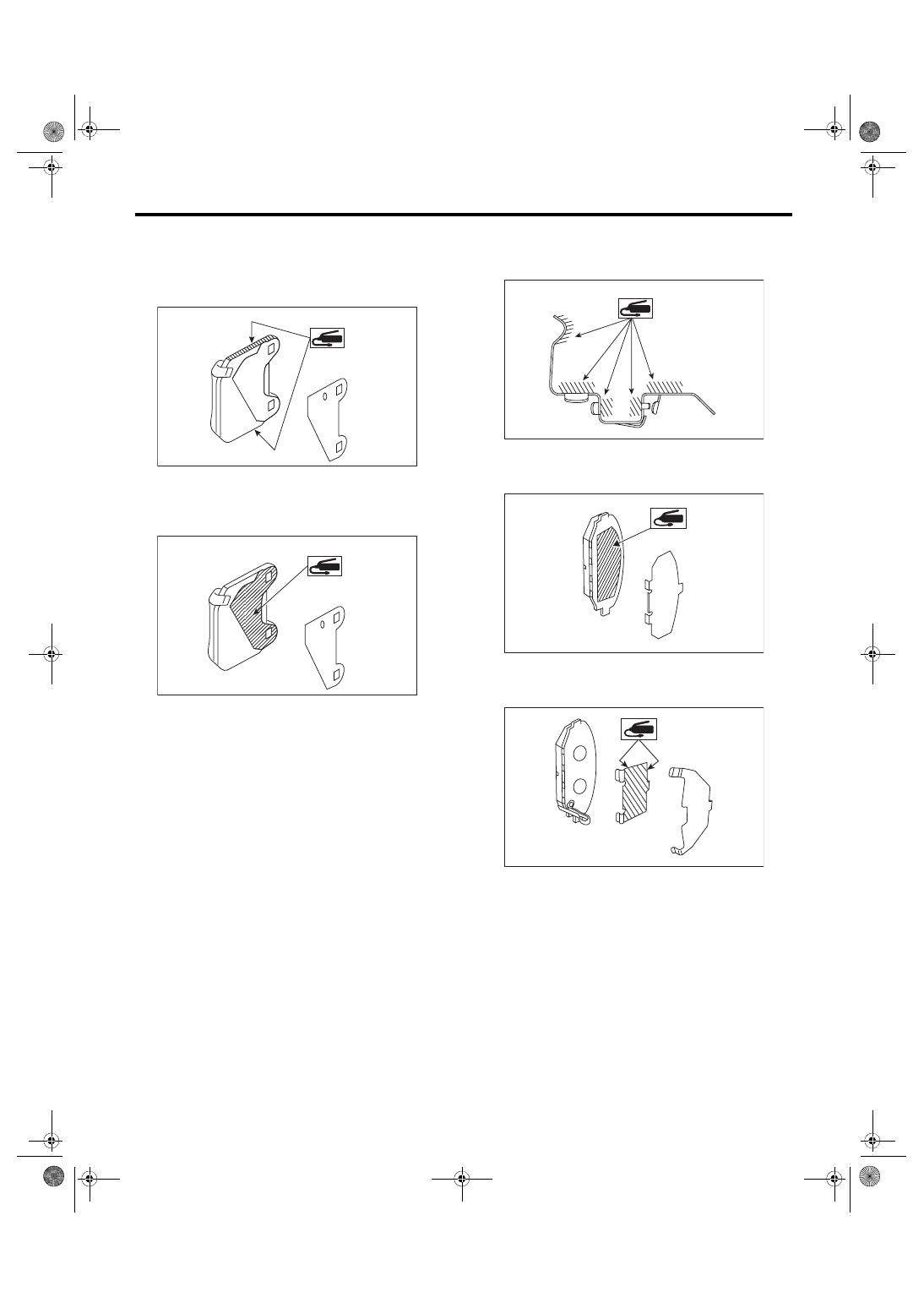

1. BREMBO TYPE

1) Apply a thin coat of Molykote M7439 or grease

contained in the pad kit to the pad side.

2) Apply a thin coat of Molykote AS880N (Part No.

K0777YA010) or the grease contained in the pad

kit to the contact surface between the pad and pad

shim.

3) Install the pads to the caliper body.

4) Install the cross spring and pad pins.

5) Install the clips.

2. EXCEPT FOR BREMBO TYPE

1) Apply a thin coat of Molykote M7439 or grease

contained in the pad kit to the pad clip.

2) Apply a thin coat of Molykote AS880N (Part No.

K0777YA010)  or  grease  contained  in  the  pad  kit

between the outer pad and shim.

3) Apply a thin coat of Molykote AS880N (Part No.

K0777YA010) or grease contained in the pad kit to

both surfaces of the inner pad inner shim.

4) Install the pad to support.

5) Install the caliper body to the support.
Tightening torque:

27 N·m (2.75 kgf-m, 19.9 ft-lb)

6) Install the brake hose bracket.
Tightening torque:

33 N·m (3.36 kgf-m, 24.3 ft-lb)

BR-00784

BR-00785

BR-00599

BR-00875

BR-00876

BR-26

Rear Brake Pad

BRAKE

C: INSPECTION

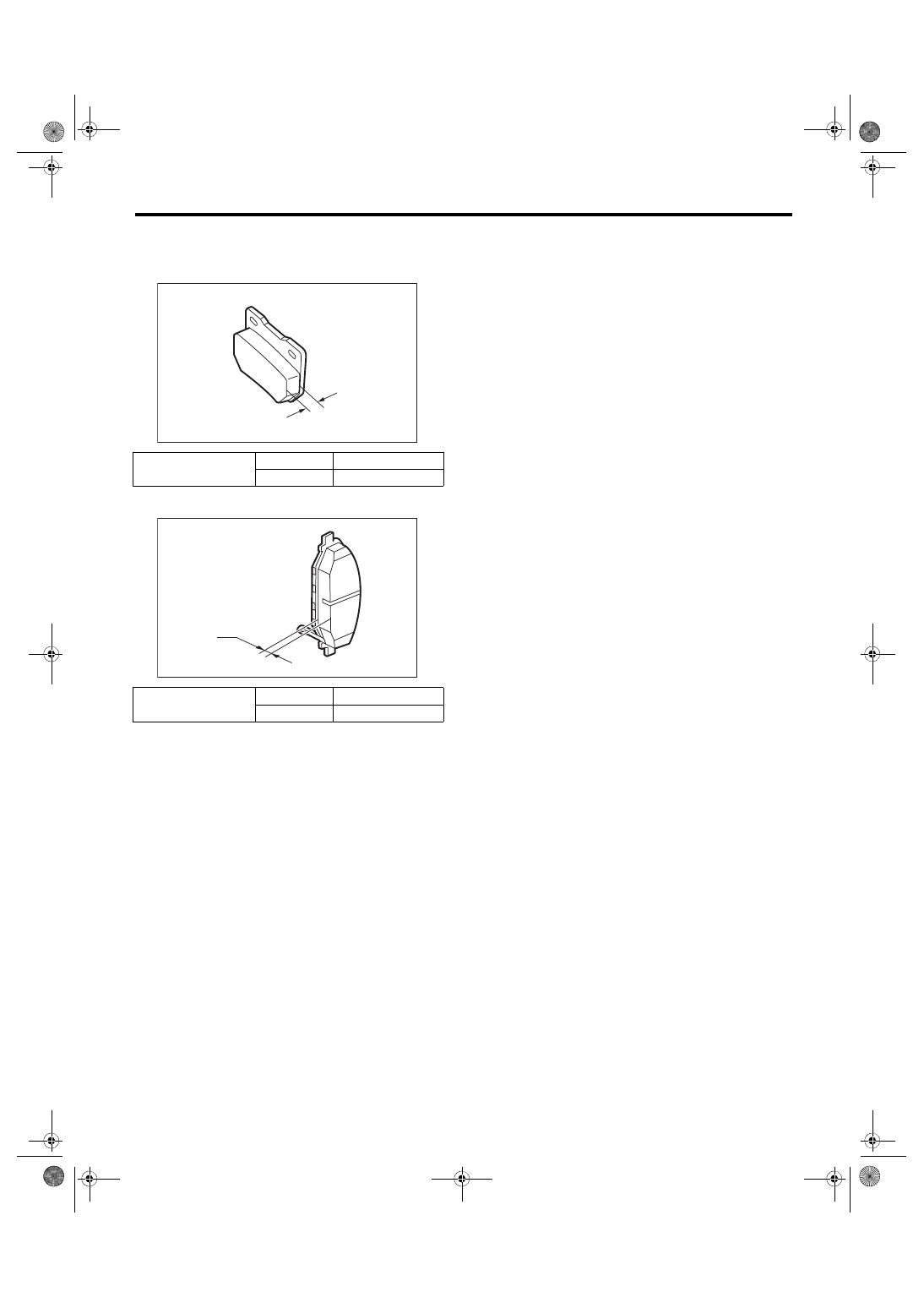

Check the pad thickness A.

• Brembo type

• Except for brembo type

NOTE:

• Always replace the pads of both wheels and both

sides as a set.

• Replace the cross spring and pad pins if they are

twisted or worn. (Brembo type)

• A  wear  indicator  is  installed  on  the  outer  disc

brake pad. (Brembo type)

• Wear  indicators  are  installed  on  the  inner  and

outer disc brake pads. (Except for brembo type)

• If the pad is worn to the limit, the end of wear in-

dicator contacts disc rotor, and a squeaking sound

is heard as the wheel rotates. If the sound is heard,

replace the pad.

• Replace the pad if there is oil or grease on it.

Pad thickness A

mm (in)

Standard

9.0 (0.354)

Wear limit

1.2 (0.047)

Pad thickness A

mm (in)

Standard

9.0 (0.354)

Wear limit

1.5 (0.059)

A

BR-00314

BR-00889

A

BR-27

Rear Disc Rotor

BRAKE

6. Rear Disc Rotor

A: REMOVAL

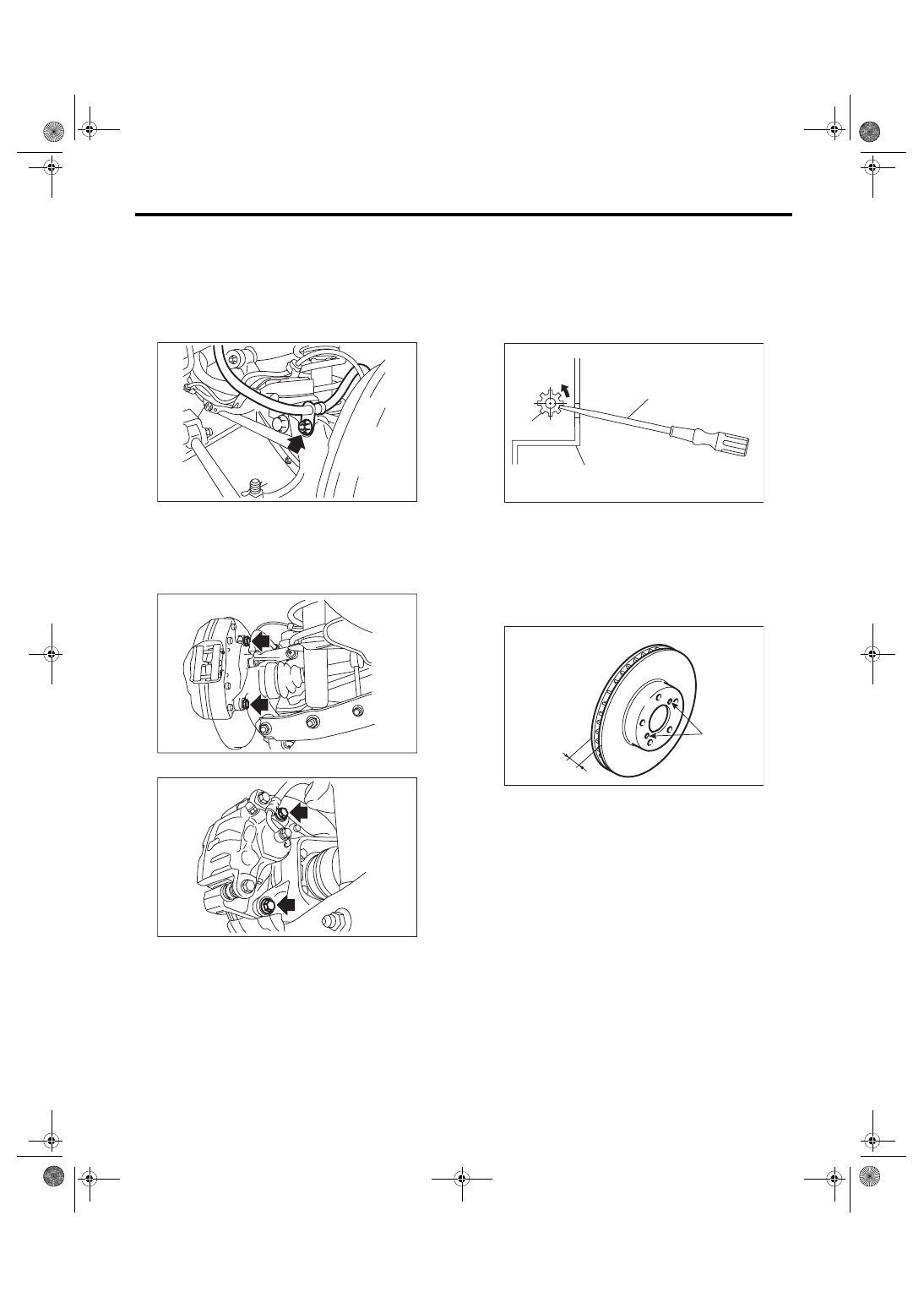

1) Lift  up  the  vehicle,  and  then  remove  the  rear

wheels.

2) Release the parking brake.

3) Remove the brake hose bracket.

4) Remove the caliper body assembly from hous-

ing, and suspend it from the strut using a wire.
CAUTION:

Be careful not to stretch the brake hose.

• Brembo type

• Except for brembo type

5) Remove the disc rotor.
NOTE:

If it is difficult to remove the disc rotor, perform the

following two methods in order.

(1) Turn  the  adjusting  screw  using  a  flat  tip

screwdriver until the brake shoe is far enough

away to allow removal of the disc rotor.

(2) If it is difficult to remove the disc rotor from

the hub, drive an 8 mm bolt into the threads B of

the rotor, then remove the rotor.

B: INSTALLATION

1) Install each part in the reverse order of removal.
Tightening torque:

Brake hose bracket

33 N·m (3.36 kgf-m, 24.3 ft-lb)

Caliper body assembly (17-inch type)

65 N·m (6.63 kgf-m, 47.9 ft-lb)

Caliper body assembly (15-inch type)

66 N·m (6.73 kgf-m, 48.7 ft-lb)

2) Adjust  the  parking  brake.  <Ref.  to  PB-8,  AD-

JUSTMENT, Parking Brake Assembly (Rear Disc

Brake).>

RS-00264

BR-00703

BR-00743

(1) Adjusting screw
(2) Flat tip screwdriver
(3) Disc rotor

(1)

(3)

(2)

BR-00734

BR-00018

B

A

BR-28

Rear Disc Rotor

BRAKE

C: INSPECTION

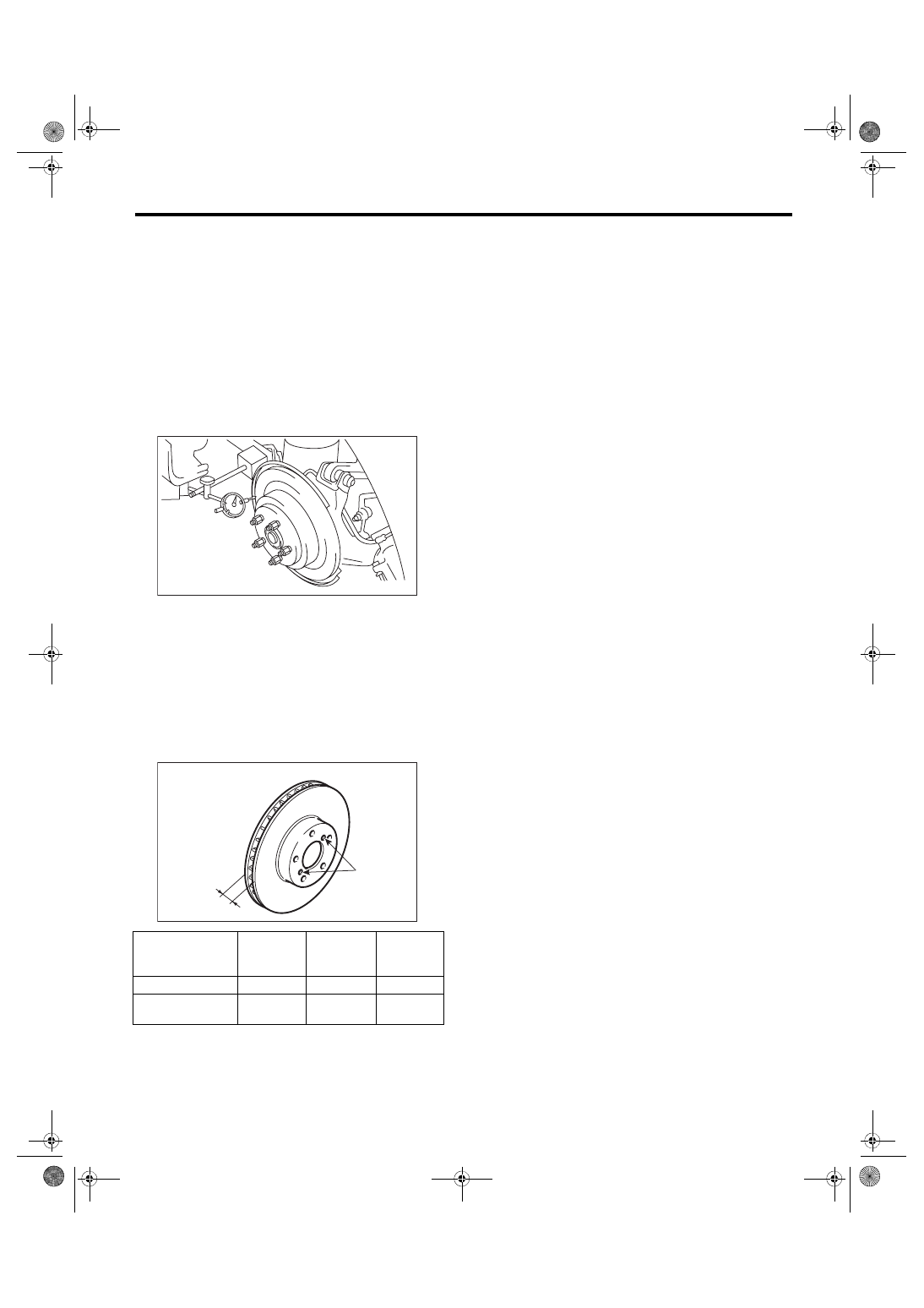

1) Check the rear wheel bearing play and axle hub

runout  before  inspecting  the  disc  rotor  runout.

<Ref.  to  DS-26,  INSPECTION,  Rear  Hub  Unit

Bearing.>

2) Secure the disc rotor by tightening the five wheel

nuts.

3) Set a dial gauge 10 mm (0.39 in) inward from the

disc rotor outer circumference. Rotate the disc rotor

to check runout. If the disc rotor runout exceeds the

limit, resurface the disc rotor. After grinding, check

the thickness of the disc rotor according to the pro-

cedure in step 4).

Disc rotor runout limit:

Brembo type

0.070 mm (0.0028 in)

Except for brembo type

0.050 mm (0.0020 in)

4) Set a micrometer 10 mm (0.39 in) inward from

the  disc  rotor  outer  perimeter,  and  then  measure

the  disc  rotor  thickness.  If  the  thickness  A  of  the

disc rotor exceeds the service limit, replace with a

new disc rotor.

Disc rotor thick-

ness A

mm (in)

Standard

Limit

Disc rotor

diameter

Brembo type

20 (0.79)

18 (0.71)

316 (12.44)

Except for brembo

type

10 (0.39)

8.5 (0.335) 286 (11.26)

BR-00037

BR-00018

B

A
