Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 446





6MT-121

Clutch Housing

MANUAL TRANSMISSION AND DIFFERENTIAL

23.Clutch Housing

A: REMOVAL

1) Remove  the  manual  transmission  assembly

from  the  vehicle.  <Ref.  to  6MT-31,  REMOVAL,

Manual Transmission Assembly.>

2) Prepare the transmission for overhaul. <Ref. to

6MT-37, Preparation for Overhaul.>

3) Remove  the  neutral  position  switch,  back-up

light  switch  and  harness.  <Ref.  to  6MT-41,  RE-

MOVAL, Neutral  Position Switch.>  <Ref.  to  6MT-

39, REMOVAL, Back-up Light Switch.>

4) Remove  the  extension  case.  <Ref.  to  6MT-43,

REMOVAL, Extension Case.>

5) Remove the transfer driven gear. <Ref. to 6MT-

55, REMOVAL, Transfer Driven Gear.>

6) Remove the center differential. <Ref. to 6MT-57,

REMOVAL, Center Differential.>

7) Remove  the  transmission  case.  <Ref.  to  6MT-

58, REMOVAL, Transmission Case.>

8) Remove the individual gear assemblies. <Ref. to

6MT-65, REMOVAL, Main Shaft Assembly.>

9) Remove the drive pinion shaft assembly. <Ref.

to 6MT-94, REMOVAL, Drive Pinion Shaft Assem-

bly.>

10) Remove the front differential assembly. <Ref.

to 6MT-100, REMOVAL, Front Differential Assem-

bly.>

B: INSTALLATION

1) Install the pitching stopper bracket.
Tightening torque:

41 N·m (4.2 kgf-m, 30.2 ft-lb)

2) Install  the  front  differential  assembly.  <Ref.  to

6MT-100,  INSTALLATION,  Front  Differential  As-

sembly.>

3) Install the drive pinion shaft assembly. <Ref. to

6MT-94,  INSTALLATION,  Drive  Pinion  Shaft  As-

sembly.>

4) Install the individual gear assemblies all at once.

<Ref. to 6MT-66, INSTALLATION, Main Shaft As-

sembly.>

5) Install the transmission case. <Ref. to 6MT-60,

INSTALLATION, Transmission Case.>

6) Install  the  center  differential.  <Ref.  to  6MT-57,

INSTALLATION, Center Differential.>

7) Install the transfer driven gear. <Ref. to 6MT-55,

INSTALLATION, Transfer Driven Gear.>

8) Install the extension case. <Ref. to 6MT-43, IN-

STALLATION, Extension Case.>

9) Install the neutral position switch, back-up light

switch and harness. <Ref. to 6MT-41, INSTALLA-

TION, Neutral Position Switch.> <Ref. to 6MT-39,

INSTALLATION, Back-up Light Switch.>

10) Install the manual transmission assembly to the

vehicle. <Ref. to 6MT-33, INSTALLATION, Manual

Transmission Assembly.>

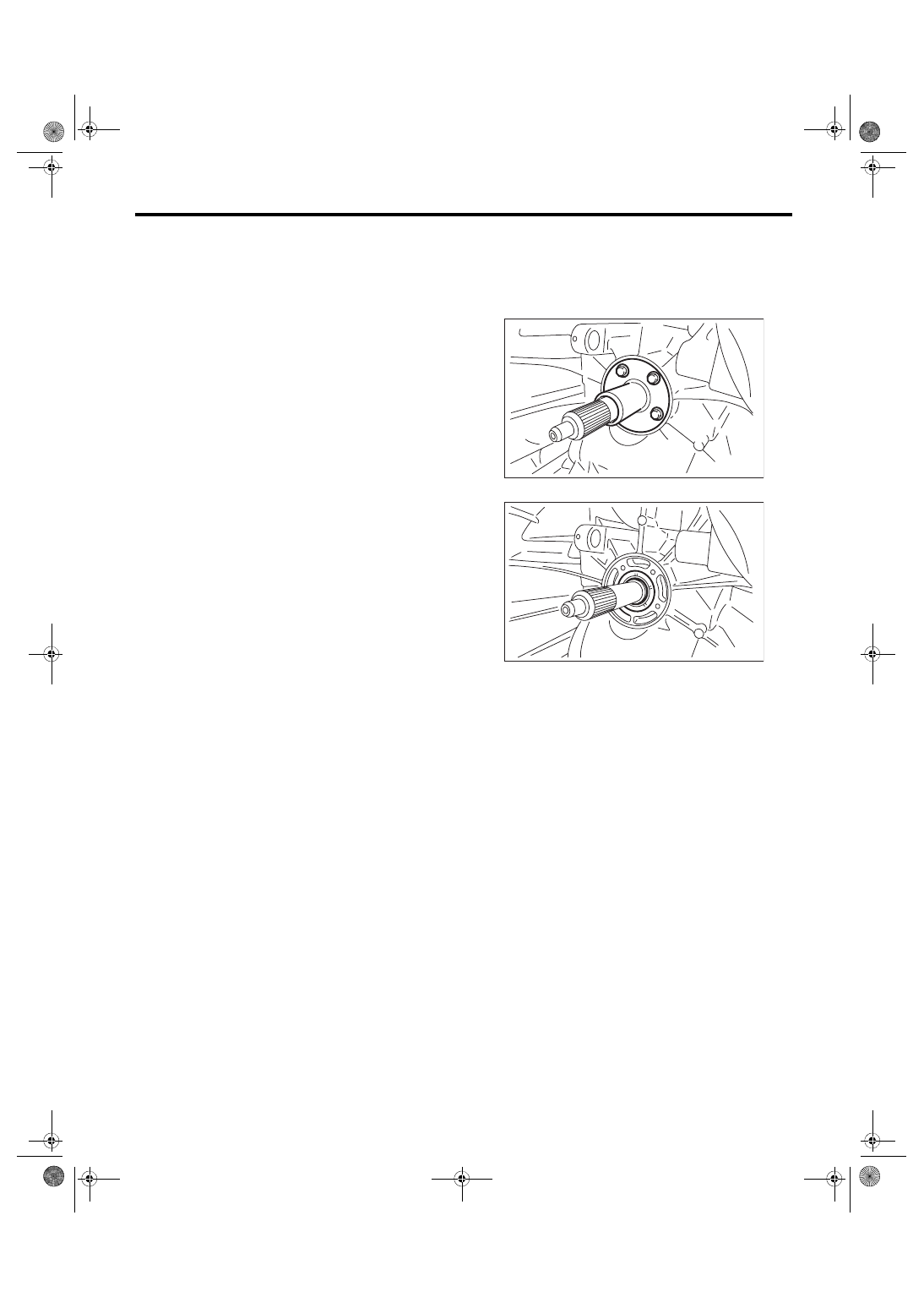

C: DISASSEMBLY

1) Remove the clutch release bearing guide.

2) Remove the oil seal.

MT-01383

MT-01381

6MT-122

Clutch Housing

MANUAL TRANSMISSION AND DIFFERENTIAL

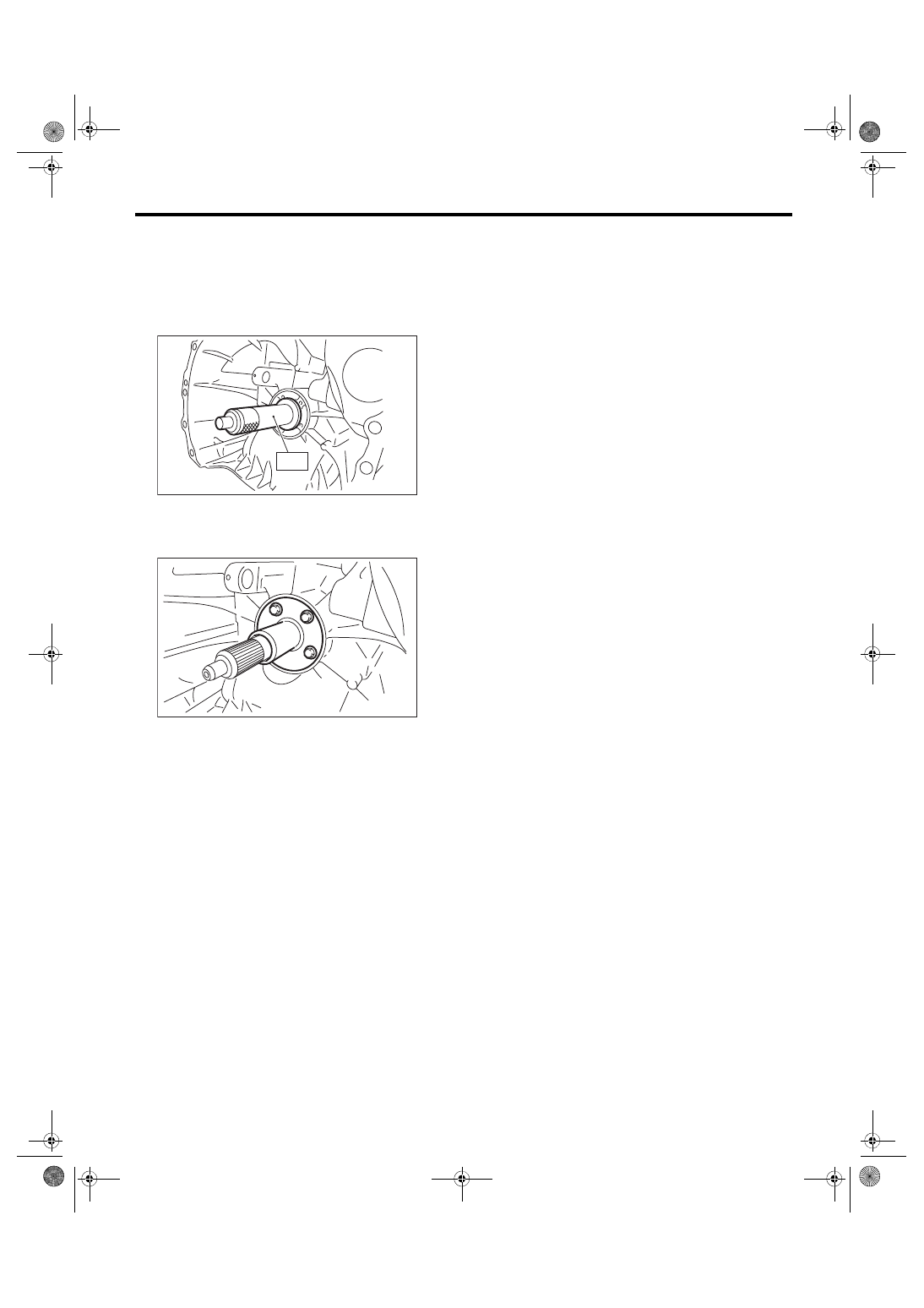

D: ASSEMBLY

1) Attach the oil seal to the clutch housing, being

careful not to damage the seal.
NOTE:

Use a new oil seal.

ST 18657AA020 OIL SEAL INSTALLER

2) Install the clutch release bearing guide.
Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

E: INSPECTION

1) Check  to  make  sure  there  is  no  damage  or

cracks on the clutch housing. If there is excessive

damage, replace the clutch housing.

2) Inspect the clutch housing for transmission gear

oil leakage. If any oil leaks are found, repair or re-

place the applicable part.

MT-01382

ST

MT-01383

6MT-123

Driver’s Control Center Differential Control Module

MANUAL TRANSMISSION AND DIFFERENTIAL

24.Driver’s Control Center Dif-

ferential Control Module

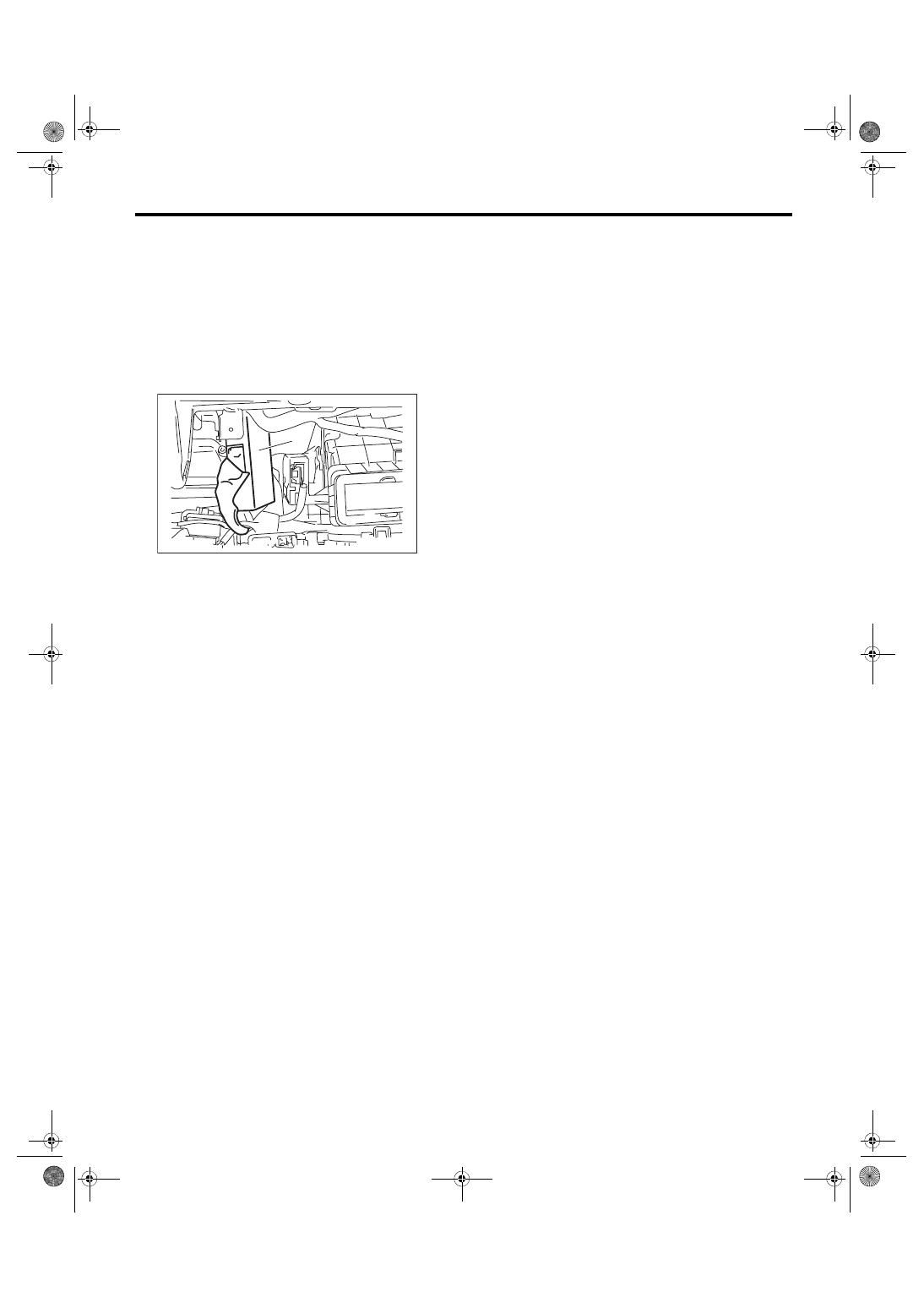

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the instrument panel lower. <Ref. to EI-

54,  INSTRUMENT  PANEL  LOWER,  REMOVAL,

Center Console.>

3) Remove  the  driver’s  control  center  differential

control module by disconnecting the connector.

B: INSTALLATION

Install in the reverse order of removal.
Tightening torque:

15 N·m (1.5 kgf-m, 11.1 ft-lb)

(A) Driver’s control center differential control mod-

ule

MT-01742

(A)

6MT-124

General Diagnostic Table

MANUAL TRANSMISSION AND DIFFERENTIAL

25.General Diagnostic Table

A: INSPECTION

1. MANUAL TRANSMISSION

Symptoms

Possible cause

Corrective action

1. Gears are difficult to engage.
NOTE:

If it is difficult to shift, there are two possible
causes. One is a defective gear shift sys-
tem and the other is defective transmis-
sion. However, if the operation is heavy
and engagement of the gears is difficult, a
defective clutch function may also be re-
sponsible. Check whether the clutch is cor-
rectly functioning, before checking the
gear shift system and transmission.

(a) Worn, damaged or burred chamfer at
internal spline of the sleeve

Replace.

(b) Gear spline wear, damage, dents

Replace.

(c) Worn or scratched bushings

Replace.

(d) Incorrect contact or wear between syn-
chronizer ring and gear cone

Repair or replace.

2. Gear slip-out
• Gear slips out when coasting on rough
road.
• Gear slips out during acceleration.

(a) Defective pitching stopper adjustment

Adjust.

(b) Loose engine mounting bolts

Tighten or replace.

(c) Worn shifter fork, broken shifter fork rail
spring

Replace.

(d) Worn or damaged ball bearing

Replace.

(e) Excessive clearance between splines
of synchronizer hub and synchronizer
sleeve

Replace.

(f) Worn in the synchronizer hub chamfer
angle

Replace.

(g) Worn 1st driven gear, needle bearing
and race

Replace.

(h) Worn 2nd driven gear, needle bearing
and race

Replace.

(i) Worn 3rd drive gear and bushing

Replace.

(j) Worn 4th drive gear and bushing

Replace.

(k) Worn 5th drive gear and bushing

Replace.

(l) Worn 6th drive gear and bushing

Replace.

(m) Worn reverse idler gear and bushing

Replace.

3. Noise emitted from transmission
NOTE:

If a noise is heard when the vehicle is
parked with its engine idling and ceases
when the clutch is disengaged, it may be
considered that the noise is coming from
the transmission.

(a) Insufficient or improper lubrication

Replenish or replace with the specified
amount of recommended oil.

(b) Worn or damaged gears and bearings
NOTE:

If the trouble is only wear of the gear teeth
surfaces, only a high whirring noise will oc-
cur at high speeds, but if any part is broken,
rhythmical clicking sounds will be heard
even at low speeds.

Replace.
