EN(H4DOTC)(diag)-12

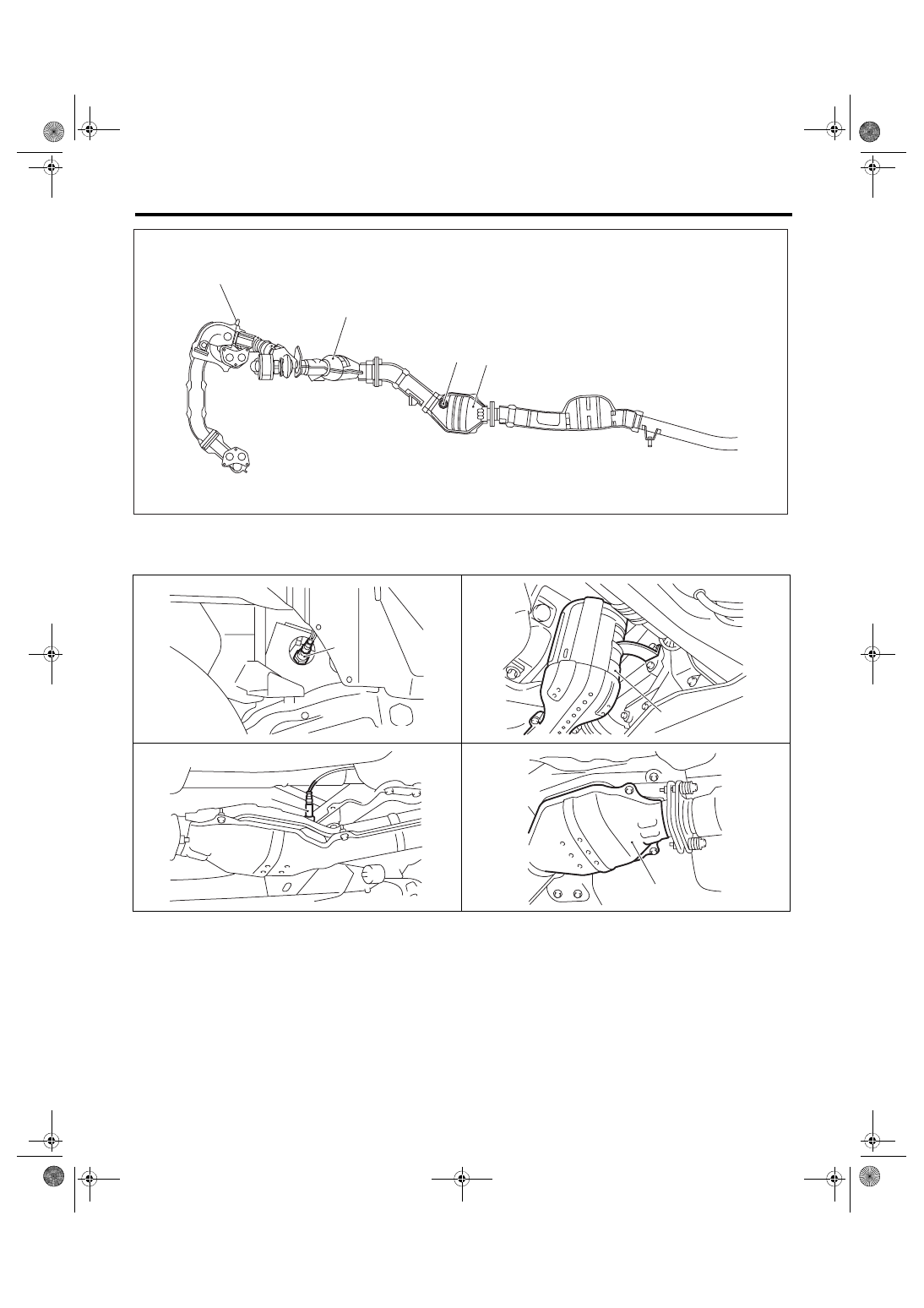

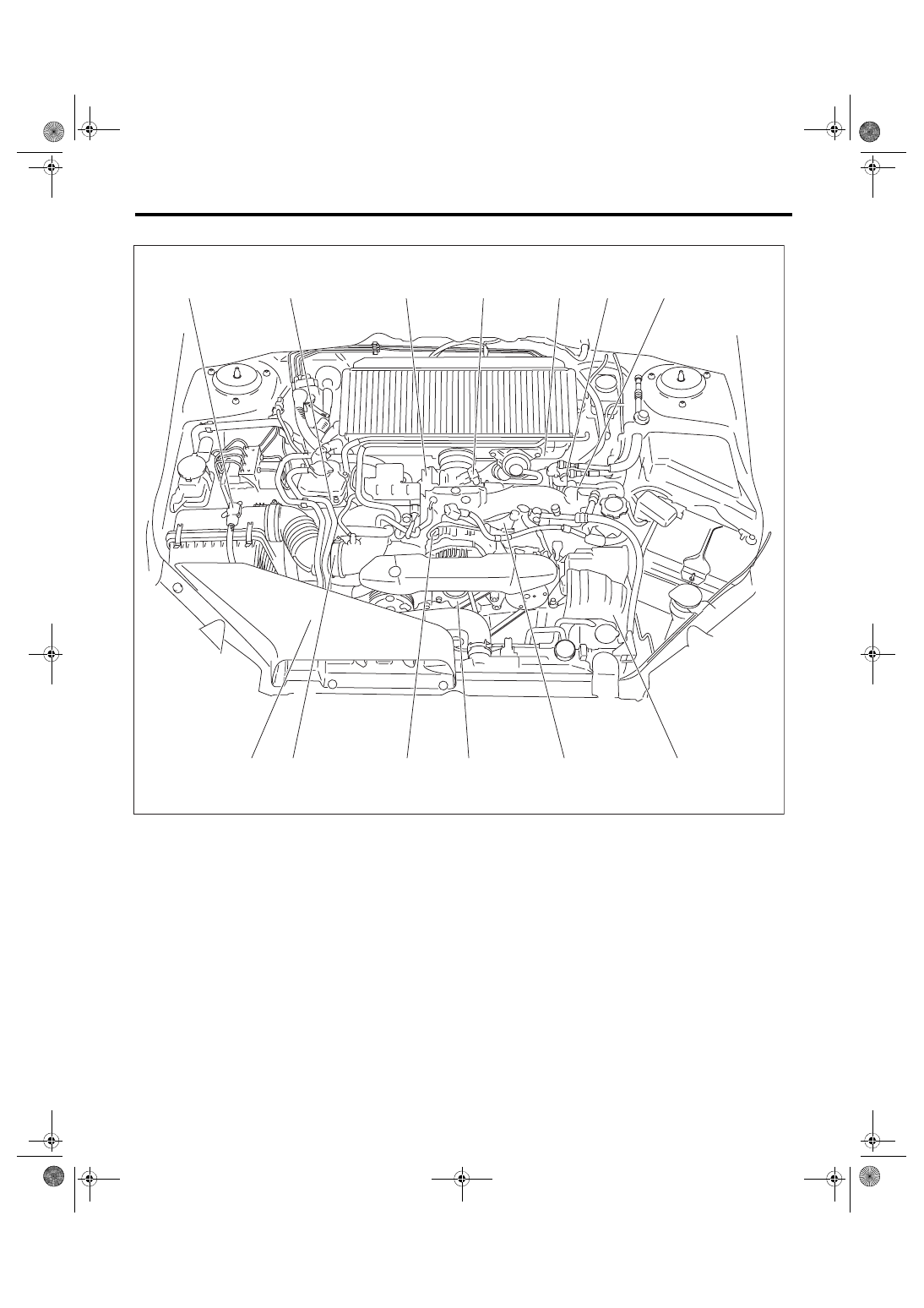

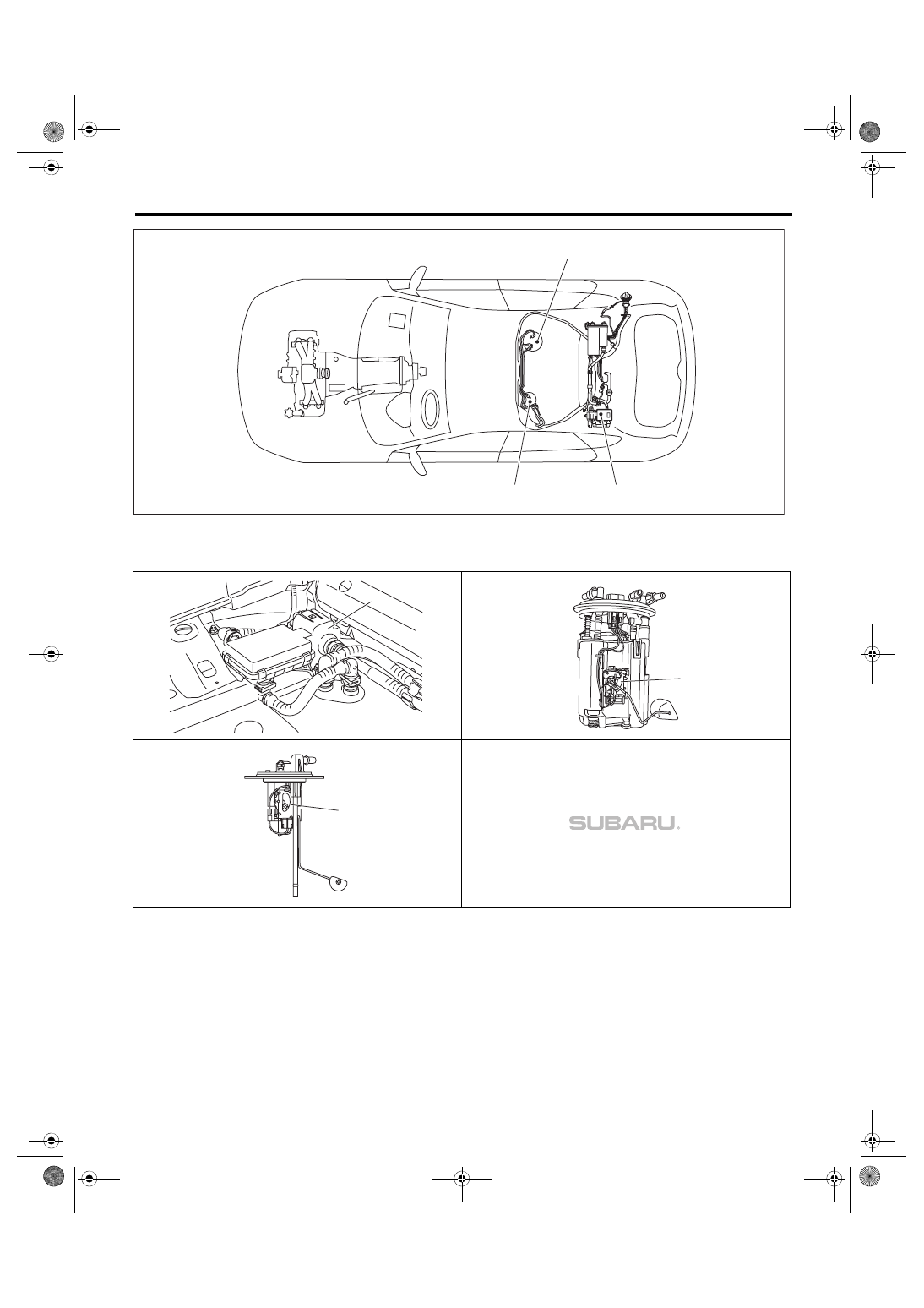

Electrical Component Location
ENGINE (DIAGNOSTICS)
• Models with SI-DRIVE
(1)

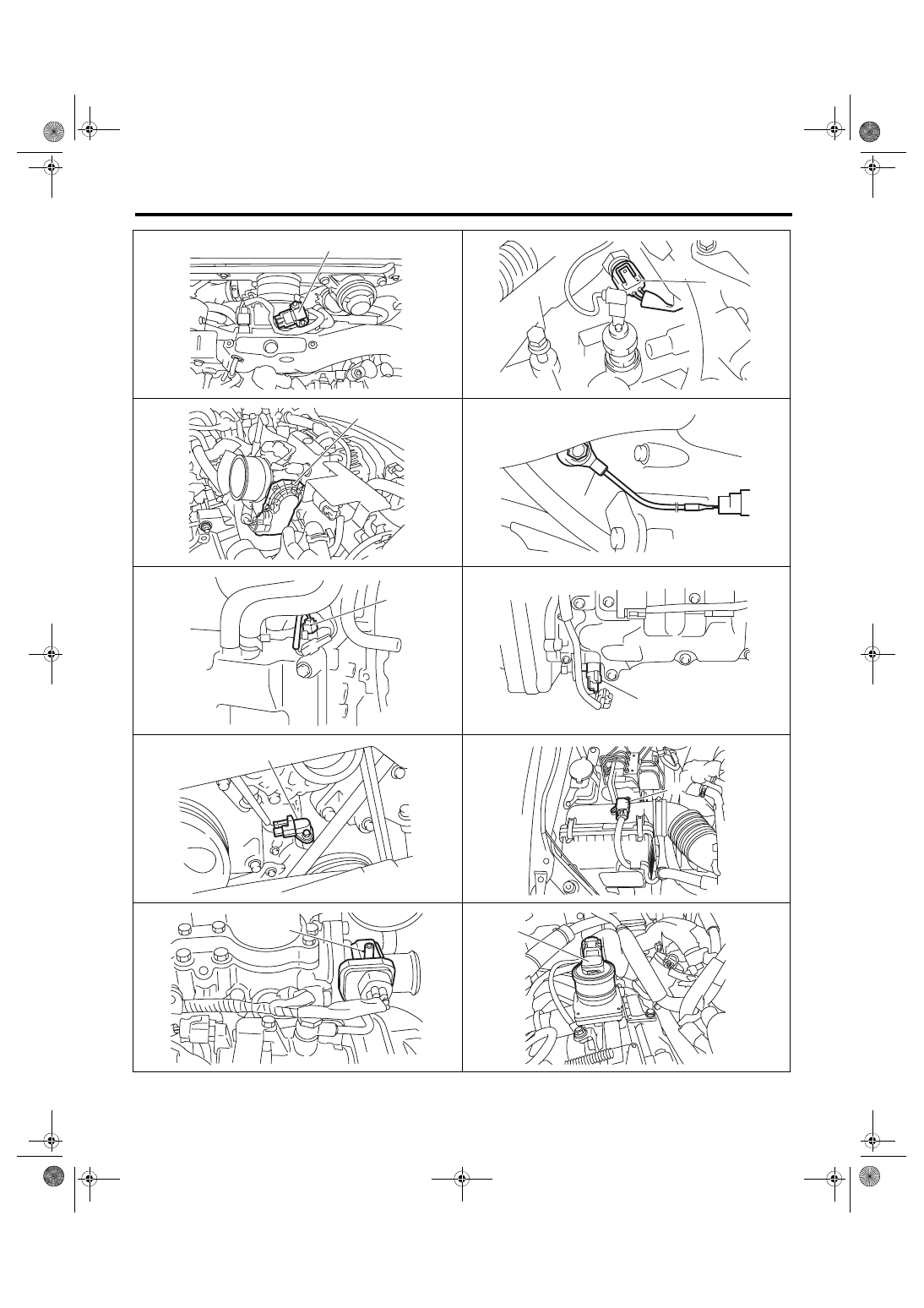

Manifold absolute pressure sen-
sor
(5)
Intake camshaft position sensor
(8)
Mass air flow and intake air tem-
perature sensor
(2)
Engine coolant temperature sen-
sor
(6)
Exhaust camshaft position sensor
(9)
Tumble generator valve ASSY
(3)
Electronic throttle control
(7)
Crankshaft position sensor
(10) Secondary air pipe pressure sen-
sor
(4)
Knock sensor
EN-06457
(1)
(3)
(5)
(8)
(6)
(9)
(2)
(7)
(4)
(6)
(9)
(5)
(10)
