EN(H4DOTC)(diag)-16
Electrical Component Location
ENGINE (DIAGNOSTICS)
3. SOLENOID VALVE, ACTUATOR, EMISSION CONTROL SYSTEM PARTS AND IGNITION
SYSTEM PARTS
• Models without SI-DRIVE
(1)
Wastegate control solenoid valve
(4)
Ignition coil
(7)
Secondary air combination valve
RH
(2)
Purge control solenoid valve 2
(5)
Intake oil flow control solenoid
valve
(8)
Secondary air combination valve
LH
(3)
Purge control solenoid valve 1
(6)
Secondary air pump
(9)
Tumble generator valve ASSY

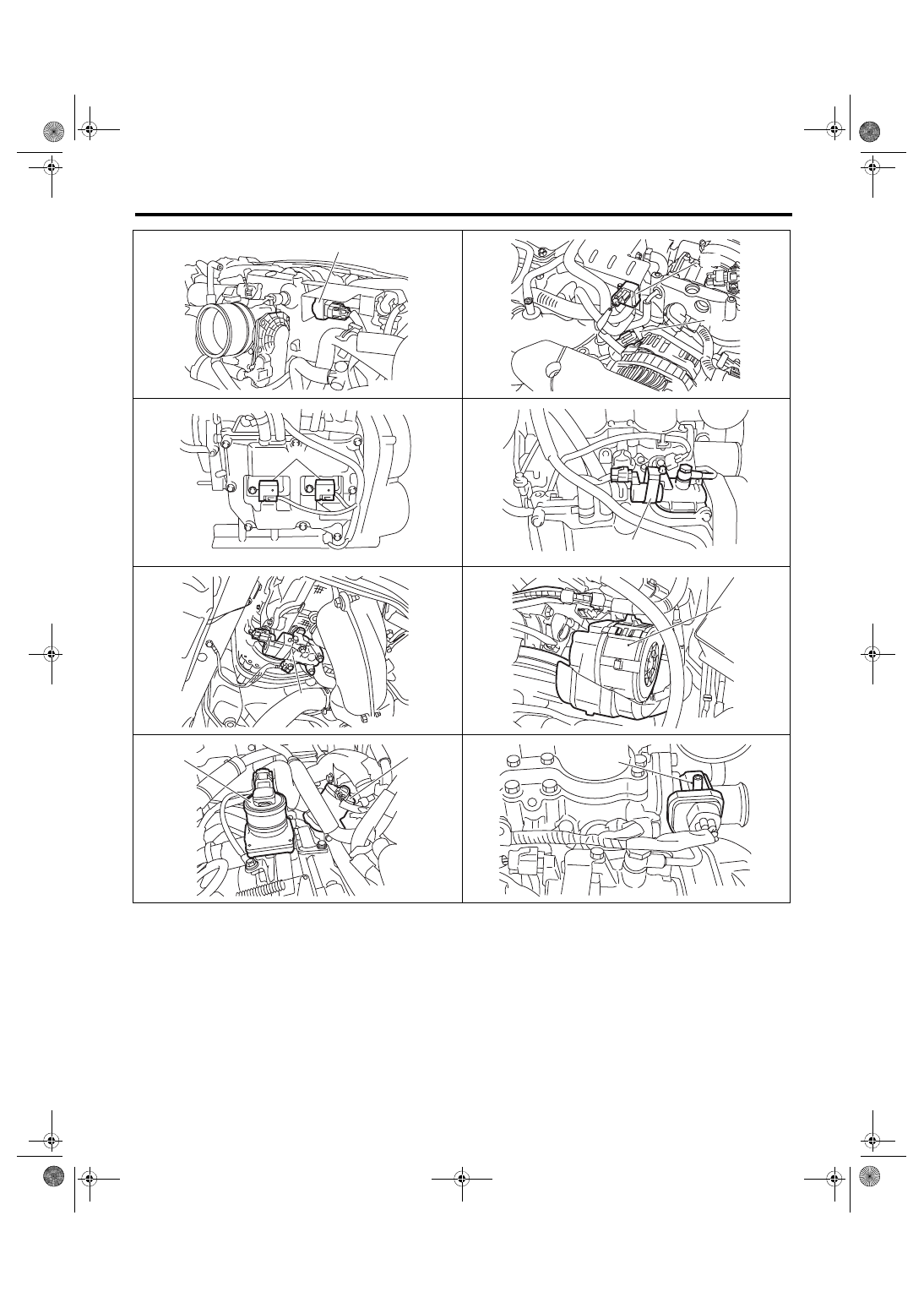

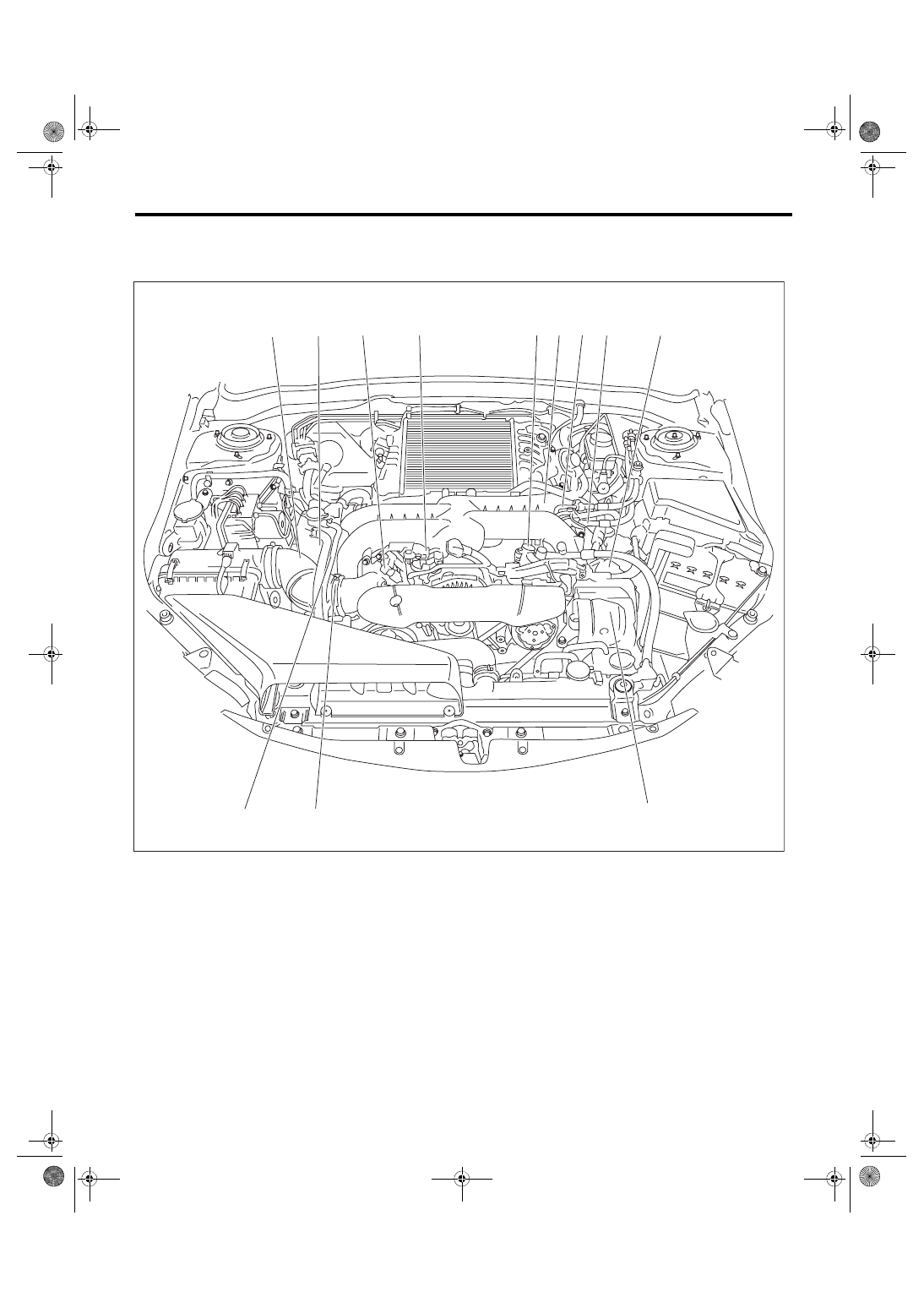

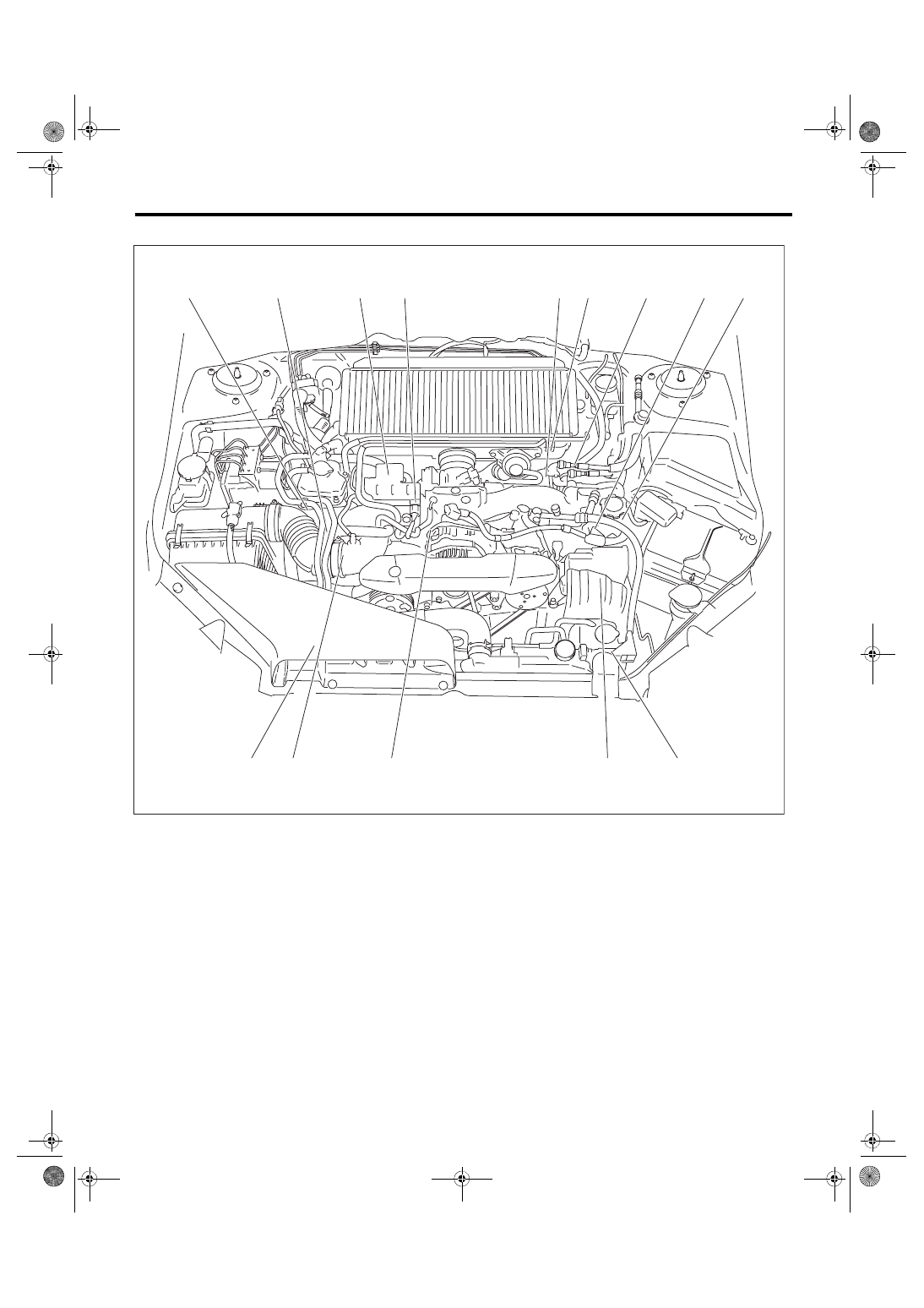

EN-06152
(1)
(6)
(7)
(9)
(2)
(3)
(4)
(5)
(4)
(5)
(8)
(9)
