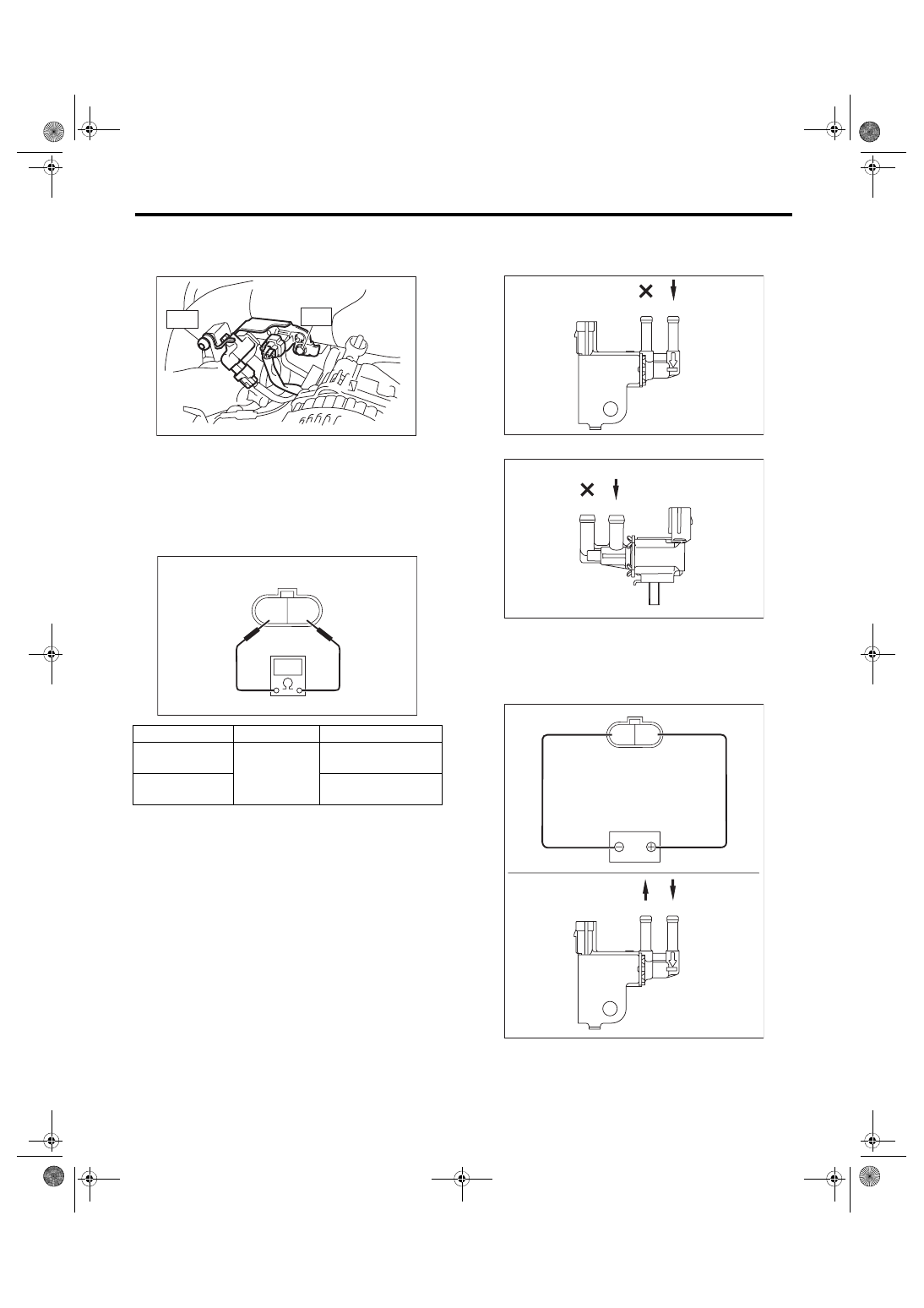

EC(w/o STI)-13 Purge Control Solenoid Valve EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) Tightening torque: T1: 17 N·m (1.7 kgf-m, 12.5 ft-lb) T2: 19 N·m (1.9 kgf-m, 14.0 ft-lb) C: INSPECTION 1. PURGE CONTROL SOLENOID VALVE 1) Check that the purge control solenoid valve has no deformation, cracks or other damages. 2) Measure the resistance between the purge con- trol solenoid valve terminals. 3) Check that air does not come out from (B) when air is blown into (A). • Purge control solenoid valve 1 • Purge control solenoid valve 2 4) Connect the battery positive terminal to the ter- minal No. 1 and the battery negative terminal to the terminal No. 2. Check that air is discharged from (B), when supplying air to (A). • Purge control solenoid valve 1

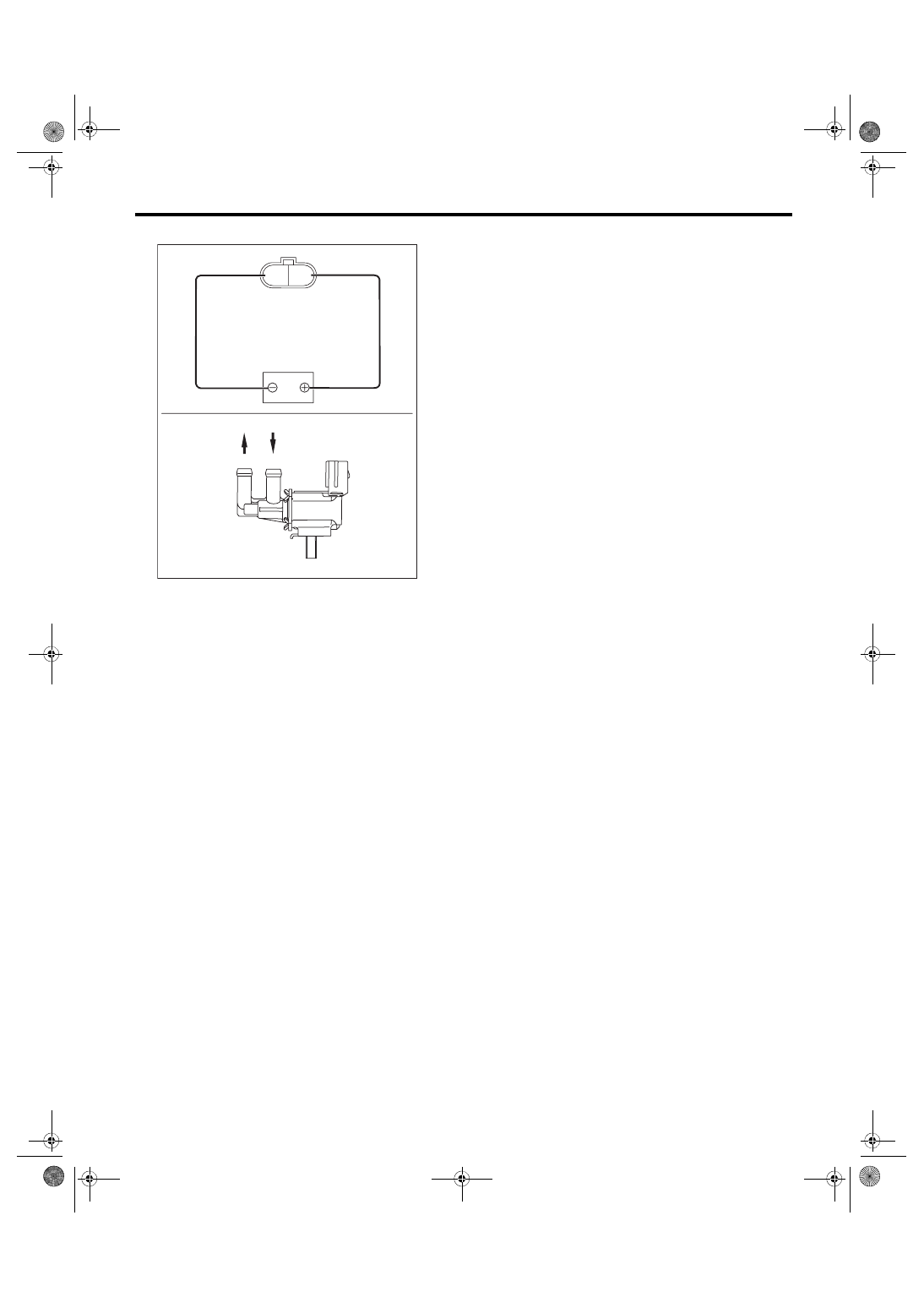

Terminal No. Standard Purge control solenoid valve 1 1 and 2 32±2 Ω (when 20°C (68°F)) Purge control solenoid valve 2 24±3 Ω (when 20°C (68°F)) EC-02252 T2 T1 2 1 EC-02426 EC-02430 (A) (B) EC-02431 (A) (B) EC-02433 2 1 (A) (B) |
