Index Subaru Subaru Impreza 3 / Impreza WRX / Impreza WRX STI - service repair manual 2008-2014 year
|
|

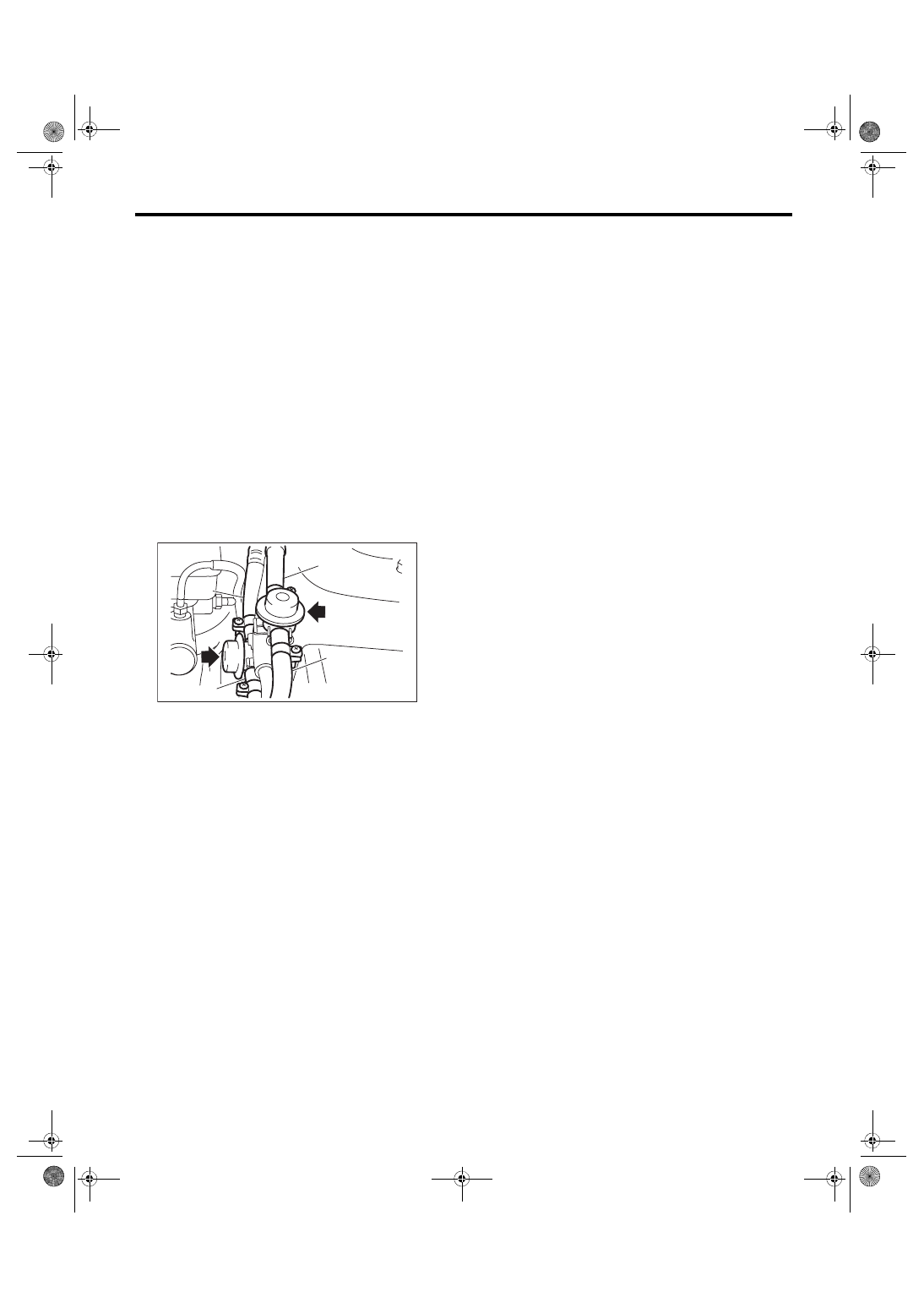

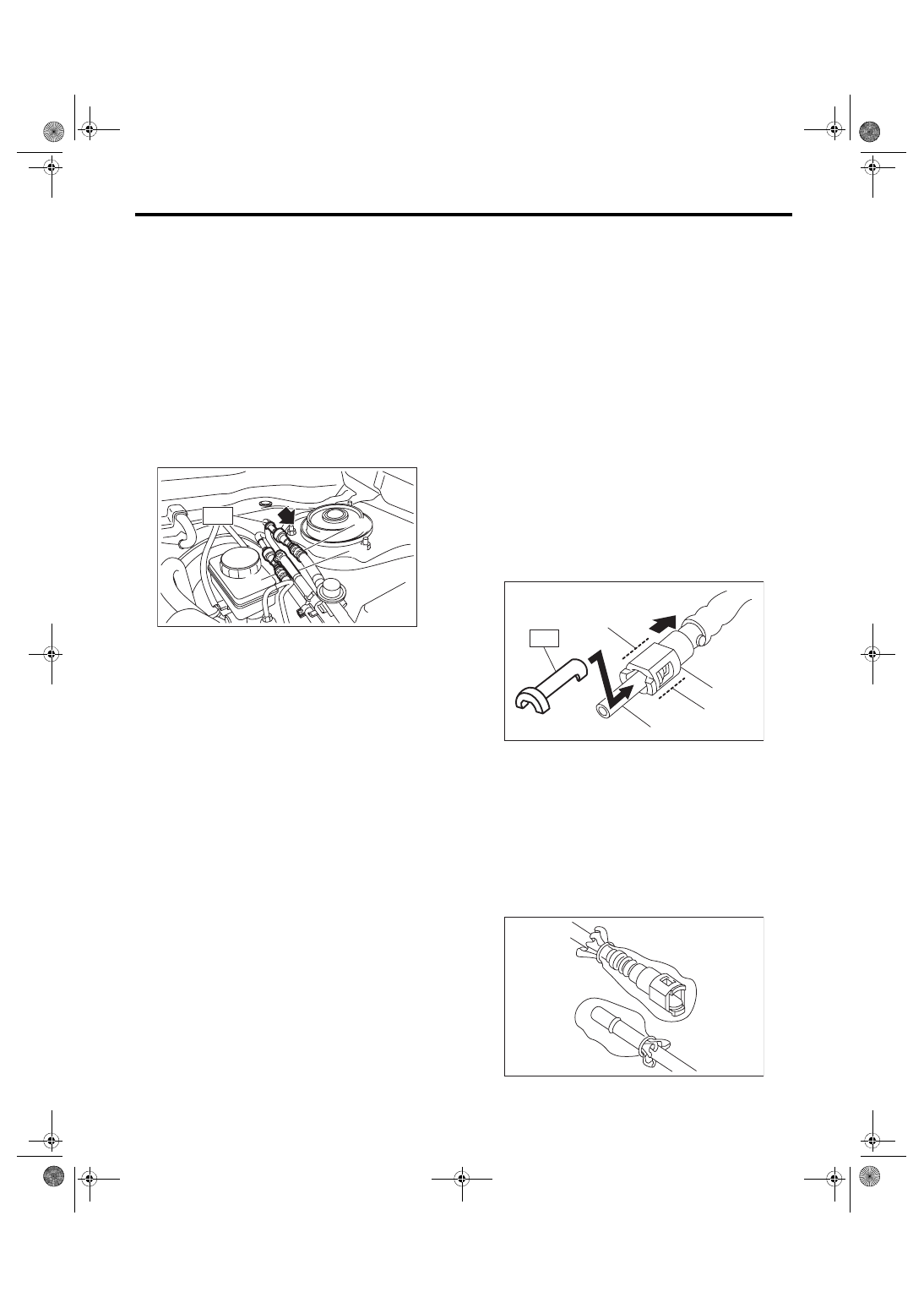

FU(w/o STI)-87 Fuel Damper FUEL INJECTION (FUEL SYSTEMS) 30.Fuel Damper A: REMOVAL WARNING: Place “NO OPEN FLAMES” signs near the working area. • Be careful not to spill fuel. • Catch the fuel from hoses using a container or cloth. 1) Release the fuel pressure. <Ref. to FU(w/o STI)- 65, RELEASING OF FUEL PRESSURE, PROCE- 2) Disconnect the fuel delivery hose (A) and fuel re- turn hose (B) from the fuel damper, and remove the fuel damper. Fuel dampers on delivery side and return side are different. Be careful not to confuse them. B: INSTALLATION Install in the reverse order of removal. • Fuel dampers on delivery side and return side are different. Be careful not to confuse them. • For the information about connecting the fuel de- livery hose and fuel return hose, refer to “Fuel De- livery, Return and Evaporation Lines”. <Ref. to FU(w/o STI)-93, CONNECTING FUEL DELIVERY HOSE, FUEL RETURN HOSE AND FUEL HOSE, INSTALLATION, Fuel Delivery, Return and Evapo- FU-05837 (A) (B) (A) (B) |
