Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 58





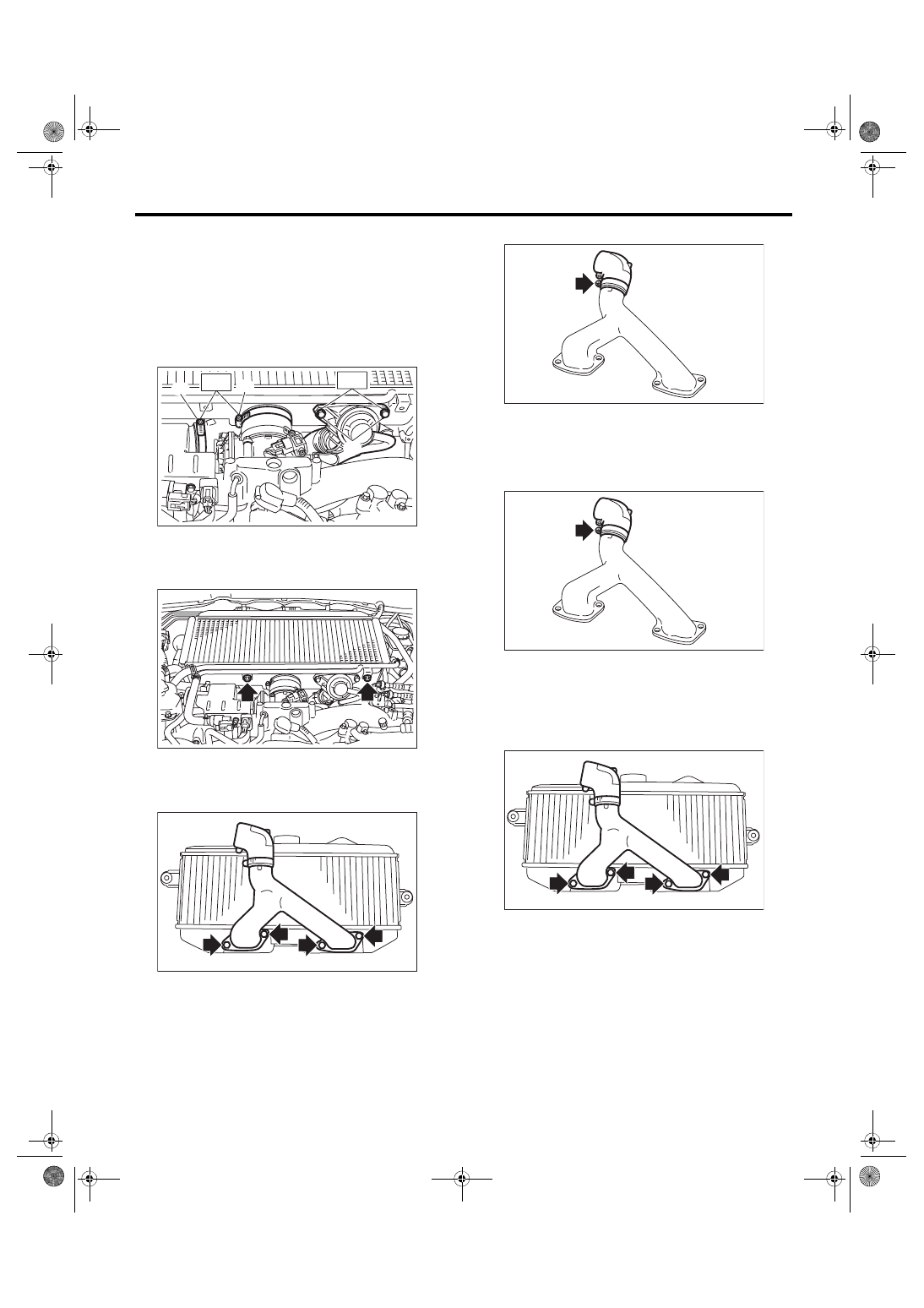

IN(STI)-14

Intercooler

INTAKE (INDUCTION)

7) Install  the  bolts  (C)  which  secures  the  air  by-

pass valve to the intercooler, and install the air by-

pass valve.
NOTE:

Use a new gasket.
Tightening torque:

T1: 3 N·m (0.3 kgf-m, 2.2 ft-lb)

T2: 16 N·m (1.6 kgf-m, 11.8 ft-lb)

8) Install the PCV pipe to the intercooler.
Tightening torque:

5.5 N·m (0.6 kgf-m, 4.1 ft-lb)

C: DISASSEMBLY

1) Remove the intercooler duct from the intercool-

er.

2) Remove the intake duct from intercooler duct.

D: ASSEMBLY

1) Install the intake duct to the intercooler duct.
Tightening torque:

3 N·m (0.3 kgf-m, 2.2 ft-lb)

2) Install the intercooler duct to the intercooler.
NOTE:

Use a new gasket.
Tightening torque:

16 N·m (1.6 kgf-m, 11.8 ft-lb)

E: INSPECTION

1) Check that  the intercooler and intercooler duct

have no deformation, cracks or other damages.

2) Check  that  the  hose  and  intake  duct  have  no

cracks, damage or loose part.

IN-03502

(A)

(B)

(C)

T1

T2

IN-03078

IN-03496

IN-02350

IN-02350

IN-03496

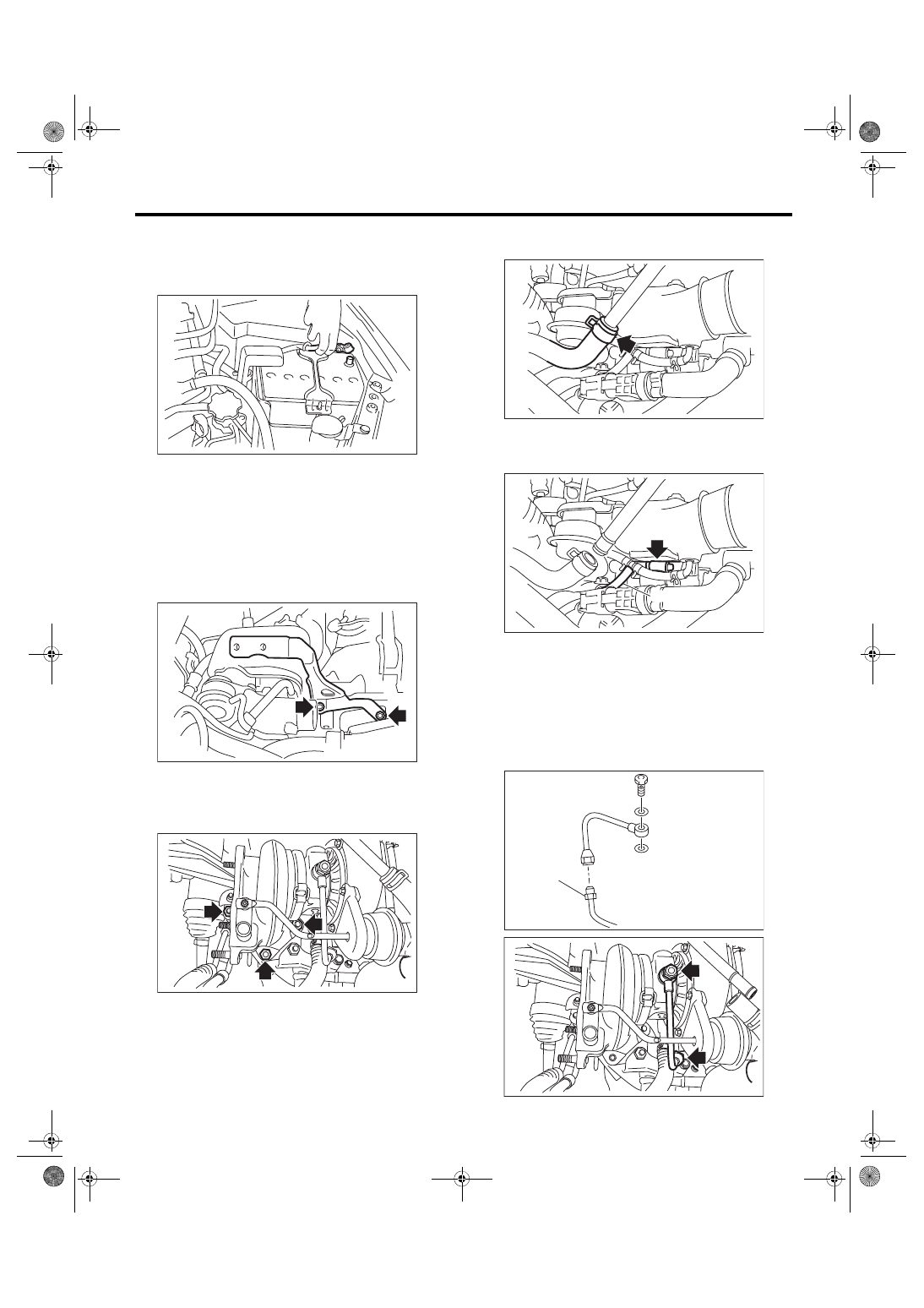

IN(STI)-15

Turbocharger

INTAKE (INDUCTION)

7. Turbocharger

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Lift up the vehicle.

3) Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt)

of  coolant.  <Ref.  to  CO(STI)-13,  DRAINING  OF

ENGINE  COOLANT,  REPLACEMENT,  Engine

Coolant.>

4) Lower the vehicle.

5) Remove  the  intercooler.  <Ref.  to  IN(STI)-12,

REMOVAL, Intercooler.>

6) Remove the intercooler stay.

7) Remove  the  center  exhaust  pipe.  <Ref.  to

EX(STI)-8, REMOVAL, Center Exhaust Pipe.>

8) Lower the vehicle.

9) Remove the joint pipe from the turbocharger.

10) Disconnect  the  engine  coolant  hose  from  the

upper side of the water pipe.

11) Disconnect the air control hose (A), and loosen

the clamp holding the intake duct to the turbocharg-

er.

12) Remove the oil inlet pipe from the turbocharg-

er.
CAUTION:

In order to prevent damaging the oil pipe on the

cylinder head side, fix the section (a) shown in

the figure when loosing the oil inlet pipe flare

nut, and avoid the part  from  rotating  together

while loosening the nut.

IN-00203

EX-00007

IN-02390

IN-02594

IN-02930

(A)

(a)

IN-02955

IN-02633

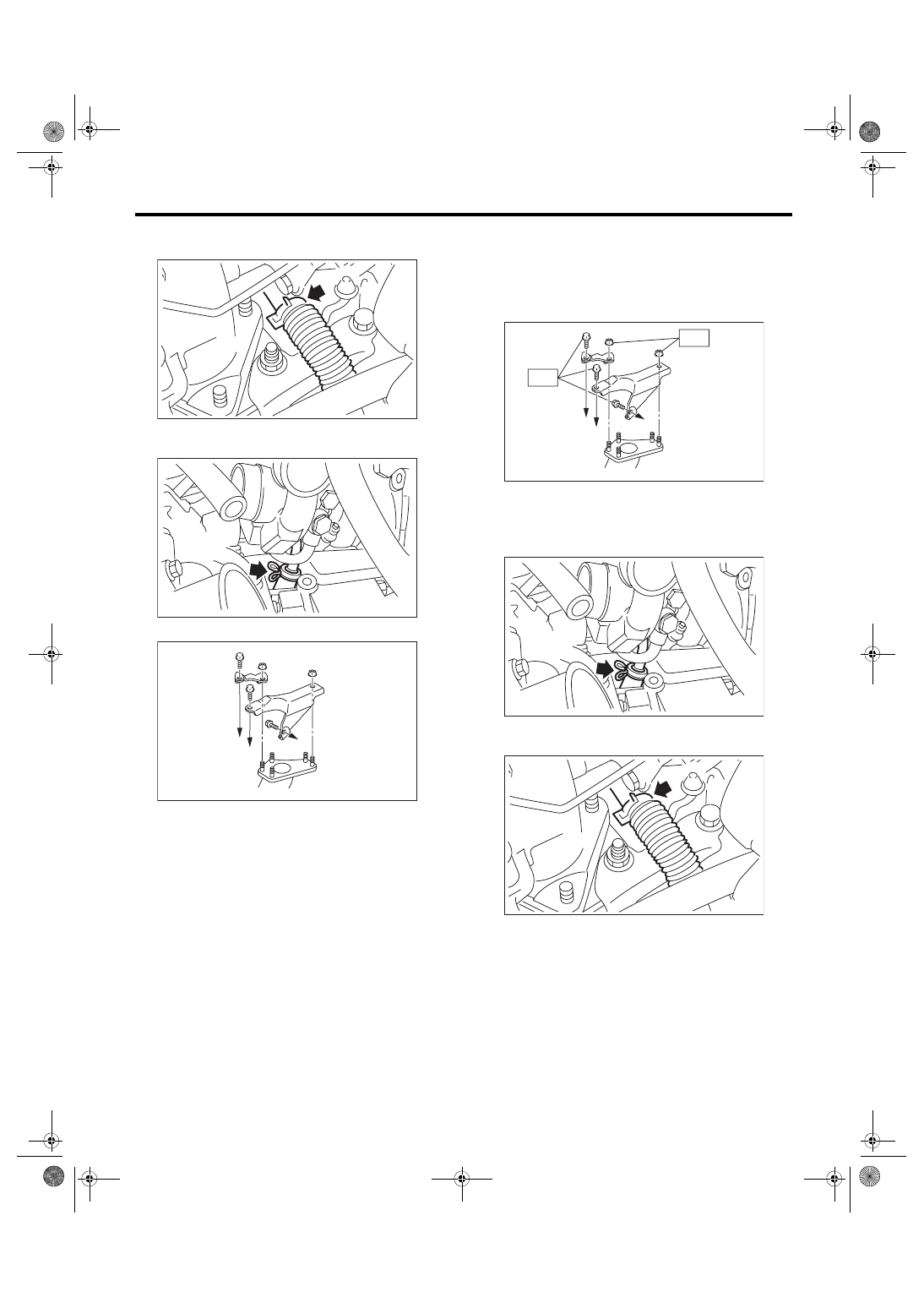

IN(STI)-16

Turbocharger

INTAKE (INDUCTION)

13) Disconnect  the  engine  coolant  hose  from  the

lower side of the water pipe.

14) Disconnect the oil outlet hose from the oil outlet

pipe, and remove the turbocharger.

15) Remove the turbocharger stay.

B: INSTALLATION

1) Install the turbocharger stay.
Tightening torque:

T1: 33 N·m (3.4 kgf-m, 24.3 ft-lb)

T2: 42.5 N·m (4.3 kgf-m, 31.3 ft-lb)

2) Connect the oil outlet hose to the oil outlet pipe.

3) Connect  the  engine  coolant  hose  to  the  lower

side of the water pipe.

(A) To cylinder head RH
(B) To cylinder block RH

IN-02931

IN-02310

IN-02859

(A)

(A)

(B)

(A) To cylinder head RH
(B) To cylinder block RH

T1

IN-02860

(A)

(A)

(B)

T2

IN-02310

IN-02931

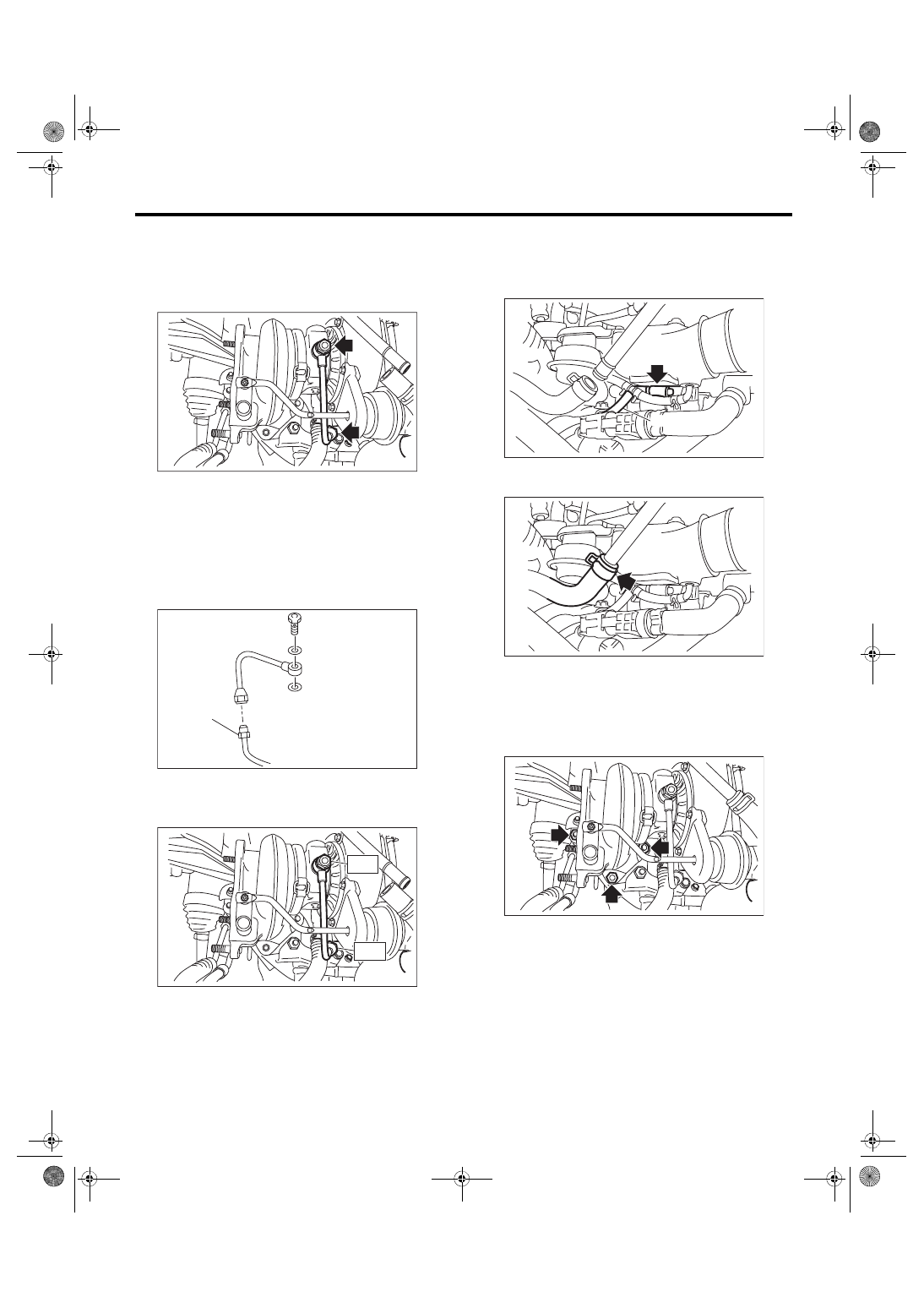

IN(STI)-17

Turbocharger

INTAKE (INDUCTION)

4) Temporarily  tighten  the  union  bolts  and  flare

nuts  which  secure  the  oil  inlet  pipe  to  the  turbo-

charger.
NOTE:

Use a new gasket.

5) Tighten the union bolts and flare nuts which se-

cure the oil inlet pipe to the turbocharger.
CAUTION:

In order to prevent damaging the oil pipe on the

cylinder head side, fix the section (a) shown in

the figure when tightening the oil inlet pipe flare

nut, and  avoid the part from rotating together

while tightening the nut.

Tightening torque:

T1: 16 N·m (1.6 kgf-m, 11.8 ft-lb)

T2: 20 N·m (2.0 kgf-m, 14.8 ft-lb)

6) Connect the air control hose (A), and install the

intake duct to the turbocharger.
Tightening torque:

3 N·m (0.3 kgf-m, 2.2 ft-lb)

7) Connect the engine coolant hoses to the upper

side of the water pipe.

8) Install the joint pipe to turbocharger.
NOTE:

Use a new gasket.
Tightening torque:

42.5 N·m (4.3 kgf-m, 31.3 ft-lb)

9) Lift up the vehicle.

10) Install  the  center  exhaust  pipe.  <Ref.  to

EX(STI)-9,  INSTALLATION,  Center  Exhaust

Pipe.>

11) Lower the vehicle.

IN-02633

(a)

IN-02955

IN-02613

T1

T2

IN-02930

(A)

IN-02594

IN-02390
