Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 46

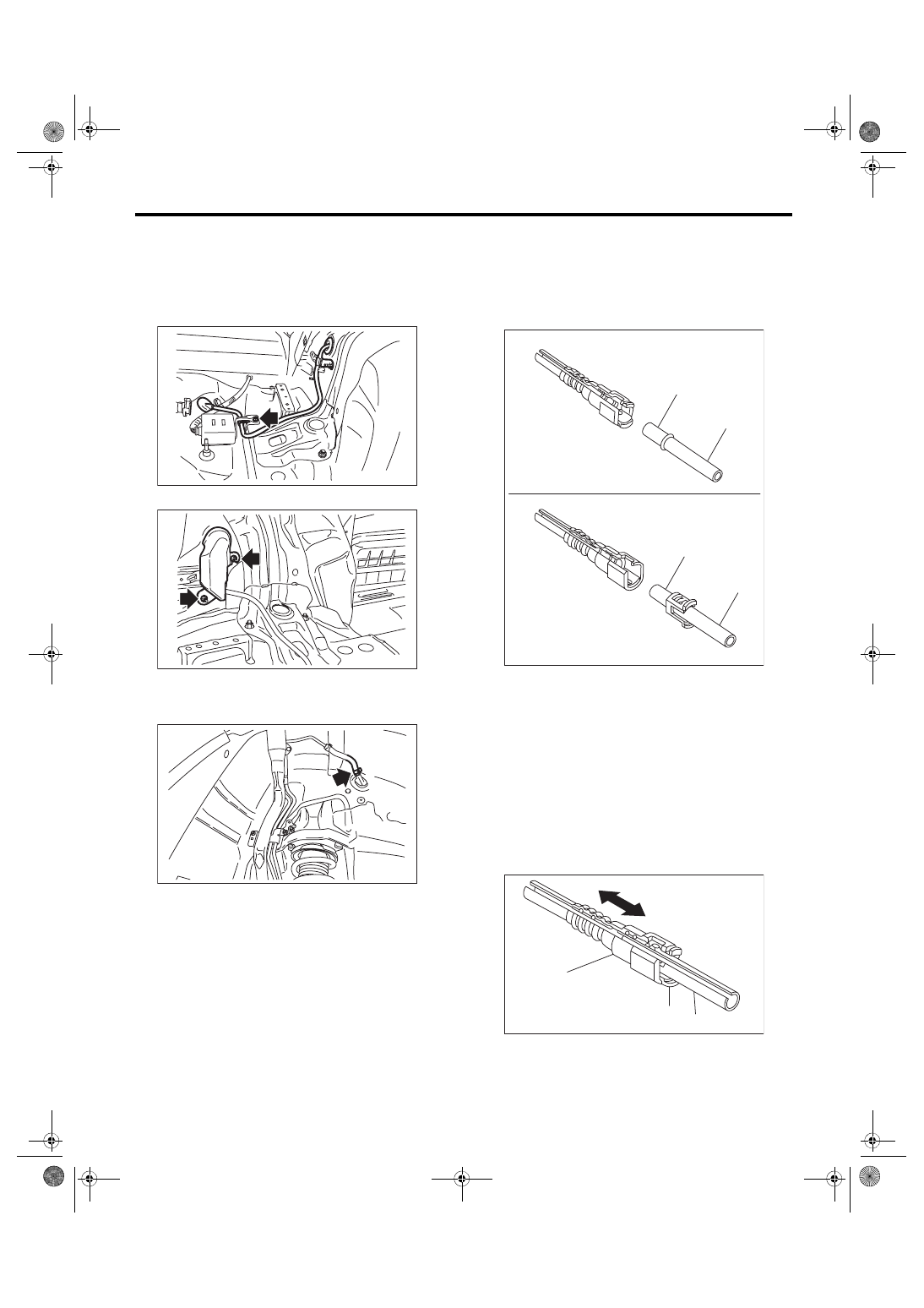

FU(STI)-96

Fuel Delivery, Return and Evaporation Lines

FUEL INJECTION (FUEL SYSTEMS)

B: INSTALLATION

Install in the reverse order of removal while being

careful of the following.

1. EVAPORATION PIPE INSTALLATION

1) Install the evaporation pipe to the vehicle.

2) Install the evaporation pipe protector.

3) Install the right side rear quarter trim. <Ref. to EI-

61, INSTALLATION, Rear Quarter Trim.>

4) Connect the evaporation hose.

5) Install the rear mud guard RH. <Ref. to EI-30, IN-

STALLATION, Mud Guard.>

2. CONNECTING THE FUEL LINE QUICK

CONNECTOR

CAUTION:

• Make sure there are no damage or dust on

connections. If necessary, clean seal surface of

pipe.

• When reusing the retainer, make sure that

neither scratches nor deformation exist on the

retainer. If it is faulty, use a new part.

1) Connect the quick connector to pipe.
CAUTION:

• Make sure that the quick connector is secure-

ly connected.

FU-04307

FU-04306

FU-04305

(A) When removed using the ST
(B) When removed without using the ST

(a) Seal surface
(b) Pipe

(A) Quick connector
(B) Retainer

FU-05508

(a)

(b)

(a)

(b)

(A)

(B)

FU-05511

(A)

(B)

(C)

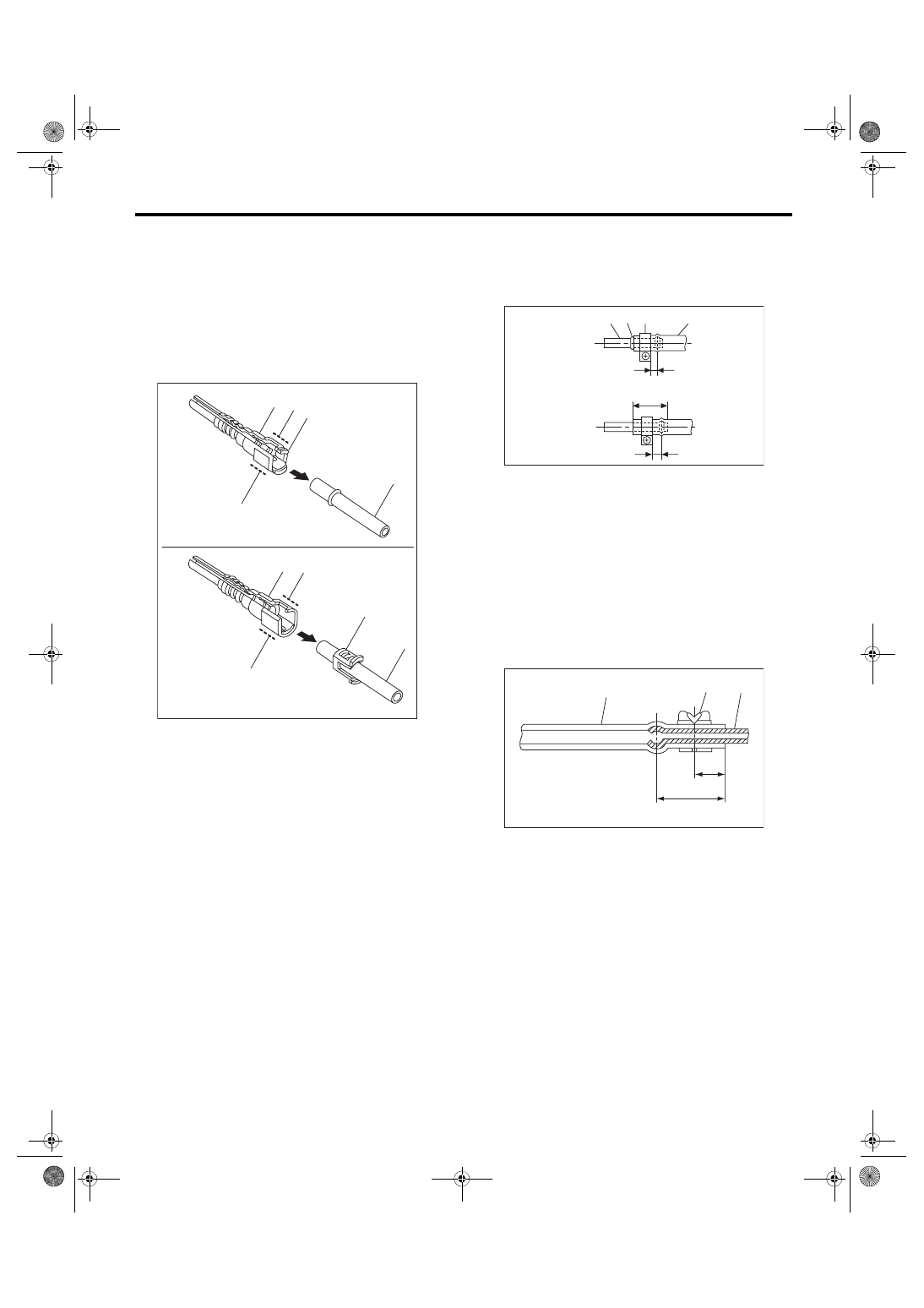

FU(STI)-97

Fuel Delivery, Return and Evaporation Lines

FUEL INJECTION (FUEL SYSTEMS)

• Make sure the two retainer pawls are en-

gaged in their mating positions in the quick

connector.

• Be sure to inspect tubes and their connec-

tions for any leakage of fuel.

• To connect the connector, hold (d) shown in

the figure and push in axial direction.

• When connecting the connector, do not bend

or twist the tube forcibly. If the tube is bent, re-

place with a new part.

3. CONNECTING FUEL DELIVERY HOSE,

FUEL RETURN HOSE AND FUEL HOSE

Connect the fuel delivery hose, fuel return hose,

and fuel hose as shown in the figure.
CAUTION:

• If the connection portion has a spool or stop-

per, do not allow the end of the hose to bend or

ride over by inserting the hose too deep.

• Be sure to inspect hoses and their connec-

tions for any leakage of fuel.
NOTE:

Use new fuel delivery hose, fuel return hose, and

fuel hose.

Tightening torque:

1.25 N·m (0.1 kgf-m, 0.9 ft-lb)

L1: 2.5

1.5 mm (0.098

0.059 in)

L2: 22.5

2.5 mm (0.886

0.098 in)

4. EVAPORATION HOSE CONNECTION

Connect the evaporation hose to the pipe with an

overlap of 15 to 20 mm (0.59 to 0.79 in).
L = 17.5

2.5 mm (0.689

0.098 in)

C: INSPECTION

1) Check that the fuel pipe has no deformation,

cracks or other damages.

2) Check that the hose and tube have no cracks,

damage or loose part.

(A) When removed using the ST
(B) When removed without using the ST

(a) Quick connector
(b) Retainer

(d) Connector holding position

FU-05509

(b)

(c)

(b)

(c)

(A)

(B)

(a)

(a) (d)

(d)

(1) When there is a spool or bump
(2) When there is no spool or bump
(3) Pipe
(4) Spool or bump
(5) Clamp
(6) Hose

(1) Hose
(2) Clip
(3) Pipe

FU-04503

(3)

(5)

(6)

(1)

(2)

(4)

FU-04501

(1)

(2)

L/2

(3)

FU(STI)-98

Fuel System Trouble in General

FUEL INJECTION (FUEL SYSTEMS)

35.Fuel System Trouble in General

A: INSPECTION

NOTE:

• When the vehicle is left unattended for an extended period of time, water may accumulate in the fuel tank.

Fill fuel fully to prevent the problem.

• In snow-covered areas, mountainous areas, skiing areas, etc. where ambient temperatures drop to 0°C

(32°F) or less throughout the winter season, use a water removing agent in the fuel system to prevent freez-

ing fuel system and accumulating water.

• When water is accumulated in fuel filter, fill the water removing agent in the fuel tank.

• Before using water removing agent, follow the cautions noted on the bottle.

Trouble

Possible cause

Corrective action

Insufficient fuel sup-
ply to fuel injector

a. Fuel pump does not operate.

Defective terminal contact

Inspect contact, especially ground, and tighten it
securely.

Trouble in electromagnetic or electronic cir-

cuit parts

Replace the faulty parts.

b. Decline of fuel pump function

Replace the fuel pump.

c. Clogged fuel filter

Replace the fuel filter. Clean or replace the fuel tank if
necessary.

d. Clogged or bent fuel line pipe, hose or tube

Clean, correct or replace the fuel line pipe, hose or
tube.

e. Air is mixed in fuel system.

Check the fuel line connections, correct or replace the
defective part.

f. Damaged diaphragm of pressure regulator

Replace the pressure regulator.

Leakage or blow out
of fuel

a. Loose connections of fuel line pipe, hose or
tube

Check the fuel line connections, correct or replace the
defective part.

b. Cracked fuel line pipe, hose or tube

Replace the fuel line pipe, hose or tube.

c. Cracked fuel tank or defective welding part

Replace the fuel tank.

d. Clogged or bent fuel line pipe, hose or tube

Clean, correct or replace the fuel line pipe, hose or
tube.

Gasoline smell
inside of compart-
ment

a. Loose connections of fuel line pipe, hose or
tube

Check the fuel line connections, correct or replace the
defective part.

b. Defective gasket of fuel saucer or fuel filler
pipe assembly

Correct or replace the gasket.

c. Defective canister

Replace the canister.

Defective fuel gauge

a. Defective operation of fuel level sensor

Replace the fuel level sensor.

b. Defective operation of combination meter

Replace the combination meter.

c. Defective operation of integrated unit

Replace the integrated unit.

Noise

a. Large operation noise or vibration of fuel pump Replace the fuel pump.

EMISSION CONTROL

(AUX. EMISSION CONTROL DEVICES)

EC(STI)

Page

General Description ...................................................................................2

Front Catalytic Converter ...........................................................................5

Rear Catalytic Converter ............................................................................6

Canister ......................................................................................................7

Purge Control Solenoid Valve ..................................................................11

Fuel Level Sensor ....................................................................................14

Fuel Sub Level Sensor .............................................................................15

Pressure Control Solenoid Valve Assembly .............................................16

Drain Filter ................................................................................................17

10.

Shut Valve ................................................................................................18

11.

Leak Check Valve Assembly ....................................................................19

12.

Drain Separator ........................................................................................23

13.

PCV Hose Assembly ................................................................................24

14.

PCV Valve ................................................................................................26

15.

Secondary Air Pump ................................................................................27

16.

Secondary Air Combination Valve ...........................................................29
