ET-13
ENTERTAINMENT
Antenna Amplifier

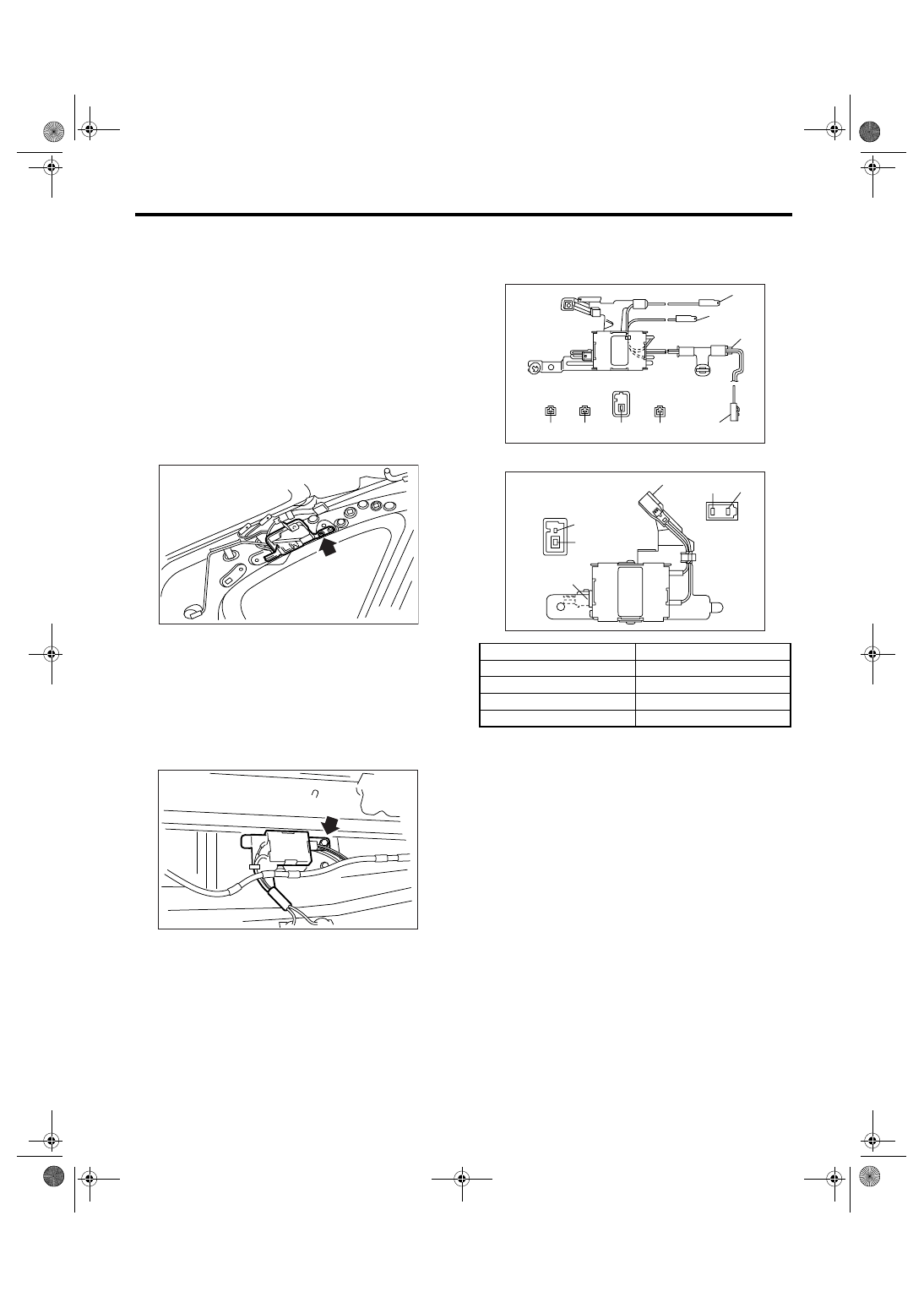

12.Antenna Amplifier

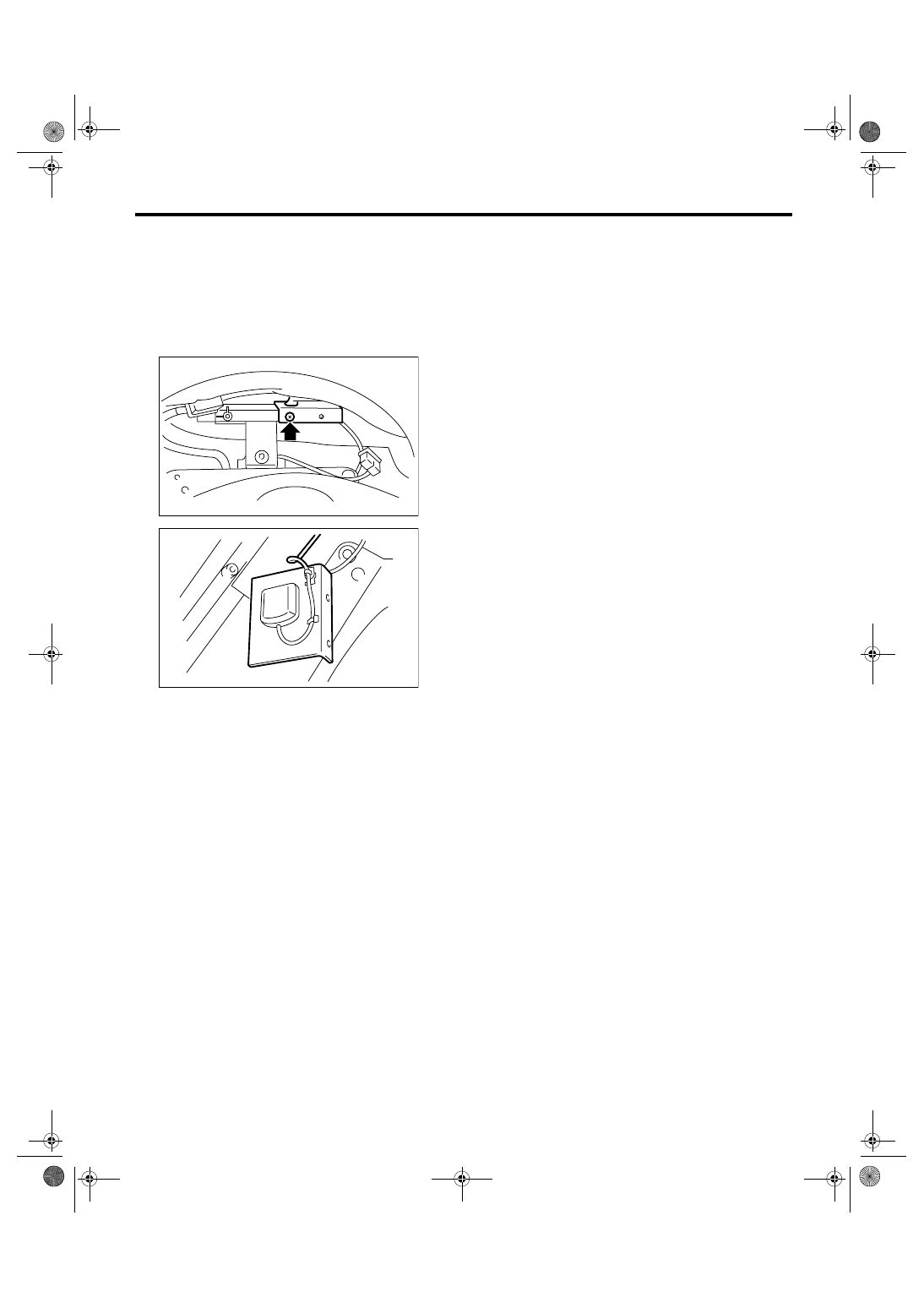

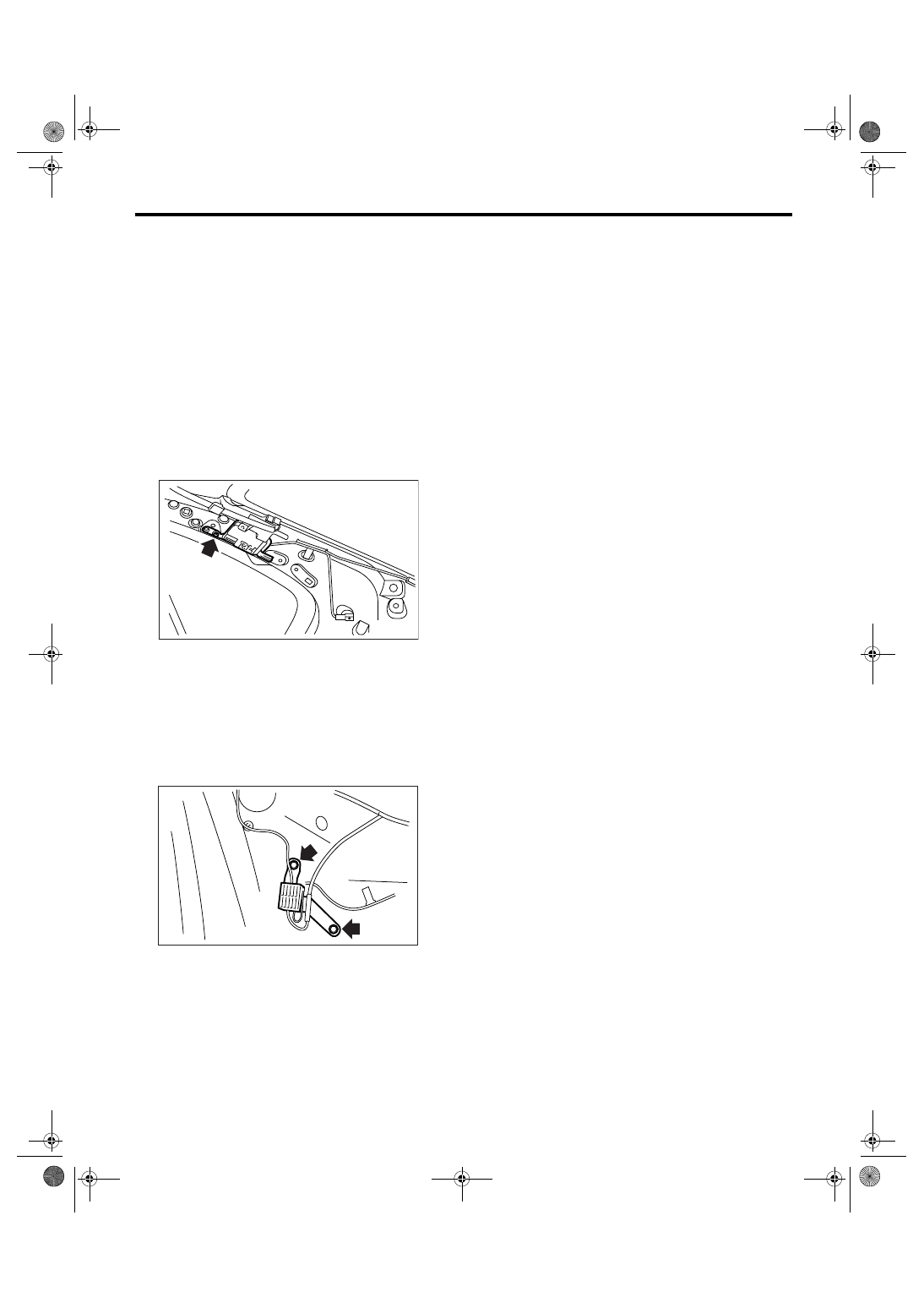

A: REMOVAL
1. SEDAN MODEL
1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim. <Ref. to EI-63,
SEDAN MODEL (MODEL WITH CURTAIN AIR-
BAG), REMOVAL, Rear Quarter Trim.>
3) Disconnect the harness connectors and termi-
nals.
4) Remove the curtain airbag module. <Ref. to AB-
20, REMOVAL, Curtain Airbag Module.>
5) Remove the screw and detach antenna amplifi-
er.
2. WAGON MODEL
1) Disconnect the ground cable from battery.
2) Remove the rear gate trim. <Ref. to EI-69, RE-
MOVAL, Rear Gate Trim.>
3) Disconnect the harness connectors and termi-
nals.
4) Remove the screw and remove antenna amplifi-
er.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance of antenna amplifier.
• Sedan model
• Wagon model
ET-00088
ET-00089
Terminal No.
Standard
(1)-a and Amplifier body
More than 10 k
Ω
(1)-b and Amplifier body
More than 10 k
Ω
(2)-a and Amplifier body
More than 10 k
Ω
(3)-a and Amplifier body
More than 10 k
Ω
ET-00090
(3)
(2)
(2)-b
(1)-a
(1)-b
(3)-a
(1)-a
(1)-b
ET-00091
(3)-a
(2)-b
(1)-a
(1)-b
(1)
(2),(3)
