ET-5

ENTERTAINMENT

Audio

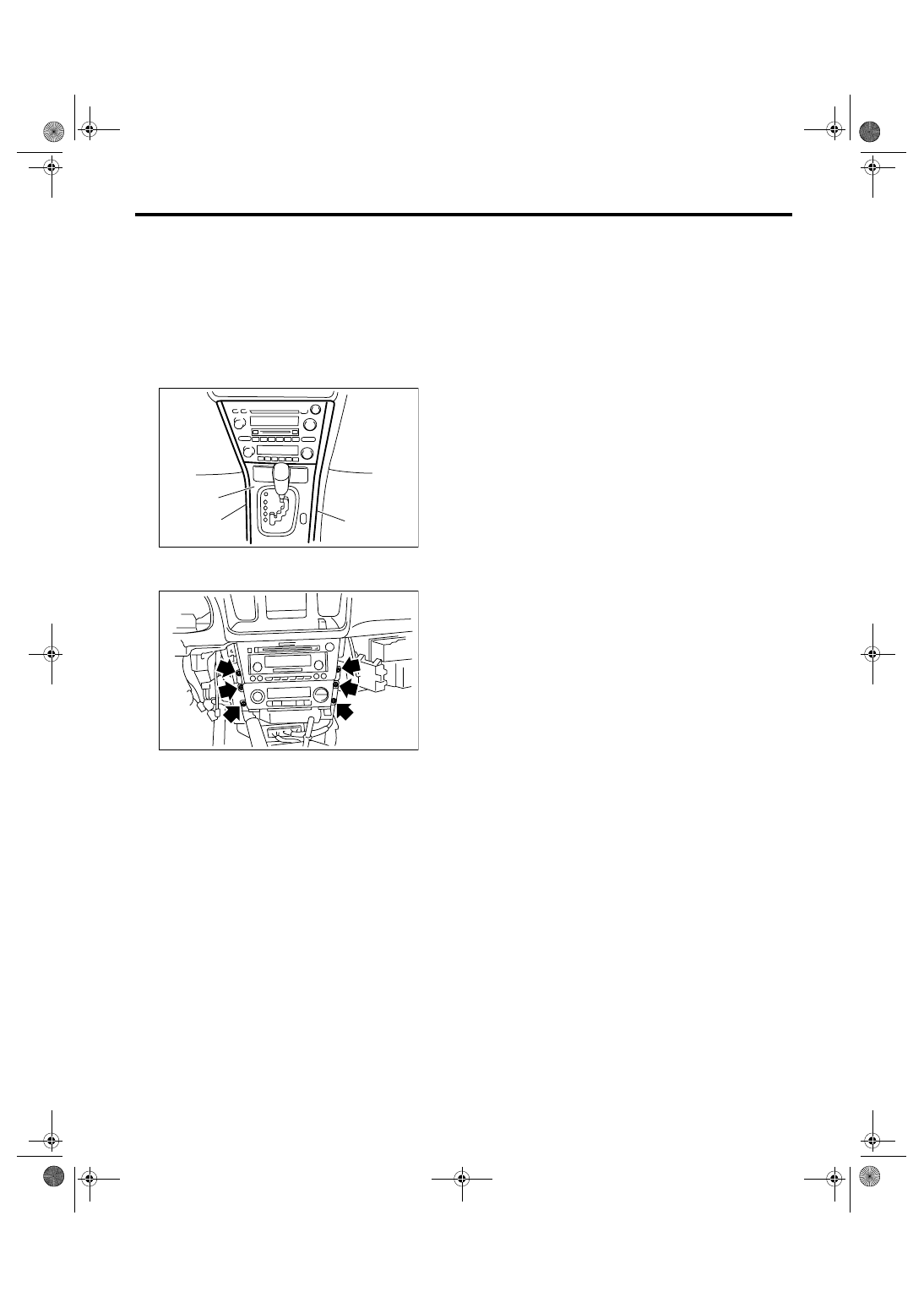

4. Audio

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the console box. <Ref. to EI-53, RE-
MOVAL, Console Box.>
3) Remove the console front panel (A). <Ref. to EI-
54, REMOVAL, Center Console.>
4) Remove the console side garnish (B). <Ref. to
EI-54, REMOVAL, Center Console.>

5) Remove the screws, and slightly pull the audio
out from center console.

6) Disconnect the harness connector and antenna
feeder cord, and then remove the audio.

B: INSTALLATION

Install in the reverse order of removal.

(B)

(B)

ET-00113

(A)

ET-00114

ET-6

ENTERTAINMENT

Front Speaker

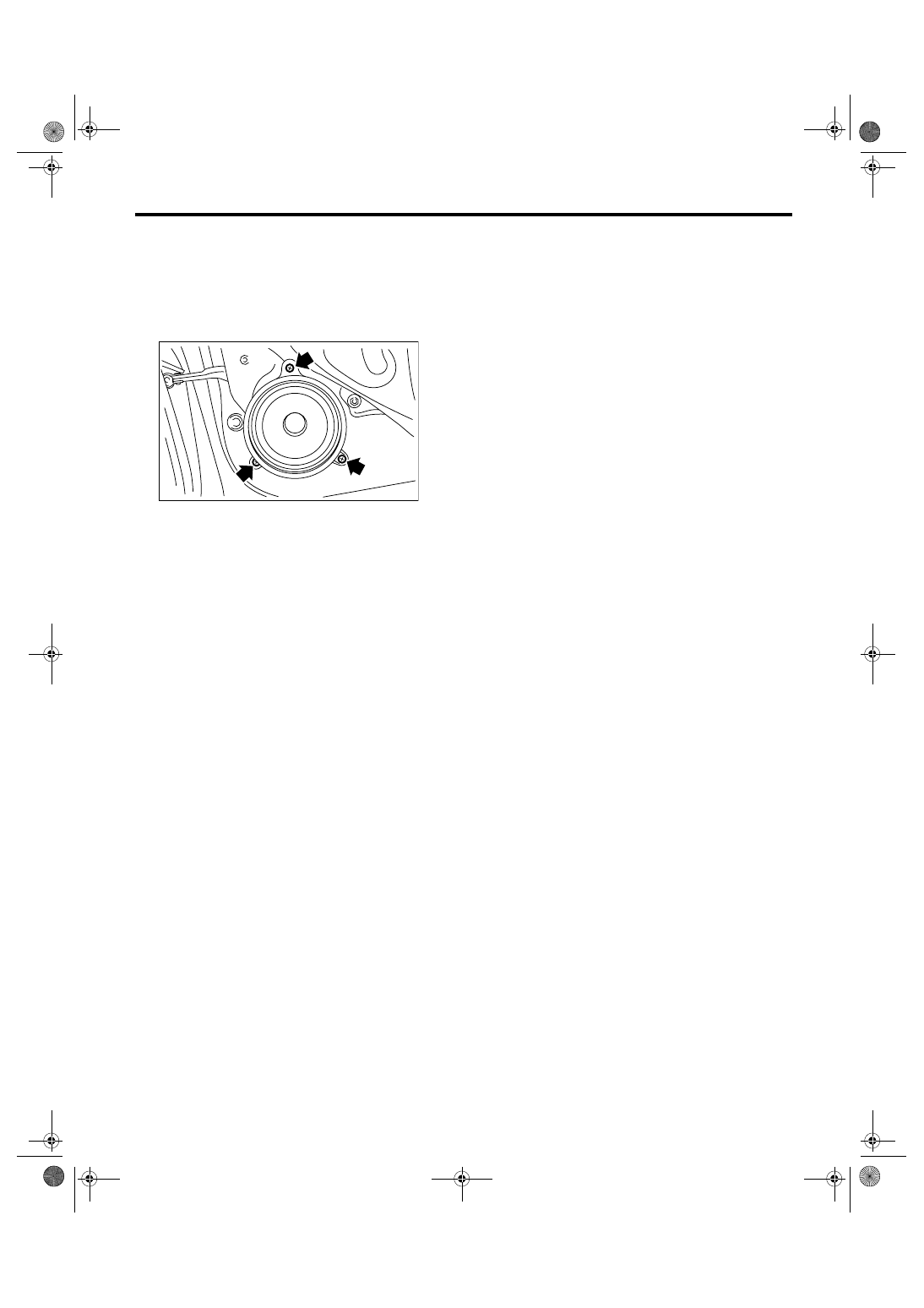

5. Front Speaker

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Remove the front speaker mounting screws.

4) Disconnect the harness connector and remove
front speaker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00080

ET-7

ENTERTAINMENT

Tweeter

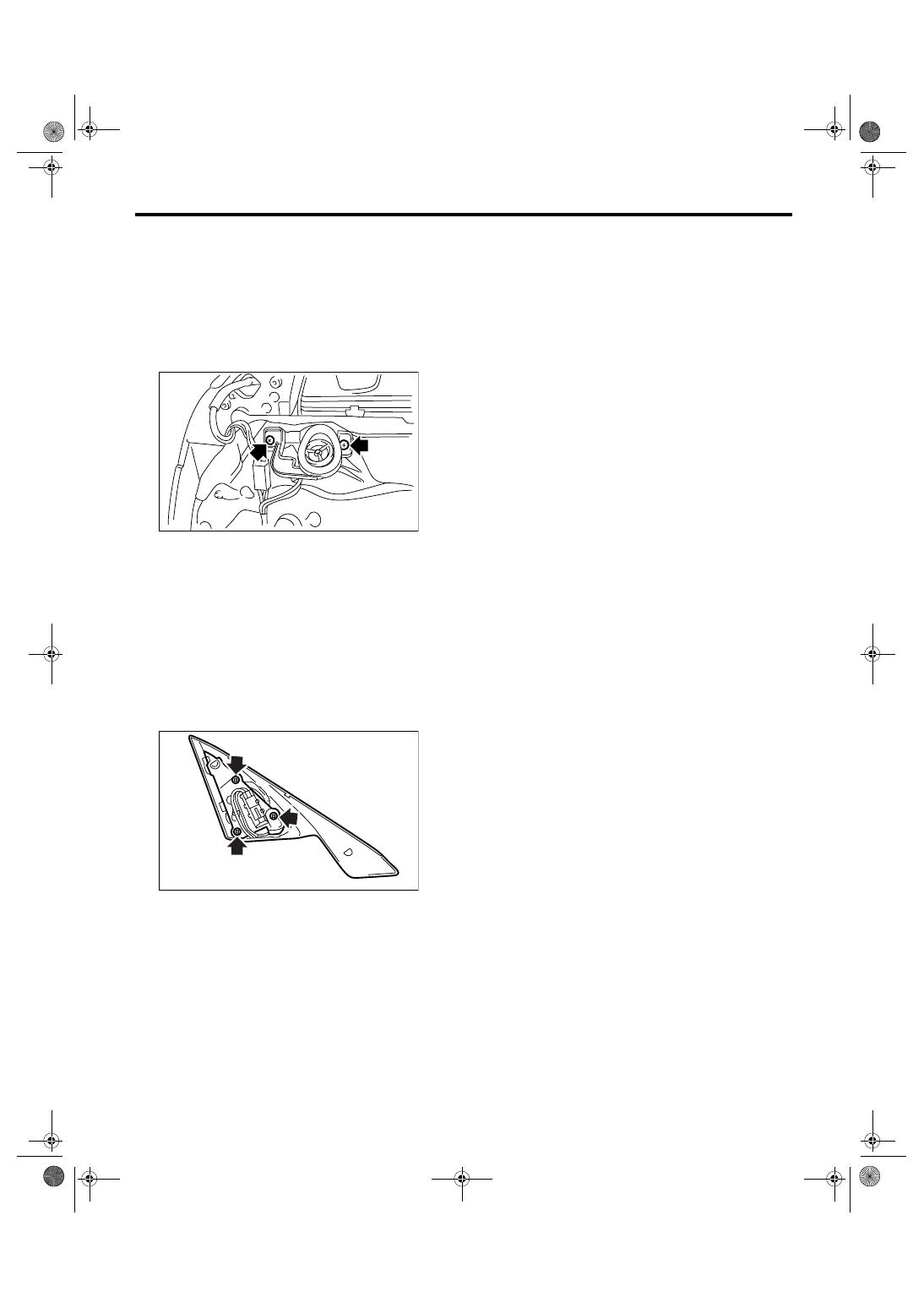

6. Tweeter

A: REMOVAL

1. MODEL WITH TWEETER

1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Remove the tweeter mounting screws.

4) Disconnect the harness connector and remove
tweeter.

2. MODEL WITH MCINTOSH AUDIO SYS-
TEM

1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Remove the gusset cover. <Ref. to GW-19, RE-
MOVAL, Outer Mirror Assembly.>
4) Disconnect the harness connector and remove
tweeter.

B: INSTALLATION

Install in the reverse order of removal.

ET-00081

ET-00082

ET-8

ENTERTAINMENT

Squawker

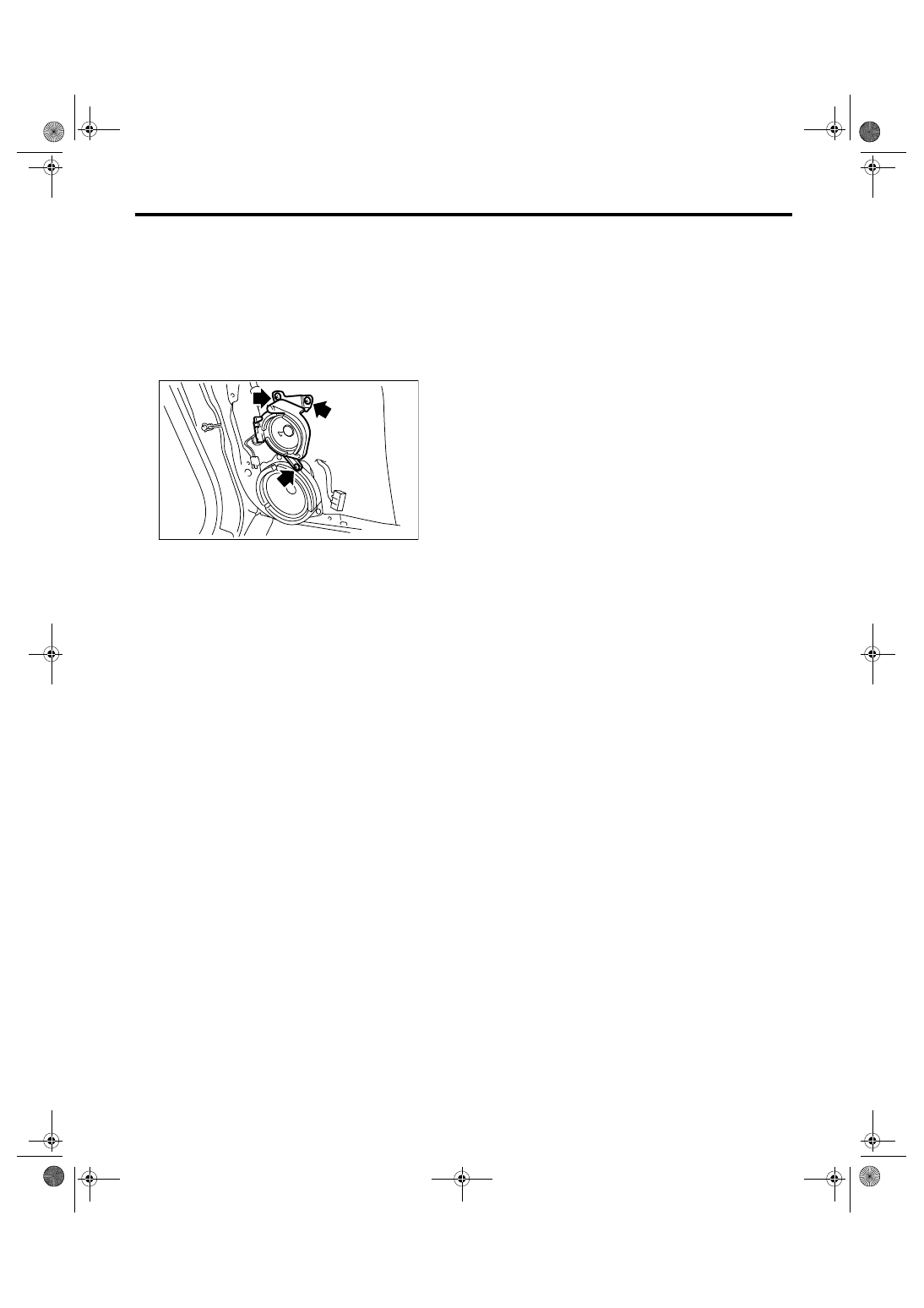

7. Squawker

A: REMOVAL

NOTE:
Model with McIntosh audio system only.
1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Remove the squawker mounting screws.

4) Disconnect the harness connectors and remove
squawker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00083
