Subaru Legacy (2005 year). Manual - part 944





ET-9

ENTERTAINMENT

Rear Speaker

8. Rear Speaker

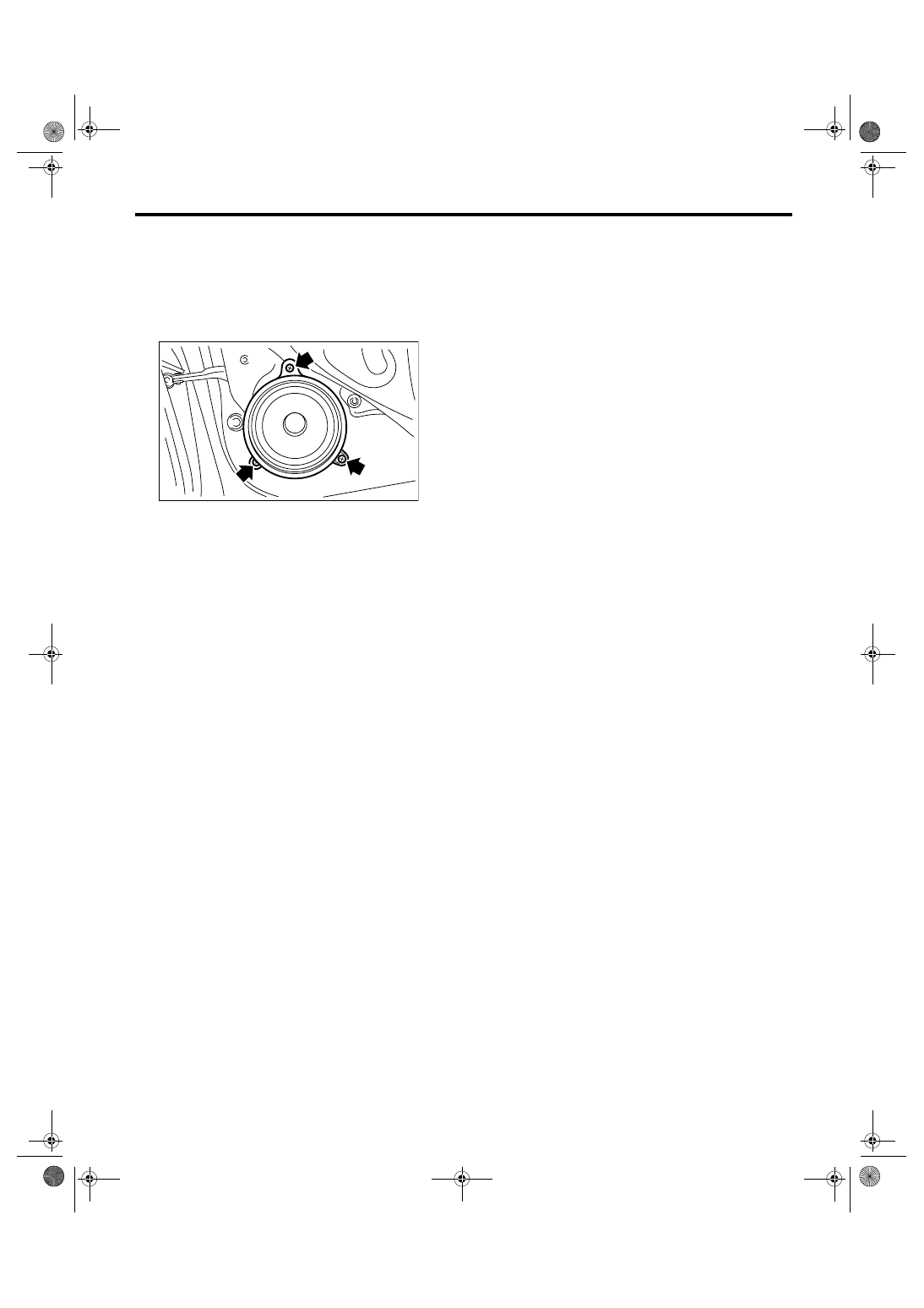

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the rear door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
3) Remove the rear speaker mounting screws.

4) Disconnect the harness connector and remove
the rear speaker.

B: INSTALLATION

Install in the reverse order of removal.

ET-00084

ET-10

ENTERTAINMENT

Woofer

9. Woofer

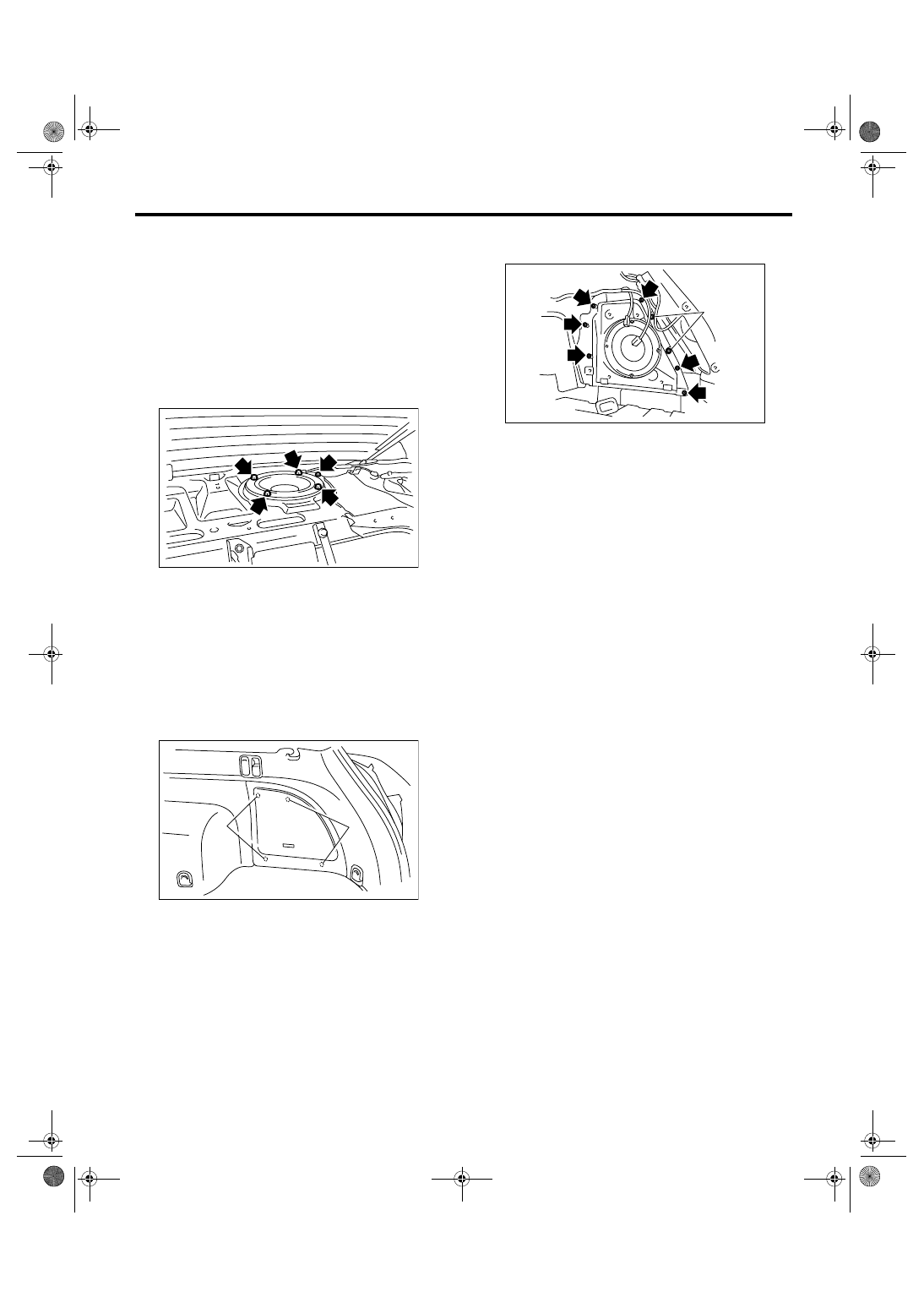

A: REMOVAL

1. SEDAN MODEL

NOTE:
Model with McIntosh audio system only.
1) Disconnect the ground cable from battery.
2) Remove the rear shelf trim. <Ref. to EI-70, RE-
MOVAL, Rear Shelf Trim.>
3) Remove the woofer mounting screws.

4) Disconnect the harness connector and remove
woofer.

2. WAGON MODEL

NOTE:
Model with McIntosh audio system only.
1) Disconnect the ground cable from battery.
2) Remove the hooks (A) and remove the woofer
cover. <Ref. to EI-63, REMOVAL, Rear Quarter
Trim.>

3) Remove the quarter lower trim. <Ref. to EI-63,
REMOVAL, Rear Quarter Trim.>

4) Remove the woofer bracket mounting clip (A)
and screws, and then remove the woofer bracket.

5) Disconnect the harness connector and remove
the woofer.

B: INSTALLATION

Install in the reverse order of removal.

ET-00085

(A)

(A)

ET-00086

ET-00106

(A)

ET-11

ENTERTAINMENT

Power Amplifier

10.Power Amplifier

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the passenger’s seat. <Ref. to SE-7,
REMOVAL, Front Seat.>
3) Disconnect the harness connector.
4) Remove the nuts to remove power amplifier.

B: INSTALLATION

Install in the reverse order of removal.

ET-00165

ET-12

ENTERTAINMENT

Antenna

11.Antenna

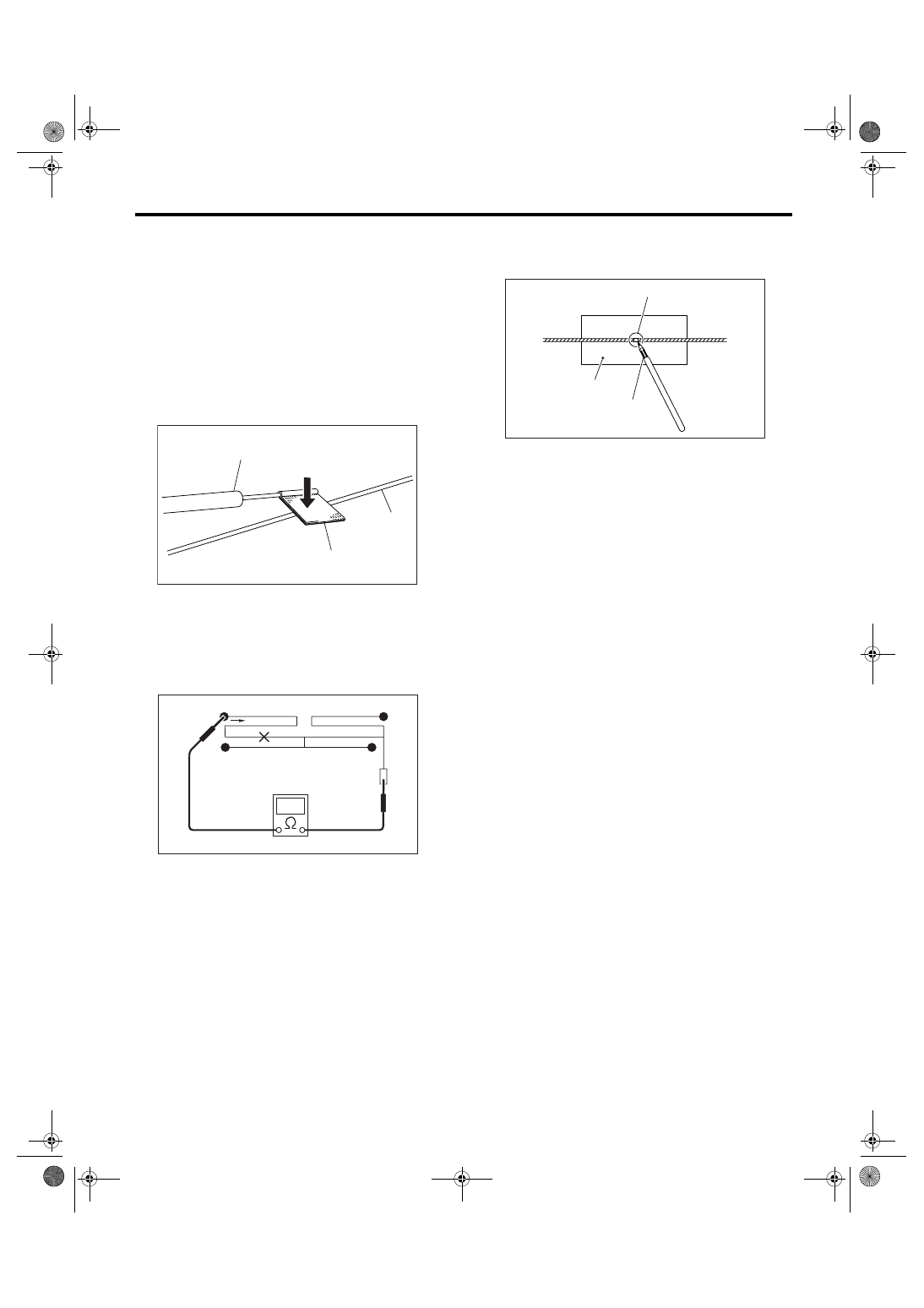

A: INSPECTION

Measure the resistance between antenna terminal
and each antenna wire.
If an antenna wire is OK, resistance will be less
than 1

Ω. If an antenna wire is broken, resistance

will be more than 1 M

Ω.

NOTE:
When checking the continuity, wind a piece of alu-
minum foil around the tip of tester probe and press
the foil against wire with your finger.

To locate the broken point, move the probe along
antenna wire.

B: REPAIR

1) Clean the antenna wire and surrounding area
with a cloth dampened by alcohol.
2) Paste a thin masking film on the glass along bro-
ken wire.

3) Apply conductive silver composition (DUPONT
No. 4817) on the broken portion with a drawing
pen.

4) Dry out the deposited portion.
5) After repair has been completed, measure the
resistance in repaired wire.

(A) Tester probe

(B) Aluminum foil

(C) Antenna wire

ET-00007

(B)

(C)

(A)

ET-00008

(A) Broken portion

(B) Masking film

(C) Conductive silver composition

ET-00009

(B)

(C)

(A)
