VDC-21

VEHICLE DYNAMICS CONTROL (VDC)

Front Magnetic Encoder

9. Front Magnetic Encoder

A: NOTE

For the vehicle equipped with VDC, it has the same
magnetic encoder as installed to the vehicle
equipped with ABS. For removal, installation and
inspection procedure, refer to “Front Magnetic En-
coder”. <Ref. to ABS-16, Front Magnetic Encoder.>

VDC-22

VEHICLE DYNAMICS CONTROL (VDC)

Rear Magnetic Encoder

10.Rear Magnetic Encoder

A: NOTE

For the vehicle equipped with VDC, it has the same
magnetic encoder as installed to the vehicle
equipped with ABS. For removal, installation and
inspection procedure, refer to “Rear Magnetic En-
coder”. <Ref. to ABS-17, Rear Magnetic Encoder.>

VDC-23

VEHICLE DYNAMICS CONTROL (VDC)

VDC OFF Switch

11.VDC OFF Switch

A: REMOVAL

1) Remove the instrument panel lower cover.
2) Remove the screws, and then remove the VDC
OFF switch.
• RHD model

• LHD model

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

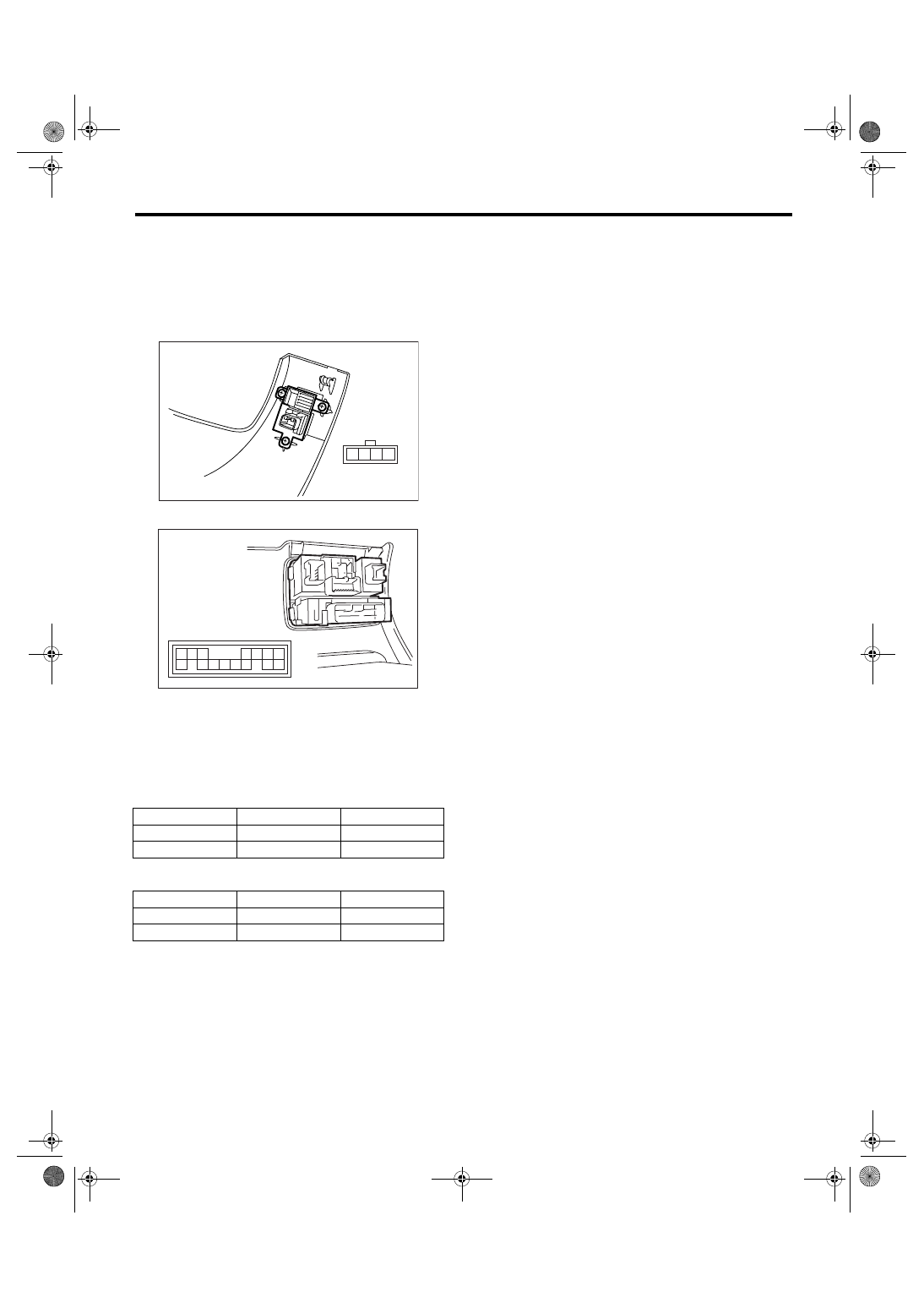

Measure the resistance between VDC OFF switch
terminals.
• RHD model

• LHD model

If it is out of standard, replace the VDC OFF switch.

Switch position

Terminal No.

Standard

OFF

2 — 3

More than 1 M

Ω

ON

2 — 3

Less than 1

Ω

Switch position

Terminal No.

Standard

OFF

2 — 15

More than 1 M

Ω

ON

2 — 15

Less than 1

Ω

VDC00210

4 3 2 1

VDC00240

7 6 5

4 3 2 1

15

14 13 12 11 10

9 8
